73
V I S I B I L I T Y
V
Automatic lighting
The sidelamps and dipped head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns
t o a s u f fi c i e n t l e v e l o r a f t e r t h e w i n d -
screen wipers are switched off, the
lights are switched off automatically.
Activation
Turn ring A to the "AUTO" posi-
tion. The automatic lighting is ac-
companied by a message on the
multifunction screen.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the multifunction screen. Linking with the automatic
"Guide-me-home" lighting
Association with the automatic light-
ing provides the "guide-me-home"
lighting with the following additional
options:
- selection of the lighting duration
for 15, 30 or 60 seconds in the
vehicle parameters on the mul-
t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu (in the case of the mono-
chrome screen A, the duration is
fi x e d ) ,
- automatic activation of "guide- me-home" lighting when auto-
matic lighting is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lights come
on, a message appears on the mul-
tifunction screen, accompanied by
an audible signal.
Consult a CITROËN dealer. In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the interior mirror;
the associated functions would no
longer be controlled. MANUAL ADJUSTMENT OF THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle. To do this,
turn the control, located below the
fascia to the right of the driver, to the
appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 to 7 people.
-. Intermediate setting.
2. 4 to 7 people + maximum
authorised loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
Page 81 of 282
72
V I S I B I L I T Y
V
* According to country.
Daytime running lights *
On vehicles which are equipped with
daytime running lights, the dipped
headlamps come on when the vehi-
cle is started.
This indicator lamp comes on on the
instrument panel screen.
The instruments and controls (instru-
ment panel, multifunction screen,
a i r c o n d i t i o n i n g c o n t r o l p a n e l . . . ) a r e
only lit on switching to the automatic
lighting mode or when the lights are
switched on manually.
Manual guide-me-home
lighting
The temporary lighting of dipped
headlamps after the vehicle's igni-
tion has been switched off makes
the driver's exit easier when the light
is poor.
Switching on
W i t h t h e i g n i t i o n o f f , " fl a s h " t h e
headlamps using the lighting
stalk B .
A s e c o n d " h e a d l a m p fl a s h "
switches the function off again.
Switching off
The manual guide-me-home lighting
switches off automatically after a set
time. The manual guide-me-home light-
ing is also available by pressing the
lighting button on the remote con-
trol (refer to the section "Accesses -
§ R e m o t e c o n t r o l k e y " ) .
Page 82 of 282
73
V I S I B I L I T Y
V
Automatic lighting
The sidelamps and dipped head-
lamps are switched on automatically,
without any action on the part of the
driver, when a low level of external
light is detected or in certain cases of
activation of the windscreen wipers.
As soon as the brightness returns
t o a s u f fi c i e n t l e v e l o r a f t e r t h e w i n d -
screen wipers are switched off, the
lights are switched off automatically.
Activation
Turn ring A to the "AUTO" posi-
tion. The automatic lighting is ac-
companied by a message on the
multifunction screen.
Deactivation
Turn ring A to a position other
than "AUTO" . Deactivation is
accompanied by a message on
the multifunction screen. Linking with the automatic
"Guide-me-home" lighting
Association with the automatic light-
ing provides the "guide-me-home"
lighting with the following additional
options:
- selection of the lighting duration
for 15, 30 or 60 seconds in the
vehicle parameters on the mul-
t i f u n c t i o n s c r e e n c o n fi g u r a t i o n
menu (in the case of the mono-
chrome screen A, the duration is
fi x e d ) ,
- automatic activation of "guide- me-home" lighting when auto-
matic lighting is in operation.
Operating fault
In the event of a malfunction of the
brightness sensor, the lights come
on, a message appears on the mul-
tifunction screen, accompanied by
an audible signal.
Consult a CITROËN dealer. In fog or snow, the brightness
s e n s o r m a y d e t e c t s u f fi c i e n t l i g h t .
Therefore, the lights will not come
on automatically.
Do not cover the brightness sen-
sor, linked with the rain sensor and
located in the centre of the wind-
screen behind the interior mirror;
the associated functions would no
longer be controlled. MANUAL ADJUSTMENT OF THE HEADLAMPS
To avoid dazzling other road users,
the height of the halogen bulb head-
lamps must be adjusted according
to the load in the vehicle. To do this,
turn the control, located below the
fascia to the right of the driver, to the
appropriate position:
0. 1 or 2 people in the front seats.
-. 3 people.
1. 4 to 7 people.
-. Intermediate setting.
2. 4 to 7 people + maximum
authorised loads.
-. Intermediate setting.
3. Driver + maximum authorised
loads.
Initial setting is position "0".
Page 83 of 282
74
V I S I B I L I T Y
V
AUTOMATIC ADJUSTMENT OF THE XENON HEADLAMPS
In order to avoid causing a nuisance
to other road users, this system cor-
rects the height of the xenon head-
lamps beam automatically and when
stationary, in relation to the load in
the vehicle.
If a malfunction oc-
curs, this warning lamp
is displayed on the
instrument panel, ac-
companied by an audible signal and a
message on the multifunction screen.
The system then places your head-
lamps in the lowest position.
If a malfunction occurs, do not
touch the xenon bulbs. Contact a
CITROËN dealer.
When the dipped or main beam
headlamps are on, this function ena-
bles the light beam to follow the di-
rection of the road.
The use of this function, coupled
with the xenon headlamps only,
considerably improves the quality of
your lighting when cornering.
with directional lighting
without directional lighting Programming
The function is activat-
ed or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
Operating fault If a malfunction occurs, this
w a r n i n g l a m p fl a s h e s o n t h e
instrument panel, accompa-
nied by a message on the
multifunction screen.
Consult a CITROËN dealer.
When stationary or moving at very
low speed or when reverse gear is
engaged, the system is inactive.
The status of the system remains
in the memory when the ignition is
switched off.
O n v e h i c l e s fi t t e d w i t h d a y t i m e
running lights, the function is acti-
vated if the lighting stalk is in the
"AUTO" or "Dipped/main beam
headlamps" position. In position
"0" , the function is not activated.
Page 85 of 282
76
V I S I B I L I T Y
V
Reverse gear
When reverse gear is engaged, the
rear wiper will come into operation if
the windscreen wipers are operating.
Programming The function is activat-
ed or deactivated via
the multifunction screen
c o n fi g u r a t i o n m e n u .
This function is activat-
ed by default.
Windscreen and headlamp
wash
Pull the windscreen wiper stalk
towards you. The windscreen
wash then the windscreen wipers
o p e r a t e f o r a fi x e d p e r i o d .
If the dipped headlamps are on ,
the headlamp washers operate at
the same time. Automatic windscreen wiping
The windscreen wipers operate au-
tomatically, without any action on the
part of the driver, if rain is detected
( s e n s o r b e h i n d t h e i n t e r i o r m i r r o r ) ,
adapting their speed to the intensity
of the rainfall.
Activation

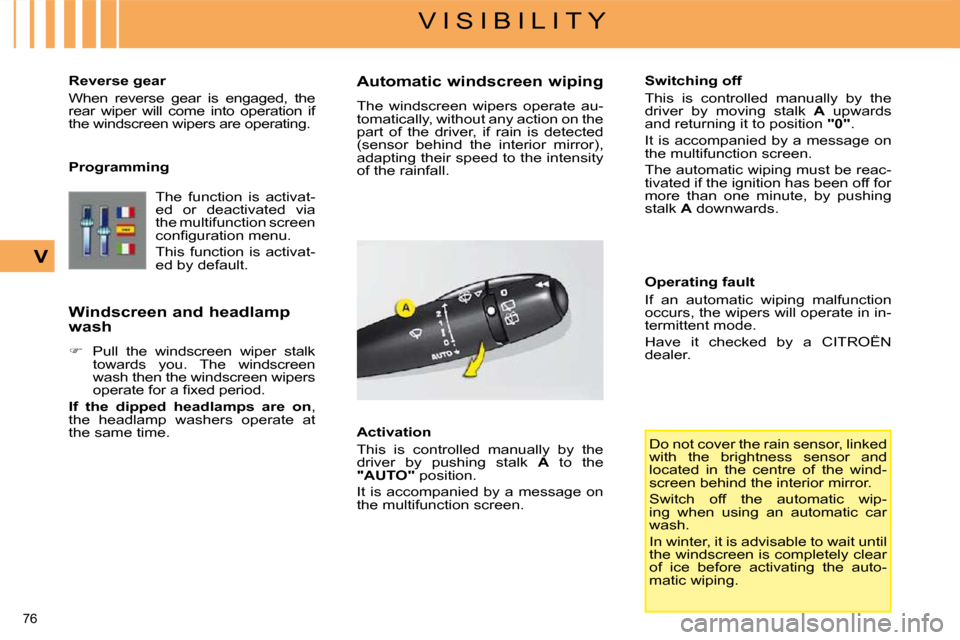

This is controlled manually by the
driver by pushing stalk
A to the
"AUTO" position.
It is accompanied by a message on
the multifunction screen. Switching off
This is controlled manually by the
driver by moving stalk
A upwards
and returning it to position "0" .
It is accompanied by a message on
the multifunction screen.
The automatic wiping must be reac-
tivated if the ignition has been off for
more than one minute, by pushing
stalk A downwards.
Operating fault
If an automatic wiping malfunction
occurs, the wipers will operate in in-
termittent mode.
Have it checked by a CITROËN
dealer.
Do not cover the rain sensor, linked
with the brightness sensor and
located in the centre of the wind-
screen behind the interior mirror.
Switch off the automatic wip-
ing when using an automatic car
wash.
In winter, it is advisable to wait until
the windscreen is completely clear
of ice before activating the auto-
matic wiping.
Page 149 of 282
128
X
C H E C K S
PETROL ENGINES
The caps and covers a l l o w a c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s a n d f o r r e p l a c i n g c e r t a i n c o m p o n e n t s .
1. P o w e r s t e e r i n g r e s e r v o i r .
2. Screenwash and headlamp wash
reservoir.
3. Coolant reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Battery.
6. Fuse box.
7. A i r fi l t e r * .
8. Dipstick.
9. E n g i n e o i l fi l l e r c a p .
* According to engine.
Page 150 of 282
129
X
C H E C K S * According to engine.
DIESEL ENGINES
T h e c o v e r s a n d c a p s a l l o w a c c e s s f o r c h e c k i n g t h e l e v e l s o f t h e v a r i o u s fl u i d s , f o r r e p l a c i n g c e r t a i n c o m p o n e n t s a n d f o r
priming the fuel system.
1. P o w e r s t e e r i n g r e s e r v o i r .
2. Screenwash and headlamp
wash reservoir.
3. Coolant reservoir.
4. B r a k e fl u i d r e s e r v o i r .
5. Battery.
6. Fuse box.
7. A i r fi l t e r * .
8. Dipstick.
9. E n g i n e o i l fi l l e r c a p .
10. P r i m i n g p u m p * .
11. Degas screw * . As the diesel fuel circuit is
pressurised, any work on
this circuit is prohibited.
Page 152 of 282
131
X
C H E C K S
Screenwash and headlamp
wash fluid
F l u i d s p e c i fi c a t i o n
For optimum cleaning and to avoid
f r e e z i n g , t h i s fl u i d m u s t n o t b e t o p p e d
up or replaced with plain water.
Reservoir capacities:
-
screenwash: approximately 3 litres,
- screenwash and headlamp wash: approximately 6 litres. Diesel additive level (Diesel
engine with particle emission
filter)
A low additive level is indicated by
lighting of the service warning lamp,
accompanied by an audible warning
and a message on the multifunction
screen.
Topping up
This additive must be topped up by
a CITROËN dealer without delay.
Used products
Avoid prolonged contact of
u s e d o i l o r fl u i d s w i t h t h e
skin.
M o s t o f t h e s e fl u i d s a r e h a r m f u l t o
health or indeed very corrosive.
Do not discard used oil or
fl u i d s i n t o s e w e r s o r o n t o
the ground.
Take used oil to an authorised
waste disposal site.
I n t h e c a s e o f v e h i c l e s fi t t e d
with headlamp washers, the
m i n i m u m l e v e l o f t h i s fl u i d i s
indicated by an audible sig-
nal and a message on the multifunc-
tion screen.
Top up the level when you next stop
the vehicle.
