FAMILIARISATION OPEN
Boot M o v a b l e b o o t fl o o r
T h i s m o v a b l e b o o t fl o o r w i t h t w o p o s i -
t i o n s a l l o w s y o u t o :
- m a x i m i s e t h e v o l u m e o f t h e b o o t ,
- p a r t i t i o n t h e b o o t ( s t o r i n g o f t h e r e a r
shelf...),
- o b t a i n a fl a t fl o o r f r o m t h e b o o t opening to the front seats, when the
rear bench seat is in the retracted
position.
1. U n l o c k i n g o f t h e v e h i c l e .
2. Opening of the boot.
60
80
A. Interior control.
B. E x t e r i o r c o n t r o l .
C. B o n n e t s t r u t .
109
Bonnet
Page 19 of 207
22
INSTRUMENTS and CONTROLS Engine autodiagnostics
system.
If this comes on, it indicates the
occurrence of a fault in the en-
gine management system.
I f i t fl a s h e s , i t i n d i c a t e s t h e o c c u r r e n c e o f
a fault in the emission control system.
Low fuel level.
If this comes on, it indicates that
you only have enough fuel left
to drive approximately 30 miles
(50 km).
The capacity of the tank is approximately
50 litres.
Coolant temperature.
If this comes on, it indicates that
the temperature in the cooling
system is too high.
Stop the vehicle as soon as it is safe
to do so.
Wait for a few minutes before switching
off the engine.
Consult a CITROËN dealer.
After a few minutes driving, the tempera-
ture and the pressure rise in the cooling
system. Air bags.
If this comes on, it indicates the
occurrence of a fault in one of
the air bag or seat belt preten-
sioner systems.
Power steering.
If this is displayed, it indicates
the occurrence of a fault in
the power steering. Get to
a CITROËN dealership as safely as
possible.
Door open.
A door or the boot is open:
Battery charge.
If this comes on, it indicates
the occurrence of a fault in the
battery charging circuit (dirty or
loose terminals, slack or cut alternator
belt...). Engine oil pressure.
If this comes on, it indicates the
occurrence of a fault in the en-
gine lubrication circuit. Stop the
vehicle immediately and as safely as
possible.
To top up the level:
wait for the engine to cool down,
unscrew the cap by 2 turns to allow
the pressure to fall,
when the pressure has fallen, re-
move the cap,
top up the level to the "MAXI" mark.
Seat belt not fastened/
unfastened.
If this comes on, it indicates
that the driver and/or the front
passenger has not fastened or has un-
fastened his seat belt.
It also indicates that one or more rear
passengers have unfastened their seat
belt.
-
if the speed is below 6 mph (10 km/h),
this warning light comes on continuously.
- if the speed is higher than 6 mph (10 km/h), this warning light comes
on continuously, accompanied by an
audible signal.
Page 24 of 207
27
MULTIFUNCTION DISPLAYS
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e ( t h i s fl a s h e s if there is a risk of ice),
- the status of the accesses (doors, boot, etc.),
- the trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button.
(WITHOUT AUDIO EQUIPMENT)
Controls General menu
There are three display control buttons:
- "ESC" to abandon the operation in
progress,
- "MENU" to scroll through the men-
us or sub-menus,
- "OK" to select the menu or sub-
menu required.
Press the "MENU" button to scroll
through the various menus of the
general menu :
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- languages,
- units.
Press the "OK" button to select the
menu required.
Page 26 of 207
29
MULTIFUNCTION DISPLAYS
MONOCHROME SCREEN A
(WITH AUDIO EQUIPMENT)
Controls
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e ( t h i s fl a s h e s if there is a risk of ice),
- the status of the accesses (doors, boot...),
- the audio sources (radio, CD...),
- the trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button. General menu
Press the "MENU" button to gain
access to the general menu , then
press the " " or " " buttons to
scroll through the various menus:
- radio-CD,
- v e h i c l e c o n fi g u r a t i o n ,
- options,
- display settings,
- languages,
- units.
Press the "OK" button to select the
menu required.
From the audio equipment control pan-
el, you can:
press the "MENU" button to gain
access to the general menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source ...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. Radio-CD
With the audio equipment switched on,
once the "Radio-CD" menu has been
selected you can activate or deactivate
the functions linked with use of the radio
(RDS, REG) or the CD (introscan, shuf-
fl e , C D r e p e a t ) .
For further details concerning the "Radio-
CD" application, refer to the Audio system
part of the "Audio and Telematics" section.
Page 30 of 207
33
MULTIFUNCTION DISPLAYS
Displays on the screen
This displays the following information:
- the time,
- the date,
- t h e o u t s i d e t e m p e r a t u r e ( t h i s fl a s h - es if there is a risk of ice),
- the status of the accesses (doors, boot, etc.),
- the audio sources (radio, CD, USB socket, etc.),
- the trip computer (refer to the end of the section).
Warning messages or information mes-
sages may appear temporarily. These
can be cleared by pressing the "ESC"
button. From the audio equipment control panel,
you can:
press the "MENU" button to gain
access to the general menu ,
press the " " or " " buttons to scroll
through the items on the screen,
press the "MODE" button to change
the permanent application (trip com-
puter, audio source...),
press the " " or " " buttons to
change a setting value,
press the "OK" b u t t o n t o c o n fi r m ,
or
press the "ESC" button to abandon
the operation in progress. General menu
Press the "MENU" button to gain
access to the general menu :
- audio functions,
- the trip computer (refer to the end of the section),
- p e r s o n a l i s a t i o n - c o n fi g u r a t i o n ,
Press the " " or " " buttons to se-
l e c t t h e m e n u r e q u i r e d , t h e n c o n fi r m
by pressing the "OK" button.
MONOCHROME SCREEN C
(WITH AUDIO EQUIPMENT)
Controls
"Audio functions" menu
With the audio equipment switched on,
once this menu has been selected you
can activate or deactivate the functions
linked with use of the radio (RDS, REG,
R a d i o T e x t ) , t h e C D ( i n t r o s c a n , s h u f fl e ,
CD repeat) or the MP3 player (USB
socket).
For further details concerning the "Audio
functions" application, refer to the Audio
systems part of the "Audio and Telematics"
section.
Page 48 of 207
i
i
i
49

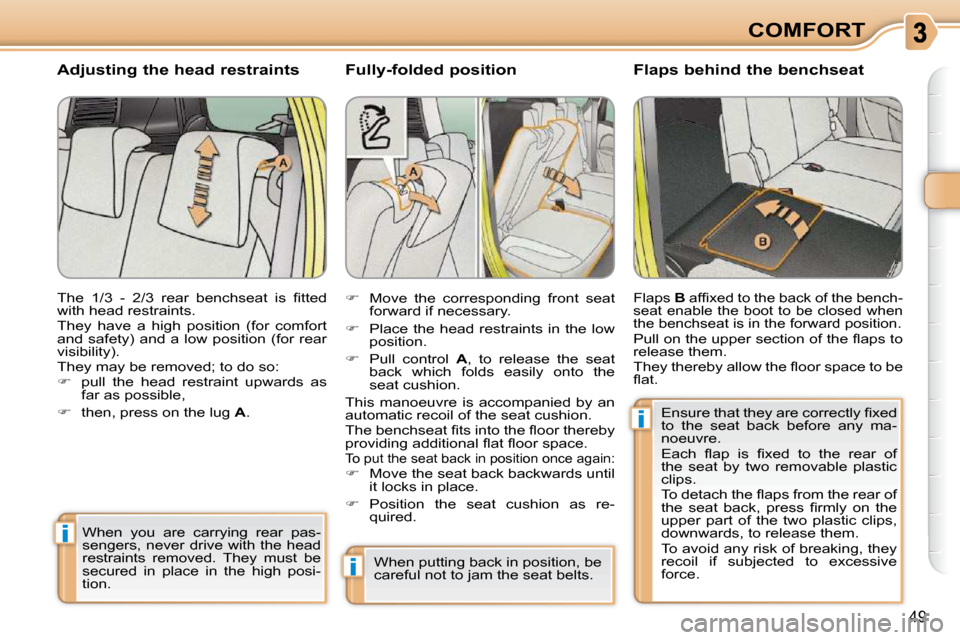

COMFORT
Fully-folded position F l a p s b e h i n d t h e b e n c h s e a t
Move the corresponding front seat
forward if necessary.
Place the head restraints in the low
position.
Pull control A , to release the seat
back which folds easily onto the
seat cushion.
This manoeuvre is accompanied by an
automatic recoil of the seat cushion.
T h e b e n c h s e a t fi t s i n t o t h e fl o o r t h e r e b y
p r o v i d i n g a d d i t i o n a l fl a t fl o o r s p a c e .
To put the seat back in position once again:
Move the seat back backwards until
it locks in place.
Position the seat cushion as re-
quired.
Flaps B a f fi x e d t o t h e b a c k o f t h e b e n c h -
seat enable the boot to be closed when
the benchseat is in the forward position.
P u l l o n t h e u p p e r s e c t i o n o f t h e fl a p s t o
release them.
T h e y t h e r e b y a l l o w t h e fl o o r s p a c e t o b e
fl a t .
A d j u s t i n g t h e h e a d r e s t r a i n t s
T h e 1 / 3 - 2 / 3 r e a r b e n c h s e a t i s fi t t e d
with head restraints.
They have a high position (for comfort
and safety) and a low position (for rear
visibility).
They may be removed; to do so:
pull the head restraint upwards as
far as possible,
then, press on the lug A .
When you are carrying rear pas-
sengers, never drive with the head
restraints removed. They must be
secured in place in the high posi-
tion.
When putting back in position, be
careful not to jam the seat belts. E n s u r e t h a t t h e y a r e c o r r e c t l y fi x e d
to the seat back before any ma-
noeuvre.
E a c h fl a p i s fi x e d t o t h e r e a r o f
the seat by two removable plastic
clips.
T o d e t a c h t h e fl a p s f r o m t h e r e a r o f
t h e s e a t b a c k , p r e s s fi r m l y o n t h e
upper part of the two plastic clips,
downwards, to release them.
To avoid any risk of breaking, they
recoil if subjected to excessive
force.
Page 51 of 207
i
i
52
ACCESS
REMOTE CONTROL KEY
System which permits central unlock-
ing or locking of the vehicle using the
lock or from a distance. It is also used to
locate and start the vehicle, as well as
providing protection against theft.
Unfolding the key
First press button A to unfold the key.
Unlocking the vehicle
Press the open padlock to
unlock the vehicle. Unlocking using the key
Turn the key to the left in the driver’s
door lock to unlock the vehicle.
U n l o c k i n g i s c o n fi r m e d b y r a p i d fl a s h i n g
of the direction indicators for approxi-
mately two seconds.
According to version, the exterior mirrors
unfold at the same time.
Unlocking using the remote control Locking the vehicle
Press the closed padlock
to lock the vehicle.
Locking using the key
Turn the key to the right in the driv-
er's door lock to lock the vehicle
completely.
L o c k i n g i s c o n fi r m e d b y fi x e d l i g h t i n g o f
the direction indicators for approximately
two seconds.
According to version, the exterior mirrors
fold at the same time.
Locking using the remote control If one of the doors or the boot is still
open, the central locking does not
take place.
When the vehicle is locked, if it is
unlocked inadvertently, it will relock
automatically after thirty seconds
unless a door is opened.
The folding and unfolding of the
exterior mirrors using the remote
control can be deactivated by a
CITROËN dealer.
Page 62 of 207
!
i
i
59
ACCESS
If the vehicle is locked from the out-
s i d e , t h e r e d i n d i c a t o r l i g h t fl a s h e s
and button A is inactive.
In this case, use the remote
control or the key to unlock the
vehicle.
If one of the doors is open, the au-
tomatic central locking does not
take place.
If the boot is open, the automatic
central locking of the doors is
active.
Manual centralised
control
System which provides full manual
locking or unlocking of the doors from
the inside.
Locking
Press button A to lock the vehicle.
The red indicator light on the button
comes on. Automatic centralised
control
System which provides full automatic
locking or unlocking of the doors and
the boot while driving.
You can activate or deactivate this function.
Activation
Press button A for more than two
seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n t h e
multifunction display, accompanied by
an audible signal.
Unlocking
Above 6 mph (10 km/h), press but-
ton A to unlock the doors and the
boot temporarily.
If one of the doors is open, the cen-
tral locking from the inside does not
take place.
Unlocking
Press button A again to unlock the
vehicle.
The red indicator light on the button
switches off. Locking
When the speed exceeds 6 mph
(10 km/h), the doors and the boot lock
automatically.
Deactivation
Press button A again for more than
two seconds.
A c o n fi r m a t i o n m e s s a g e a p p e a r s o n t h e
multifunction display, accompanied by
an audible signal.
