2008.5 Citroen C3 PICASSO DAG display

148
02 GENERAL OPERATION
For a detailed global view of the menus available, refer to the "Display fl ow charts" section of this handbook.
Press the MODE button several times in succession to gain access to the following menus:
For maintenance of the display, the use of a soft, non-abrasive cloth (spectacles cloth) is recommended, without any addi tional product.
RADIO/MUSIC MEDIA PLAYERS
PHONE (If a conversation is in progress)
FULL SCREEN MAP
NAVIGATION (If navigation is in progress)
SETUP: date and time, display and system parameters TRAFFIC: TMC information and messages

156
03
5
4
6
3
2
1
Select the NAVI VOLUME function and turn the dial to set the volume of each voice synthesiser (traffi c information, alert messages…).
Select HAZARDOUS LOCATION POIs to gain access to the DISPLAY ON MAP, VISUAL ALERT and SOUND ALERT functions.
Select the POI CATEGORIES ON MAP function to select the POIs to be displayed on the map by default.
NAVI VOLUME
Press the NAV button.
Press the NAV button again or select the NAVIGATION MENU function and press the dial to confi rm.
Select the SETTINGS function and press the dial to confi rm.
NAVIGATION MENU
SETTINGS
POI CATEGORIES ON MAP
HAZARDOUS LOCATION POIS
NAVIGATION - GUIDANCE
Contact a CITROËN dealer for details of the proced
ure for obtaining the HAZARDOUS LOCATION POIs. Updating of the HAZARDOUS LOCATION POIs requires a SDHC (High Capacity) compatible reader.

158
05
3
2
1
1
SELECTING A STATION
When the current radio station is displayed on the screen, press the dial.
The radio source short-cuts menu appears and provi
desovides access to the following short-cuts:
Select the function required and press the dial to confi rm to gain access to the corresponding settings.
TRAFFIC INFO (TA)
The RDS, if displayed, allows you to continue listening to the same The RDS, if displayed, allows you to continue listening to the same station by means of the frequency following. Howeve r, in certain station by means of the frequency following. However, in certain conditions, this RDS station cannot be followed throughout the entire conditions, this RDS station cannot be followed throughout the entire country as radio stations do not cover 100 % of the terrie territory. This explains the loss of reception of the station during a journey. explains the loss of reception of the station during a journey.
The external environment (hill, building, tunnel, underground car park...) may interfere with the reception, including in RDS following mode. Thi s phenomenon is a normal result of the way in which radio waves are transmitted and does n ot in any way indicate a failure of the audio equipment.
RDS - REGIONAL MODE - TRAFFIC INFO
Press the RADIO button to display the list of stations received locally sorted in alphabetical order. Select the station required by turning the dial and press to confi rm.
While listening to the radio, press one of the buttons to select the previous or next station on the list.
Press one of the buttons on the numeric keypad for more than Press one of the buttons on the numeric keypad for more than 2 seconds to store the current station. Press the button on the numeric keypad to recall the stored radio Press the button on the numeric keypad to recall the stored radio station.
RDS
RADIOTEXT
REGIONAL MODE
AM
RADIO
A long press of one of the buttons starts the automatic search for a station with a lower or higher frequency.

162
07
3
1
2
4
2
1
5
The services offered by the telephone depend on th
e network, the SIM card and the compatibility of the Bluetooth equipment used. Refer to your telepho ne’s manual and your operator to check which services you have access to. A list of mobile telephones which offer the best range of services is available from dealers.

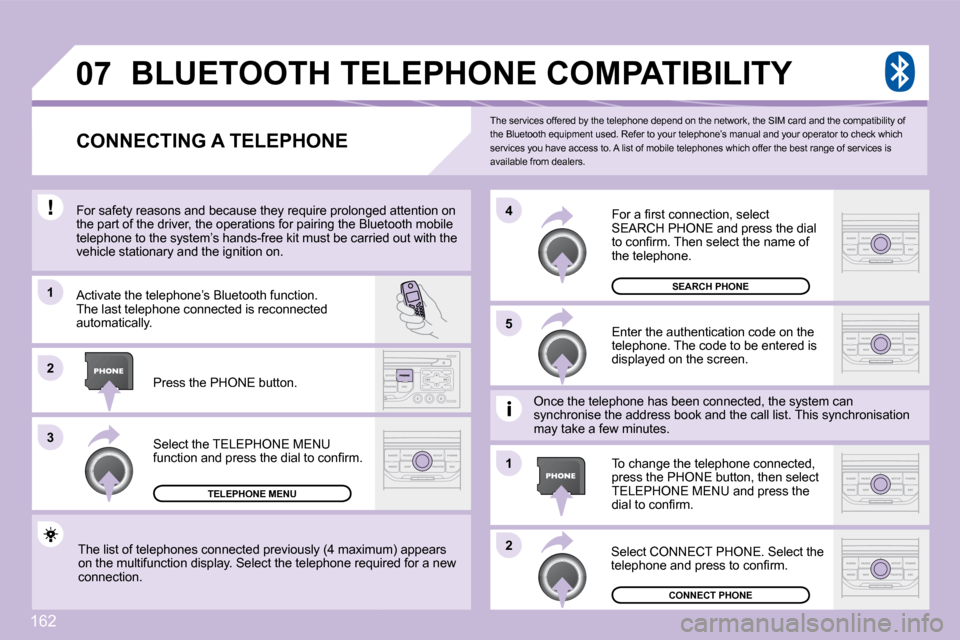

BLUETOOTH TELEPHONE COMPATIBILITY
CONNECTING A TELEPHONE
For safety reasons and because they require prolon ged attention on For safety reasons and because they require prolonged attention on the part of the driver, the operations for pairing the Bluetooth mobile the part of the driver, the operations for pairing the Bluetooth mobile telephone to the system’s hands-free kit must be ca rriedcarried out with the vehicle stationary and the ignition on.
Activate the telephone’s Bluetooth function. The last telephone connected is reconnected automatically.
Select the TELEPHONE MENU function and press the dial to confi rm.
TELEPHONE MENU
Enter the authentication code on the telephone. The code to be entered is displayed on the screen.
To change the telephone connected, press the PHONE button, then select TELEPHONE MENU and press the dial to confi rm.
Once the telephone has been connected, the system catem can synchronise the address book and the call list. This syncis synchronisation may take a few minutes.
Select CONNECT PHONE. Select the telephone and press to confi rm. The list of telephones connected previously (4 max imum) appears The list of telephones connected previously (4 maximum) appears on the multifunction display. Select the telephone requir required for a new connection.
Press the PHONE button.
For a fi rst connection, select SEARCH PHONE and press the dial to confi rm. Then select the name of the telephone.
SEARCH PHONE
CONNECT PHONE

163
3
2
1
1
3
2
A short press of the steering wheel controls TEL b
utton accepts the incoming call or ends the call in progress. A long press refuses the incoming call.
Select the YES tab to accept or NO to refuse and confi rm by pressing the dial.
RECEIVING A CALL MAKING A CALL
An incoming call is announced by a ring and a supe rimposed display An incoming call is announced by a ring and a superimposed display on the multifunction display.
YES
To hang up, press the PHONE button or press the dial and select END CALL then confi rm by pressing the dial.
END CALL
Press the PHONE button.
It is also possible to select a number from the address bress book. You can select DIAL FROM ADDRESS BOOK. The system permi ts the can select DIAL FROM ADDRESS BOOK. The system permits the recording of up to 4 000 entries.
Select DIAL NUMBER, then dial the telephone number using the virtual keypad.
Select the TELEPHONE MENU function and press the dial to confi rm.
DIAL NUMBER
TELEPHONE MENU
The list of the last 20 calls made and received appears uears under TELEPHONE MENU. You can select a number and press t he dial to TELEPHONE MENU. You can select a number and press the dial to make the call.
NO

171
QUESTION SOLUTION RESPONSE
The TRAFFIC INFO box is ticked. However, certain traffi c jams along the route are not indicated in real time.
On starting, it is several minutes before the system begins to receive the traffi c information. Wait until the traffi c information is being received correctly (displaying of the traffi c information symbols on the map).
In certain countries, only major routes (motorways ...) are listed for the traffi c information.
The time taken to calculate a route sometimes seems longer than usual.
This phenomenon is normal. The system is dependent on the traffi c information available.
The performance of the system may slow down tempor arily if a CD is being copied onto the Jukebox at the same time as a route is being calculated.
Wait until the CD has been copied or stop the copying before starting the guidance function.
The altitude is not displayed. On starting, the initialisation of the GPS may take up to 3 minutes to receive more than 3 satellites correctly. Wait until the system has started up completely. Check that there is a GPS coverage of at least 3 satellites (long press on the MENU button, then select AUDIO/TELEPHONE DIAGNOSTICS, then GPS COVERAGE).
Depending on the geographical environment (tunnel. ..) or the weather, the conditions of reception of the GPS signal may vary. This phenomenon is normal. The system is dependent on the conditions of reception of the GPS signal.
The route is not calculated successfully. The exclusion criteria may confl ict with the current location (exclusion of toll roads on a motorway with tolls). Check the exclusion criteria.
There is a long waiting time after inserting a CD or SD card.
When a new medium is inserted, the system reads a certain amount of data (directory, title, artist, etc.). This may take a few seconds. This phenomenon is normal.
I cannot connect my Bluetooth telephone. The telephone’s Bluetooth function may be deactiva ted or the equipment may not be visible. - Check that your telephone’s Bluetooth function is activated. - Check that your telephone is visible.

175
22
33
44
11
22
44
33
11
03 AUDIO
Press the SOURCE button several times in succession and select the radio.
Press the BAND AST button to select a waveband: FM1, FM2, FMast, AM.
Briefl y press one of the buttons to carry out an automatic search of the radio stations.
Press one of the buttons to carry out a manual search of the radio stations.
Press the LIST REFRESH button to display the list of stations received locally (30 stations maximum). To update this list, press for more than two seconds.
Select ACTIVATE FREQUENCY FOLLOWING (RDS) then press OK. RDS appears on the display.
Select the FM WAVEBAND PREFERENCES function then press OK.
Select AUDIO FUNCTIONS then press OK.
Press the MENU button.
FM WAVEBAND PREFERENCES
ACTIVATE FREQUENCY FOLLOWING (RDS)
The external environment (hills, buildings, tunnels, basement car parks) may block reception, includi ng in RDS mode. This is a normal effect of the way in which radio waves are transmitted and does not indicate any failure of the audio equipment.
RDS
The RDS, if displayed, enables you to continue lis tening to the same station by means of frequency following. Howev er, in certain conditions, this RDS station is not followed throughout the country as radio stations do not cover 100 % of the territory. This explains the loss of reception of the station during a journey.
RADIO
SELECTING A STATION

176
11
22
11
22
Insert circular compact discs only. Some anti-pirating systems, on original discs or CDs copied using a personal recorder, may cause faults which are no refl ection on the quality of the original player. Without pressing the EJECT button, insert a CD in the player, play begins automatically.
To play a disc which has already been inserted, press the SOURCE button several times in succession and select CD.
Press one of the buttons to select a track on the CD. Press the LIST REFRESH button to display the list of tracks on the CD. Press and hold one of the buttons for fast forward or rewind play.
Insert an MP3 compilation in the player. The audio equipment searches for all of the music tracks, which may take anything between a few seconds and several tens of seconds, before play begins.
On a single disc, the CD player can read up to 255 MP3 fi les spread over 8 directory levels. However, it is advisable to keep to a limit of two levels to reduce the access time before the CD is played. While the CD is being played, the directory fl ow chart is not followed. All of the fi les are displayed on a single level.
To play a disc which has already been inserted, press the SOURCE button several times in succession and select CD.
Press one of the buttons to select a track on the CD. Press the LIST REFRESH button to display the list of directories of the MP3 compilation. Press and hold one of the buttons for fast forward or rewind play.
CD
PLAYING A CD
MP3 CD
PLAYING AN MP3 COMPILATION
