Page 1 of 99
4
FAMILIARISATION
C. Locking/unlocking the vehicle
from the inside (driver's side).
1. Stop position.
2. Accessories position (1st notch).
3. Running position (2nd notch).
4. Starting position.
A. Locking the vehicle.
B. Unlocking the vehicle.
46
Remote control key Manual central control Starting
Page 2 of 99
5
W h e n t h i s s e g m e n t fl a s h e s ,
accompanied by an audible
s i g n a l , y o u h a v e e n o u g h
fuel left to drive approxi-
mately 30 miles (50 km).
1. Interior control.
2. Exterior control.
3. Bonnet strut.
64
51

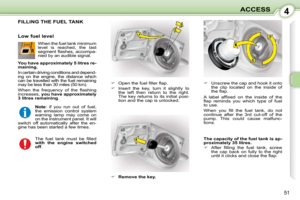

Low fuel level
Remove the key and unscrew the
cap.
A f t e r fi l l i n g t h e f u e l t a n k , s c r e w t h e
cap back on fully to the right until it
c l i c k s a n d c l o s e t h e fl a p .
Fuel tank capacity: approximately
35 litres.
A f t e r o p e n i n g t h e fl a p , i n s e r t t h e k e y ,
turn it slightly to the left then return to
the right. The key returns to its initial
position and the cap is unlocked. OPEN
Fuel tank Bonnet
Page 3 of 99
6
FAMILIARISATION Manual air conditioning
This air conditioning system opti-
mises the distribution of the air and
its temperature inside the passen-
ger compartment.
33
SensoDrive gearbox
T h i s fi v e - s p e e d r o b o t i s e d m a n u a l
gearbox offers a choice between
the comfort of fully automatic op-
eration or the pleasure of manual
gear changing.
62 Auxiliary socket for portable
equipment
Compatible with many MP3 play-
e r s , t h i s s o c k e t a l l o w s y o u t o l i s t e n
to your favourite tracks while trav-
elling. Refer to the conditions of
use in the "Audio" section.
23
INTERIOR
Page 4 of 99
7
1. Bonnet release
2. Headlamp adjustment
3. Passenger air bag deactivation
4. Adjustable and closing side vent
5. Lighting and direction indicators
stalk
6. Driver's front airbag
Horn
7. Dashboard fuse box
( u n d e r t h e i n s t r u m e n t p a n e l t r i m ,
on the right and on the left)
8. Rev counter
9. Passenger exterior mirror control
10. Passenger electric window
control
11. Gear lever
12. Cup holder
13. Steering wheel height
adjustment
INSTRUMENTS AND CONTROLS
Page 5 of 99
8
FAMILIARISATION
1. Driver's exterior mirror control
2. Instrument panel
3. Wiper stalk
4. Steering lock and ignition
5. Hazard warning lamps
6. Storage compartments
7. Diffusion grille
8. Windscreen demisting and
defrosting vent
9. Passenger's front airbag
10. Adjustable and closing side vent
11. Storage box
12. Audio equipment
13. V e n t i l a t i o n , h e a t i n g o r a i r
conditioning controls
14. Storage compartments
15. 12 V socket (120 W max)
16. Parking brake
17. Driver's electric window control
INSTRUMENTS AND CONTROLS
Page 6 of 99
9
1. Forwards-backwards adjustment. 2. Seat back angle adjustment. 3. Access to rear seats.
36
Front seats
Page 7 of 99
10
FAMILIARISATION
A. Opening and closing control.
Push or pull control A .
48
B. Exterior mirrors adjustment
control.
W h e n t h e v e h i c l e i s p a r k e d , t h e
mirrors can be folded and unfolded
manually.
35
C. Steering wheel height
adjustment locking and
unlocking control.
1. Control unlocked.
2. Control locked.
35
SIT COMFORTABLY
Front electric windows Mirrors Steering wheel adjus tment
(with power steering)
Page 8 of 99
11
Lighting stalk
Front and rear lamps
Ring A Lamps off.
Sidelamps.
Dipped headlamps/Main
beam headlamps. Rear foglamp
Ring B
52 Wiper stalk
Windscreen wipers
MIST Single wipe.
OFF Off.
INT Intermittent wipe.
LO Normal wipe (moderate rain).
HI Rapid wipe (heavy rain).
Rear wiper and wash-wipe
Ring C
53
