Page 149 of 153
143
TECHNICAL DATA
9
Weights
WEIGHTS AND TOWED LOADS (KG)
General points The GTW and towed load values
indicated are valid up to a maximum
altitude of 1 000 metres; the towed
load mentioned must be reduced by
10 % for each additional 1 000 metres.
GTW: gross train weight
GVW: gross vehicle weight
MOM: kerb weight
CVA: vertical load on the towbar
The speed of a towing vehicle must not
exceed 50 mph (80 km/h) (comply with
the legislation in force in your country).
The braked towed weight with load
transfer can be increased on condition
that the equivalent of this load is
removed from the vehicle so that the
GTW is not exceeded. Warning: towing
using a lightly loaded towing vehicle
may have an adverse effect on its road
holding. High exterior temperatures may result
in a reduction in the performance of the
vehicle in order to protect the engine;
when the exterior temperature is higher
than 37 °C, limit the towed weight.
The kerb weight is equal to the weight
without load + driver (75 kg) + fuel tank
fi l l e d t o 9 0 % .
For further information, consult your
r e g i s t r a t i o n c e r t i fi c a t e .
In each country, it is imperative that
the towed loads authorised by local
l e g i s l a t i o n a r e c o m p l i e d w i t h . T o fi n d
out your vehicle’s towing capacities
and its gross train weight, consult a
CITROËN dealer.
Page 150 of 153
144

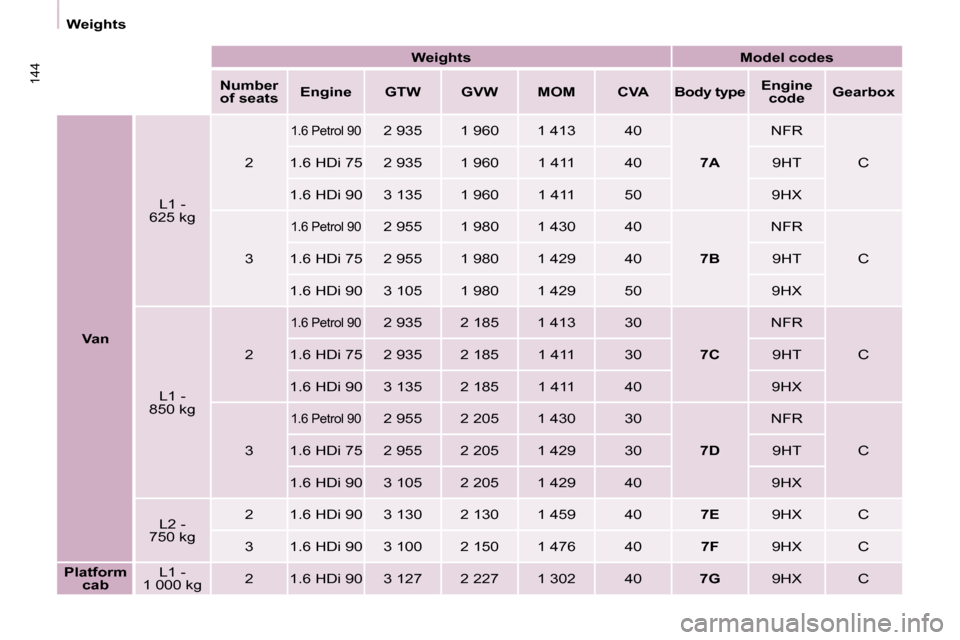

Weights
Weights
Model codes
Number
of seats
Engine GTW GVW MOM CVA Body type
Engine
code
Gearbox
Van L1 -
625 kg 2
1.6 Petrol 90 2 935 1 960 1 413 40
7A NFR
C
1.6 HDi 75 2 935 1 960 1 411 40 9H T
1.6 HDi 90 3 135 1 960 1 411 50 9H X
3
1.6 Petrol 90 2 955 1 980 1 430 40
7B NFR
C
1.6 HDi 75 2 955 1 980 1 429 40 9H T
1.6 HDi 90 3 105 1 980 1 429 50 9H X
L1 -
850 kg 2
1.6 Petrol 90 2 935 2 185 1 413 30
7C NFR
C
1.6 HDi 75 2 935 2 185 1 411 30 9H T
1.6 HDi 90 3 135 2 185 1 411 40 9H X
3
1.6 Petrol 90 2 955 2 205 1 430 30
7D NFR
C
1.6 HDi 75 2 955 2 205 1 429 30 9H T
1.6 HDi 90 3 105 2 205 1 429 40 9H X
L2 -
750 kg 2 1.6 HDi 90 3 130 2 130 1 459 40
7E 9HX C
3 1.6 HDi 90 3 100 2 150 1 476 40 7F 9HX C
Platform
cab L1 -
1 000 kg 2 1.6 HDi 90 3 127 2 227 1 302 40
7G 9HX C
Page 151 of 153
145
TECHNICAL DATA
9
Diesel - Petrol engines
ENGINES AND GEARBOXES
Petrol Diesel
TVV NFR 9HT 9HX
Name 1.6 PETROL 1.6 HDi 1.6 HDi
Power (bhp) 90 75 90
EU standard maximum power (kW/DIN) 66 55.2 66.2
Engine speed (rpm) 5 800 4 000 4 000
Cubic capacity (cm 3
) 1 587 1 560 1 560
Gearbox - manual 5 5 5
Bore x stroke (mm) 78.5 x 82 75 x 88.3 75 x 88.3
EU standard max torque (Nm) 132 185 215
Max power engine speed (rpm) 2 500 1 750 1 750
Fuel Unleaded Diesel
Catalytic converter Yes Yes Yes
Page 152 of 153
146
Diesel - Petrol engines
Consumption values correct at time of printing. These consumptio n values were established in accordance with Directive
8 0 / 1 2 6 8 / C E E . T h e y m a y v a r y d e p e n d i n g o n t h e s t y l e o f d r i v i n g , t r a f fi c c o n d i t i o n s , w e a t h e r c o n d i t i o n s , t h e l o a d i n t h e
vehicle, the maintenance of the vehicle and the use of the accessories.
CONSUMPTION
Petrol Diesel
TVV NFR 9HT 9HX
Name 1.6 Petrol 1.6 HDi 1.6 HDi
Body type Short - L1 Short - L1 Short - L1 Long - L2 Platform
cab
kg 625 850 625 850 625 850 750 1 000
Urban driving [mpg (l/100 km)] 26.2
(10.8) 26.2
(10.8) 40.4
(7.0) 40.4
(7.0) 40.4
(7.0) 40.4
(7.0) 40.4
(7.0) 37.7
(7.6)
Inter-urban driving [mpg (l/100 km)] 41.5
(6.8) 41.5
(6.8) 55.4
(5.1) 55.4
(5.1). 55.4
(5.1) 55.4
(5.1) 55.4
(5.1) 48.7
(5.8)
Mixed driving [mpg (l/100 km)] 34.4
(8.2) 34.4
(8.2) 48.7
(5.8) 48.7
(5.8) 48.7
(5.8) 48.7
(5.8) 48.7
(5.8) 43.5
(6.5)
Emission of CO 2 by weight (g/km) 195 195 153 153 153 1
53 153 173
Page 153 of 153
147
TECHNICAL DATA
9
Identification features
IDENTIFICATION FEATURES
A. Manufacturer’s plate. C. Tyres and paint colour reference.
B. Serial number.
This is located on the engine mounting,
on the right-hand side.
1 - VF Type serial number.
2 - Gross vehicle weight (GVW).
3 - Gross train weight (GTW).
4.1 - Maximum weight on front axle.
4.2 - Maximum weight on rear axle. This is engraved on the front right
wheelarch.
The label
C , on the front door gives:
- the wheel and tyre sizes,
- the brands of tyres approved by the manufacturer,
- the tyre pressures (the tyre pressure must be checked when
the tyre is cold, at least once a
month),
- the paint colour reference.
