2008.5 Citroen BERLINGO Owner's Manual

5
1
FAMILIARISATION

7a
7b
2b
2a
6
Exterior
15 113 110

Key
:
chapter identifi cation
: page identifi cation
19
Key - Remote control
Selective unlocking of the cab
and load space.
Locking of the load space only.
Complete locking of the vehicle.
Opening the bonnet
Take care when working under
the bonnet.
Raise the bonnet slightly by
reaching in a fl at hand, palm
down, to make access to the
lever easier. Engage the base of
the strut in the hole provided to
hold the bonnet open.
Fix the strut in its location,
identifi ed by a sticker on the
left-hand panel side of the
vehicle.
Sliding side door
Pull the handle towards you then
towards the rear and open the
door guiding the rearward sliding
until the point of resistance has
been passed.
Professional equipment -
Accessories

4
2c
8a
8b
2e
2d9
7
1
FAMILIARISATION
Exterior
20
22
Rear roof fl ap
The rear roof fl ap is only
compatible with the hinged
doors. Changing bulbs
127
23
Tailgate and rear screen
Hinged rear doors
Spare wheel
The tools are located under
the right-hand seat.
Raise the carrier with the
wheel fl ush against the fl oor.
In the case of a vehicle fi tted
with a towbar, the vehicle
must be raised in order to
disengage the spare wheel
from the carrier. 122
Asymmetrical (2/3 - 1/3).
This lock makes it possible
to keep the large door closed
and drive with the small door
open.
This control permits opening
to approximately 180°.

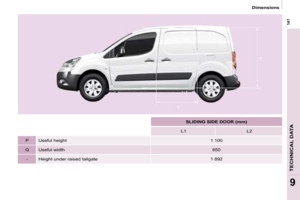

Useable dimensions 138
Parking assistance
76

8
Interior
INSTRUMENTS AND CONTROLS

1. Lights and direction indicators
stalk.

2. Instrument panel with display.

3. Wipers, wash-wipe, trip
computer controls.

4. Ignition.

5. Audio equipment, hands-free kit
control.

6. Driver’s air bag, horn.

7. Steering wheel height and depth
adjustment.

8. Cruise control, speed limiter
switch.

9. Control pad, parking assistance,
headlamp beam adjustment,
ESP.

10. Bonnet release.

11. Electric exterior mirror
adjustment.

9
1
FAMILIARISATION
Interior
CENTRE CONSOLE

1. Gear lever.

2. Controls bar: electric window.

3. Controls bar: hazard warning
lights, central locking (passenger
compartment, load space).

4. Lighter.

5. Heating-ventilation controls.

6. Storage compartment.

7. Audio equipment, CD changer.

8. Display.

3
53
2
3
10
Interior
Storage compartments
These are placed under the front
seats. For greater ease, reach behind
the seat to access them.
The tool kit and the jack are stored
under the right-hand seat and can be
accessed from the rear.
Steering wheel
Adjust the height and depth
of the steering wheel.
Mirrors
Manual adjustments.
Electric adjustments.
Seat belts
Height adjustment.
Fastening.

1.
Forwards-backwards
adjustment.
2. Angle.

3. Height. 4. Head restraint
height and
angle.
Driver’s seat
57 63
37
73
97
SIT COMFORTABLY

3
3
3
3
4
11
1
FAMILIARISATION
Interior
Lights off.
Side lights. Main beam headlamps
(blue).
Dipped headlamps (green). Wipers stalk

2 fast.
1 normal.
I intermittent.
0 off.

 single wipe.

AUTO, press the stalk down.

AUTO, automatic
switching on of the lights.
40
Lights stalk
43 Cruise control, Speed limiter
In cruise control mode, the vehicle
speed must be higher than 25 mph
(40 km/h) with at least 4th gear
engaged.
Hill start assistance
45,
48
39
SEE CLEARLY
DRIVE SAFELY

Motorway function: press up or down
once, without passing the point of
resistance; the corresponding direction
indicators will fl ash three times.
Audio equipment, hands-free kit
This can play MP3 CDs and permits
the matching of a Bluetooth telephone
to the hands-free kit. 78

33
3
3
12
Interior
CAB SPACE
Extenso cab - foldaway position: permits the
transportation of high
loads in the cab part.
59
60
60
Side seat
- retracted position, permits the transportation of long
loads inside the vehicle, up to 3 m with the doors closed,
Centre seat
A storage space under
the seat cushion can be
made secure by fi tting a
padlock (not supplied). 59
