TABLE OF CONTENTS
SAFETY INFORMATION .................. 1-1
Location of important labels ........... 1-4
DESCRIPTION .................................. 2-1
Left view .......................................... 2-1
Right view ........................................ 2-2
Controls and instruments ................2-3
INSTRUMENT AND CONTROL
FUNCTIONS....................................... 3-1
Handlebar switch ............................ 3-1
Clutch lever .................................... 3-1
Shift pedal ......................................3-1
Brake lever ..................................... 3-2
Brake pedal .................................... 3-2
Fuel tank cap .................................. 3-3
Fuel ................................................ 3-3
Fuel tank breather hose ................. 3-5
Fuel cock ........................................ 3-5
Starter (choke) knob ....................... 3-6
Kickstarter ......................................3-6
Seat ................................................ 3-6
Adjusting the front fork ................... 3-7
Front fork bleeding ......................... 3-8
Adjusting the shock absorber
assembly ..................................... 3-9
Removable sidestand ................... 3-12
PRE-OPERATION CHECKS.............. 4-1
Pre-operation check list .................. 4-2OPERATION AND IMPORTANT
RIDING POINTS................................ 5-1
Starting and warming up a cold
engine ......................................... 5-1
Starting a warm engine .................. 5-1
Shifting ........................................... 5-2
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Checking the spark plug ................ 6-8
Transmission oil ............................. 6-9
Coolant ........................................ 6-10
Cleaning the air filter element ...... 6-12
Adjusting the carburetor ............... 6-14
Adjusting the throttle cable
free play .................................... 6-14
Tires ............................................. 6-15
Spoke wheels .............................. 6-17
Accessories and replacement
parts ......................................... 6-17
Adjusting the clutch lever
free play .................................... 6-17
Checking the front and rear brake
pads .......................................... 6-18
Checking the brake fluid level ...... 6-19
Changing the brake fluid .............. 6-20
Drive chain slack .......................... 6-20Cleaning and lubricating the
drive chain ................................ 6-21
Checking and lubricating the
cables ....................................... 6-22
Checking and lubricating the
throttle grip and cable ............... 6-22
Checking and lubricating the
brake and shift pedals ............... 6-23
Checking and lubricating the
brake and clutch levers ............. 6-23
Lubricating the swingarm pivots ... 6-24
Lubricating the rear suspension ... 6-24
Checking the front fork ................. 6-24
Checking the steering .................. 6-25
Checking the wheel bearings ....... 6-26
Supporting the motorcycle ........... 6-26
Front wheel .................................. 6-27
Rear wheel ................................... 6-27
Troubleshooting ........................... 6-29
Troubleshooting charts ................. 6-30
MOTORCYCLE CARE AND
STORAGE.......................................... 7-1
Care ............................................... 7-1
Storage ........................................... 7-3
SPECIFICATIONS ............................ 8-1
CONSUMER INFORMATION............ 9-1
Identification numbers .................... 9-1
U5PA85E0.book Page 1 Thursday, April 13, 2006 3:06 PM

PRE-OPERATION CHECKS
4-2
4
EAU15605
Pre-operation check list
ITEM CHECKS PAGE
FuelCheck fuel level in fuel tank.
Always use a fresh mixture of gasoline and oil.
Check fuel line for leakage.3-3
Transmission oilCheck oil level in transmission case.
If necessary, add recommended oil to specified level.6-9
CoolantCheck coolant level.
If necessary, add recommended coolant to specified level.
Check cooling system for leakage.6-10
Front brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-18, 6-19
Rear brakeCheck operation.
If soft or spongy, have Yamaha dealer bleed hydraulic system.
Check brake pads for wear.
Replace if necessary.
Check fluid level in reservoir.
If necessary, add recommended brake fluid to specified level.
Check hydraulic system for leakage.6-18, 6-19
ClutchCheck operation.
Lubricate cable if necessary.
Check lever free play.
Adjust if necessary.6-17
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-14, 6-22
U5PA85E0.book Page 2 Thursday, April 13, 2006 3:06 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-5
6
√ √
21*BrakesAdjust lever position and pedal height.
Lubricate pivot points.
Check brake disk surface.
Check fluid level and for leakage.
Tighten brake disk bolts, caliper bolts, master cylinder
bolts and union bolts.√
Replace brake pads.√
Replace brake fluid. Every year√
22*Front fork
Replace oil seals. Replace fork oil.
Clean dust seal and lubricate with lithium-soap-based
grease.
Adjust if necessary. Check operation and for oil leakage.
√
√√
√ NO. ITEM ROUTINEAfter
break-inEvery
raceEvery
third raceEvery
fifth raceAs
required
√ √
√
23*Shock absorber assem-
blyCheck operation and adjust.
Tighten if necessary.
Lubricate with molybdenum disulfide grease.√(After
washing
the
motorcycle
or riding in
the rain)
U5PA85E0.book Page 5 Thursday, April 13, 2006 3:06 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-6
6
EAU42010
NOTE:

Hydraulic brake service
Regularly check and, if necessary, correct the brake fluid level.
√ √√
√ 24*Drive chain roller and
support guideReplace if necessary. Check for wear or damage.
√
25*Rear suspensionCheck operation and tighten if necessary.
Lubricate with molybdenum disulfide grease.
NO. ITEM ROUTINEAfter
break-inEvery
raceEvery
third raceEvery
fifth raceAs
required
√
√
√
√ √ √
√ √√ √
√
√
√
√
√ 26*Steering headCheck operation, free play, and tighten if necessary.
Clean and lubricate with lithium-soap-based grease.
Replace bearings.
27*Tires and wheelsCheck tire air pressure, wheel runout, spokes for
looseness, and tires for wear.
Tighten sprocket bolts if necessary.
Check wheel bearings for looseness.
Lubricate wheel bearings with lithium-soap-based
grease.
Replace wheel bearings.
28*Moving parts and ca-
blesLubricate.
29*Throttle grip housing
and cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.
U5PA85E0.book Page 6 Thursday, April 13, 2006 3:06 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-7

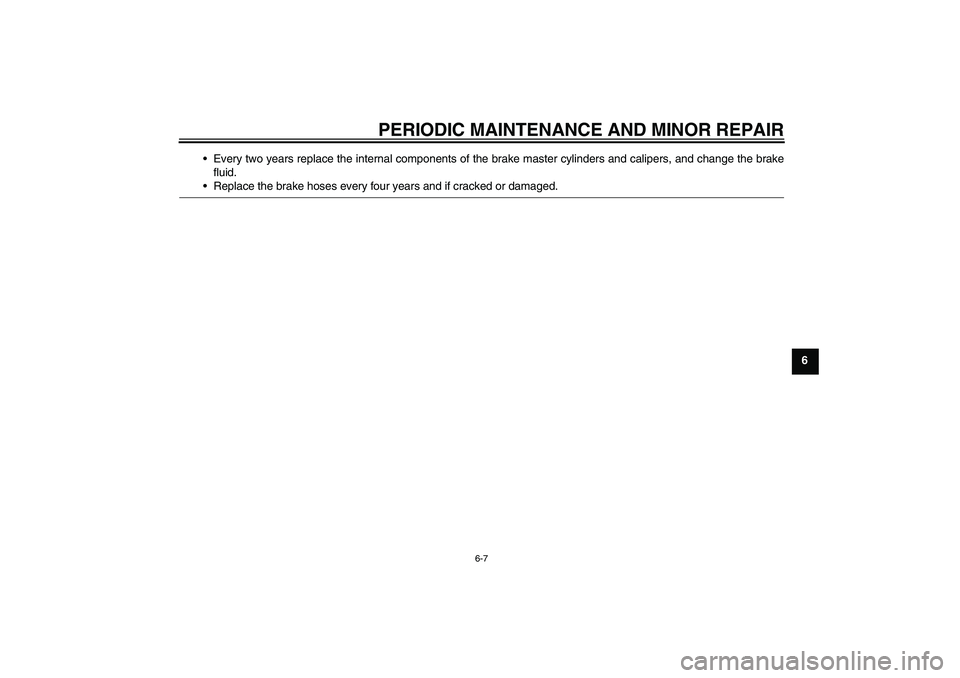

6 Every two years replace the internal components of the brake master cylinders and calipers, and change the brake
fluid.
Replace the brake hoses every four years and if cracked or damaged.
U5PA85E0.book Page 7 Thursday, April 13, 2006 3:06 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
6
EAU22580
Checking the brake fluid level Front brake
Rear brake
Insufficient brake fluid may allow air to
enter the brake system, possibly caus-
ing it to become ineffective.Before riding, check that the brake fluid
is above the minimum level mark and
replenish if necessary. A low brake fluid
level may indicate worn brake pads
and/or brake system leakage. If the
brake fluid level is low, be sure to check
the brake pads for wear and the brake
system for leakage.
Observe these precautions:


When checking the fluid level,
make sure that the top of the brake
fluid reservoir is level.


Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking perfor-
mance.


Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performance.


Be careful that water does not en-
ter the brake fluid reservoir when
refilling. Water will significantly
lower the boiling point of the fluid
and may result in vapor lock.


Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.


As the brake pads wear, it is nor-
mal for the brake fluid level to grad-
ually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
1. Minimum level mark
1. Minimum level mark
Recommended brake fluid:
DOT 4
U5PA85E0.book Page 19 Thursday, April 13, 2006 3:06 PM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-20
6
EAU22730
Changing the brake fluid Have a Yamaha dealer change the
brake fluid at the intervals specified in
the NOTE after the periodic mainte-
nance and lubrication chart. In addition,
have the oil seals of the master cylin-
ders and calipers as well as the brake
hoses replaced at the intervals listed
below or whenever they are damaged
or leaking.

Oil seals: Replace every two
years.


Brake hoses: Replace every four
years.
EAU22760
Drive chain slack The drive chain slack should be
checked before each ride and adjusted
if necessary.
EAU41410
To check the drive chain slack
1. Install the removable sidestand
and place the motorcycle on it.NOTE:When checking and adjusting the drive
chain slack, there should be no weighton the motorcycle.
2. Shift the transmission into the neu-
tral position.
3. Move the rear wheel by pushing
the motorcycle to locate the tight-
est portion of the drive chain, and
then measure the drive chain slack
as shown.4. If the drive chain slack is incorrect,
adjust it as follows.
EAU41480
To adjust the drive chain slack
1. Loosen the axle nut and the lock-
nut on each side of the swingarm.
2. To tighten the drive chain, turn the
adjusting bolt on each side of the
swingarm in direction (a). To loos-
en the drive chain, turn the adjust-
ing bolt on each side of the
swingarm in direction (b), and then
push the rear wheel forward.
Drive chain slack:
35.0–45.0 mm (1.38–1.77 in)
1. Drive chain slack
U5PA85E0.book Page 20 Thursday, April 13, 2006 3:06 PM

SPECIFICATIONS
8-3
8
Front brake:Type:
Single disc brake
Operation:
Right hand operation
Recommended fluid:
DOT 4Rear brake:Type:
Single disc brake
Operation:
Right foot operation
Recommended fluid:
DOT 4Front suspension:Type:
Telescopic fork
Spring/shock absorber type:
Coil spring/oil damper
Wheel travel:
275.0 mm (10.83 in)Rear suspension:Type:
Swingarm (link suspension)
Spring/shock absorber type:
Coil spring/gas-oil damper
Wheel travel:
YZ85 282.0 mm (11.10 in)
YZ85LW 287.0 mm (11.30 in)
YZ85LWW 287.0 mm (11.30 in)
YZ85W 282.0 mm (11.10 in)
YZ85W1 282.0 mm (11.10 in)
Electrical system:Ignition system:
CDI
U5PA85E0.book Page 3 Thursday, April 13, 2006 3:06 PM
