2007 YAMAHA YFZ450 Owners Manual

8-15
1
2
3
4
5
6
78
9
10
11
NOTE:

When adding oil, be careful not to overfill the en-
gine oil tank; the oil level rises faster starting from
the half-level-portion on the dipstick.
6. Insert the dipstick into the engine oil tank filler
hole, and then tighten the engine oil tank filler
cap.
CAUTION:

ECB00360
Make sure that the engine oil tank filler cap is
securely tightened, otherwise oil may seep out
when the engine is running.
To change the engine oil (with or without oil
filter element replacement)
1. Place the ATV on a level surface.
2. Remove the engine guard by removing the
bolts.3. Start the engine, warm it up for several min-
utes, and then turn it off.
4. Place an oil pan under the engine to collect
the used oil.
5. Remove the crankcase engine oil filler cap
and the crankcase engine oil drain bolt.
1. Engine guard
2. Bolt
1
2

8-16
1
2
3
4
5
6
78
9
10
11

6. Remove the engine oil tank filler cap and the
engine oil tank drain bolt.7. Check the washers for damage, and replace if
necessary.NOTE:

Skip steps 8–11 if the oil filter element is not being
replaced.
8. Remove the oil filter element cover by remov-
ing the bolts, and then remove the oil filter el-
ement.
1. Crankcase engine oil drain bolt
1

1. Engine oil tank drain bolt
1

8-17
1
2
3
4
5
6
78
9
10
11

9. Check the O-rings for damage, and replace
them if necessary.10. Install a new oil filter element and the O-rings.NOTE:

Make sure that the O-rings are properly seated.
11. Install the oil filter element cover by installing
the bolts, and then tighten them to the speci-
fied torque.
12. Install the crankcase engine oil drain bolt and
1. Oil filter element cover
2. Bolt
1 2

1. Oil filter element
2. O-ring
Tightening torque:
Oil filter element cover bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1
2 2

8-18
1
2
3
4
5
6
78
9
10
11

the engine oil tank drain bolt, and then tighten
them to the specified torques.
13. Pour the specified amount of the recommend-
ed engine oil through the engine oil tank filler
hole, and then install and tighten the engine oil
tank filler cap.
14. Pour the specified amount of the recommend-
ed engine oil through the crankcase engine oil
filler hole, and then install and tighten thecrankcase engine oil filler cap.CAUTION:
ECB00300

In order to prevent clutch slippage (since the
engine oil also lubricates the clutch), do not
mix any chemical additives. Do not use oils
with a diesel specification of “CD” or oils of
a higher quality than specified. In addition,
do not use oils labeled “ENERGY CONSERV-
ING II” or higher.

Make sure that no foreign material enters the
Tightening torques:
Crankcase engine oil drain bolt:
20 Nm (2.0 m·kgf, 14 ft·lbf)
Engine oil tank drain bolt:
19 Nm (1.9 m·kgf, 14 ft·lbf)
Recommended oil:
See page 10-1.
Oil quantity:
Without oil filter element replacement:
Quantity in oil tank:
1.55 L (1.64 US qt) (1.36 Imp.qt)
Quantity in crankcase:
0.20 L (0.21 US qt) (0.18 Imp.qt)
With oil filter element replacement:
Quantity in oil tank:
1.55 L (1.64 US qt) (1.36 Imp.qt)
Quantity in crankcase:
0.30 L (0.32 US qt) (0.26 Imp.qt)

8-19
1
2
3
4
5
6
78
9
10
11

crankcase.
15. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
16. Turn the engine off, and then check the oil lev-
el and correct it if necessary.
17. Install the engine guard by installing the bolts,
and then tighten them to the specified torque.
CAUTION:

ECB00370
Be sure to apply LOCTITE® to the engine
guard bolts before installing them.
EBU23470
Coolant
The coolant level should be checked before each
ride. In addition, the coolant must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.
EBU23490
To check the coolant level
1. Place the ATV on a level surface.
NOTE:

The coolant level must be checked on a cold en-
gine since the level varies with engine tempera-
ture.
2. Check the coolant level in the coolant reser-
voir.
NOTE:

The coolant should be between the minimum and
maximum level marks. Tightening torque:
Engine guard bolt:
7 Nm (0.7 m·kgf, 5.1 ft·lbf)

8-20
1
2
3
4
5
6
78
9
10
11

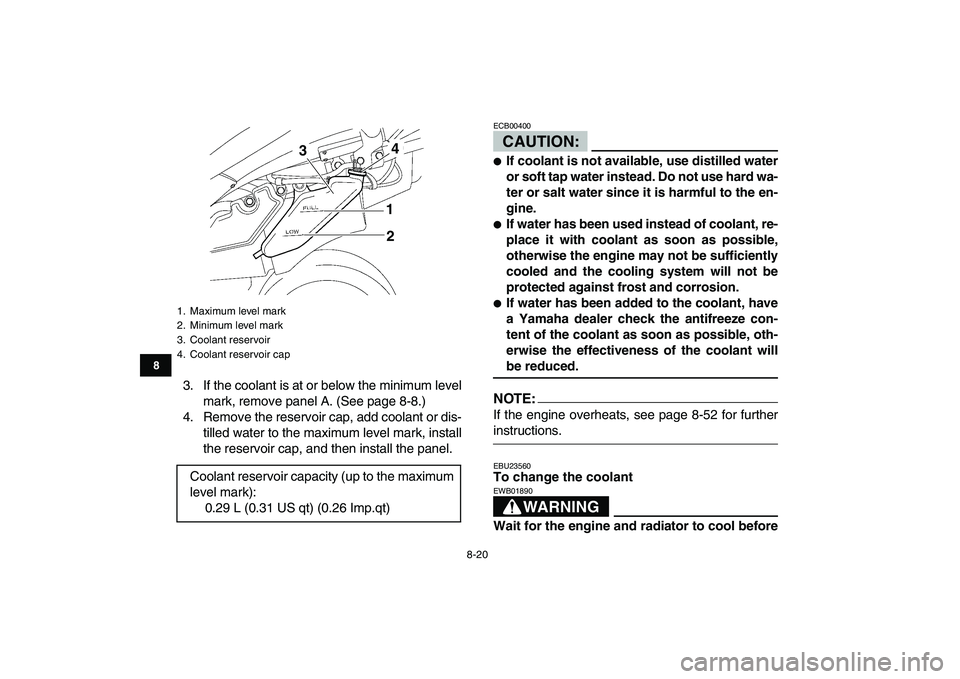

3. If the coolant is at or below the minimum level
mark, remove panel A. (See page 8-8.)
4. Remove the reservoir cap, add coolant or dis-
tilled water to the maximum level mark, install
the reservoir cap, and then install the panel.CAUTION:
ECB00400

If coolant is not available, use distilled water
or soft tap water instead. Do not use hard wa-
ter or salt water since it is harmful to the en-
gine.

If water has been used instead of coolant, re-
place it with coolant as soon as possible,
otherwise the engine may not be sufficiently
cooled and the cooling system will not be
protected against frost and corrosion.

If water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible, oth-
erwise the effectiveness of the coolant will
be reduced.
NOTE:

If the engine overheats, see page 8-52 for further
instructions.
EBU23560
To change the coolant
WARNING

EWB01890
Wait for the engine and radiator to cool before
1. Maximum level mark
2. Minimum level mark
3. Coolant reservoir
4. Coolant reservoir cap
Coolant reservoir capacity (up to the maximum
level mark):
0.29 L (0.31 US qt) (0.26 Imp.qt)
1
24
3

8-21
1
2
3
4
5
6
78
9
10
11

removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressure
to escape before completely removing the cap.
1. Place the ATV on a level surface.
2. Remove panel A. (See page 8-8.)
3. Place a container under the engine, and then
remove the coolant drain bolt. (Use a trough
or a similar object as shown.)
4. Remove the radiator cap.5. Remove the coolant reservoir by removing the
bolts.
6. Remove the coolant reservoir cap, and then
turn the coolant reservoir upside down to
empty it.
1. Coolant drain bolt
2. Trough
2 1

1. Radiator cap
1

8-22
1
2
3
4
5
6
78
9
10
11

7. After draining the coolant, thoroughly flush the
cooling system with clean tap water.
8. Install the coolant reservoir by installing the
bolts.
9. Replace the coolant drain bolt washer if it is
damaged, install the coolant drain bolt, and
then tighten it to the specified torque.10. Pour the recommended coolant into the reser-
voir to the maximum level mark, and then in-
stall the reservoir cap.
11. Pour the recommended coolant into the radia-
tor until it is full.CAUTION:
ECB00400

If coolant is not available, use distilled water
or soft tap water instead. Do not use hard wa-
ter or salt water since it is harmful to the en-
gine.

If water has been used instead of coolant, re-
place it with coolant as soon as possible,
1. Coolant reservoir cap
2. Coolant reservoir
3. Bolt
Tightening torque:
Coolant drain bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
1 3
2

Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol antifreeze con-
taining corrosion inhibitors for aluminum en-
gines
Coolant quantity:
Radiator capacity (including all routes):
1.30 L (1.37 US qt) (1.14 Imp.qt)
Coolant reservoir capacity (up to the maximum
level mark):
0.29 L (0.31 US qt) (0.26 Imp.qt)
