INTRODUCTION
IMPORTANT MANUAL INFORMATION
TABLE OF CONTENTS
SAFETY INFORMATION.....................1-1
Further safe-riding points .................1-4
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments .................2-3
INSTRUMENT AND CONTROL
FUNCTIONS........................................3-1
Immobilizer system ...........................3-1
Main switch/steering lock .................3-2
Indicator and warning lights .............3-3
Speedometer ....................................3-4
Fuel gauge ........................................3-4
Coolant temperature gauge..............3-5
Multi-function display .......................3-5
Anti-theft alarm (optional) .................3-8
Handlebar switches ..........................3-9
Front brake lever.............................3-10
Rear brake lever..............................3-10
Fuel tank cap ..................................3-11
Fuel .................................................3-12
Catalytic converter..........................3-13
Seat.................................................3-13
Storage compartments ...................3-14Front storage compartment............3-15
Rear storage compartment.............3-16
Adjusting the shock absorber
assemblies...................................3-17
Sidestand ........................................3-17
Ignition circuit cut-off system .........3-18
PRE-OPERATION CHECKS...............4-1
Pre-operation check list....................4-2
OPERATION AND IMPORTANT RIDING
POINTS................................................5-1
Starting a cold engine ......................5-1
Starting off ........................................5-2
Acceleration and deceleration ..........5-2
Braking..............................................5-3
Tips for reducing fuel consumption..5-3
Engine break-in.................................5-4
Parking ..............................................5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR...................................6-1
Owner’s tool kit .................................6-1
Periodic maintenance and
lubrication chart ............................6-3
Removing and installing the
cowlings and panel .......................6-6
Checking the spark plug ..................6-7
Engine oil ..........................................6-8
Final transmission oil ......................6-10
Coolant ...........................................6-11Air filter and V-belt case air filter
elements ......................................6-12
Adjusting the throttle cable free
play ..............................................6-14
Valve clearance ...............................6-14
Tires ................................................6-15
Cast wheels ....................................6-17
Front and rear brake lever free
play ..............................................6-17
Checking the front and rear brake
pads.............................................6-18
Checking the brake fluid level ........6-18
Changing the brake fluid ................6-19
Checking and lubricating the
cables ..........................................6-20
Checking and lubricating the
throttle grip and cable .................6-20
Lubricating the front and rear
brake levers .................................6-20
Checking and lubricating the
centerstand and sidestand .........6-21
Checking the front fork ...................6-21
Checking the steering.....................6-22
Checking the wheel bearings .........6-23
Battery ............................................6-23
Replacing the fuses ........................6-24
Replacing a headlight bulb .............6-25
Replacing a front turn signal light
bulb .............................................6-27
Replacing the tail/brake light bulb or a
rear turn signal light bulb ............6-27
TABLE OF CONTENTS
1C0-F8199-E3.qxd 2/11/06 20:46 Página 6

to the scooter as possible. Make
sure to distribute the weight as
evenly as possible on both sides
of the scooter to minimize imba-
lance or instability.
Shifting weights can create a
sudden imbalance. Make sure
that accessories and cargo are
securely attached to the scooter
before riding. Check accessory
mounts and cargo restraints fre-
quently.
Never attach any large or heavy
items to the handlebar, front fork,
or front fender. Such items can
create unstable handling or a
slow steering response.
Accessories
Genuine Yamaha accessories have
been specifically designed for use on
this scooter. Since Yamaha cannot
test all other accessories that may be
available, you must personally be res-
ponsible for the proper selection, ins-
tallation and use of non-Yamaha
accessories. Use extreme caution
when selecting and installing any
accessories.Keep the following guidelines in mind,
as well as those provided under “Loa-
ding” when mounting accessories.
Never install accessories or carry
cargo that would impair the per-
formance of your scooter. Care-
fully inspect the accessory befo-
re using it to make sure that it
does not in any way reduce
ground clearance or cornering
clearance, limit suspension tra-
vel, steering travel or control ope-
ration, or obscure lights or reflec-
tors.
• Accessories fitted to the hand-
lebar or the front fork area can
create instability due to impro-
per weight distribution or
aerodynamic changes. If
accessories are added to the
handlebar or front fork area,
they must be as lightweight as
possible and should be kept to
a minimum.
• Bulky or large accessories may
seriously affect the stability of
the scooter due to aerodyna-
mic effects. Wind may attempt
to lift the scooter, or the scoo-ter may become unstable in
cross winds. These accesso-
ries may also cause instability
when passing or being passed
by large vehicles.
• Certain accessories can dis-
place the operator from his or
her normal riding position. This
improper position limits the fre-
edom of movement of the ope-
rator and may limit control abi-
lity, therefore, such
accessories are not recom-
mended.
Use caution when adding electri-
cal accessories. If electrical
accessories exceed the capacity
of the scooter’s electrical system
an electric failure could result,
which could cause a dangerous
loss of lights or engine power.
Gasoline and exhaust gas
GASOLINE IS HIGHLY FLAMMA-
BLE:
• Always turn the engine off
when refueling.
• Take care not to spill any gaso-
line on the engine or exhaust
system when refueling.
1
SAFETY INFORMATION
1-3
1C0-F8199-E3.qxd 2/11/06 20:46 Página 10

To unlock the steering
1. Push
2. Turn
Push the key in, and then turn it to
“OFF” while still pushing it.
EWA10060
s s
WARNING
Never turn the key to “OFF” or
“LOCK” while the vehicle is
moving, otherwise the electrical
systems will be switched off, which
may result in loss of control or an
accident. Make sure that the vehi-
cle is stopped before turning the
key to “OFF” or “LOCK”.
EAU11003
Indicator and warning lights
1. Left turn signal indicator light “c”
2. High beam indicator light “j”
3. Engine trouble warning light “ ”
4. Right turn signal indicator
light “
d”
5. Immobilizer system indicator light “ ”
6. Fuel level warning light “ ”
EAU11030
Turn signal indicator lights “c” and
“
d”
The corresponding indicator light flas-
hes when the turn signal switch is
pushed to the left or right.
EAU11080
High beam indicator light “j”
This indicator light comes on when
the high beam of the headlight is swit-
ched on.
EAU11350
Fuel level warning light “ ”
This warning light comes on when the
fuel level drops below approximately
2 L (0.53 US gal) (0.44 Imp.gal). When
this occurs, refuel as soon as possi-
ble.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical
circuit.
EAUT1930
Engine trouble warning light “ ”
This warning light flashes when an
electrical circuit monitoring the engine
is defective. When this occurs, have a
Yamaha dealer check the self-diagno-
sis system.
The electrical circuit of the warning
light can be checked by turning the
key to “ON”. If the warning light does
not come on for a few seconds, then
go off, have a Yamaha dealer check
the electrical circuit.
20406080
100
120
140
160km/h
0
FFUEL
EH
C
TEMPy
123
4
5
6cjd
INSTRUMENT AND CONTROL FUNCTIONS
3-3
3
1C0-F8199-E3.qxd 2/11/06 20:46 Página 6

EWA10240
s s
WARNING
The vehicle must not be ridden with
the sidestand down, or if the sides-
tand cannot be properly moved up
(or does not stay up), otherwise the
sidestand could contact the ground
and distract the operator, resulting
in a possible loss of control. Yama-
ha’s ignition circuit cut-off system
has been designed to assist the
operator in fulfilling the responsibi-
lity of raising the sidestand before
starting off. Therefore, check this
system regularly as described
below and have a Yamaha dealer
repair it if it does not function pro-
perly.
EAU15371
Ignition circuit cut-off
system
The ignition circuit cut-off system
(comprising the sidestand switch and
brake light switches) has the following
functions.
It prevents starting when the
sidestand is up, but neither brake
is applied.
It prevents starting when either
brake is applied, but the sides-
tand is still down.
It cuts the running engine when
the sidestand is moved down.
Periodically check the operation of
the ignition circuit cut-off system
according to the following procedure.
EWA10250
s s
WARNING
If a malfunction is noted, have a
Yamaha dealer check the system
before riding.
INSTRUMENT AND CONTROL FUNCTIONS
3-18
3
1C0-F8199-E3.qxd 2/11/06 20:46 Página 21

EAUS1280
Checking the spark plug
The spark plug is an important engine
component, which is easy to check.
Since heat and deposits will cause
any spark plug to slowly erode, the
spark plug should be removed and
checked in accordance with the
periodic maintenance and lubrication
chart. In addition, the condition of the
spark plug can reveal the condition of
the engine.
To remove the spark plug
1. Open the seat. (See page 3-13.)
2. Remove the storage compart-
ment under the seat by removing
the bolts.
1. Rear storage compartment
2. Bolts1. Spark plug cap
3. Remove the spark plug cap.
1. Spark plug wrench
4. Remove the spark plug as
shown, with the spark plug
wrench included in the owner’s
tool kit.To check the spark plug
1. Check that the porcelain insula-
tor around the center electrode of
the spark plug is a medium-to-
light tan (the ideal color when the
motorcycle is ridden normally).
NOTE:
If the spark plug shows a distinctly
different color, the engine could be
defective. Do not attempt to diagnose
such problems yourself. Instead, have
a Yamaha dealer check the motorcy-
cle.
2. Check the spark plug for electro-
de erosion and excessive carbon
or other deposits, and replace it if
necessary.
Specified spark plug:
NGK/DPR8EA-91
1
2
1
PERIODIC MAINTENANCE AND MINOR REPAIR
6-7
6
1C0-F8199-E3.qxd 2/11/06 20:46 Página 14

To install the spark plug
1. Spark plug gap
1. Measure the spark plug gap with
a wire thickness gauge and, if
necessary, adjust the gap to spe-
cification.
2. Clean the surface of the spark
plug gasket and its mating surfa-
ce, and then wipe off any grime
from the spark plug threads.
3. Install the spark plug with the
spark plug wrench, and then
tighten it to the specified torque.
NOTE:
If a torque wrench is not available
when installing a spark plug, a good
estimate of the correct torque is
1/4~1/2 turn past finger tight. Howe-
ver, the spark plug should be tighte-
ned to the specified torque as soon
as possible.
4. Install the spark plug cap.
NOTE:
Make sure the spark plug wire is fas-
tened in the clamp as shown.
5. Install the storage compartment
by installing the bolts.
6. Close the seat.
EAUM1550
Engine oil
The engine oil level should be chec-
ked before each ride. In addition, the
oil must be changed at the intervals
specified in the periodic maintenance
and lubrication chart and when the
service indicator light comes on.
To check the engine oil level
1. Place the scooter on the centers-
tand.
NOTE:
Make sure that the scooter is positio-
ned straight up when checking the oil
level. A slight tilt to the side can result
in a false reading.
2. Start the engine, warm it up for
several minutes, and then turn it
off.
Tightening torque:
Spark plug:
17.5 Nm (1.75 m•kgf, 12.7 ft•lbf)
Spark plug gap:
0.8~0.9 mm (0.031~0.035 in)
PERIODIC MAINTENANCE AND MINOR REPAIR
6-8
6
1C0-F8199-E3.qxd 2/11/06 20:46 Página 15

6. Add the specified amount of the
recommended final transmission
oil, and then install and tighten
the oil filler cap.
EWA11310
s s
WARNING
Make sure that no foreign
material enters the final trans-
mission case.
Make sure that no oil gets on
the tire or wheel.
7. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
EAU20070

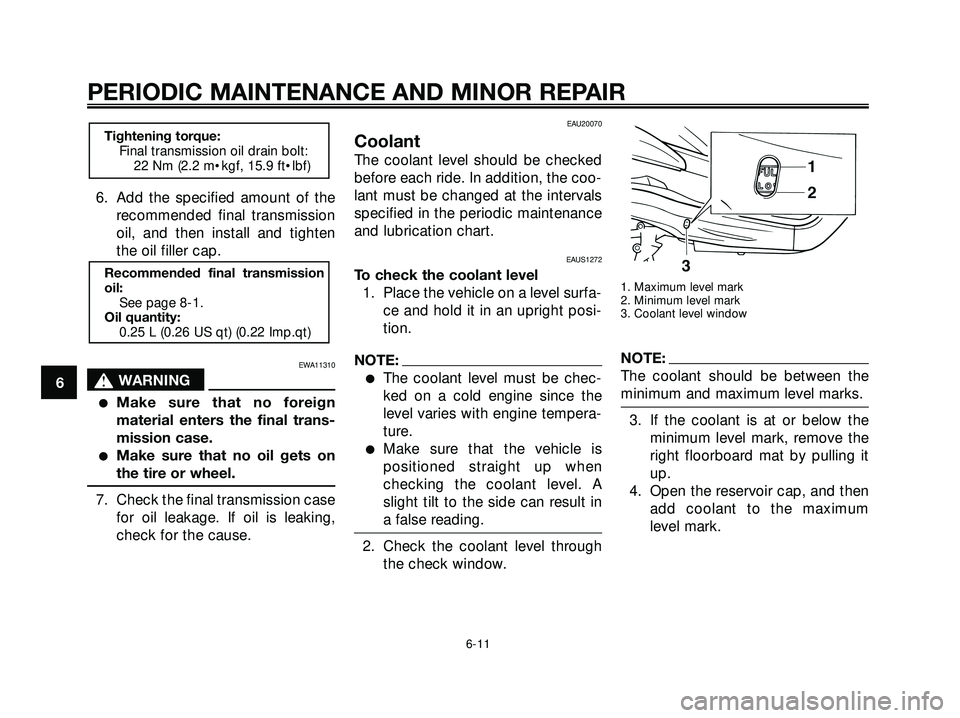

Coolant
The coolant level should be checked
before each ride. In addition, the coo-
lant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAUS1272
To check the coolant level
1. Place the vehicle on a level surfa-
ce and hold it in an upright posi-
tion.
NOTE:
The coolant level must be chec-
ked on a cold engine since the
level varies with engine tempera-
ture.
Make sure that the vehicle is
positioned straight up when
checking the coolant level. A
slight tilt to the side can result in
a false reading.
2. Check the coolant level through
the check window.
1. Maximum level mark
2. Minimum level mark
3. Coolant level window
NOTE:
The coolant should be between the
minimum and maximum level marks.
3. If the coolant is at or below the
minimum level mark, remove the
right floorboard mat by pulling it
up.
4. Open the reservoir cap, and then
add coolant to the maximum
level mark.
Recommended final transmission
oil:
See page 8-1.
Oil quantity:
0.25 L (0.26 US qt) (0.22 Imp.qt)
Tightening torque:
Final transmission oil drain bolt:
22 Nm (2.2 m•kgf, 15.9 ft•lbf)
PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
6
1C0-F8199-E3.qxd 2/11/06 20:46 Página 18

AAcceleration and deceleration ...................5-2
Air filter and V-belt case air filter
elements ................................................6-12
Anti-theft alarm (optional) ..........................3-8
Auxiliary light bulb, replacing ...................6-28
BBattery......................................................6-23
Brake fluid level, checking .......................6-18
Brake fluid, changing ...............................6-19
Brake lever, front ......................................3-10
Brake lever, rear .......................................3-10
Brake levers, lubricating ..........................6-20
Braking .......................................................5-3
CCables, checking and lubricating ............6-20
Care............................................................7-1
Catalytic converter ...................................3-13
Centerstand and sidestand, checking
and lubricating .......................................6-21
Coolant.....................................................6-11
Coolant temperature gauge .......................3-5
Cowlings and panel, removing and
installing ...................................................6-6
DDimmer switch ...........................................3-9
Display, multi-function ...............................3-5
EEngine break-in ..........................................5-4
Engine oil ...................................................6-8
Engine trouble warning light ......................3-3
FFinal transmission oil ...............................6-10
Front and rear brake lever free play.........6-17
Front and rear brake pads, checking ......6-18Front fork, checking .................................6-21
Fuel ..........................................................3-12
Fuel consumption, tips for reducing ..........5-3
Fuel gauge .................................................3-4
Fuel level warning light ..............................3-3
Fuel tank cap ...........................................3-11
Fuses, replacing .......................................6-24
HHandlebar switches ...................................3-9
Hazard switch ............................................3-9
Headlight bulb, replacing .........................6-25
High beam indicator light...........................3-3
Horn switch ................................................3-9
IIdentification numbers ...............................9-1
Ignition circuit cut-off system ..................3-18
Immobilizer system ....................................3-1
Immobilizer system indicator light .............3-4
Indicator and warning lights ......................3-3
KKey identification number ..........................9-1
LLicense plate light bulb, replacing ...........6-28
MMain switch/steering lock ..........................3-2
Matte color, caution ...................................7-1
Model label ................................................9-2
PParking .......................................................5-4
Part locations .............................................2-1
Periodic maintenance and lubrication
chart .........................................................6-3
Pre-operation check list .............................4-2
SSafe-riding points.......................................1-4Safety information ......................................1-1
Seat ..........................................................3-13
Shock absorber assemblies, adjusting....3-17
Sidestand .................................................3-17
Spark plug, checking .................................6-7
Specifications.............................................8-1
Speedometer .............................................3-4
Start switch ................................................3-9
Starting a cold engine ................................5-1
Starting off .................................................5-2
Steering, checking ...................................6-22
Storage.......................................................7-3
Storage compartment (front) ...................3-15
Storage compartment (rear) .....................3-16
Storage compartments ............................3-14
TTail/brake light bulb or rear turn signal
light bulb, replacing ...............................6-27
Throttle cable free play, adjusting ............6-14
Throttle grip and cable, checking and
lubricating ..............................................6-20
Tires .........................................................6-15
Tool kit ........................................................6-1
Troubleshooting .......................................6-29
Troubleshooting charts ............................6-30
Turn signal indicator lights .........................3-3
Turn signal light bulb (front), replacing ....6-27
Turn signal switch ......................................3-9
VValve clearance ........................................6-14
Vehicle identification number .....................9-1
WWheel bearings, checking........................6-23
Wheels .....................................................6-17
INDEX
1C0-F8199-E3.qxd 2/11/06 20:46 Página 6
