INTRODUCTION
IMPORTANT MANUAL INFORMATION
TABLE OF CONTENTS
SAFETY INFORMATION.....................1-1
Further safe-riding points .................1-4
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments .................2-3
INSTRUMENT AND CONTROL
FUNCTIONS........................................3-1
Immobilizer system ...........................3-1
Main switch/steering lock .................3-2
Indicator and warning lights .............3-3
Speedometer ....................................3-4
Fuel gauge ........................................3-4
Coolant temperature gauge..............3-5
Multi-function display .......................3-5
Anti-theft alarm (optional) .................3-8
Handlebar switches ..........................3-9
Front brake lever.............................3-10
Rear brake lever..............................3-10
Fuel tank cap ..................................3-11
Fuel .................................................3-12
Catalytic converter..........................3-13
Seat.................................................3-13
Storage compartments ...................3-14Front storage compartment............3-15
Rear storage compartment.............3-16
Adjusting the shock absorber
assemblies...................................3-17
Sidestand ........................................3-17
Ignition circuit cut-off system .........3-18
PRE-OPERATION CHECKS...............4-1
Pre-operation check list....................4-2
OPERATION AND IMPORTANT RIDING
POINTS................................................5-1
Starting a cold engine ......................5-1
Starting off ........................................5-2
Acceleration and deceleration ..........5-2
Braking..............................................5-3
Tips for reducing fuel consumption..5-3
Engine break-in.................................5-4
Parking ..............................................5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR...................................6-1
Owner’s tool kit .................................6-1
Periodic maintenance and
lubrication chart ............................6-3
Removing and installing the
cowlings and panel .......................6-6
Checking the spark plug ..................6-7
Engine oil ..........................................6-8
Final transmission oil ......................6-10
Coolant ...........................................6-11Air filter and V-belt case air filter
elements ......................................6-12
Adjusting the throttle cable free
play ..............................................6-14
Valve clearance ...............................6-14
Tires ................................................6-15
Cast wheels ....................................6-17
Front and rear brake lever free
play ..............................................6-17
Checking the front and rear brake
pads.............................................6-18
Checking the brake fluid level ........6-18
Changing the brake fluid ................6-19
Checking and lubricating the
cables ..........................................6-20
Checking and lubricating the
throttle grip and cable .................6-20
Lubricating the front and rear
brake levers .................................6-20
Checking and lubricating the
centerstand and sidestand .........6-21
Checking the front fork ...................6-21
Checking the steering.....................6-22
Checking the wheel bearings .........6-23
Battery ............................................6-23
Replacing the fuses ........................6-24
Replacing a headlight bulb .............6-25
Replacing a front turn signal light
bulb .............................................6-27
Replacing the tail/brake light bulb or a
rear turn signal light bulb ............6-27
TABLE OF CONTENTS
1C0-F8199-E3.qxd 2/11/06 20:46 Página 6

EAU10430
Controls and instruments
DESCRIPTION
2-3
2
8
523467
9 10 11
1
1. Rear brake lever (page 3-10)
2. Left handlebar switches (page 3-9)
3. Fuel gauge (page 3-4)
4. Speedometer (page 3-4)
5. Multi-function display (page 3-5)
6. Coolant temperature gauge (page 3-5)7. Right handlebar switches (page 3-9)
8. Front brake lever (page 3-10)
9. Throttle grip (page 5-2)
10. Main switch/Steering lock (page 3-2)
11. Front storage compartement (page 3-15)
1C0-F8199-E3.qxd 2/11/06 20:46 Página 3

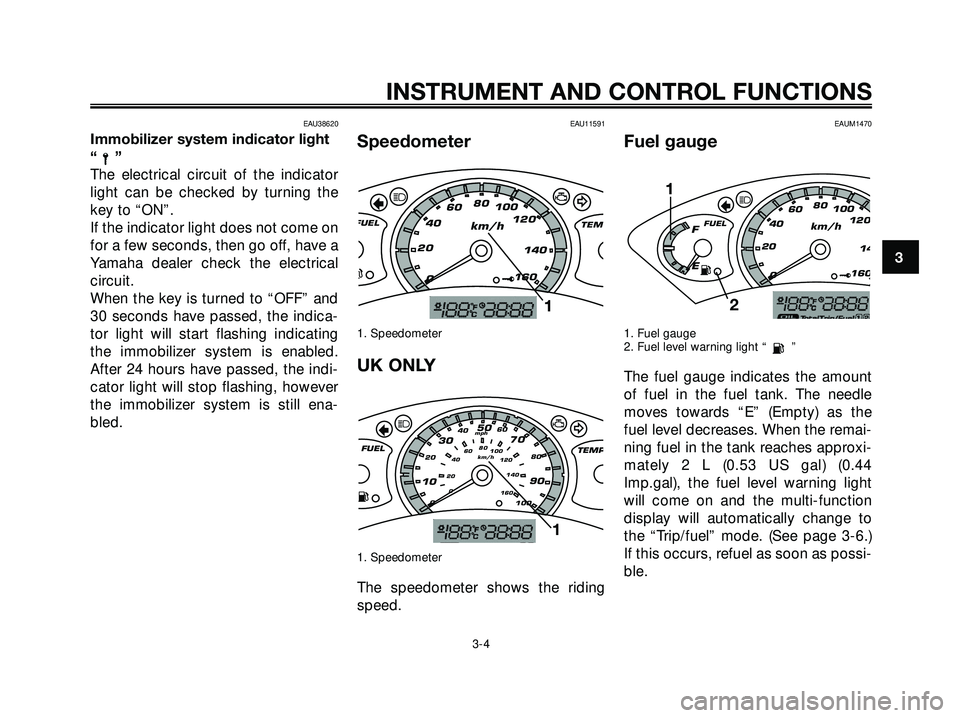

EAU38620
Immobilizer system indicator light
“”
The electrical circuit of the indicator
light can be checked by turning the
key to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical
circuit.
When the key is turned to “OFF” and
30 seconds have passed, the indica-
tor light will start flashing indicating
the immobilizer system is enabled.
After 24 hours have passed, the indi-
cator light will stop flashing, however
the immobilizer system is still ena-
bled.
EAU11591
Speedometer
1. Speedometer
UK ONLY
1. Speedometer
The speedometer shows the riding
speed.
EAUM1470
Fuel gauge
1. Fuel gauge
2. Fuel level warning light “ ”
The fuel gauge indicates the amount
of fuel in the fuel tank. The needle
moves towards “E” (Empty) as the
fuel level decreases. When the remai-
ning fuel in the tank reaches approxi-
mately 2 L (0.53 US gal) (0.44
Imp.gal), the fuel level warning light
will come on and the multi-function
display will automatically change to
the “Trip/fuel” mode. (See page 3-6.)
If this occurs, refuel as soon as possi-
ble.
2
20406080
100
120
14
160
km/h
0
FFUEL
E
cj1
103050
70
90
204060
80
100 0
20406080
100
120
140
160 0km/h mph
FUEL
TEMPcjd
1
20406080
100
120
140
160
km/h
0
FUEL
TEM
cjd
1
INSTRUMENT AND CONTROL FUNCTIONS
3-4
3
1C0-F8199-E3.qxd 2/11/06 20:46 Página 7

NOTE:
Do not allow the fuel tank to empty
itself completely.EAU12171
Coolant temperature gauge
1. Coolant temperature gauge
With the key in the “ON” position, the
coolant temperature gauge indicates
the temperature of the coolant. The
coolant temperature varies with chan-
ges in the weather and engine load. If
the needle reaches or enters the red
zone, stop the vehicle and let the
engine cool. (See page 6-31.)
ECA10020
CAUTION:
Do not operate the engine if it is
overheated.
EAUM2050
Multi-function display
1. “MODE” button
2. Multi-function display
3. “SET” button
The multi-function display is equip-
ped with the following:
an odometer (which shows the
total distance traveled)
two tripmeters (which show the
distance traveled since they were
last set to zero, the time passed
since the tripmeters were set to
zero, and the average speed tra-
veled during this time)
a fuel reserve tripmeter (which
shows the distance traveled sin-
ce the fuel level warning light
came on)
0406080
100
120
140
160
km/h
0
H
CTEMP
y
d
1
INSTRUMENT AND CONTROL FUNCTIONS
3-5
3
1C0-F8199-E3.qxd 2/11/06 20:46 Página 8

a clock
an ambient temperature display
an oil change indicator (which
comes on when the engine oil
should be changed)
NOTE:
For the UK, the distance traveled
is displayed in miles and the tem-
perature reading is displayed in
°F.
For other countries, the distance
traveled is displayed in kilome-
ters and the temperature reading
is displayed in °C.
1. Total
2. Trip 1
3. Trip 2
4. Trip/Fuel
Odometer and tripmeter modes
Pushing the “MODE” button switches
the display between the odometer
mode “Total” and the tripmeter
modes “Trip” in the following order:
Total
Trip 1 Trip 2 Trip/fuel
Total
1. Distance
2. Time
3. Average speed
NOTE:
The Trip/fuel odometer is only
activated if the fuel level warning
light comes on.
The Trip 2 odometer is automati-
cally reset after turning the key to
“OFF” and two hours have pas-
sed.
Pushing the “SET” button when in the
tripmeter mode switches the display
between the different tripmeter func-
tions in the following order:
Trip 1 or Trip 2
Time 1 or 2 Ave-
rage speed 1 or 2
Trip 1 or Trip 2
If the fuel level warning light comes on
(See page 3-3.), the display will auto-
matically change to the fuel reserve
tripmeter mode “Trip/fuel” and start
counting the distance traveled from
that point. In that case, pushing the
“MODE” button switches the display
between the various tripmeter and
odometer modes in the following
order:
Trip/Fuel
Trip 1 Trip 2 Total
Trip/fuel
INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
1C0-F8199-E3.qxd 2/11/06 20:46 Página 9

To reset a tripmeter, select it by pus-
hing the “MODE” button, and then
push the “SET” button for at least one
second. If you do not reset the fuel
reserve tripmeter manually, it will
reset itself automatically and the dis-
play will return to the prior mode after
refueling and traveling 5 km (3 mi).
Clock mode
To set the clock:
1. When the display is in the “Total”
mode, push the “SET” button for
at least two seconds.
2. When the hour digits start flas-
hing, push the “SET” button to
set the hours.3. Push the “MODE” button, and
the minute digits will start flas-
hing.
4. Push the “SET” button to set the
minutes.
5. Push the “MODE” button and
then release it to start the clock.
The display will return to the
“Total” mode.Ambient temperature display
1. Frost warning indicator“”
2. Negative symbol “ – ”
3. Ambient temperature
This display shows the ambient tem-
perature from -30°C (-22°F) to 50°C
(122°F).
The frost warning indicator
“”
automatically comes on if the
temperature is lower than 3°C
(37.4°F).
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3
1C0-F8199-E3.qxd 2/11/06 20:46 Página 10

AAcceleration and deceleration ...................5-2
Air filter and V-belt case air filter
elements ................................................6-12
Anti-theft alarm (optional) ..........................3-8
Auxiliary light bulb, replacing ...................6-28
BBattery......................................................6-23
Brake fluid level, checking .......................6-18
Brake fluid, changing ...............................6-19
Brake lever, front ......................................3-10
Brake lever, rear .......................................3-10
Brake levers, lubricating ..........................6-20
Braking .......................................................5-3
CCables, checking and lubricating ............6-20
Care............................................................7-1
Catalytic converter ...................................3-13
Centerstand and sidestand, checking
and lubricating .......................................6-21
Coolant.....................................................6-11
Coolant temperature gauge .......................3-5
Cowlings and panel, removing and
installing ...................................................6-6
DDimmer switch ...........................................3-9
Display, multi-function ...............................3-5
EEngine break-in ..........................................5-4
Engine oil ...................................................6-8
Engine trouble warning light ......................3-3
FFinal transmission oil ...............................6-10
Front and rear brake lever free play.........6-17
Front and rear brake pads, checking ......6-18Front fork, checking .................................6-21
Fuel ..........................................................3-12
Fuel consumption, tips for reducing ..........5-3
Fuel gauge .................................................3-4
Fuel level warning light ..............................3-3
Fuel tank cap ...........................................3-11
Fuses, replacing .......................................6-24
HHandlebar switches ...................................3-9
Hazard switch ............................................3-9
Headlight bulb, replacing .........................6-25
High beam indicator light...........................3-3
Horn switch ................................................3-9
IIdentification numbers ...............................9-1
Ignition circuit cut-off system ..................3-18
Immobilizer system ....................................3-1
Immobilizer system indicator light .............3-4
Indicator and warning lights ......................3-3
KKey identification number ..........................9-1
LLicense plate light bulb, replacing ...........6-28
MMain switch/steering lock ..........................3-2
Matte color, caution ...................................7-1
Model label ................................................9-2
PParking .......................................................5-4
Part locations .............................................2-1
Periodic maintenance and lubrication
chart .........................................................6-3
Pre-operation check list .............................4-2
SSafe-riding points.......................................1-4Safety information ......................................1-1
Seat ..........................................................3-13
Shock absorber assemblies, adjusting....3-17
Sidestand .................................................3-17
Spark plug, checking .................................6-7
Specifications.............................................8-1
Speedometer .............................................3-4
Start switch ................................................3-9
Starting a cold engine ................................5-1
Starting off .................................................5-2
Steering, checking ...................................6-22
Storage.......................................................7-3
Storage compartment (front) ...................3-15
Storage compartment (rear) .....................3-16
Storage compartments ............................3-14
TTail/brake light bulb or rear turn signal
light bulb, replacing ...............................6-27
Throttle cable free play, adjusting ............6-14
Throttle grip and cable, checking and
lubricating ..............................................6-20
Tires .........................................................6-15
Tool kit ........................................................6-1
Troubleshooting .......................................6-29
Troubleshooting charts ............................6-30
Turn signal indicator lights .........................3-3
Turn signal light bulb (front), replacing ....6-27
Turn signal switch ......................................3-9
VValve clearance ........................................6-14
Vehicle identification number .....................9-1
WWheel bearings, checking........................6-23
Wheels .....................................................6-17
INDEX
1C0-F8199-E3.qxd 2/11/06 20:46 Página 6
