SAFETY INFORMATION.....................1-1
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments .................2-3
INSTRUMENT AND CONTROL
FUNCTIONS........................................3-1
Immobilizer system ...........................3-1
Main switch/steering lock .................3-2
Indicators, indicator lights and
warning light ..................................3-3
Speedometer ....................................3-4
Fuel gauge ........................................3-4
Coolant temperature gauge..............3-4
Multi-function display .......................3-5
Anti-theft alarm (optional) .................3-7
Handlebar switches ..........................3-8
Front brake lever...............................3-9
Rear brake lever................................3-9
Fuel tank cap ..................................3-10
Fuel .................................................3-10
Catalytic converter..........................3-11
Seat.................................................3-11
Front storage compartment............3-12
Storage compartment.....................3-12
Adjusting the shock absorber
assemblies...................................3-13
Sidestand ........................................3-13PRE-OPERATION CHECKS...............4-1
Pre-operation check list....................4-2
OPERATION AND IMPORTANT
RIDING POINTS..................................5-1
Starting a cold engine ......................5-1
Starting off ........................................5-2
Acceleration and deceleration ..........5-2
Braking..............................................5-2
Tips for reducing fuel consumption..5-3
Engine break-in.................................5-3
Parking ..............................................5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR...................................6-1
Owner’s tool kit .................................6-1
Periodic maintenance and
lubrication chart ............................6-3
Removing and installing cowlings
and panels .....................................6-6
Checking the spark plug ..................6-7
Engine oil ..........................................6-8
Final transmission oil ......................6-10
Coolant ...........................................6-11
Air filter and V-belt case air filter
elements ......................................6-12
Adjusting the throttle cable
free play .......................................6-14
Valve clearance ...............................6-15
Tires ................................................6-15
Cast wheels ....................................6-17Front and rear brake lever free
play ..............................................6-17
Checking the front and rear brake
pads.............................................6-17
Checking the brake fluid level ........6-18
Changing the brake fluid ................6-19
Checking and lubricating the
throttle grip and cable .................6-19
Lubricating the front and rear
brake levers .................................6-20
Checking and lubricating the
centerstand and sidestand .........6-20
Checking the front fork ...................6-20
Checking the steering.....................6-21
Checking the wheel bearings .........6-22
Battery ............................................6-22
Replacing the fuses ........................6-23
Replacing a headlight bulb .............6-24
Replacing a front turn signal
light bulb......................................6-25
Replacing the tail/brake light bulb
or a rear turn signal light bulb .....6-25
Replacing the license plate light
bulb .............................................6-26
Replacing the auxiliary light bulb ...6-27
Troubleshooting ..............................6-27
Troubleshooting charts ...................6-28
SCOOTER CARE AND STORAGE.....7-1
Care ..................................................7-1
Storage .............................................7-3
TABLE OF CONTENTS
1B9-F8199-E1.qxd 9/10/06 09:59 Página 6

an electric failure could result,
which could cause a dangerous
loss of lights or engine power.
Gasoline and exhaust gas
GASOLINE IS HIGHLY FLAMMA-
BLE:
• Always turn the engine off
when refueling.
• Take care not to spill any gaso-
line on the engine or exhaust
system when refueling.
• Never refuel while smoking or
in the vicinity of an open flame.
Never start the engine or let it run
for any length of time in a closed
area. The exhaust fumes are poi-
sonous and may cause loss of
consciousness and death within
a short time. Always operate your
scooter in an area that has ade-
quate ventilation.
Always turn the engine off before
leaving the scooter unattended
and remove the key from the
main switch. When parking the
scooter, note the following:
• The engine and exhaust sys-
tem may be hot, therefore,
park the scooter in a placewhere pedestrians or children
are not likely to touch these hot
areas.
• Do not park the scooter on a
slope or soft ground, otherwise
it may fall over.
• Do not park the scooter near a
flammable source (e.g., a kero-
sene heater, or near an open
flame), otherwise it could catch
fire.
If you should swallow any gasoli-
ne, inhale a lot of gasoline vapor,
or allow gasoline to get into your
eyes, see your doctor immedia-
tely. If any gasoline spills on your
skin or clothing, immediately
wash the affected area with soap
and water and change your clot-
hes.
EAU10371
Further safe-riding points
Be sure to signal clearly when
making turns.
Braking can be extremely difficult
on a wet road. Avoid hard bra-
king, because the scooter could
slide. Apply the brakes slowlywhen stopping on a wet surface.
Slow down as you approach a
corner or turn. Once you have
completed a turn, accelerate
slowly.
Be careful when passing parked
cars. A driver might not see you
and open a door in your path.
Railroad crossings, streetcar
rails, iron plates on road cons-
truction sites, and manhole
covers become extremely slip-
pery when wet. Slow down and
cross them with caution. Keep
the scooter upright, otherwise it
could slide out from under you.
The brake pads could get wet
when you wash the scooter. After
washing the scooter, check the
brakes before riding.
Always wear a helmet, gloves,
trousers (tapered around the cuff
and ankle so they do not flap),
and a bright colored jacket.
Do not carry too much luggage
on the scooter. An overloaded
scooter is unstable.
1
SAFETY INFORMATION t
1-4
1B9-F8199-E1.qxd 9/10/06 09:59 Página 11

EAU10420

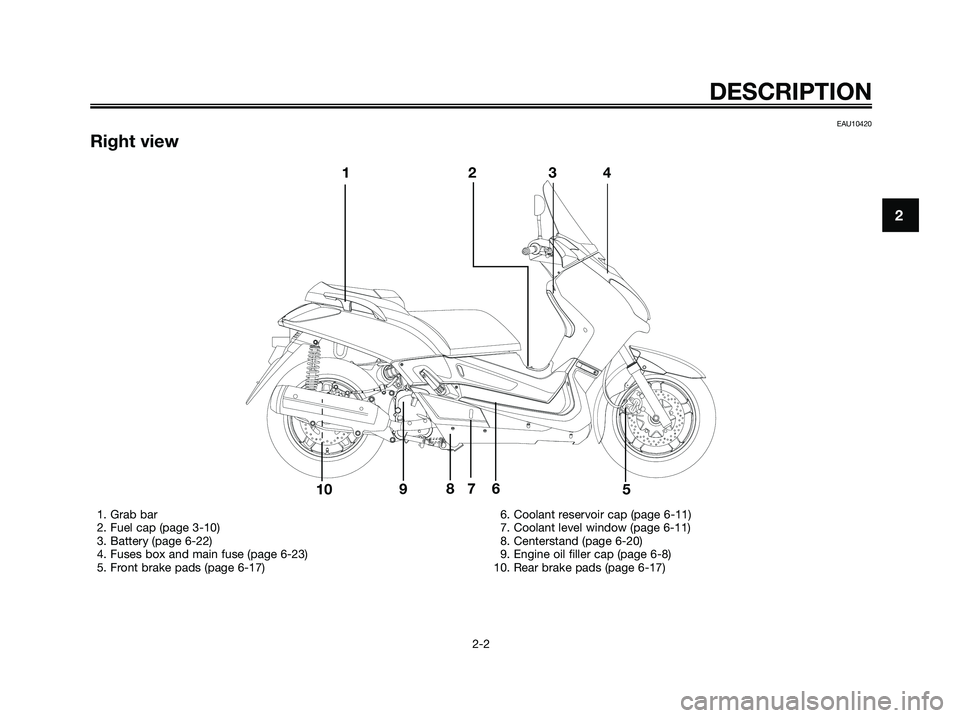

Right view
DESCRIPTION
2-2
2
8
43 2 1
10975 6
1. Grab bar
2. Fuel cap (page 3-10)
3. Battery (page 6-22)
4. Fuses box and main fuse (page 6-23)
5. Front brake pads (page 6-17)6. Coolant reservoir cap (page 6-11)
7. Coolant level window (page 6-11)
8. Centerstand (page 6-20)
9. Engine oil filler cap (page 6-8)
10. Rear brake pads (page 6-17)
1B9-F8199-E1.qxd 9/10/06 09:59 Página 13

4
PRE-OPERATION CHECKS
4-2
EAU15603
Pre-operation check list
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary. 3-4, 3-10
• Check fuel line for leakage.
• Check oil level in engine.
Engine oil• If necessary, add recommended oil to specified level. 6-8
• Check vehicle for oil leakage.
Final transmission oil• Check vehicle for oil leakage. 6-10
• Check coolant level in reservoir.
Coolant• If necessary, add recommended coolant to specified level. 3-4, 6-11
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
Front brake• Check brake pads for wear.
3-9, 5-2, 6-17
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
Rear brake• Check brake pads for wear.
3-9, 5-2, 6-17
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Make sure that operation is smooth.
Throttle grip• Check cable free play.
5-2, 6-14, 6-19
• If necessary, have Yamaha dealer adjust cable free play and lubricate
cable and grip housing.
• Check for damage.
Wheels and tires• Check tire condition and tread depth.
6-15 ~ 6-17
• Check air pressure.
• Correct if necessary.
1B9-F8199-E1.qxd 9/10/06 09:59 Página 31

6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
EAU17705
Periodic maintenance and lubrication chart
NOTE:
The annual checks must be performed every year, except if a kilometer-based maintenance is performed
instead.
From 30000 km, repeat the maintenance intervals starting from 6000 km.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and
technical skills.
ODOMETER READING (x 1000 Km)
ANNUAL
CHECKNO. ITEM CHECK OR MAINTENANCE JOB
1 6 12 18 24
1*Fuel line• Check fuel and vacuum hoses for cracks or damage.√√√√ √
• Check condition.
2Spark plug• Clean and regap.√√
• Replace.√√
3*Valves• Check valve clearance.
• Adjust.√√
4Air filter element• Replace. Every 20000 Km
5*V-Belt• Replace. Every 20000 Km
6*Front brake• Check operation, fluid level and vehicle for fluid leakage.√√ √ √√ √• Replace brake pads. Whenever worn to the limit
7*Rear brake• Check operation, fluid level and vehicle for fluid leakage.√√ √ √√ √
• Replace brake pads. Whenever worn to the limit
1B9-F8199-E1.qxd 9/10/06 09:59 Página 39

EAU21960
Cast wheels
To maximize the performance, durabi-
lity, and safe operation of your
motorcycle, note the following points
regarding the specified wheels.
The wheel rims should be chec-
ked for cracks, bends or warpage
before each ride. If any damage
is found, have a Yamaha dealer
replace the wheel. Do not
attempt even the smallest repair
to the wheel. A deformed or crac-
ked wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced.
An unbalanced wheel can result
in poor performance, adverse
handling characteristics, and a
shortened tire life.
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for
it to develop its optimal characte-
ristics.
EAU33451
Front and rear brake lever
free play
Front
Rear
There should be no free play at the
brake lever ends. If there is free play,
have a Yamaha dealer inspect the
brake system.
EAU22390
Checking the front and rear
brake pads
The front and rear brake pads must
be checked for wear at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU22400
Front brake pads
1. Lining thickeness
Check each front brake pad for
damage and measure the lining thick-
ness. If a brake pad is damaged or if
the lining thickness is less than 0.5
mm (0.02 in), have a Yamaha dealer
replace the brake pads as a set.
1
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
1B9-F8199-E1.qxd 9/10/06 09:59 Página 53

EAU22520
Rear brake pads
The rear brake is provided with a
check plug, which, if it is removed,
allows you to check the brake pad
wear without disassembling the bra-
ke. To check the brake pad wear,
check the position of the wear indica-
tor while applying the brake. If a bra-
ke pad has worn to the point that the
wear indicator almost touches the
brake disc, have a Yamaha dealer
replace the brake pads as a set.
EAU22580
Checking the brake fluid
level
Insufficient brake fluid may allow air
to enter the brake system, possibly
causing it to become ineffective.
Before riding, check that the brake
fluid is above the minimum level mark
and replenish if necessary. A low bra-
ke fluid level may indicate worn brake
pads and/or brake system leakage. If
the brake fluid level is low, be sure to
check the brake pads for wear and
the brake system for leakage.
Observe these precautions:
When checking the fluid level,
make sure that the top of the bra-
ke fluid reservoir is level.
Use only the recommended qua-
lity brake fluid, otherwise the rub-
ber seals may deteriorate, cau-
sing leakage and poor braking
performance.
Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking performan-
ce.
Be careful that water does not
enter the brake fluid reservoir
Recommended brake fluid:
DOT 4
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
1B9-F8199-E1.qxd 9/10/06 09:59 Página 54

when refilling. Water will signifi-
cantly lower the boiling point of
the fluid and may result in vapor
lock.
Brake fluid may deteriorate pain-
ted surfaces or plastic parts.
Always clean up spilled fluid
immediately.
As the brake pads wear, it is nor-
mal for the brake fluid level to
gradually go down. However, if
the brake fluid level goes down
suddenly, have a Yamaha dealer
check the cause.
EAUM1360
Changing the brake fluid
Have a Yamaha dealer change the
brake fluid at the intervals specified in
the periodic maintenance and lubrica-
tion chart. In addition, have the brake
hose replaced every four years or
whenever it is damaged or leaking.
EAU23111
Checking and lubricating the
throttle grip and cable
The operation of the throttle grip
should be checked before each ride.
In addition, the cable should be lubri-
cated at the intervals specified in the
periodic maintenance chart.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-19
1B9-F8199-E1.qxd 9/10/06 09:59 Página 55
