Multi-function display
1. “MODE” button
2. Multi-function display
3. “SET” button
The multi-function display is equip-
ped with the following:
an odometer (which shows the
total distance traveled)
two tripmeters (which show the
distance traveled since they were
last set to zero, the time passed
since the tripmeters were set to
zero, and the average speed tra-
veled during this time)
a fuel reserve tripmeter (which
shows the distance traveled since
the fuel level warning light came on)
a clock
an ambient temperature display
an oil change indicator (which
comes on when the engine oil
should be changed)
NOTE:
For the UK, the distance traveled
is displayed in miles and the tem-
perature reading is displayed in
°F.
For other countries, the distance
traveled is displayed in kilome-
ters and the temperature reading
is displayed in °C.
1. Total
2. Trip 1
3. Trip 2
4. Trip/Fuel
Odometer and tripmeter modes
Pushing the “MODE” button switches
the display between the odometer
mode “Total” and the tripmeter
modes “Trip” in the following order:
Total
Trip 1 Trip 2 Trip/fuel Total
1. Distance
2. Time
3. Average speed
NOTE:
The Trip/fuel odometer is only
activated if the fuel level warning
light comes on.
The Trip 2 odometer is automati-
cally reset after turning the key to
“OFF” and two hours have pas-
sed.
c
dj
x
1
23
3
INSTRUMENT AND CONTROL FUNCTIONS
3-5
1B9-F8199-E1.qxd 9/10/06 09:59 Página 3-5
Pushing the “SET” button when in the
tripmeter mode switches the display
between the different tripmeter func-
tions in the following order:
Trip 1 or Trip 2
Time 1 or 2 Ave-
rage speed 1 or 2
Trip 1 or Trip 2
If the fuel level warning light comes on
(See page 3-3.), the display will auto-
matically change to the fuel reserve
tripmeter mode “Trip/fuel” and start
counting the distance traveled from
that point. In that case, pushing the
“MODE” button switches the display
between the various tripmeter and
odometer modes in the following
order:
Trip/Fuel
Trip 1 Trip 2 Total
Trip/fuel To reset a tripmeter, select it by pus-
hing the “MODE” button, and then
push the “SET” button for at least one
second. If you do not reset the fuel
reserve tripmeter manually, it will
reset itself automatically and the dis-
play will return to the prior mode after
refueling and traveling 5 km (3 mi).
Clock mode
To set the clock:
1. When the display is in the “Total” mode, push the “SET” button for
at least two seconds.
2. When the hour digits start flas- hing, push the “SET” button to
set the hours. 3. Push the “MODE” button, and
the minute digits will start flas-
hing.
4. Push the “SET” button to set the minutes.
5. Push the “MODE” button and then release it to start the clock.
The display will return to the
“Total” mode.
3
INSTRUMENT AND CONTROL FUNCTIONS
3-6
1B9-F8199-E1.qxd 9/10/06 11:51 Página 3-6
EAU13161
Fuel tank cap
To open the fuel tank cap
1. Open the lid by sliding the lever
forward, and then pull the lever
up.
2. Insert the key into the lock and
turn it clockwise. The lock will be
released and the fuel tank cap
can be removed.
To install the fuel tank cap
1. Align the match marks, insert the
fuel tank cap into the tank ope-
ning, and then push down on the
cap.
2. Turn the key counterclockwise to
the original position, and then
remove it.
3. Close the lid.
EWA11120
s s
WARNING
Be sure that the fuel tank cap is
properly installed and locked befo-
re riding the scooter.
EAU13230
Fuel
Make sure that there is sufficient fuel
in the tank.
1. Fuel tank
2. Fuel level
EWA10990
s s
WARNING
Since gasoline is flammable, the
following precautions must be
observed.
Stop the engine before refue-
ling.
Never attempt to refuel the
scooter while smoking or near
an open flame.
Take special care not to spill
gasoline over the engine or
muffler when refueling imme-
diately after operation.
Before starting the engine,
quickly wipe off any gasoline
spilled on the engine or muffler.
ECA10070
CAUTION:
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, since
fuel may deteriorate painted surfa-
ces or plastic parts.
EAU33500
Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
12,5 L (2,75 US gal) (11 Imp.gal)
Fuel reserve amount (when the fuel
level warning symbol comes on):
2 L (0,44 US gal) (1,76 Imp.gal)
3
INSTRUMENT AND CONTROL FUNCTIONS
3-10
1B9-F8199-E1.qxd 9/10/06 09:59 Página 3-10
ECA11400
CAUTION:
Use only unleaded gasoline. The
use of leaded gasoline will cause
severe damage to internal engine
parts, such as the valves and piston
rings, as well as to the exhaust sys-
tem.
Your Yamaha engine has been desig-
ned to use regular unleaded gasoline
with a research octane number of 91
or higher. If knocking (or pinging)
occurs, use a gasoline of a different
brand or premium unleaded fuel. Use
of unleaded fuel will extend spark
plug life and reduce maintenance
costs.
EAU13431
Catalytic converter
This model is equipped with a cataly-
tic converter in the exhaust system.
EWA10860
s s
WARNING
The exhaust system is hot after
operation. Make sure that the
exhaust system has cooled down
before doing any maintenance
work.
ECA10700
CAUTION:
The following precautions must be
observed to prevent a fire hazard or
other damages.
Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.
Never park the vehicle near
possible fire hazards such as
grass or other materials that
easily burn.
Do not allow the engine to idle
too long.
EAU13931
Seat
To open the seat
1. Place the scooter on the centers-
tand.
2. Insert the key into the main
switch, and then turn it counter-
clockwise.
NOTE:
Do not push inward when turning the
key.
3. Fold the seat up.
To close the seat
1. Fold the seat down, and then
push it down to lock it in place.
2. Remove the key from the main
switch if the scooter will be left
unattended.
3
INSTRUMENT AND CONTROL FUNCTIONS
3-11
1B9-F8199-E1.qxd 9/10/06 09:59 Página 3-11
NOTE:
Make sure that the seat is properly
secured before riding.
EAU14540
Front storage compartment
1. Lock
To open the storage compartment
Insert the key into the lock, turn it
clockwise, and then pull on it to open
the storage compartment lid.
1.Storage compartment
To close the storage compartment
Push the storage compartment lid
into the original position, and then
remove the key.
EWA10960
s s
WARNING
Do not exceed the load limit of
1 kg (2.205 lb) for the storage
compartment.
Do not exceed the maximum
load of 189 kg (416.75 lb) for
the vehicle.
EAU14451
Storage compartment
1.Storage compartment
The storage compartment is located
under the seat. (See page 3-11.)
EWA10961
s s
WARNING
Do not exceed the load limit of
5 kg (11.02 lb) for the storage
compartment.
Do not exceed the maximum
load of 189 kg (416.75 lb) for
the vehicle.
When storing the owner’s manual or
other documents in the storage com-
partment, be sure to wrap them in a
plastic bag so that they will not get
wet. When washing the vehicle, be
careful not to let any water enter the
storage compartment.
1
1
1
3
INSTRUMENT AND CONTROL FUNCTIONS
3-12
1B9-F8199-E1.qxd 9/10/06 09:59 Página 3-12
3. Fully charge the battery before
installation.
4. After installation, make sure that
the battery leads are properly
connected to the battery termi-
nals.
ECA10630
CAUTION:
Always keep the battery char-
ged. Storing a discharged bat-
tery can cause permanent bat-
tery damage.
To charge a sealed-type (MF)
battery, a special (constant-
voltage) battery charger is
required. Using a conventional
battery charger will damage
the battery. If you do not have
access to a sealed-type (MF)
battery charger, have a Yamaha
dealer charge your battery.
EAU23610
Replacing the fuses
The main fuse and the fuse box,
which contains the fuses for the indi-
vidual circuits, are located behind
cowling B. (See page 6-6.)
If a fuse is blown, replace it as
follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.ECA10640
CAUTION:
Do not use a fuse of a higher ampe-
rage rating than recommended to
avoid causing extensive damage to
the electrical system and possibly a
fire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
Specified fuses:
Main fuse:
30 A
Headlight fuse:
15 A
Signaling system fuse:
15 A
Ignition fuse:
5 A
Clock fuse (backup):
5 A
Radiator fan fuse:
10 A
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
1B9-F8199-E1.qxd 9/10/06 09:59 Página 59
EAUT1260
Replacing a front turn signal
light bulb
ECA10670
CAUTION:
It is advisable to have a Yamaha
dealer perform this job.
1. Place the scooter on the centers-
tand.
2. Remove cowling A. (See page
6-6.)
3. Remove the socket (together
with the bulb) by turning it coun-
terclockwise.
4. Remove the defective bulb by
pushing it in and turning it coun-
terclockwise.5. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
6. Install the socket (together with
the bulb) by turning it clockwise.
7. Install the cowling.
EAUS1250
Replacing the tail/brake light
bulb or a rear turn signal
light bulb
Tail/brake light bulb
1. Remove the tail/brake light bulb
lens by removing the screws.
2. Remove the defective bulb by
pushing it in and turning it coun-
terclockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screws.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
1B9-F8199-E1.qxd 9/10/06 09:59 Página 61

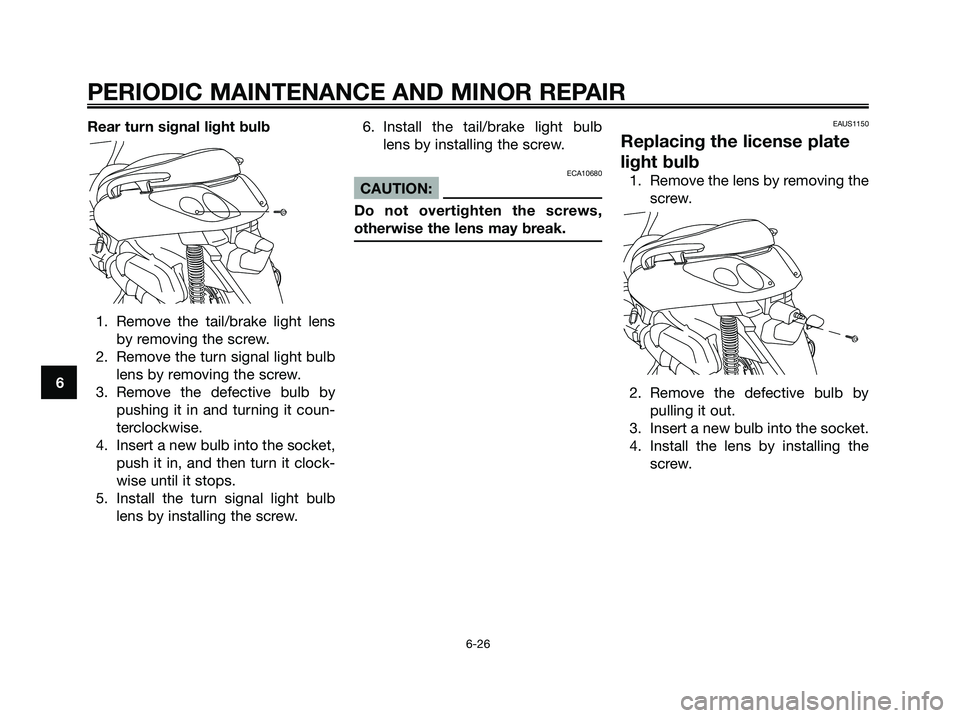

Rear turn signal light bulb
1. Remove the tail/brake light lens
by removing the screw.
2. Remove the turn signal light bulb
lens by removing the screw.
3. Remove the defective bulb by
pushing it in and turning it coun-
terclockwise.
4. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
5. Install the turn signal light bulb
lens by installing the screw.6. Install the tail/brake light bulb
lens by installing the screw.
ECA10680
CAUTION:
Do not overtighten the screws,
otherwise the lens may break.
EAUS1150
Replacing the license plate
light bulb
1. Remove the lens by removing the
screw.
2. Remove the defective bulb by
pulling it out.
3. Insert a new bulb into the socket.
4. Install the lens by installing the
screw.
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
1B9-F8199-E1.qxd 9/10/06 09:59 Página 62
