SAFETY INFORMATION.....................1-1
DESCRIPTION.....................................2-1
Left view ...........................................2-1
Right view .........................................2-2
Controls and instruments .................2-3
INSTRUMENT AND CONTROL
FUNCTIONS........................................3-1
Immobilizer system ...........................3-1
Main switch/steering lock .................3-2
Indicators, indicator lights and
warning light ..................................3-3
Speedometer ....................................3-4
Fuel gauge ........................................3-4
Coolant temperature gauge..............3-4
Multi-function display .......................3-5
Anti-theft alarm (optional) .................3-7
Handlebar switches ..........................3-8
Front brake lever...............................3-9
Rear brake lever................................3-9
Fuel tank cap ..................................3-10
Fuel .................................................3-10
Catalytic converter..........................3-11
Seat.................................................3-11
Front storage compartment............3-12
Storage compartment.....................3-12
Adjusting the shock absorber
assemblies...................................3-13
Sidestand ........................................3-13PRE-OPERATION CHECKS...............4-1
Pre-operation check list....................4-2
OPERATION AND IMPORTANT
RIDING POINTS..................................5-1
Starting a cold engine ......................5-1
Starting off ........................................5-2
Acceleration and deceleration ..........5-2
Braking..............................................5-2
Tips for reducing fuel consumption..5-3
Engine break-in.................................5-3
Parking ..............................................5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR...................................6-1
Owner’s tool kit .................................6-1
Periodic maintenance and
lubrication chart ............................6-3
Removing and installing cowlings
and panels .....................................6-6
Checking the spark plug ..................6-7
Engine oil ..........................................6-8
Final transmission oil ......................6-10
Coolant ...........................................6-11
Air filter and V-belt case air filter
elements ......................................6-12
Adjusting the throttle cable
free play .......................................6-14
Valve clearance ...............................6-15
Tires ................................................6-15
Cast wheels ....................................6-17Front and rear brake lever free
play ..............................................6-17
Checking the front and rear brake
pads.............................................6-17
Checking the brake fluid level ........6-18
Changing the brake fluid ................6-19
Checking and lubricating the
throttle grip and cable .................6-19
Lubricating the front and rear
brake levers .................................6-20
Checking and lubricating the
centerstand and sidestand .........6-20
Checking the front fork ...................6-20
Checking the steering.....................6-21
Checking the wheel bearings .........6-22
Battery ............................................6-22
Replacing the fuses ........................6-23
Replacing a headlight bulb .............6-24
Replacing a front turn signal
light bulb......................................6-25
Replacing the tail/brake light bulb
or a rear turn signal light bulb .....6-25
Replacing the license plate light
bulb .............................................6-26
Replacing the auxiliary light bulb ...6-27
Troubleshooting ..............................6-27
Troubleshooting charts ...................6-28
SCOOTER CARE AND STORAGE.....7-1
Care ..................................................7-1
Storage .............................................7-3
TABLE OF CONTENTS
1B9-F8199-E1.qxd 9/10/06 09:59 Página 6

The posture of the operator and
passenger is important for proper
control.
• The operator should keep both
hands on the handlebar and
both feet on the footboard
during operation to maintain
control of the scooter.
• The passenger should always
hold onto the operator, the seat
strap or grab bar, if equipped,
with both hands and keep both
feet on the passenger foo-
trests.
• Never carry a passenger
unless he or she can firmly pla-
ce both feet on the passenger
footrests.
Never ride under the influence of
alcohol or other drugs.
This scooter is designed for on-
road use only. It is not suitable for
off-road use.
Protective apparel
The majority of fatalities from scooter
accidents are the result of head inju-
ries. The use of a safety helmet is the
single most critical factor in the pre-
vention or reduction of head injuries.
Always wear an approved hel-
met.
Wear a face shield or goggles.
Wind in your unprotected eyes
could contribute to an impair-
ment of vision which could delay
seeing a hazard.
The use of a jacket, substantial
shoes, trousers, gloves, etc., is
effective in preventing or redu-
cing abrasions or lacerations.
Never wear loose-fitting clothes,
otherwise they could catch on
the control levers or wheels and
cause injury or an accident.
Never touch the engine or
exhaust system during or after
operation. They become very hot
and can cause burns. Always
wear protective clothing that
covers your legs, ankles, and
feet.
Passengers should also observe
the above precautions.Modifications
Modifications made to this scooter
not approved by Yamaha, or the
removal of original equipment, may
render the scooter unsafe for use and
may cause severe personal injury.
Modifications may also make your
scooter illegal to use.
Loading and accessories
Adding accessories or cargo to your
scooter can adversely affect stability
and handling if the weight distribution
of the scooter is changed. To avoid
the possibility of an accident, use
extreme caution when adding cargo
or accessories to your scooter. Use
extra care when riding a scooter that
has added cargo or accessories. Here
are some general guidelines to follow
if loading cargo or adding accessories
to your scooter:
1
SAFETY INFORMATION t
1-2
1B9-F8199-E1.qxd 9/10/06 09:59 Página 9

4
PRE-OPERATION CHECKS
4-2
EAU15603
Pre-operation check list
ITEM CHECKS PAGE
• Check fuel level in fuel tank.
Fuel• Refuel if necessary. 3-4, 3-10
• Check fuel line for leakage.
• Check oil level in engine.
Engine oil• If necessary, add recommended oil to specified level. 6-8
• Check vehicle for oil leakage.
Final transmission oil• Check vehicle for oil leakage. 6-10
• Check coolant level in reservoir.
Coolant• If necessary, add recommended coolant to specified level. 3-4, 6-11
• Check cooling system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
Front brake• Check brake pads for wear.
3-9, 5-2, 6-17
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Check operation.
• If soft or spongy, have Yamaha dealer bleed hydraulic system.
Rear brake• Check brake pads for wear.
3-9, 5-2, 6-17
• Replace if necessary.
• Check fluid level in reservoir.
• If necessary, add recommended brake fluid to specified level.
• Check hydraulic system for leakage.
• Make sure that operation is smooth.
Throttle grip• Check cable free play.
5-2, 6-14, 6-19
• If necessary, have Yamaha dealer adjust cable free play and lubricate
cable and grip housing.
• Check for damage.
Wheels and tires• Check tire condition and tread depth.
6-15 ~ 6-17
• Check air pressure.
• Correct if necessary.
1B9-F8199-E1.qxd 9/10/06 09:59 Página 31

EAU15970
EWA11250
s s
WARNING
Become thoroughly familiar
with all operating controls and
their functions before riding.
Consult a Yamaha dealer
regarding any control or func-
tion that you do not thoroughly
understand.
Never start the engine or ope-
rate it in a closed area for any
length of time. Exhaust fumes
are poisonous, and inhaling
them can cause loss of cons-
ciousness and death within a
short time. Always make sure
that there is adequate ventila-
tion.
For safety, always start the
engine with the centerstand
down.
When the centerstand is down
and the engine is idling, keep
your hands and feet away from
the rear wheel.
EAUM1210
Starting a cold engineECA10250
CAUTION:
See page 5-3 for engine break-in
instructions prior to operating the
vehicle for the first time.
1. Turn the key to “f”.
2. Close the throttle completely.
3. Start the engine by pushing the
start switch while applying the
front or rear brake.
NOTE:
If the engine fails to start, release the
start switch, wait a few seconds, and
then try again. Each starting attempt
should be as short as possible to pre-
serve the battery. Do not crank the
engine more than 10 seconds on any
one attempt.
ECA11040
CAUTION:
For maximum engine life, never
accelerate hard when the engine is
cold!
5
OPERATION AND IMPORTANT RIDING POINTS
5-1
1B9-F8199-E1.qxd 9/10/06 09:59 Página 33

6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
ODOMETER READING (x 1000 Km)
ANNUAL
CHECKNO. ITEM CHECK OR MAINTENANCE JOB
1 6 12 18 24
8*Brake hoses• Check for cracks or damage.√√√√ √• Replace. Every 4 years
9*Wheels• Check runout and for damage.√√√√
• Check tread depth and for damage.
10 *Tires• Replace if necessary.
√√√√ √
• Check air pressure.
• Correct if necessary.
11 *Wheel bearings• Check bearing for looseness or damage.√√√√
12 *Steering bearings• Check bearing play and steering for roughness.√√ √ √√• Lubricate with lithium-soap-based grease. Every 20000 km
13 *Chassis fasteners• Make sure that all nuts, bolts and screws are
√√√√ √
properly tightened.
14Sidestand, centerstand• Check operation.
• Lubricate.√√√√ √
15 *Sidestand switch• Check operation.√√ √ √√ √
16 *Front fork• Check operation and for oil leakage.√√√√
17 *Shock absorber
• Check operation and shock absorbers for oil leakage.√√√√
assemblies
18 *Fuel injection• Check engine idle speed.√√ √ √√ √
• Change. (See page 6-8)√When the oil change
19Engine oilindicator light comes on (every 6000 km)• Check oil level/top up.√Every 3000 km
20Engine oil filter element• Replace.√√√
21 *Cooling system• Check coolant level and vehicle for coolant leakage.√√√√ √
• Change. Every 3 years
1B9-F8199-E1.qxd 9/10/06 09:59 Página 40

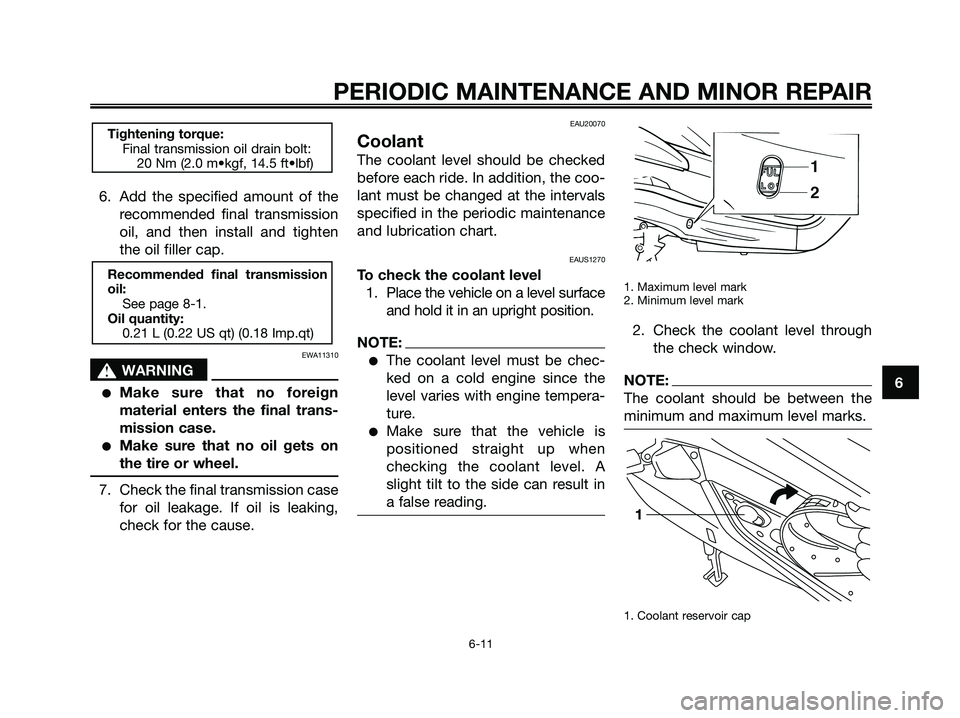

6. Add the specified amount of the
recommended final transmission
oil, and then install and tighten
the oil filler cap.
EWA11310
s s
WARNING
Make sure that no foreign
material enters the final trans-
mission case.
Make sure that no oil gets on
the tire or wheel.
7. Check the final transmission case
for oil leakage. If oil is leaking,
check for the cause.
EAU20070
Coolant
The coolant level should be checked
before each ride. In addition, the coo-
lant must be changed at the intervals
specified in the periodic maintenance
and lubrication chart.
EAUS1270
To check the coolant level
1. Place the vehicle on a level surface
and hold it in an upright position.
NOTE:
The coolant level must be chec-
ked on a cold engine since the
level varies with engine tempera-
ture.
Make sure that the vehicle is
positioned straight up when
checking the coolant level. A
slight tilt to the side can result in
a false reading.
1. Maximum level mark
2. Minimum level mark
2. Check the coolant level through
the check window.
NOTE:
The coolant should be between the
minimum and maximum level marks.
1. Coolant reservoir cap
1
Recommended final transmission
oil:
See page 8-1.
Oil quantity:
0.21 L (0.22 US qt) (0.18 Imp.qt)
Tightening torque:
Final transmission oil drain bolt:
20 Nm (2.0 m•kgf, 14.5 ft•lbf)
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-11
1B9-F8199-E1.qxd 9/10/06 09:59 Página 47

NEVER OVERLOAD THE VEHI-
CLE! Operation of an overloa-
ded vehicle may result in tire
damage, loss of control, or
severe injury. Make sure that
the total weight of rider, cargo,
and accessories does not
exceed the specified maximum
load for the vehicle.
Do not carry along loosely pac-
ked items, which can shift
during a ride.
Securely pack the heaviest
items close to the center of the
vehicle and distribute the
weight evenly on both sides.
Adjust the suspension and tire
air pressure with regard to the
load.
Check the tire condition and air
pressure before each ride.
Tire inspection
1. Tire tread depth
The tires must be checked before
each ride. If the center tread depth
reaches the specified limit, if the tire
has a nail or glass fragments in it, or if
the sidewall is cracked, have a Yama-
ha dealer replace the tire immediately.
NOTE:
The tire tread depth limits may differ
from country to country. Always
comply with the local regulations.
Tire information
This motorcycle is equipped with
tubeless tires.
EWA10470
s s
WARNING
Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the
vehicle with excessively worn
tires decreases riding stability
and can lead to loss of control.
The replacement of all wheel
and brake related parts, inclu-
ding the tires, should be left to
a Yamaha dealer, who has the
necessary professional know-
ledge and experience.
Front tire:
Size:
120/70-15 M/C 56P 56S
Manufacturer/model:
Michelin / GoldStandard
Pirelli / GTS23
Rear tire:
Size:
140/70-15 M/C 56P 56S
Manufacturer/model:
Michelin / GoldStandard
Pirelli / GTS24
Minimum tire tread depth (front
and rear):
1.6 mm (0.06 in)
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
1B9-F8199-E1.qxd 9/10/06 09:59 Página 52

EAU21960
Cast wheels
To maximize the performance, durabi-
lity, and safe operation of your
motorcycle, note the following points
regarding the specified wheels.
The wheel rims should be chec-
ked for cracks, bends or warpage
before each ride. If any damage
is found, have a Yamaha dealer
replace the wheel. Do not
attempt even the smallest repair
to the wheel. A deformed or crac-
ked wheel must be replaced.
The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced.
An unbalanced wheel can result
in poor performance, adverse
handling characteristics, and a
shortened tire life.
Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for
it to develop its optimal characte-
ristics.
EAU33451
Front and rear brake lever
free play
Front
Rear
There should be no free play at the
brake lever ends. If there is free play,
have a Yamaha dealer inspect the
brake system.
EAU22390
Checking the front and rear
brake pads
The front and rear brake pads must
be checked for wear at the intervals
specified in the periodic maintenance
and lubrication chart.
EAU22400
Front brake pads
1. Lining thickeness
Check each front brake pad for
damage and measure the lining thick-
ness. If a brake pad is damaged or if
the lining thickness is less than 0.5
mm (0.02 in), have a Yamaha dealer
replace the brake pads as a set.
1
6
PERIODIC MAINTENANCE AND MINOR REPAIR
6-17
1B9-F8199-E1.qxd 9/10/06 09:59 Página 53
