INSTRUMENT AND CONTROL FUNCTIONS
3-6
3
EAU43242
Multi-function display The multi-function display is equipped
with the following:
an odometer (which shows the to-
tal distance traveled)
two tripmeters (which show the
distance traveled since they were
last set to zero)
a fuel reserve tripmeter (which
shows the distance traveled on the
fuel reserve)
a fuel meter
a clock
a self-diagnosis device
a display, speedometer, and ta-
chometer brightness control mode
NOTE:Be sure to turn the key to “ON” beforeusing the select and reset buttons.
Odometer and tripmeter modes
Pushing the select button switches the
display between the odometer mode
“ODO” and the tripmeter modes “TRIP
1” and “TRIP 2” in the following order:
ODO → TRIP 1 → TRIP 2 → ODO
When approximately 4.5 L (1.19 US
gal) (0.99 Imp.gal) of fuel remains in the
fuel tank, the display will automatically
change to the fuel reserve tripmeter
mode “TRIP F” and start counting thedistance traveled from that point. In that
case, pushing the select button switch-
es the display between the various trip-
meter and odometer modes in the
following order:
TRIP F → ODO → TRIP 1 → TRIP 2 →
TRIP F
To reset a tripmeter, select it by push-
ing the select button, and then push the
reset button for at least two seconds. If
you do not reset the fuel reserve trip-
meter manually, it will reset itself auto-
matically and the display will return to
the prior mode after refueling and trav-
eling 5 km (3 mi).
Fuel meter
1. Clock
2. Fuel meter
3. Odometer/tripmeter/fuel reserve tripmeter
4. Reset button
5. Select button
1. Odometer/tripmeter/fuel reserve tripmeter
1. Fuel level warning indicator“”
2. Fuel meter
U5WME4E0.book Page 6 Friday, July 6, 2007 2:43 PM
Page 21 of 92
INSTRUMENT AND CONTROL FUNCTIONS
3-7
3 The fuel meter indicates the amount of
fuel in the fuel tank. The display seg-
ments of the fuel meter disappear to-
wards “E” (Empty) as the fuel level
decreases. When the fuel level warning
indicator“” starts flashing, refuel as
soon as possible.
NOTE:This fuel meter is equipped with a self-
diagnosis system. If the electrical circuit
is defective, the following cycle will be
repeated until the malfunction is cor-
rected: All the display segments and
symbol“” will flash eight times, then
go off for approximately 3 seconds. If
this occurs, have a Yamaha dealercheck the electrical circuit.Clock mode
To set the clock:
1. Turn the key to “ON”.
2. Push the select button and reset
button together for at least two
seconds.
3. When the hour digits start flashing,
push the reset button to set the
hours.
4. Push the select button, and the
minute digits will start flashing.
5. Push the reset button to set the
minutes.
6. Push the select button and then re-
lease it to start the clock.Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
engine trouble warning light will come
on, and then the odometer/tripmeter
display will indicate a two-digit error
code.
This model is also equipped with a self-
diagnosis device for the immobilizer
system.
If any of the immobilizer system circuits
are defective, the immobilizer system
indicator light will flash, and then the
display will indicate a two-digit error
code.1. Clock
1. Error code display
U5WME4E0.book Page 7 Friday, July 6, 2007 2:43 PM
Page 46 of 92
PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU17707
Periodic maintenance and lubrication chart NOTE:
The annual checks must be performed every year, except if a kilometer-based maintenance is performed in-
stead.
From 50000 km, repeat the maintenance intervals starting from 10000 km.
Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040
1*Fuel lineCheck fuel hoses for cracks or damage.√√√√ √
2 Spark plugsCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.Every 20000 km
4 Air filter elementReplace.√
5*ClutchCheck operation, fluid level and vehicle for fluid leakage.√√√√√
6*Front brakeCheck operation, fluid level and vehicle for fluid leakage.√√√√√ √
Replace brake pads. Whenever worn to the limit
7*Rear brakeCheck operation, fluid level and vehicle for fluid leakage.√√√√√ √
Replace brake pads. Whenever worn to the limit
8*Brake hosesCheck for cracks or damage.√√√√ √
Replace. Every 4 years
9*WheelsCheck runout and for damage.√√√√
U5WME4E0.book Page 2 Friday, July 6, 2007 2:43 PM

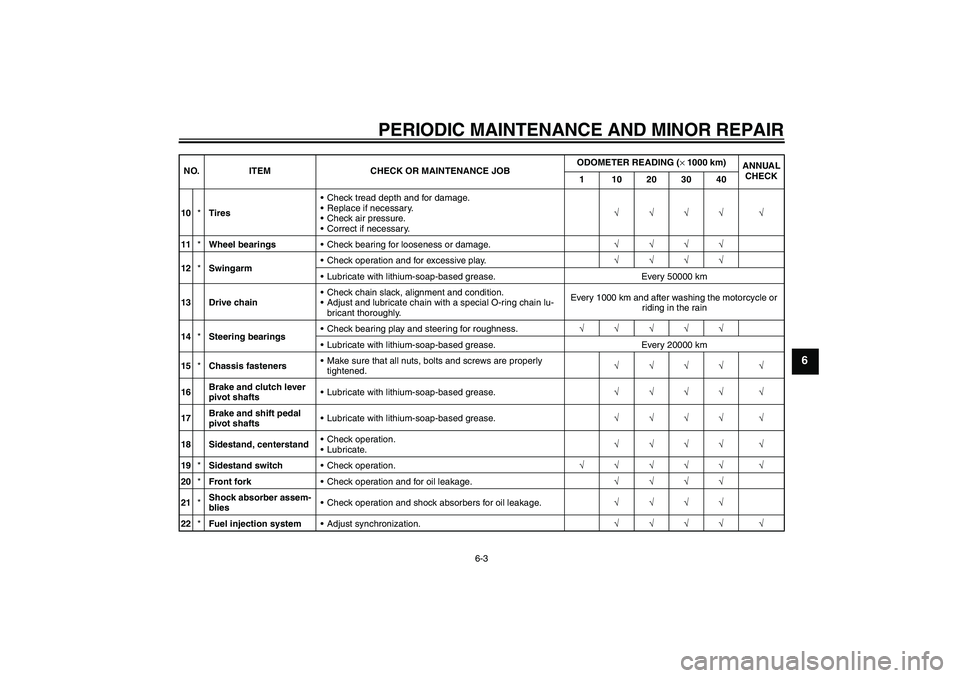

Page 47 of 92
PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
10*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√ √
11*Wheel bearingsCheck bearing for looseness or damage.√√√√
12*SwingarmCheck operation and for excessive play.√√√√
Lubricate with lithium-soap-based grease. Every 50000 km
13 Drive chainCheck chain slack, alignment and condition.
Adjust and lubricate chain with a special O-ring chain lu-
bricant thoroughly.Every 1000 km and after washing the motorcycle or
riding in the rain
14*Steering bearingsCheck bearing play and steering for roughness.√√√√√
Lubricate with lithium-soap-based grease. Every 20000 km
15*Chassis fastenersMake sure that all nuts, bolts and screws are properly
tightened.√√√√ √
16Brake and clutch lever
pivot shaftsLubricate with lithium-soap-based grease.√√√√ √
17Brake and shift pedal
pivot shaftsLubricate with lithium-soap-based grease.√√√√ √
18 Sidestand, centerstandCheck operation.
Lubricate.√√√√ √
19*Sidestand switchCheck operation.√√√√√ √
20*Front forkCheck operation and for oil leakage.√√√√
21*Shock absorber assem-
bliesCheck operation and shock absorbers for oil leakage.√√√√
22*Fuel injection systemAdjust synchronization.√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040
U5WME4E0.book Page 3 Friday, July 6, 2007 2:43 PM
Page 48 of 92
PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU36771
NOTE:
Air filter
This model’s air filter is equipped with a disposable oil-coated paper element, which must not be cleaned with com-
pressed air to avoid damaging it.
The air filter element needs to be replaced more frequently when riding in unusually wet or dusty areas.
Hydraulic brake and clutch service
Regularly check and, if necessary, correct the brake fluid and clutch fluid levels.
23 Engine oilChange.
Check oil level and vehicle for oil leakage.√√√√√ √
24 Engine oil filter elementReplace.√√√
25*Front and rear brake
switchesCheck operation.√√√√√ √
26Moving parts and ca-
blesLubricate.√√√√ √
27*Throttle grip housing
and cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.√√√√ √
28*Air induction systemCheck the air cut-off valve, reed valve, and hose for dam-
age.
Replace any damaged parts if necessary.√√√√ √
29*Muffler and exhaust
pipeCheck the screw clamp for looseness.√√√√√
30*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040U5WME4E0.book Page 4 Friday, July 6, 2007 2:43 PM
Page 71 of 92
PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6
EAU43271
Replacing the fuses The main fuse is located under the
seat. (See page 3-15.)
The fuse box, which contains the fuses
for the individual circuits, is located be-
hind panel B. (See page 6-6.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.
2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Main fuse
1. Headlight fuse
2. Signaling system fuse
3. Ignition fuse
4. Taillight fuse
5. Fuel injection system fuse
6. Backup fuse (for odometer, clock and immo-
bilizer system)
7. Spare fuse
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
15.0 A
Taillight fuse:
7.5 A
Signaling system fuse:
7.5 A
Ignition fuse:
15.0 A
Fuel injection system fuse:
15.0 A
Backup fuse:
7.5 A
