3 - 14
INSP
ADJ
ENGINE OIL LEVEL INSPECTION
ENGINE OIL LEVEL INSPECTION
1. Stand the machine on a level surface.
NOTE:
When checking the oil level make sure that
the machine is upright.
Place the machine on a suitable stand.
WARNING
Never remove the oil tank cap just after
high speed operation. The heated oil could
spurt out. causing danger. Wait until the oil
cools down to approximately 70 °C (158 °F).
2. Idle the engine more than 3 minutes while
keeping the machine upright. Then stop the
engine and inspect the oil level.
3. Remove:
Oil tank plug 1
4. Inspect:
Oil level
Check that the engine oil is above the
level mark a and that the oil does not
come out when the check bolt 1 is
removed.
Below the level mark a → Add oil
through the filler cap hole until it is above
the level mark a.
Oil comes out at the check bolt → Drain
the oil until it stops coming out.
NOTE:
When inspecting the oil level, do not screw the
oil level gauge into the oil tank.
Insert the gauge lightly.

3 - 24
INSP
ADJ
SPARK ARRESTER CLEANING (For USA)
WARNING
Be sure the exhaust pipe and silencer are
cool before cleaning the spark arrester.
Do not start the engine when cleaning the
exhaust system.
1. Remove:
Screw (silencer cap) 1
1
2. Remove:
Bolt (spark arrester) 1
1
3. Remove:
Tail pipe 1
Gasket (tail pipe) 2
Spark arrester 3
Pull the spark arrester out of the silencer.
Gasket (spark arrester) 4
4. Clean:
Spark arrester
Tap the spark arrester lightly, then use a
wire brush to remove any carbon depos-
its.
5. Install:
Gasket (spark arrester)
Spark arrester
Insert the spark arrester into the silencer
and align the bolt holes.
Gasket (tail pipe)
Bolt (spark arrester)
12
34
T R..7 Nm (0.7 m · kg, 5.1 ft · lb)
6. Install:
Silencer cap
NOTE:
First tighten the two screws a located horizon-
tally apart, and then tighten the others.aa
T R..5 Nm (0.5 m · kg, 3.6 ft · lb)
SPARK ARRESTER CLEANING (For USA)

3 - 45
INSP
ADJ
STEERING HEAD INSPECTION AND ADJUSTMENT
Tighten the ring nut 3 using ring nut
wrench 4.
NOTE:
Apply the lithium soap base grease on the
thread of the steering shaft.
Set the torque wrench to the ring nut
wrench so that they form a right angle.
Ring nut wrench:
YU-33975/90890-01403
T R..
Ring nut (initial tightening):
38 Nm (3.8 m  kg, 27 ft  lb)
Loosen the ring nut one turn.
Retighten the ring nut using the ring nut
wrench.
WARNING
Avoid over-tightening.
T R..
Ring nut (final tightening):
7 Nm (0.7 m  kg, 5.1 ft  lb)
Check the steering shaft by turning it lock
to lock. If there is any binding, remove the
steering shaft assembly and inspect the
steering bearings.
Install the plain washer 5, handle crown
6, plain washer 7, steering shaft nut 8,
handlebar 9, handlebar holder (upper) 0
and headlight A.
NOTE:
The handlebar holder (upper) should be
installed with the punched mark a for-
ward.
Install the handlebar so that the marks b
are in place on both sides.

3 - 50
INSP
ADJ
BATTERY INSPECTION AND CHARGING
WARNING
Batteries generate explosive hydrogen gas
and contain electrolyte which is made of
poisonous and highly caustic sulfuric acid.
Therefore, always follow these preventive
measures:
Wear protective eye gear when handling
or working near batteries.
Charge batteries in a well-ventilated area.
Keep batteries away from fire, sparks or
open flames (e.g., welding equipment,
lighted cigarettes).
DO NOT SMOKE when charging or han-
dling batteries.
KEEP BATTERIES AND ELECTROLYTE
OUT OF REACH OF CHILDREN.
Avoid bodily contact with electrolyte as it
can cause severe burns or permanent eye
injury.
FIRST AID IN CASE OF BODILY CONTACT:
EXTERNAL
Skin — Wash with water.
Eyes — Flush with water for 15 minutes
and get immediate medical attention.
INTERNAL
Drink large quantities of water or milk fol-
lowed with milk of magnesia, beaten egg
or vegetable oil. Get immediate medical
attention.
CAUTION:
Charging time, charging amperage and
charging voltage for an MF battery are dif-
ferent from those of conventional batteries.
The MF battery should be charged as
explained in the charging method illustra-
tions. If the battery is overcharged, the
electrolyte level will drop considerably.
Therefore, take special care when charging
the battery.
BATTERY INSPECTION AND CHARGING

3 - 57
INSP
ADJ
REPLACING THE HEADLIGHT BULBS
3. Replace:
Blown fuse
WARNING
Never use a fuse with an amperage rating
other than that specified. Improvising or
using a fuse with the wrong amperage rat-
ing may cause extensive damage to the
electrical system, cause the starting and
ignition systems to malfunction and could
possibly cause a fire.
4. Install:
Fuse cover
Seat Replacement steps:
Set the main switch to “OFF”.
Install a new fuse of the correct amperage.
Set on the switches to verify if the electri-
cal circuit is operational.
If the fuse immediately blows again, check
the electrical circuit.
ItemsAmperage
ratingQ’ty
Main fuse 10 A 1
REPLACING THE HEADLIGHT BULBS
1. Remove:
Headlight
Refer to “SEAT, FUEL TANK AND SIDE
COVERS” section in the CHAPTER 4.
2. Remove:
Headlight bulb holder cover 1
3. Remove:
Headlight bulb holder 1
NOTE:
Remove the headlight bulb holder by pushing
it in and turning it counterclockwise.

3 - 58
INSP
ADJ
ADJUSTING THE HEADLIGHT BEAMS
4. Remove:
Headlight bulb
WARNING
Since the headlight bulb gets extremely
hot, keep flammable products and your
hands away from the bulb unit it has cooled
down.
5. Install:
Headlight bulb
CAUTION:
Avoid touching the glass part of the head-
light bulb to keep it free form oil, otherwise
the transparency of the glass, the life of the
bulb and the luminous flux will be
adversely affected. If the headlight bulb
gets soiled, thoroughly clean it with a cloth
moistened with alcohol or lacquer thinner.
6. Install:
Headlight bulb holder
7. Install:
Headlight bulb holder cover
8. Install:
Headlight
Refer to “SEAT, FUEL TANK AND SIDE
COVERS” section in the CHAPTER 4.
New
T R..7 Nm (0.7 m · kg, 5.1 ft · lb)
ADJUSTING THE HEADLIGHT BEAMS
1. Adjust:
Headlight beam (vertically)
Adjusting steps:
Turn the adjusting screw 1 in direction a
or b.
Direction a Headlight beam is raised.
Direction bHeadlight beam is lowered.

5 - 21
CHASFRONT BRAKE AND REAR BRAKE
2. Install:
Brake lever 1
Bolt (brake lever) 2
Nut (brake lever) 3
NOTE:
Apply the lithium soap base grease on the
brake lever sliding surface, bolt and contacting
surface of the master cylinder piston.
Rear master cylinder
1. Install:
Copper washer 1
Brake hose 2
Union bolt 3
WARNING
Always use new copper washers.
CAUTION:
Install the brake hose so that its pipe por-
tion
a directs as shown and lightly
touches the projection
b on the master
cylinder.
T R..6 Nm (0.6 m · kg, 4.3 ft · lb)
T R..6 Nm (0.6 m · kg, 4.3 ft · lb)
New
T R..30 Nm (3.0 m · kg, 22 ft · lb)
2. Install:
Master cylinder 1
Bolt (master cylinder) 2
3. Install:
Spring 1
Brake pedal 2
O-ring 3
Bolt (brake pedal) 4
Clip 5
NOTE:
Apply the lithium soap base grease on the bolt,
O-ring and brake pedal bracket.
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
New
T R..26 Nm (2.6 m · kg, 19 ft · lb)

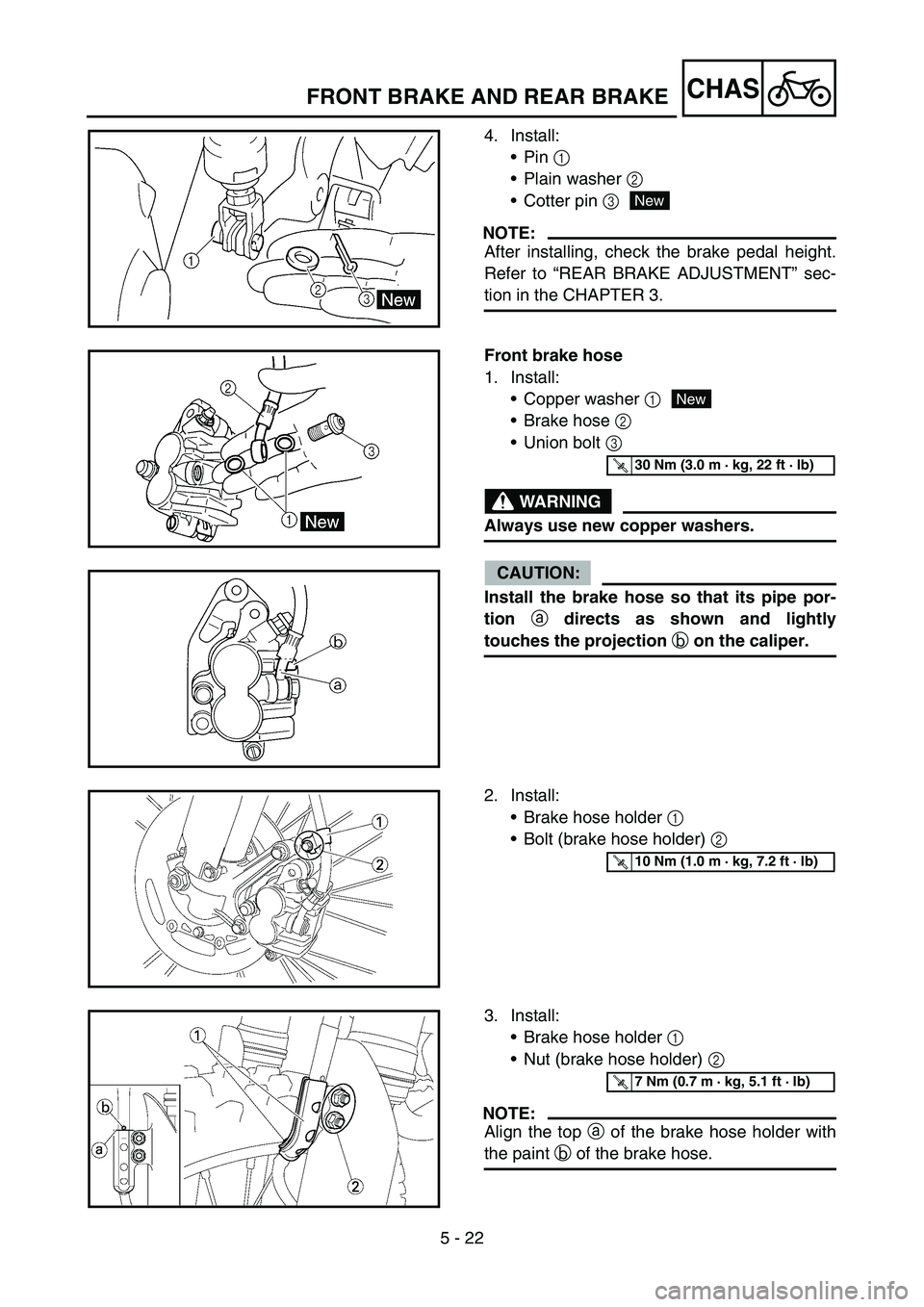

5 - 22
CHASFRONT BRAKE AND REAR BRAKE
4. Install:
Pin 1
Plain washer 2
Cotter pin 3
NOTE:
After installing, check the brake pedal height.
Refer to “REAR BRAKE ADJUSTMENT” sec-
tion in the CHAPTER 3.
New
Front brake hose
1. Install:
Copper washer 1
Brake hose 2
Union bolt 3
WARNING
Always use new copper washers.
CAUTION:
Install the brake hose so that its pipe por-
tion
a directs as shown and lightly
touches the projection
b on the caliper.
New
T R..30 Nm (3.0 m · kg, 22 ft · lb)
2. Install:
Brake hose holder 1
Bolt (brake hose holder) 2
T R..10 Nm (1.0 m · kg, 7.2 ft · lb)
3. Install:
Brake hose holder 1
Nut (brake hose holder) 2
NOTE:
Align the top a of the brake hose holder with
the paint b of the brake hose.
T R..7 Nm (0.7 m · kg, 5.1 ft · lb)
