2007 YAMAHA WR 450F key

EC080000

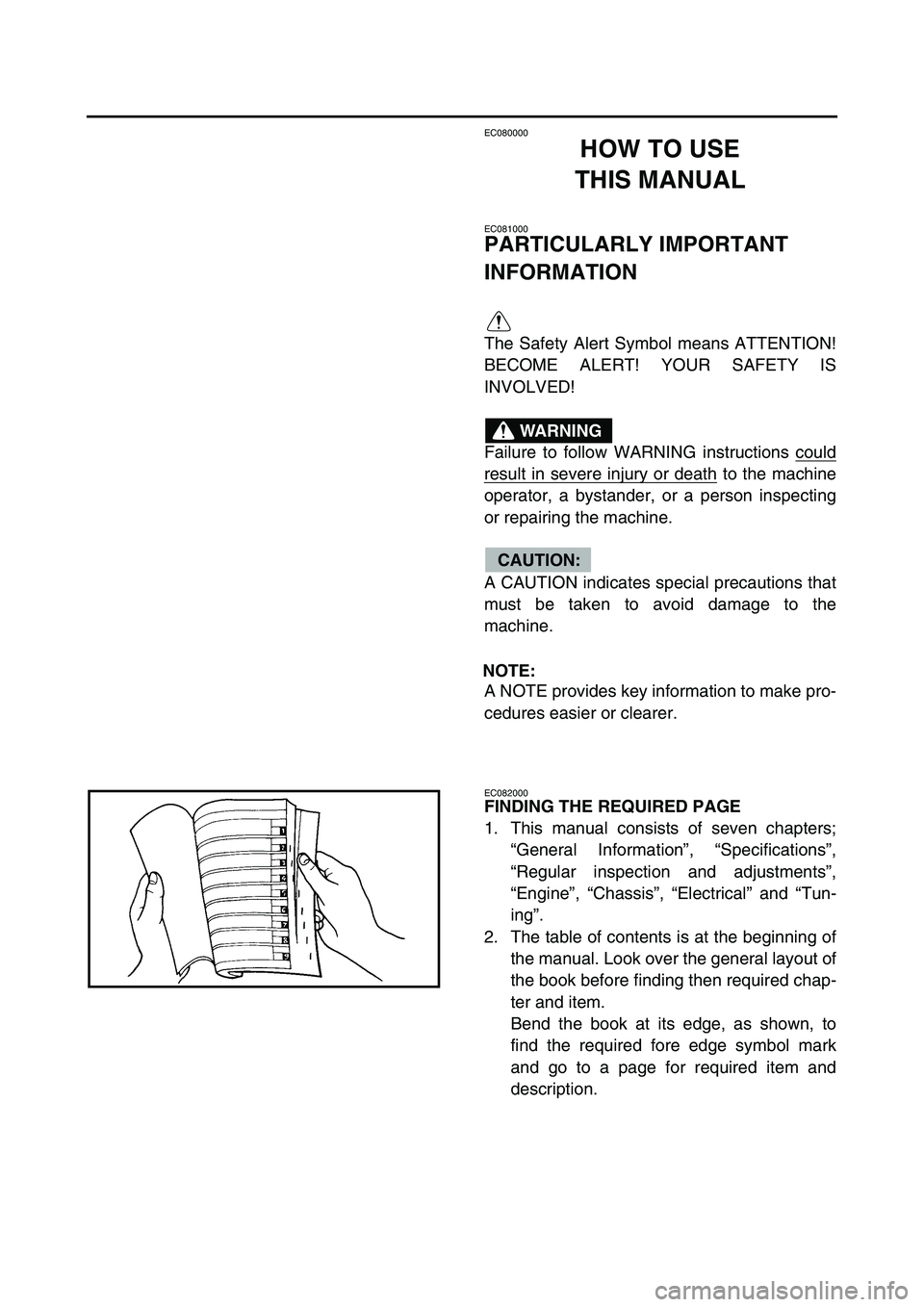

HOW TO USE
THIS MANUAL
EC081000
PARTICULARLY IMPORTANT
INFORMATION
The Safety Alert Symbol means ATTENTION!
BECOME ALERT! YOUR SAFETY IS
INVOLVED!
Failure to follow WARNING instructions could
result in severe injury or death to the machine
operator, a bystander, or a person inspecting
or repairing the machine.
A CAUTION indicates special precautions that
must be taken to avoid damage to the
machine.
NOTE:
A NOTE provides key information to make pro-
cedures easier or clearer.
WA R N I N G
CAUTION:
EC082000
FINDING THE REQUIRED PAGE
1. This manual consists of seven chapters;
“General Information”, “Specifications”,
“Regular inspection and adjustments”,
“Engine”, “Chassis”, “Electrical” and “Tun-
ing”.
2. The table of contents is at the beginning of
the manual. Look over the general layout of
the book before finding then required chap-
ter and item.
Bend the book at its edge, as shown, to
find the required fore edge symbol mark
and go to a page for required item and
description.

3 - 12
INSP
ADJ
AIR FILTER CLEANING
AIR FILTER CLEANING
NOTE:
Proper air filter maintenance is the biggest key
to preventing premature engine wear and
damage.
CAUTION:
Never run the engine without the air filter
element in place; this would allow dirt and
dust to enter the engine and cause rapid
wear and possible engine damage.
1. Open the air filter case cover 1
NOTE:
Loosen the quick screw 2 and pull on it to
open the air filter case cover.
2. Unhook:
Binder 1
3. Remove:
Air filter element 1
Filter guide 2
4. Clean:
Air filter element
Clean them with solvent.
NOTE:
After cleaning, remove the remaining solvent
by squeezing the element.

4 - 66
ENGBALANCER
BALANCER
BALANCER
Extent of removal:
1 Balancer drive gear
2 Balancer
Extent of removal Order Part name Q’ty Remarks
BALANCER REMOVAL
Preparation for removal Clutch housing Refer to “CLUTCH” section.
Crankcase cover (right) Refer to “OIL FILTER, WATER PUMP
AND CRANKCASE COVER (RIGHT)”
section.
Stator Refer to “AC MAGNETO AND
STARTER CLUTCH” section.
1 Nut (balancer) 1
Refer to “REMOVAL POINTS”. 2 Nut (primary drive gear) 1
3 Nut (balancer driven gear) 1
4 Lock washer 1
5 Balancer 1
6 Straight key 1
2
1
2

4 - 69
ENGBALANCER
ASSEMBLY AND INSTALLATION
Balancer, balancer drive gear and balancer
driven gear
1. Install:
Balancer driven gear 1
NOTE:
Install the balancer driven gear and balancer
shaft with their lower splines a aligning with
each other.
2. Install:
Balancer drive gear 1
NOTE:
Align the punched mark a on the balancer
drive gear with the punched mark b on the
balancer driven gear.
Install the balancer driven gear and crank-
shaft with the lower splines c aligning with
each other.
3. Install:
Lock washer 1
Nut (balancer driven gear) 2
Primary drive gear 3
Conical washer 4
Nut (primary drive gear) 5
Straight key 6
Balancer 7
Lock washer 8
Nut (balancer) 9
NOTE:
Apply engine oil to the contact surface and
threaded portion of the nut (primary drive
gear).
Place an aluminum plate a between the
teeth of the balancer drive gear 0 and bal-
ancer driven gear A.
Install the conical washer with its convex sur-
face b outward.
4. Bend the lock washer tab.
a 0
1A
2
T R..50 Nm (5.0 m · kg, 36 ft · lb)
T R..110 Nm (11.0 m · kg, 80 ft · lb)
T R..45 Nm (4.5 m · kg, 33 ft · lb)

4 - 83
ENG
NOTE:
Tighten the rotor nut to 65 Nm (6.5 m  kg, 47 ft  lb), loosen and retighten the rotor nut to 65 Nm
(6.5 m  kg, 47 ft  lb).
Extent of removal Order Part name Q’ty Remarks
7 Idle gear 1
8 Bearing 1
9Shaft 1
10* Nut (rotor) 1 Refer to NOTE.
11 Rotor 1 Use special tool.
Refer to “REMOVAL POINTS”.
12 Woodruff key 1
13 Starter clutch assembly cover 1
Refer to “REMOVAL POINTS”.
14 Starter clutch 1
15 Starter clutch drive gear 1
16 Holder 1
17 Pick-up coil 1
18 Stator 1
3
21
AC MAGNETO AND STARTER CLUTCH

4 - 85
ENGAC MAGNETO AND STARTER CLUTCH
EC4L4200
Woodruff key
1. Inspect:
Woodruff key 1
Damage → Replace.
Starter clutch
1. Check:
Starter clutch
Damage/wear → Replace.
2. Check:
Idle gear
Idle gear shaft
Starter clutch gear
Pitting/burrs/chips/roughness/wear →
Replace the defective parts.
3. Check:
Starter clutch operation
Install the starter clutch drive gear 1 onto
the starter clutch 2 and hold the starter
clutch.
When turning the starter clutch drive gear
counterclockwise É, the starter clutch and
the starter clutch drive gear should
engage. If the starter clutch drive gear and
starter clutch do not engage, the starter
clutch is faulty and must be replaced.
When turning the starter clutch drive gear
clockwise È, it should turn freely.
If the starter clutch drive gear does not
turn freely, the starter clutch is faulty and
must be replaced.
Torque limiter
1. Check:
Torque limiter
Damage/wear → Replace.

4 - 87
ENG
3. Install:
Starter clutch 1
To rotor 2.
NOTE:
Install the starter clutch with its plate side
upward.
While installing the starter clutch, push in the
projections a one by one on the clutch cir-
cumference.
Push in the starter clutch until it hits the rotor.
4. Install:
Starter clutch assembly cover 1
To rotor 2.
NOTE:
Install the starter clutch assembly cover by fit-
ting its pawls a into the groove b in the rotor.
1
2a
1
2a
b
5. Install:
Woodruff key 1
Rotor 2
NOTE:
Degrease the contact surfaces of the tapered
portions of the crankshaft and rotor.
When installing the woodruff key, make sure
that its flat surface a is in parallel with the
crankshaft center line b.
When installing the rotor, align the keyway c
of the rotor with the woodruff key.
6. Install:
Plain washer (rotor)
Nut (rotor) 1
Use the sheave holder 2.
NOTE:
Tighten the rotor nut to 65 Nm (6.5 m  kg,
47 ftlb), loosen and retighten the rotor nut to
65 Nm (6.5 m  kg, 47 ft  lb).
Sheave holder:
YS-1880-A/90890-01701
2
1
T R..65 Nm (6.5 m · kg, 47 ft · lb)
AC MAGNETO AND STARTER CLUTCH
