Maintenance and care
71

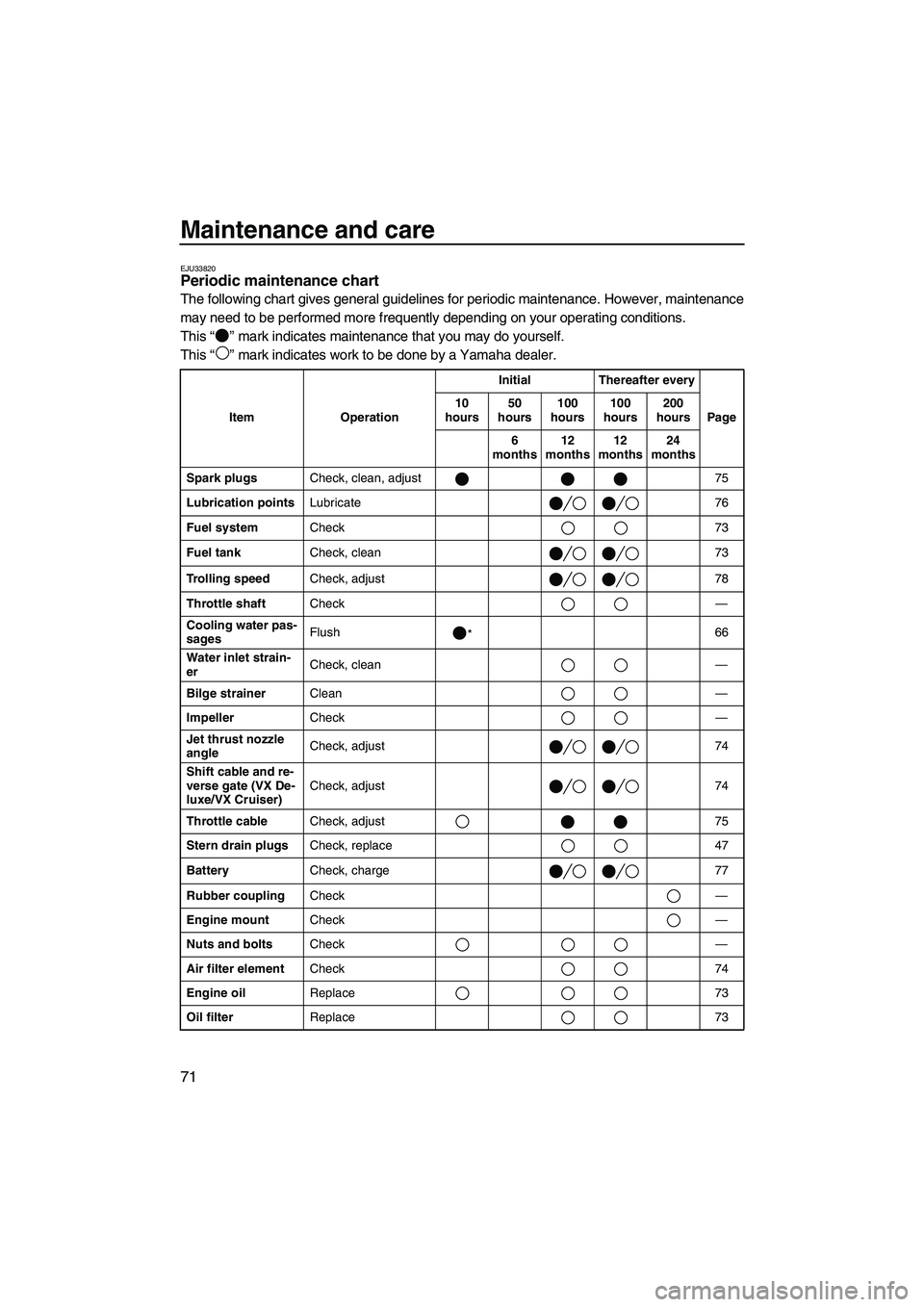

EJU33820Periodic maintenance chart
The following chart gives general guidelines for periodic maintenance. However, maintenance
may need to be performed more frequently depending on your operating conditions.
This “” mark indicates maintenance that you may do yourself.
This “” mark indicates work to be done by a Yamaha dealer.
Item OperationInitial Thereafter every
Page 10
hours50
hours100
hours100
hours200
hours
6
months12
months12
months24
months
Spark plugsCheck, clean, adjust 75
Lubrication pointsLubricate 76
Fuel systemCheck 73
Fuel tankCheck, clean 73
Trolling speedCheck, adjust 78
Throttle shaftCheck—
Cooling water pas-
sagesFlush
*66
Water inlet strain-
erCheck, clean—
Bilge strainerClean—
ImpellerCheck—
Jet thrust nozzle
angleCheck, adjust 74
Shift cable and re-
verse gate (VX De-
luxe/VX Cruiser)Check, adjust 74
Throttle cableCheck, adjust 75
Stern drain plugsCheck, replace 47
BatteryCheck, charge 77
Rubber couplingCheck—
Engine mountCheck—
Nuts and boltsCheck—
Air filter elementCheck 74
Engine oilReplace 73
Oil filterReplace 73
UF1K72E0.book Page 71 Wednesday, August 2, 2006 10:43 AM
Maintenance and care
75
If the reverse gate does not make contact with
the stopper, have a Yamaha dealer service it.
EJU34360Checking and adjusting the throttle
cable
Check that the throttle cable moves back to
the set position smoothly and that the throttle
lever free play is within specification.
(1) Squeeze and release the throttle lever. If
the throttle lever does not return smooth-
ly, have a Yamaha dealer service it.
(2) Adjust the free play by loosening the lock-
nut and turning the adjuster.
EJU34391Cleaning and adjusting the spark
plugs
The spark plug is an important engine compo-
nent and is easy to inspect. The condition of
the spark plug can indicate something about
the condition of the engine. For example, if
one spark plug has a distinctly different color,
the engine could require servicing. Do not at-
tempt to diagnose any problems yourself.
Have a Yamaha dealer service the watercraft.
Remove and inspect the spark plugs periodi-
cally; heat and deposits will cause the sparkplugs to slowly break down and erode. If elec-
trode erosion becomes excessive, or if carbon
and other deposits are excessive, replace the
spark plug with the specified plug.
To remove a spark plug:
(1) Remove the seat. (See page 26 for seat
removal and installation procedures.)
(2) Remove the spark plug cap.
CAUTION:
ECJ00210
Do not use any tools to remove or install
the spark plug cap, otherwise the ignition
coil coupler could be damaged. The spark
plug cap may be difficult to remove be-
cause the rubber seal on the end of the
cap fits tightly. To remove the spark plug
cap, simply twist it back and forth while
pulling it up; to install it, twist it back and
forth while pushing it down.
(3) Remove the spark plug.
Measure the spark plug gap with a wire
thickness gauge. Replace the spark plug
or adjust the gap to specification if neces-
sary.1Locknut
2Adjuster
3Throttle lever free play
Throttle lever free play:
4.0–7.0 mm (0.16–0.28 in)
Specified spark plug:
CR9EB
1Spark plug gap
Spark plug gap:
0.7–0.8 mm (0.028–0.031 in)
