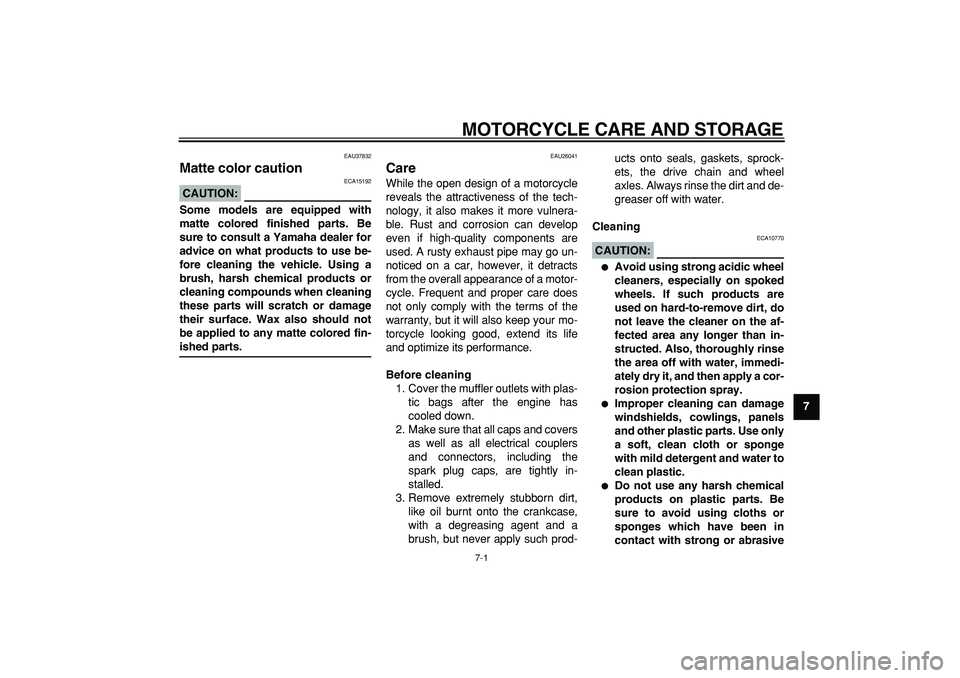

MOTORCYCLE CARE AND STORAGE
EAU37832
Matte color caution
CAUTION:

ECA15192
Some models are equipped with
matte colored finished parts. Be
sure to consult a Yamaha dealer for
advice on what products to use be-
fore cleaning the vehicle. Using a
brush, harsh chemical products or
cleaning compounds when cleaning
these parts will scratch or damage
their surface. Wax also should not
be applied to any matte colored fin-
ished parts.
EAU26041
Care
While the open design of a motorcycle
reveals the attractiveness of the tech-
nology, it also makes it more vulnera-
ble. Rust and corrosion can develop
even if high-quality components are
used. A rusty exhaust pipe may go un-
noticed on a car, however, it detracts
from the overall appearance of a motor-
cycle. Frequent and proper care does
not only comply with the terms of the
warranty, but it will also keep your mo-
torcycle looking good, extend its life
and optimize its performance.
Before cleaning
1. Cover the muffler outlets with plas-
tic bags after the engine has
cooled down.
2. Make sure that all caps and covers
as well as all electrical couplers
and connectors, including the
spark plug caps, are tightly in-
stalled.
3. Remove extremely stubborn dirt,
like oil burnt onto the crankcase,
with a degreasing agent and a
brush, but never apply such prod-ucts onto seals, gaskets, sprock-
ets, the drive chain and wheel
axles. Always rinse the dirt and de-
greaser off with water.
Cleaning
CAUTION:

ECA10770

Avoid using strong acidic wheel
cleaners, especially on spoked
wheels. If such products are
used on hard-to-remove dirt, do
not leave the cleaner on the af-
fected area any longer than in-
structed. Also, thoroughly rinse
the area off with water, immedi-
ately dry it, and then apply a cor-
rosion protection spray.

Improper cleaning can damage
windshields, cowlings, panels
and other plastic parts. Use only
a soft, clean cloth or sponge
with mild detergent and water to
clean plastic.

Do not use any harsh chemical
products on plastic parts. Be
sure to avoid using cloths or
sponges which have been in
contact with strong or abrasive

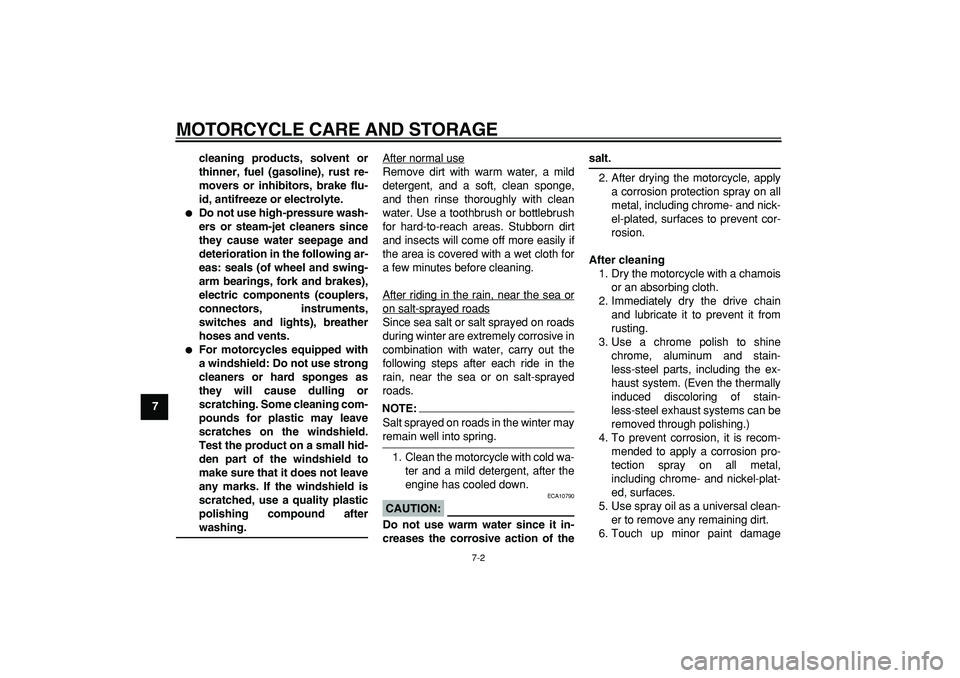

MOTORCYCLE CARE AND STORAGE
7-2
1
2
3
4
5
6
7
8
9cleaning products, solvent or
thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.


Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.

For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com-
pounds for plastic may leave
scratches on the windshield.
Test the product on a small hid-
den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound after
washing.
After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.NOTE:

Salt sprayed on roads in the winter may
remain well into spring.
1. Clean the motorcycle with cold wa-
ter and a mild detergent, after the
engine has cooled down.
CAUTION:

ECA10790
Do not use warm water since it in-
creases the corrosive action of the
salt.
2. After drying the motorcycle, apply
a corrosion protection spray on all
metal, including chrome- and nick-
el-plated, surfaces to prevent cor-
rosion.
After cleaning
1. Dry the motorcycle with a chamois
or an absorbing cloth.
2. Immediately dry the drive chain
and lubricate it to prevent it from
rusting.
3. Use a chrome polish to shine
chrome, aluminum and stain-
less-steel parts, including the ex-
haust system. (Even the thermally
induced discoloring of stain-
less-steel exhaust systems can be
removed through polishing.)
4. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
5. Use spray oil as a universal clean-
er to remove any remaining dirt.
6. Touch up minor paint damage

MOTORCYCLE CARE AND STORAGE
7-4
1
2
3
4
5
6
7
8
9
fuel from deteriorating.
3. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps
and spark plugs.
b. Pour a teaspoonful of engine oil
into each spark plug bore.
c. Install the spark plug caps onto
the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
WARNING

EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turning
the engine over.
4. Lubricate all control cables and thepivoting points of all levers and
pedals as well as of the sidestand/
centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlets with plas-
tic bags to prevent moisture from
entering them.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-27.
NOTE:

Make any necessary repairs before
storing the motorcycle.

8-1
2
3
4
5
6
7
89

SPECIFICATIONS
EAU2633H
Dimensions:
Overall length:
2180 mm (85.8 in)
Overall width:
800 mm (31.5 in)
Overall height:
1290 mm (50.8 in)
Seat height:
825 mm (32.5 in)
Wheelbase:
1485 mm (58.5 in)
Ground clearance:
160 mm (6.30 in)
Minimum turning radius:
2900 mm (114.2 in)
Weight:
With oil and fuel:
226.0 kg (498 lb)
Engine:
Engine type:
Liquid cooled 4-stroke, DOHC
Cylinder arrangement:
Forward-inclined parallel 2-cylinder
Displacement:
897.0 cm
3

Bore
×
stroke:
92.0
×
67.5 mm (3.62
×
2.66 in)
Compression ratio:
10.40 :1
Starting system:
Electric starterLubrication system:
Dry sump

Engine oil:
Type:
SAE10W30, SAE10W40, SAE15W40,
SAE20W40 or SAE20W50
Recommended engine oil grade:
API service SG type or higher, JASO stan-
dard MA
Engine oil quantity:
Without oil filter element replacement:
3.80 L (4.02 US qt) (3.34 Imp.qt)
With oil filter element replacement:
3.90 L (4.12 US qt) (3.43 Imp.qt)
Cooling system:
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.25 L (0.26 US qt) (0.22 Imp.qt)
Radiator capacity (including all routes):
1.75 L (1.85 US qt) (1.54 Imp.qt)
Air filter:
Air filter element:
Oil-coated paper element
Fuel:
Recommended fuel:
Regular unleaded gasoline only
Fuel tank capacity:
20.0 L (5.28 US gal) (4.40 Imp.gal)
Fuel reserve amount:
3.5 L (0.92 US gal) (0.77 Imp.gal)
Fuel injector:
Manufacturer:
DENSO
Model/quantity:
3830/2
Spark plug (s):
Manufacturer/model:
NGK/DPR8EA-9
Manufacturer/model:
DENSO/X24EPR-U9
Spark plug gap:
0.8–0.9 mm (0.031–0.035 in)
Clutch:
Clutch type:
Wet, multiple-disc
Transmission:
Primary reduction system:
Spur gear
Primary reduction ratio:
67/39 (1.718)
Secondary reduction system:
Chain drive
Secondary reduction ratio:
42/16 (2.625)
Transmission type:
Constant mesh 6-speed
-20 -10 0
10 20 30
40
50 ˚C
SAE 10W-30
SAE 15W-40SAE 20W-40SAE 20W-50
SAE 10W-40

SPECIFICATIONS
8-3
2
3
4
5
6
7
89 Electrical system:

Ignition system:
Transistorized coil ignition (digital)
Charging system:
AC magneto
Battery:
Model:
GT12B-4
Voltage, capacity:
12 V, 10.0 Ah
Headlight:
Bulb type:
Halogen bulb
Bulb voltage, wattage
×
quantity:
Headlight:
12 V, 55.0 W
×
2
Tail/brake light:
12 V, 5.0 W/21.0 W
×
1
Front turn signal light:
12 V, 10.0 W
×
2
Rear turn signal light:
12 V, 10.0 W
×
2
Auxiliary light:
12 V, 5.0 W
×
1
Meter lighting:
14 V, 2.0 W
×
2
Neutral indicator light:
14 V, 1.2 W
×
1
High beam indicator light:
14 V, 1.4 W
×
1
Oil level warning light:
LEDTurn signal indicator light:
14 V, 1.2 W
×
1
Engine trouble warning light:
14 V, 1.4 W
×
1
ABS warning light:
14 V, 1.4 W
×
1
Immobilizer system indicator light:
LED

Fuses:
Main fuse:
40.0 A
Headlight fuse:
20.0 A
Signaling system fuse:
10.0 A
Ignition fuse:
10.0 A
Radiator fan fuse:
20.0 A
Turn signal light and hazard fuse:
10.0 A
Fuel injection system fuse:
10.0 A
ABS control unit fuse:
10.0 A
ABS motor fuse:
30.0 A
Backup fuse:
10.0 A

INDEX
A
ABS ........................................................ 3-11
ABS warning light ..................................... 3-4
Air filter element, replacing ..................... 6-12
Anti-theft alarm (optional).......................... 3-8
Auxiliary light bulb, replacing .................. 6-32
B
Battery..................................................... 6-27
Brake and clutch levers, checking and
lubricating ............................................. 6-25
Brake and shift pedals, checking and
lubricating ............................................. 6-24
Brake fluid, changing .............................. 6-21
Brake fluid level, checking ...................... 6-20
Brake lever .............................................. 3-10
Brake pedal ............................................. 3-11
C
Cables, checking and lubricating ............ 6-24
Care .......................................................... 7-1
Catalytic converter .................................. 3-14
Caution, matte color .................................. 7-1
Clutch lever ............................................. 3-10
Clutch lever free play, adjusting .............. 6-18
Coolant.................................................... 6-10
Coolant temperature gauge ...................... 3-6
Cowlings and panels, removing and
installing.................................................. 6-5
D
Dimmer switch .......................................... 3-9
Drive chain, cleaning and lubricating ...... 6-23
Drive chain slack ..................................... 6-21
E
Engine break-in ......................................... 5-3
Engine idling speed................................. 6-14Engine oil and oil filter element ..................6-7
Engine stop switch .....................................3-9
Engine trouble warning light ......................3-4
F
Front and rear brake pads, checking .......6-19
Front fork, adjusting .................................3-15
Front fork, checking .................................6-26
Fuel ..........................................................3-13
Fuel consumption, tips for reducing ...........5-3
Fuel level warning indicator .......................3-4
Fuel tank breather hose ...........................3-13
Fuel tank cap ...........................................3-12
Fuses, replacing ......................................6-29
H
Handlebar switches ...................................3-8
Hazard switch ............................................3-9
Headlight bulb, replacing .........................6-30
High beam indicator light ...........................3-4
Horn switch ................................................3-9
I
Identification numbers................................9-1
Ignition circuit cut-off system ...................3-19
Immobilizer system ....................................3-1
Immobilizer system indicator light ..............3-4
Indicator and warning lights .......................3-3
K
Key identification number ..........................9-1
L
Luggage strap holders .............................3-18
M
Main switch/steering lock ...........................3-2
Model label ................................................9-2
Multi-function display .................................3-7
N
Neutral indicator light................................. 3-4
O
Oil level warning light ................................ 3-4
P
Parking ...................................................... 5-4
Part locations............................................. 2-1
Pass switch ............................................... 3-9
Periodic maintenance and lubrication
chart ........................................................ 6-2
Pre-operation check list ............................. 4-2
R
Rear brake light switch, adjusting............ 6-19
Rear suspension, lubricating ................... 6-25
S
Safety information ..................................... 1-1
Seat ......................................................... 3-14
Shifting ...................................................... 5-2
Shift pedal ............................................... 3-10
Shock absorber assembly, adjusting....... 3-17
Sidestand ................................................ 3-19
Sidestand, checking and lubricating ........ 6-25
Spark plugs, checking ............................... 6-6
Specifications ............................................ 8-1
Starting the engine .................................... 5-1
Start switch ................................................ 3-9
Steering, checking ................................... 6-26
Storage ...................................................... 7-3
Storage compartment .............................. 3-15
Supporting the motorcycle....................... 6-32
T
Tachometer unit ........................................ 3-5
Tail/brake light bulb, replacing................. 6-31
Throttle cable free play, checking............ 6-14
