INSTRUMENT AND CONTROL FUNCTIONS
3-4
1
2
3
4
5
6
7
8
9

EAU11060
Neutral indicator light “”
This indicator light comes on when the
transmission is in the neutral position.
EAU11080
High beam indicator light “”
This indicator light comes on when the
high beam of the headlight is switched
on.
EAU38600
Oil level warning light
This warning light comes on when the
engine oil level is low.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
NOTE:

Even if the oil level is sufficient, the
warning light may flicker when riding on
a slope or during sudden acceleration
or deceleration, but this is not a mal-
function.
EAU11371
Fuel level warning indicator “”
This fuel level warning indicator starts
flashing when the fuel level drops be-
low approximately 3.5 L (0.92 US gal)
(0.77 Imp.gal).
EAU11500
Engine trouble warning light “”
This warning light comes on or flashes
when an electrical circuit monitoring the
engine is defective. When this occurs,
have a Yamaha dealer check the
self-diagnosis system.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”. If the warning light does not come
on for a few seconds, then go off, have
a Yamaha dealer check the electrical
circuit.
EAU39500
ABS warning light “”
If this warning light comes on or flashes
while riding, the ABS may be defective.
If this occurs, have a Yamaha dealer
check the system as soon as possible.
(See page 3-11.)
WARNING

EWA10081
If the ABS warning light comes on or
flashes while riding, the brake sys-
tem reverts to conventional braking.
Therefore, be careful not to cause
the wheels to lock during emergen-
cy braking. If the warning light
comes on or flashes while riding,
have a Yamaha dealer check the
brake system as soon as possible.
The electrical circuit of the warning light
can be checked by turning the key to
“ON”.
If the warning light does not come on or
remains on, have a Yamaha dealer
check the electrical circuit.
EAU38610
Immobilizer system indicator light
The electrical circuit of the indicator
light can be checked by turning the key
to “ON”.
If the indicator light does not come on
for a few seconds, then go off, have a
Yamaha dealer check the electrical cir-
cuit.
When the key is turned to “OFF” and 30ABS

INSTRUMENT AND CONTROL FUNCTIONS
3-5
2
34
5
6
7
8
9
seconds have passed, the indicator
light will start flashing indicating the im-
mobilizer system is enabled. After 24
hours have passed, the indicator light
will stop flashing, however the immobi-
lizer system is still enabled.
NOTE:

This model is also equipped with a
self-diagnosis device for the immobiliz-
er system. If the immobilizer system is
defective, the indicator light will start
flashing a pattern and the odometer/
tripmeter will display a 2-digit code
when the key is turned to “ON”. When
this occurs, have a Yamaha dealer
check the self-diagnosis system. How-
ever, if the indicator light slowly flashes
five times, and then quickly flashes two
times repeatedly, error code 52 will be
displayed. This error could be caused
by signal interference. If this occurs, try
the following.
1. Use the code re-registering key to
start the engine.
NOTE:

Make sure there are no other immobi-
lizer keys close to the main switch, anddo not keep more than one immobilizer
key on the same key ring! Immobilizer
system keys may cause signal interfer-
ence, which may prevent the engine
from starting.
2. If the engine starts, turn it off, and
try starting the engine with the
standard keys.
3. If one or both of the standard keys
do not start the engine, take the
vehicle, the code re-registering
key and both standard keys to a
Yamaha dealer and have the stan-
dard keys re-registered.
EAU11911
Tachometer unit
The electric tachometer allows the rider
to monitor the engine speed and keep it
within the ideal power range.
When the key is turned to “ON”, the ta-
chometer needle will sweep once
across the r/min range and then return
to zero r/min in order to test the electri-
cal circuit.
CAUTION:

ECA10031
Do not operate the engine in the ta-
chometer red zone.
Red zone: 8000 r/min and above
1. Tachometer
2. Tachometer red zone
3. Clock
1
2
3

INSTRUMENT AND CONTROL FUNCTIONS
3-6
1
2
3
4
5
6
7
8
9
This tachometer unit is equipped with a
clock.
To set the clock:
1. Push both the “SELECT” and “RE-
SET” buttons for at least two sec-
onds.
2. When the hour digits start flashing,
push the “RESET” button to set the
hours.
3. Push the “SELECT” button to
change the minutes.
4. When the minute digits start flash-
ing, push the “RESET” button to
set the minutes.
5. Push the “SELECT” button to start
the clock.
NOTE:


After setting the clock, be sure to
push the “SELECT” button before
turning the key to “OFF”, otherwise
the clock will not be set.

When the key is turned to “OFF”,
the clock display will remain on for
48 hours and then go off to prevent
the battery from discharging.
EAU12181
Coolant temperature gauge
With the key in the “ON” position, the
coolant temperature gauge indicates
the temperature of the coolant. When
the key is turned to “ON”, the coolant
temperature gauge needle will sweep
once across the temperature range and
then return to “C” in order to test the
electrical circuit. The coolant tempera-
ture varies with changes in the weather
and engine load. If the needle reaches
or enters the red zone, stop the vehicle
and let the engine cool. (See
page 6-34.)
CAUTION:

ECA10020
Do not operate the engine if it is
overheated.
1. Coolant temperature gauge
2. Coolant temperature gauge red zone12

INSTRUMENT AND CONTROL FUNCTIONS
3-8
1
2
3
4
5
6
7
8
9
cator and the last fuel gauge segment
will flash. Refuel as soon as possible.
Self-diagnosis device
This model is equipped with a self-diag-
nosis device for various electrical cir-
cuits.
If any of those circuits are defective, the
odometer/tripmeter will indicate a
two-digit error code (e.g., 11, 12, 13).
If the odometer/tripmeter indicates
such an error code, note the code num-
ber, and then have a Yamaha dealer
check the vehicle.
CAUTION:

ECA11520
If the odometer/tripmeter indicates
an error code, the vehicle should be
checked as soon as possible in or-
der to avoid engine damage.
EAU12331
Anti-theft alarm (optional)
This model can be equipped with an
optional anti-theft alarm by a Yamaha
dealer. Contact a Yamaha dealer for
more information.
EAU12346
Handlebar switches
Left
1. Pass switch “”
2. Hazard switch “”
3. Dimmer switch “/”
4. Turn signal switch “/”
5. Horn switch “”
1
2
3
4
5

INSTRUMENT AND CONTROL FUNCTIONS
3-9
2
34
5
6
7
8
9 Right

EAU12350
Pass switch “”
Press this switch to flash the headlight.
EAU12400
Dimmer switch “/”
Set this switch to “” for the high
beam and to “” for the low beam.
EAU12460
Turn signal switch “/”
To signal a right-hand turn, push this
switch to “”. To signal a left-hand
turn, push this switch to “”. When re-
leased, the switch returns to the centerposition. To cancel the turn signal
lights, push the switch in after it has re-
turned to the center position.
EAU12500
Horn switch “”
Press this switch to sound the horn.
EAU12660
Engine stop switch “/”
Set this switch to “” before starting
the engine. Set this switch to “” to
stop the engine in case of an emergen-
cy, such as when the vehicle overturns
or when the throttle cable is stuck.
EAU12710
Start switch “”
Push this switch to crank the engine
with the starter.
CAUTION:

ECA10050
See page 5-1 for starting instruc-
tions prior to starting the engine.
EAU42340
The engine trouble warning light and
ABS warning light will come on whenthe key is turned to “ON” and the start
switch is pushed, but this does not indi-
cate a malfunction.
EAU12733
Hazard switch “”
With the key in the “ON” or “” posi-
tion, use this switch to turn on the haz-
ard lights (simultaneous flashing of all
turn signal lights).
The hazard lights are used in case of
an emergency or to warn other drivers
when your vehicle is stopped where it
might be a traffic hazard.
CAUTION:

ECA10061
Do not use the hazard lights for an
extended length of time with the en-
gine not running, otherwise the bat-
tery may discharge.
1. Engine stop switch “/”
2. Start switch “”
1
2

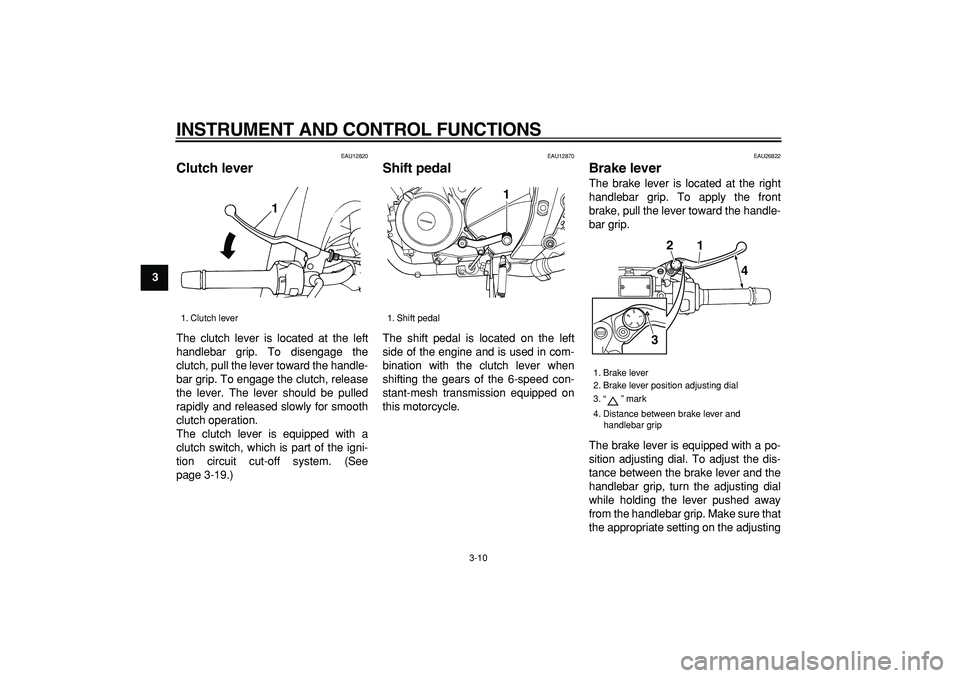

INSTRUMENT AND CONTROL FUNCTIONS
3-10
1
2
3
4
5
6
7
8
9

EAU12820
Clutch lever
The clutch lever is located at the left
handlebar grip. To disengage the
clutch, pull the lever toward the handle-
bar grip. To engage the clutch, release
the lever. The lever should be pulled
rapidly and released slowly for smooth
clutch operation.
The clutch lever is equipped with a
clutch switch, which is part of the igni-
tion circuit cut-off system. (See
page 3-19.)
EAU12870
Shift pedal
The shift pedal is located on the left
side of the engine and is used in com-
bination with the clutch lever when
shifting the gears of the 6-speed con-
stant-mesh transmission equipped on
this motorcycle.
EAU26822
Brake lever
The brake lever is located at the right
handlebar grip. To apply the front
brake, pull the lever toward the handle-
bar grip.
The brake lever is equipped with a po-
sition adjusting dial. To adjust the dis-
tance between the brake lever and the
handlebar grip, turn the adjusting dial
while holding the lever pushed away
from the handlebar grip. Make sure that
the appropriate setting on the adjusting
1. Clutch lever
1

1. Shift pedal
1

1. Brake lever
2. Brake lever position adjusting dial
3. “” mark
4. Distance between brake lever and
handlebar grip
1 2
4
3

INSTRUMENT AND CONTROL FUNCTIONS
3-13
2
34
5
6
7
8
9

EAU13211
Fuel
Make sure that there is sufficient fuel in
the tank. Fill the fuel tank to the bottom
of the filler tube as shown.
WARNING

EWA10880

Do not overfill the fuel tank, oth-
erwise it may overflow when the
fuel warms up and expands.

Avoid spilling fuel on the hot en-
gine.
CAUTION:

ECA10070
Immediately wipe off spilled fuel
with a clean, dry, soft cloth, sincefuel may deteriorate painted surfac-
es or plastic parts.
EAU13320
CAUTION:

ECA11400
Use only unleaded gasoline. The use
of leaded gasoline will cause severe
damage to internal engine parts,
such as the valves and piston rings,
as well as to the exhaust system.
Your Yamaha engine has been de-
signed to use regular unleaded gaso-
line with a research octane number of
91 or higher. If knocking (or pinging) oc-
curs, use a gasoline of a different brand
or premium unleaded fuel. Use of un-
leaded fuel will extend spark plug life
and reduce maintenance costs.
EAU13411
Fuel tank breather hose
Before operating the motorcycle:

Check the fuel tank breather hose
connection.

Check the fuel tank breather hose
for cracks or damage, and replace
it if damaged.

Make sure that the end of the fuel
tank breather hose is not blocked,
and clean it if necessary.
1. Fuel tank filler tube
2. Fuel level
1 2

Recommended fuel:
REGULAR UNLEADED GASOLINE
ONLY
Fuel tank capacity:
20.0 L (5.28 US gal) (4.40 Imp.gal)
Fuel reserve amount:
3.5 L (0.92 US gal) (0.77 Imp.gal)

1. Fuel tank breather hose
1

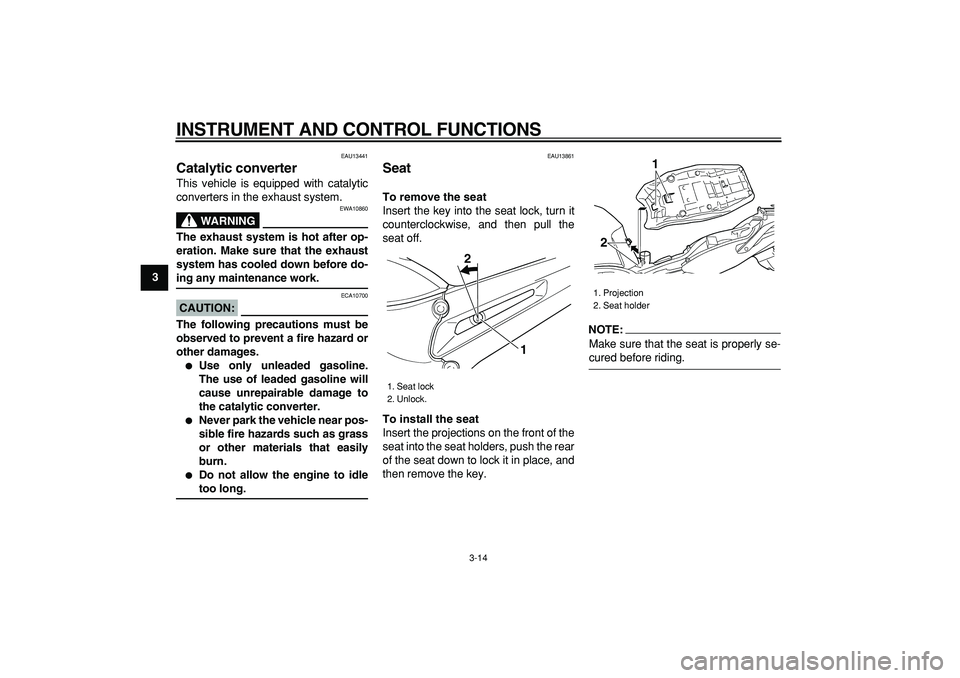

INSTRUMENT AND CONTROL FUNCTIONS
3-14
1
2
3
4
5
6
7
8
9

EAU13441
Catalytic converter
This vehicle is equipped with catalytic
converters in the exhaust system.
WARNING

EWA10860
The exhaust system is hot after op-
eration. Make sure that the exhaust
system has cooled down before do-
ing any maintenance work.
CAUTION:

ECA10700
The following precautions must be
observed to prevent a fire hazard or
other damages.

Use only unleaded gasoline.
The use of leaded gasoline will
cause unrepairable damage to
the catalytic converter.

Never park the vehicle near pos-
sible fire hazards such as grass
or other materials that easily
burn.

Do not allow the engine to idle
too long.
EAU13861
Seat
To remove the seat
Insert the key into the seat lock, turn it
counterclockwise, and then pull the
seat off.
To install the seat
Insert the projections on the front of the
seat into the seat holders, push the rear
of the seat down to lock it in place, and
then remove the key.
NOTE:

Make sure that the seat is properly se-
cured before riding.
1. Seat lock
2. Unlock.
1
2

1. Projection
2. Seat holder
1
2
