Page 65 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-23
6
EAU23290
Checking the wheel bearings The front and rear wheel bearings must
be checked at the intervals specified in
the periodic maintenance and lubrica-
tion chart. If there is play in the wheel
hub or if the wheel does not turn
smoothly, have a Yamaha dealer check
the wheel bearings.
EAU23441
Battery This model is equipped with a sealed-
type (MF) battery, which does not re-
quire any maintenance. There is no
need to check the electrolyte or to add
distilled water.
To charge the battery
Have a Yamaha dealer charge the bat-
tery as soon as possible if it seems to
have discharged. Keep in mind that the
battery tends to discharge more quickly
if the vehicle is equipped with optional
electrical accessories.
WARNING
EWA10760
Electrolyte is poisonous and
dangerous since it contains sul-
furic acid, which causes severe
burns. Avoid any contact with
skin, eyes or clothing and al-
ways shield your eyes when
working near batteries. In case
of contact, administer the fol-
lowing FIRST AID.
EXTERNAL: Flush with plenty
of water.
INTERNAL: Drink large quan-
tities of water or milk and im-
mediately call a physician.
EYES: Flush with water for 15
minutes and seek prompt
medical attention.
Batteries produce explosive hy-
drogen gas. Therefore, keep
sparks, flames, cigarettes, etc.,
away from the battery and pro-
vide sufficient ventilation when
charging it in an enclosed
space.
1. Positive battery terminal
2. Battery
3. Negative battery terminal
U5YUE2E0.book Page 23 Tuesday, September 12, 2006 5:02 PM
Page 66 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-24
6
KEEP THIS AND ALL BATTER-
IES OUT OF THE REACH OFCHILDREN.
To store the battery
1. If the vehicle will not be used for
more than one month, remove the
battery, fully charge it, and then
place it in a cool, dry place.
2. If the battery will be stored for more
than two months, check it at least
once a month and fully charge it if
necessary.
3. Fully charge the battery before in-
stallation.
4. After installation, make sure that
the battery leads are properly con-
nected to the battery terminals.
CAUTION:
ECA10630
Always keep the battery
charged. Storing a discharged
battery can cause permanent
battery damage.
To charge a sealed-type (MF)
battery, a special (constant-volt-
age) battery charger is required.
Using a conventional batterycharger will damage the battery.
If you do not have access to a
sealed-type (MF) battery charg-
er, have a Yamaha dealer
charge your battery.
EAU23624
Replacing the fuses 1. Main fuse
2. Fuel injection system fuse
3. Fuel injection system spare fuse
4. Fuse box
U5YUE2E0.book Page 24 Tuesday, September 12, 2006 5:02 PM
Page 67 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-25
6
The main fuse and the fuse box, which
contains the fuses for the individual cir-
cuits, are located under the seat. (See
page 3-14.)
If a fuse is blown, replace it as follows.
1. Turn the key to “OFF” and turn off
the electrical circuit in question.2. Remove the blown fuse, and then
install a new fuse of the specified
amperage.
CAUTION:
ECA10640
Do not use a fuse of a higher amper-
age rating than recommended to
avoid causing extensive damage to
the electrical system and possibly afire.
3. Turn the key to “ON” and turn on
the electrical circuit in question to
check if the device operates.
4. If the fuse immediately blows
again, have a Yamaha dealer
check the electrical system.
1. Fuse box
2. Headlight fuse
3. Signaling system fuse
4. Ignition fuse
5. Muffler cover fan fuse
6. Backup fuse (for odometer, clock and immo-
bilizer system)
7. Auto-decompression fuse
8. ECU fuse
9. Parking lighting fuse
10.Spare fuse
Specified fuses:
Main fuse:
50.0 A
Headlight fuse:
15.0 A
Ignition fuse:
25.0 A
Signaling system fuse:
10.0 A
Parking lighting fuse:
10.0 A
Muffler cover fan fuse:
15.0 A
ECU fuse:
10.0 A
Backup fuse:
10.0 A
Auto-decompression fuse:
15.0 A
Fuel injection system fuse:
15.0 A
U5YUE2E0.book Page 25 Tuesday, September 12, 2006 5:02 PM
Page 68 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-26
6
EAU36820
Replacing a headlight bulb This model is equipped with quartz bulb
headlights. If a headlight bulb burns
out, replace it as follows.
To replace a headlight bulb
1. Remove the headlight unit by re-
moving the bolts on each side.To replace the high beam head-
light bulba. Remove the headlight bulb
holder cover by turning it coun-
terclockwise.b. Disconnect the headlight cou-
pler, and then unhook the
headlight bulb holder.
c. Remove the defective bulb.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.
d. Place a new headlight bulb into
position, and then secure it with
the bulb holder.
1. Low beam headlight bulb
2. High beam headlight bulb
1. Bolt
1. Headlight bulb holder cover
1. Headlight coupler
2. Headlight bulb holder
U5YUE2E0.book Page 26 Tuesday, September 12, 2006 5:02 PM
Page 69 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-27
6
CAUTION:
ECA10650
Take care not to damage the follow-
ing parts:
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.
Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.e. Connect the coupler, and then
install the headlight bulb holder
cover by turning it clockwise.
To replace the low beam headlight
bulba. Disconnect the headlight cou-
pler, and then remove the de-
fective bulb by turning it
counterclockwise.
WARNING
EWA10790
Headlight bulbs get very hot. There-
fore, keep flammable products away
from a lit headlight bulb, and do not
touch the bulb until it has cooleddown.
b. Install the bulb by turning it
clockwise.CAUTION:
ECA10650
Take care not to damage the follow-
ing parts:
1. Do not touch the glass part of the bulb.
1. Headlight coupler
2. Headlight bulb
U5YUE2E0.book Page 27 Tuesday, September 12, 2006 5:02 PM
Page 70 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-28
6
Headlight bulb
Do not touch the glass part of
the headlight bulb to keep it free
from oil, otherwise the transpar-
ency of the glass, the luminosity
of the bulb, and the bulb life will
be adversely affected. Thor-
oughly clean off any dirt and fin-
gerprints on the headlight bulb
using a cloth moistened with al-
cohol or thinner.
Headlight lens
Do not affix any type of tinted
film or stickers to the headlight
lens.
Do not use a headlight bulb of awattage higher than specified.c. Connect the headlight coupler.
2. Install the headlight unit by install-
ing the bolts.
3. Have a Yamaha dealer adjust the
headlight beam if necessary.
EAU24180
Tail/brake light This model is equipped with an LED
type of tail/brake light.
If the tail/brake light does not come on,
have a Yamaha dealer check it.
1. Do not touch the glass part of the bulb.U5YUE2E0.book Page 28 Tuesday, September 12, 2006 5:02 PM
Page 71 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-29
6
EAU24202
Replacing a turn signal light
bulb 1. Remove the turn signal light lens
by removing the screw.
2. Remove the defective bulb by
pushing it in and turning it counter-
clockwise.
3. Insert a new bulb into the socket,
push it in, and then turn it clock-
wise until it stops.
4. Install the lens by installing the
screw.CAUTION:
ECA11190
Do not overtighten the screw, other-wise the lens may break.
EAU36810
Replacing the license plate
light bulb 1. Remove the license plate light cov-
er by removing the screws.
2. Remove the license plate light lens
by removing the screws.3. Remove the defective bulb by pull-
ing it out from the socket.
4. Insert a new bulb into the socket.
5. Install the license plate light lens
by installing the screws.
1. Screw
1. Screw
2. License plate light cover
1. Screw
2. License plate light lens
1. License plate light bulb
U5YUE2E0.book Page 29 Tuesday, September 12, 2006 5:02 PM

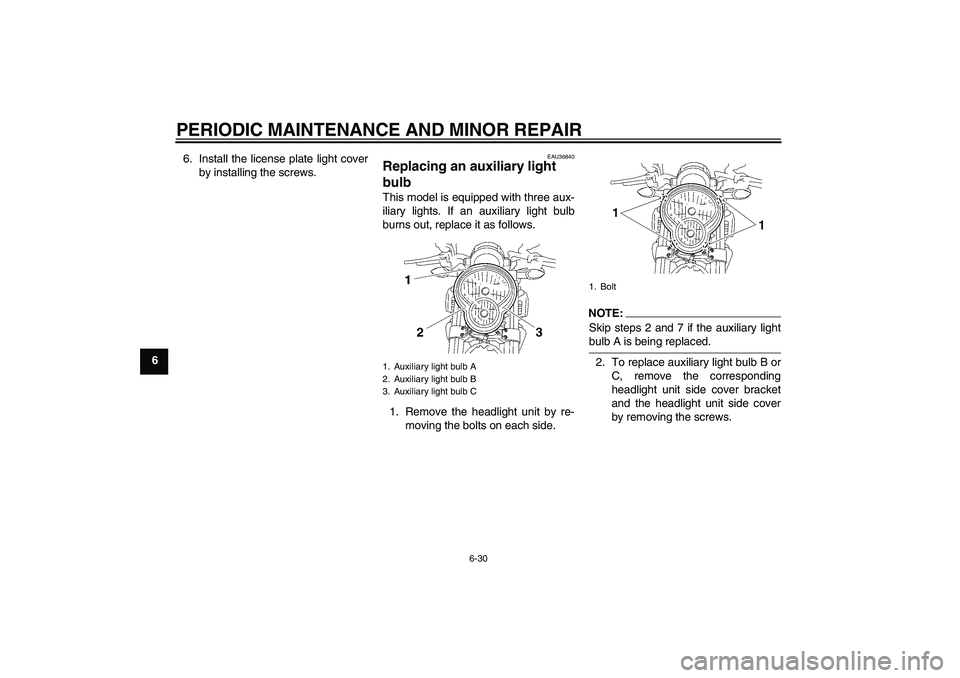

Page 72 of 88
PERIODIC MAINTENANCE AND MINOR REPAIR
6-30
66. Install the license plate light cover
by installing the screws.
EAU36840
Replacing an auxiliary light
bulb This model is equipped with three aux-
iliary lights. If an auxiliary light bulb
burns out, replace it as follows.
1. Remove the headlight unit by re-
moving the bolts on each side.
NOTE:
Skip steps 2 and 7 if the auxiliary lightbulb A is being replaced.
2. To replace auxiliary light bulb B or
C, remove the corresponding
headlight unit side cover bracket
and the headlight unit side cover
by removing the screws.
1. Auxiliary light bulb A
2. Auxiliary light bulb B
3. Auxiliary light bulb C
1. Bolt
U5YUE2E0.book Page 30 Tuesday, September 12, 2006 5:02 PM
