2007 YAMAHA GRIZZLY 660 Owners Manual

8-21
8 13. Start the engine, and then let it idle for several
minutes while checking it for oil leakage. If oil
is leaking, immediately turn the engine off and
check for the cause.
14. Turn the engine off, and then check the oil lev-
el and correct it if necessary.
15. Install panel F.
EBU23410Changing the final gear oil The final gear case must be checked for oil leak-
age before each ride. If any leakage is found, have
a Yamaha dealer check and repair the ATV. In ad-
dition, the final gear oil must be changed as follows
at the intervals specified in the periodic mainte-
nance and lubrication chart.
1. Place the ATV on a level surface.
2. Place an oil pan under the final gear case to
collect the used oil.
3. Remove the final gear oil filler bolt and the fi-
nal gear oil drain bolt to drain the oil from the
final gear case.
4. Install the drain bolt, and then tighten it to the
specified torque.
1. Final gear oil filler bolt
1. Final gear oil drain bolt
U2C661E0.book Page 21 Thursday, March 16, 2006 10:45 AM

8-22
85. Add the specified amount of the recommend-
ed final gear oil.
CAUTION:ECB00420Be sure no foreign material enters the finalgear case.
6. Install the oil filler bolt, and then tighten it to the
specified torque.
7. Check the final gear case for oil leakage. If oil
is leaking, check for the cause.
EBU23421Differential gear oil The differential gear case must be checked for oil
leakage before each ride. If any leakage is found,
have a Yamaha dealer check and repair the ATV.
In addition, the differential gear oil level must be
checked and the oil changed as follows at the in-
tervals specified in the periodic maintenance and
lubrication chart.
To check the differential gear oil level
1. Place the ATV on a level surface.NOTE:The differential gear oil level must be checked ona cold engine.
2. Remove the differential gear oil filler bolt, and
then check the oil level in the differential gear
case. Tightening torque:
Final gear oil drain bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
Recommended final gear oil:
See page 10-1.
Oil quantity:
0.25 L (0.26 US qt) (0.22 Imp.qt)
Tightening torque:
Final gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U2C661E0.book Page 22 Thursday, March 16, 2006 10:45 AM

8-23
8
NOTE:The oil level should be at the brim of the filler hole.
3. If the oil is below the brim of the filler hole, add
sufficient oil of the recommended type to raise
it to the correct level.
4. Install the oil filler bolt, and then tighten it to the
specified torque.To change the differential gear oil
1. Place the ATV on a level surface.
2. Place an oil pan under the differential gear
case to collect the used oil.
3. Remove the differential gear oil filler bolt and
the differential gear oil drain bolt to drain the
oil from the differential gear case.
4. Install the drain bolt, and then tighten it to the
specified torque.1. Differential gear oil
2. Differential gear oil filler bolt
3. Correct oil levelTightening torque:
Differential gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
1. Differential gear oil drain boltTightening torque:
Differential gear oil drain bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
U2C661E0.book Page 23 Thursday, March 16, 2006 10:45 AM

8-24
85. Add the recommended differential gear oil to
the brim of the filler hole as shown.
CAUTION:ECB00410Be sure no foreign material enters the differen-tial gear case.
6. Install the oil filler bolt, and then tighten it to the
specified torque.7. Check the differential gear case for oil leak-
age. If oil is leaking, check for the cause.
EBU23470Coolant The coolant level should be checked before each
ride. In addition, the coolant must be changed at
the intervals specified in the periodic maintenance
and lubrication chart.EBU27120To check the coolant level
1. Place the ATV on a level surface.NOTE:The coolant level must be checked on a cold en-
gine since the level varies with engine tempera-ture.
2. Check the coolant level in the coolant reser-
voir.
1. Differential gear oil
2. Differential gear oil filler bolt
3. Correct oil levelRecommended differential gear oil:
See page 10-1.
Tightening torque:
Differential gear oil filler bolt:
23 Nm (2.3 m·kgf, 17 ft·lbf)
U2C661E0.book Page 24 Thursday, March 16, 2006 10:45 AM

8-25
8
NOTE:The coolant should be between the minimum andmaximum level marks.
3. If the coolant is at or below the minimum level
mark, remove panel D. (See page 8-8.)
4. Remove the reservoir cap, add coolant or dis-
tilled water to the maximum level mark, install
the reservoir cap, and then install the panel.
CAUTION:ECB00400
If coolant is not available, use distilled water
or soft tap water instead. Do not use hard wa-
ter or salt water since it is harmful to the en-
gine.
If water has been used instead of coolant, re-
place it with coolant as soon as possible,
otherwise the engine may not be sufficiently
cooled and the cooling system will not be
protected against frost and corrosion.
If water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible, oth-
erwise the effectiveness of the coolant willbe reduced.
NOTE:
The radiator fan is automatically switched on or
off according to the coolant temperature in the
radiator.
1. Coolant reservoir cap
2. Maximum level mark
3. Minimum level mark
Coolant reservoir capacity (up to the maximum
level mark):
0.30 L (0.32 US qt) (0.26 Imp.qt)
U2C661E0.book Page 25 Thursday, March 16, 2006 10:45 AM

8-26
8

If the engine overheats, see page 8-55 for fur-ther instructions.EBU23601To change the coolant
WARNING
EWB01890Wait for the engine and radiator to cool before
removing the radiator cap. You could be
burned by hot fluid and steam blown out under
pressure. Always place a thick rag over the cap
when opening. Allow any remaining pressureto escape before completely removing the cap.
1. Place the ATV on a level surface.
2. Remove panels E and F. (See page 8-8.)
3. Place a container under the engine, and then
remove the coolant drain bolt. (Use a trough
or a similar object as shown to prevent coolant
from spilling on the footrest.)
4. Remove the front carrier and panel C. (See
page 8-8.)
1. Coolant drain bolt
1. Trough
U2C661E0.book Page 26 Thursday, March 16, 2006 10:45 AM

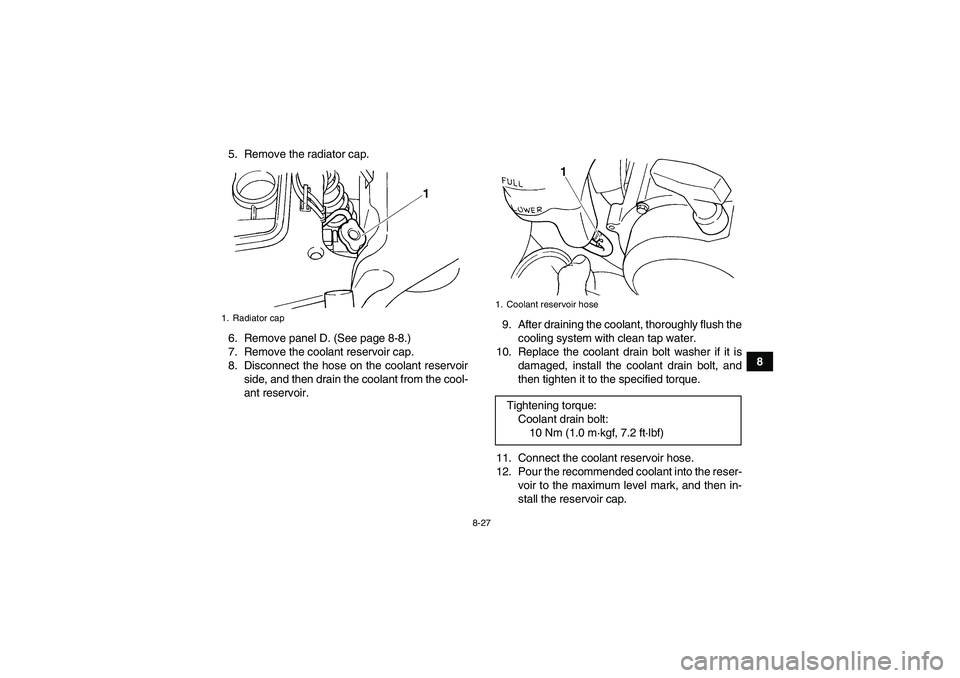

8-27
8 5. Remove the radiator cap.
6. Remove panel D. (See page 8-8.)
7. Remove the coolant reservoir cap.
8. Disconnect the hose on the coolant reservoir
side, and then drain the coolant from the cool-
ant reservoir.9. After draining the coolant, thoroughly flush the
cooling system with clean tap water.
10. Replace the coolant drain bolt washer if it is
damaged, install the coolant drain bolt, and
then tighten it to the specified torque.
11. Connect the coolant reservoir hose.
12. Pour the recommended coolant into the reser-
voir to the maximum level mark, and then in-
stall the reservoir cap.
1. Radiator cap
1. Coolant reservoir hoseTightening torque:
Coolant drain bolt:
10 Nm (1.0 m·kgf, 7.2 ft·lbf)
U2C661E0.book Page 27 Thursday, March 16, 2006 10:45 AM

8-28
813. Pour the recommended coolant into the radia-
tor until it is full.
CAUTION:ECB00400
If coolant is not available, use distilled water
or soft tap water instead. Do not use hard wa-
ter or salt water since it is harmful to the en-
gine.
If water has been used instead of coolant, re-
place it with coolant as soon as possible,
otherwise the engine may not be sufficiently
cooled and the cooling system will not be
protected against frost and corrosion.

If water has been added to the coolant, have
a Yamaha dealer check the antifreeze con-
tent of the coolant as soon as possible, oth-
erwise the effectiveness of the coolant willbe reduced.
14. Install the radiator cap, start the engine, let it
idle for several minutes, and then turn it off.
15. Remove the radiator cap to check the coolant
level in the radiator. If it is low, add sufficient
coolant until it reaches the top of the radiator,
and then install the radiator cap.
16. Start the engine, and then check for coolant
leakage.
NOTE:If any leakage is found, have a Yamaha dealercheck the cooling system.
17. Install the panels and the front carrier.EBU23660Cleaning the air filter element The air filter element should be cleaned at the in-
tervals specified in the periodic maintenance and
lubrication chart. Clean the air filter element more
frequently if you are riding in unusually wet or dusty
areas. Antifreeze/water mixture ratio:
1:1
Recommended antifreeze:
High-quality ethylene glycol antifreeze con-
taining corrosion inhibitors for aluminum en-
gines
Coolant quantity:
Radiator capacity (including all routes):
1.80 L (1.90 US qt) (1.58 Imp.qt)
Coolant reservoir capacity (up to the maxi-
mum level mark):
0.30 L (0.32 US qt) (0.26 Imp.qt)
U2C661E0.book Page 28 Thursday, March 16, 2006 10:45 AM
