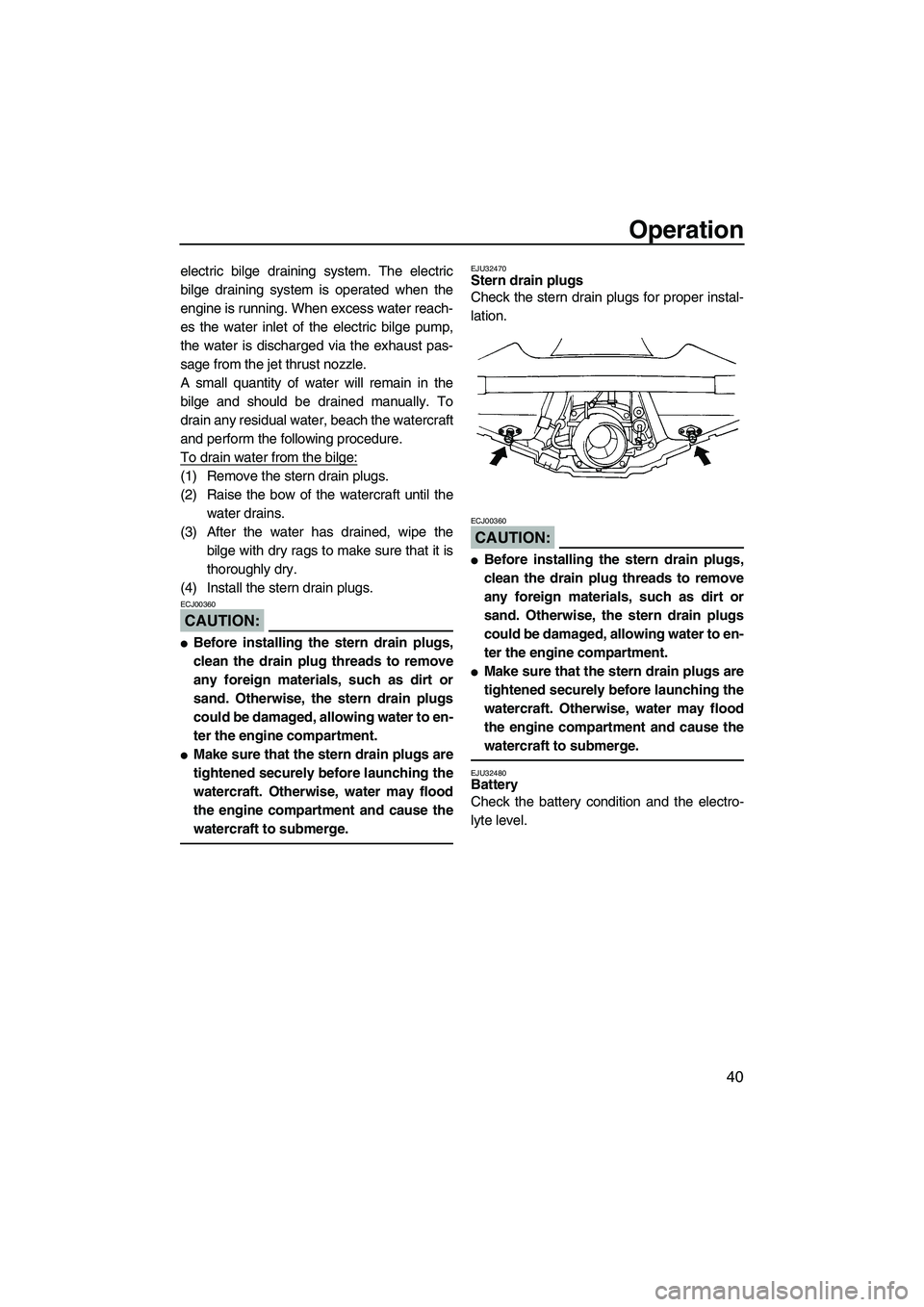

Operation
40
electric bilge draining system. The electric
bilge draining system is operated when the
engine is running. When excess water reach-
es the water inlet of the electric bilge pump,
the water is discharged via the exhaust pas-
sage from the jet thrust nozzle.
A small quantity of water will remain in the
bilge and should be drained manually. To
drain any residual water, beach the watercraft
and perform the following procedure.
To drain water from the bilge:
(1) Remove the stern drain plugs.
(2) Raise the bow of the watercraft until the
water drains.
(3) After the water has drained, wipe the
bilge with dry rags to make sure that it is
thoroughly dry.
(4) Install the stern drain plugs.
CAUTION:
ECJ00360

Before installing the stern drain plugs,
clean the drain plug threads to remove
any foreign materials, such as dirt or
sand. Otherwise, the stern drain plugs
could be damaged, allowing water to en-
ter the engine compartment.

Make sure that the stern drain plugs are
tightened securely before launching the
watercraft. Otherwise, water may flood
the engine compartment and cause the
watercraft to submerge.
EJU32470Stern drain plugs
Check the stern drain plugs for proper instal-
lation.
CAUTION:
ECJ00360

Before installing the stern drain plugs,
clean the drain plug threads to remove
any foreign materials, such as dirt or
sand. Otherwise, the stern drain plugs
could be damaged, allowing water to en-
ter the engine compartment.

Make sure that the stern drain plugs are
tightened securely before launching the
watercraft. Otherwise, water may flood
the engine compartment and cause the
watercraft to submerge.
EJU32480Battery
Check the battery condition and the electro-
lyte level.
UF1G74E0.book Page 40 Monday, July 31, 2006 10:10 AM

Operation
41
Check that the battery leads are tightened se-
curely and that there is no corrosion on the
battery terminals.
WARNING
EWJ00450

The battery must always be fully
charged and in good condition. Loss of
battery power may leave you stranded.
Never operate the watercraft if the bat-
tery does not have sufficient power to
start the engine or if it shows any other
signs of decreased power.

Be sure to connect the breather hose to
the battery. Fire or explosion could re-
sult if the breather hose is damaged, ob-
structed, or not connected properly.
Make sure that the battery is securely held in
place.
EJU32520Fire extinguisher
Check that there is a full fire extinguisher on
board.
The fire extinguisher container is located in
the battery compartment under the seat.
To open the fire extinguisher container, turn
the cap counterclockwise.
To close the fire extinguisher container, insert
the fire extinguisher into the container, and
then install the cap and tighten it securely.
NOTE:

To check the fire extinguisher, see the in-
structions supplied by the fire extinguisher
manufacturer. Always keep the fire extin-
guisher in the fire extinguisher container.

Always carry a fire extinguisher on board. A
fire extinguisher is not standard equipment
with this watercraft. If you do not have one,
1Positive (+) battery terminal: Red lead
2Negative (–) battery terminal: Black lead
3Breather hose
1Fire extinguisher container
2Fire extinguisher container cap
UF1G74E0.book Page 41 Monday, July 31, 2006 10:10 AM

Operation
42
contact a Yamaha dealer or a fire extin-
guisher dealer to obtain one meeting the
proper specifications.
EJU32590Throttle lever
Check the throttle lever for proper operation.
Squeeze and release the throttle lever several
times to make sure that there is no hesitation
in its travel. It should be smooth over the com-
plete range and spring back to the idle posi-
tion when released.
WARNING
EWJ00490
Before starting the engine, always check
the operation of the throttle lever.
EJU32600Steering system
Check the handlebars for looseness.
Turn the handlebars as far as possible to the
right and left to make sure that operation is
smooth and unrestricted throughout the
whole range. Also, make sure that the jet
thrust nozzle moves as the handlebars areturned, and that there is no free play between
the handlebars and the jet thrust nozzle.
EJU32640Quick Shift Trim System (QSTS)
Check the QSTS selector lock lever and the
QSTS selector for proper operation.
(1) Operate the QSTS selector lock lever
and the QSTS selector to check that they
operate properly.
(2) Check that the QSTS selector locks when
the lever is released.
UF1G74E0.book Page 42 Monday, July 31, 2006 10:10 AM

Operation
43
(3) Check that the QSTS selector turns
smoothly when the lever is squeezed and
held in place.
(4) Check that the angle of the jet thrust noz-
zle changes when the QSTS selector is
shifted from neutral to bow up or bow
down.
If the mechanism does not work properly,
have a Yamaha dealer service it.
EJU32650Jet intake
Carefully check the jet intake for weeds, de-
bris, or anything else that might restrict the in-
take of water. If the jet intake is clogged,
cavitation could occur, reducing jet thrust, and
possibly damaging the jet pump.
In some cases, the engine may overheat be-
cause of lack of cooling water, and damage to
the engine could result. Cooling water is fed to
the engine by the jet pump. (See page 76 for
jet intake cleaning procedures.)
WARNING
EWJ00470

Keep away from the intake grate while
the engine is on. Items such as long hair,
loose clothing, or PFD straps can be-
come entangled in moving parts, result-
ing in severe injury or drowning.

Stop the engine and remove the clip
from the engine shut-off switch before
removing any debris or weeds, which
may have collected around the jet in-
take.
UF1G74E0.book Page 43 Monday, July 31, 2006 10:10 AM

Operation
44
EJU32660Engine shut-off cord
Check that the engine shut-off cord is not
frayed or broken. If the cord is damaged, re-
place it; never try to repair it or tie it together.
EJU32670Switches
CAUTION:
ECJ00410
Do not run the engine for more than 15
seconds when checking the switches on
land without supplying water, otherwise
the engine could overheat.
Check the start switch, the engine stop
switch, and the engine shut-off switch for
proper operation.
Push the start switch to start the engine. As
soon as the engine starts running, push the
engine stop switch to verify that the engine
stops immediately. Restart the engine, and
then pull the engine shut-off cord to remove
the clip from the engine shut-off switch to ver-
ify that the engine stops immediately. (See
pages 22 to 23 for information on proper op-eration of the start switch, the engine stop
switch, and the engine shut-off switch.)
EJU32690Cooling water pilot outlets
Check that water comes out from the cooling
water pilot outlets while the engine is running
and the watercraft is in the water.
EJU32710Multifunction information center
Check the multifunction information center for
proper operation. (See page 27 for informa-
1Start switch
2Engine stop switch
3Engine shut-off switch
4Clip
5Engine shut-off cord
UF1G74E0.book Page 44 Monday, July 31, 2006 10:10 AM

Operation
45
tion on proper operation of the multifunction
information center.)EJU32740
Operation
WARNING
EWJ00510
Before operating your watercraft, become
familiar with all of the controls. Consult a
Yamaha dealer about any control or func-
tion that you do not fully understand. Fail-
ure to understand how the controls work
could cause an accident or prevent you
from avoiding an accident.
CAUTION:
ECJ00460
Make sure that the stern drain plugs are
tightened securely before launching the
watercraft.
EJU32760Engine break-in
The engine break-in period is essential to al-
low the various components of the engine to
wear and polish themselves to the correct op-
erating clearances. This ensures proper per-
formance and promotes longer component
life.
CAUTION:
ECJ00450

For the first tankful of fuel, premix the
fuel in a fuel-to-oil ratio of 50:1 (in addi-
tion to the oil in the oil tank).

After break-in, use straight gasoline for
normal operation.
UF1G74E0.book Page 45 Monday, July 31, 2006 10:10 AM

Operation
46
(1) Launch the watercraft and start the en-
gine. (See page 46 for engine starting
procedures.)
(2) Run the engine at trolling speed for 5 min-
utes.
(3) Gradually apply throttle and run the en-
gine at 5000 r/min or less.
(4) Operate the watercraft at 5000 r/min or
less for the first tankful of fuel.
(5) Fill the fuel tank with straight gasoline,
and then proceed with normal operation.
CAUTION:
ECJ00430
Failure to follow the engine break-in pro-
cedure could result in reduced engine life
or even severe engine damage.
EJU32820Launching the watercraft
When launching the watercraft, make sure
that there are no obstacles around you.
After the watercraft is in the water, turn it
around so that the bow faces the direction you
wish to go. Start the engine, and then slowly
move away from the launching area. If there
are waves, someone should make sure that
the watercraft is not pushed into the trailer af-
ter launching the watercraft.
EJU32840Starting the engine
WARNING
EWJ00560
Never start the engine or let it run for any
length of time in an enclosed area. Ex-
haust fumes contain carbon monoxide, a
colorless, odorless gas that may cause
loss of consciousness and death within a
short time. Always operate the watercraft
in an open area.
(1) Launch the watercraft in water free from
weeds and debris and at least 60 cm (2 ft)
deep.
WARNING
EWJ00570
Never operate in water that is less than 60
cm (2 ft) deep, otherwise you increase
your chance of hitting a submerged ob-
ject, which could result in injury.
CAUTION:
ECJ00470
Never operate in water that is less than 60
cm (2 ft) deep, otherwise pebbles or sand
could be sucked into the jet intake, caus-
ing impeller damage and engine overheat-
ing.
UF1G74E0.book Page 46 Monday, July 31, 2006 10:10 AM

Operation
47
(2) Attach the engine shut-off cord to your left
wrist, and then attach the clip to the en-
gine shut-off switch.
WARNING
EWJ00580
Check that the engine shut-off cord is not
frayed or broken, and keep it free from the
handlebars so that the engine stops if the
operator falls off. The engine shut-off cord
may not pull free if wrapped around the
handlebars when the operator falls off, al-
lowing the watercraft to continue to run
and cause an accident.
NOTE:
It is not possible to start the engine with the
clip removed from the engine shut-off switch.
(3) Push the start switch (green button), and
then release it as soon as the engine
starts to run.
NOTE:
The engine will not start if the throttle lever is
squeezed.
CAUTION:
ECJ00480

Never push the start switch while the en-
gine is running.

Do not operate the start switch for more
than 5 seconds, otherwise the battery
will be discharged and the engine will
not start. Also, the starter motor could
be damaged. If the engine does not start
in 5 seconds, release the start switch,
wait 15 seconds, and then try again.
1Clip
2Engine shut-off switch
3Engine shut-off cord
UF1G74E0.book Page 47 Monday, July 31, 2006 10:10 AM
