Features and functions
42
check engine warning indicator begin to blink,
and the buzzer sounds intermittently.
If this occurs, reduce the engine speed, return
to shore, and have a Yamaha dealer check
the engine.
NOTE:
Press any button on the multifunction informa-
tion center to stop the buzzer.
EJU35033Right multifunction display and operation
buttons (for FX Cruiser High Output)
The right multifunction display shows the fol-
lowing information.

Compass

Average speed

Tripmeter

Trip timer

Fuel consumption per hour

Fuel consumption per kilometer/mile

Water temperature

Air temperatureThe following operation buttons are on the
right side of the multifunction information cen-
ter.
To switch the display mode, push the
“Mode/Reset” button for less than 1 second.
The display mode changes in the following or-
der.
Compass → Average speed → Tripmeter →
Trip timer → Fuel consumption per hour →
Fuel consumption per kilometer/mile → Water
temperature → Air temperature
NOTE:

To switch the display units between kilome-
ters/liters/degrees Celsius and miles/gal-
lons/degrees Fahrenheit, push the
“Volt/Hour” button for at least 1 second,
within 10 seconds after the multifunction in-
formation center starts operating.

The “SPEED” indicator light blinks three
times if miles/gallons/degrees Fahrenheit
are selected as the display units when the
multifunction information center starts oper-
1“Mode/Reset” button
2“Start/Stop” button
UF1X71E0.book Page 42 Tuesday, September 26, 2006 9:52 AM

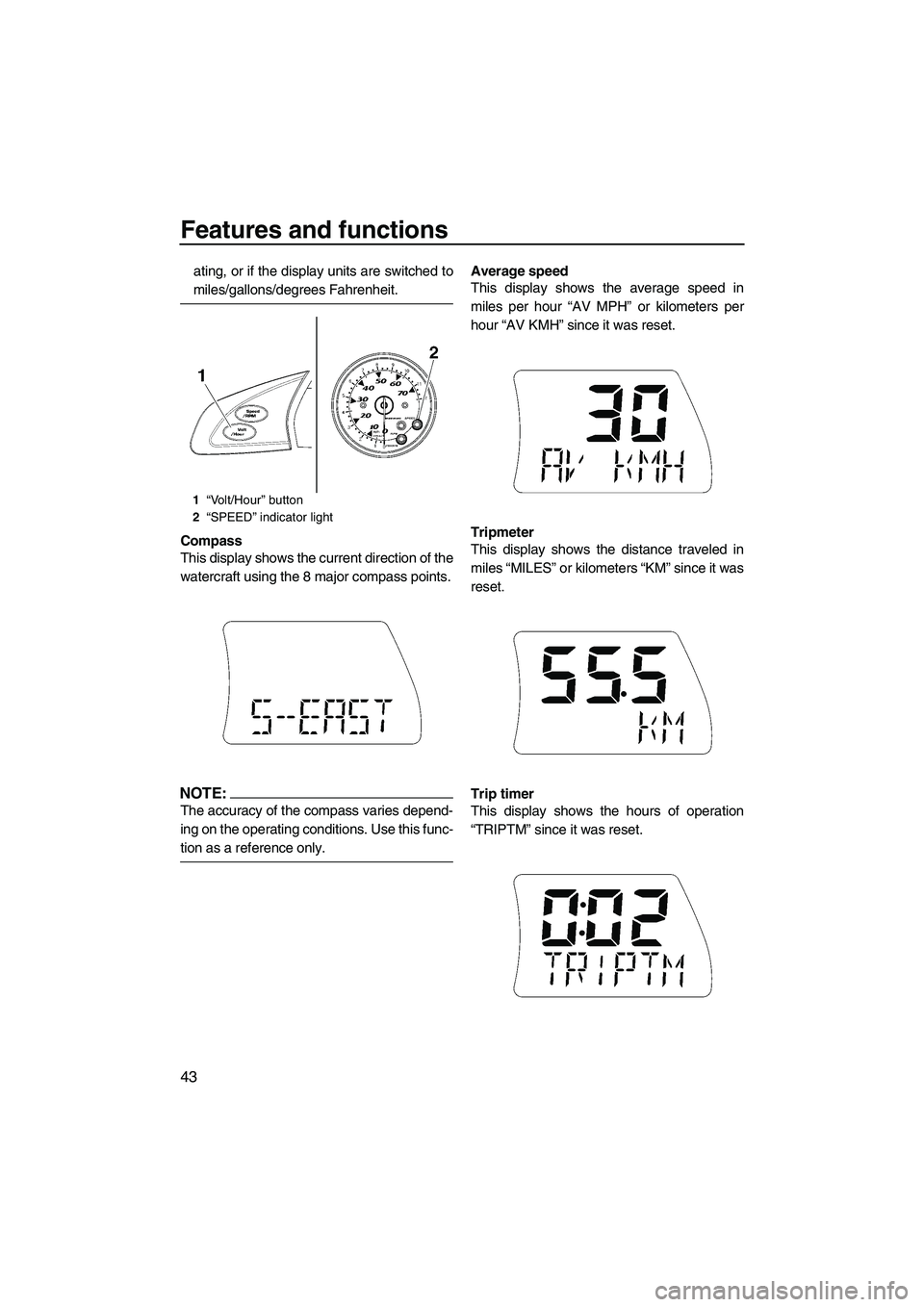

Features and functions
43
ating, or if the display units are switched to
miles/gallons/degrees Fahrenheit.
Compass
This display shows the current direction of the
watercraft using the 8 major compass points.
NOTE:
The accuracy of the compass varies depend-
ing on the operating conditions. Use this func-
tion as a reference only.
Average speed
This display shows the average speed in
miles per hour “AV MPH” or kilometers per
hour “AV KMH” since it was reset.
Tripmeter
This display shows the distance traveled in
miles “MILES” or kilometers “KM” since it was
reset.
Trip timer
This display shows the hours of operation
“TRIPTM” since it was reset.
1“Volt/Hour” button
2“SPEED” indicator light
UF1X71E0.book Page 43 Tuesday, September 26, 2006 9:52 AM

Features and functions
44
Fuel consumption per hour
This display shows the current fuel consump-
tion in gallons per hour “G/HR” or liters per
hour “L/HR”.
Fuel consumption per kilometer/mile
This display shows the current fuel consump-
tion in gallons per mile “G/MILE” or liters per
kilometer “L/KM”.
NOTE:
The actual fuel consumption varies depend-
ing on the operating conditions. Use this func-
tion as a reference only.
Water temperature
This display shows the ambient water temper-
ature “L TEMP” (lake temperature).
Air temperature
This display shows the ambient air tempera-
ture “E TEMP” (environmental temperature).
Average speed/Tripmeter/Trip timer
modes
Average speed, distance traveled, and trip
time are recorded once measurements have
started, regardless of the current display.
To start the measurements, push the
“Start/Stop” button for less than 1 second.
The beeper sounds once.
To stop the measurements, push the
“Start/Stop” button for less than 1 second.
The beeper sounds once. To restart the mea-
surements, push the “Start/Stop” button for
less than 1 second. The beeper sounds once.
To reset the displays, push the “Mode/Reset”
button for at least 2 seconds while the mea-
UF1X71E0.book Page 44 Tuesday, September 26, 2006 9:52 AM

Features and functions
45
surements are stopped. The beeper sounds
twice.
NOTE:

The displays can be reset only when the
measurements are stopped.

The measurements are not saved if the en-
gine is stopped. The displays are reset au-
tomatically when they go off 25 seconds
after the engine stops.
EJU35141Storage compartments
A front storage compartment, glove compart-
ment, seat storage compartment, watertight
compartment, and beverage holder are pro-
vided.
NOTE:

Make sure that the storage compartments
are closed securely before operating the
watercraft.

The front storage compartment, glove com-
partment, and seat storage compartment
are not designed to be watertight. If you car-
ry objects that must be kept dry, such as the
manuals, put them in a waterproof bag or
the watertight compartment.
EJU35151Front storage compartment
The front storage compartment is located at
the bow.
To open the front storage compartment, push
the hood latch down, and then lift up the hood.
1“Mode/Reset” button
2“Start/Stop” button
1Hood latch
1Front storage compartment
UF1X71E0.book Page 45 Tuesday, September 26, 2006 9:52 AM

Features and functions
46
To close the front storage compartment, push
down on the rear of the hood until it latches
securely.
NOTE:
Make sure that the front storage compartment
is securely closed before operating the water-
craft.
EJU35161Glove compartment
The glove compartment is located in front of
the seat.To open the glove compartment, turn the
glove compartment knob, and then lift up the
lid.
To close the glove compartment, lower the lid,
and then turn the glove compartment knob to
lock the lid in place.
EJU31760Seat storage compartment
The seat storage compartment is located un-
der the rear seat. Front storage compartment:
Capacity:
75.0 L (19.8 US gal) (16.5 Imp.gal)
Load limit:
5.0 kg (11 lb)
1Glove compartment knob
1Glove compartment
Glove compartment:
Capacity:
5.5 L (1.5 US gal) (1.2 Imp.gal)
Load limit:
1.0 kg (2 lb)
UF1X71E0.book Page 46 Tuesday, September 26, 2006 9:52 AM

Features and functions
47
To open the seat storage compartment, re-
move the rear seat. (See page 24 for rear seat
removal and installation procedures.)EJU35170Beverage holder
The beverage holder is located on the star-
board (right) side of the watercraft.
NOTE:
Do not place beverages in the beverage hold-
er when operating the watercraft.
EJU35182Watertight compartment
The watertight compartment is located on the
port (left) side of the watercraft.
To open the watertight compartment, turn the
cap counterclockwise.
1Seat storage compartment
Seat storage compartment:
Capacity:
15.0 L (4.0 US gal) (3.3 Imp.gal)
Load limit:
9.0 kg (20 lb)
1Beverage holder
1Watertight compartment cap
2Watertight compartment
Watertight compartment:
Capacity:
2.6 L (0.7 US gal, 0.6 Imp gal)
Load limit:
1.0 kg (2.2 lb)
UF1X71E0.book Page 47 Tuesday, September 26, 2006 9:52 AM

Features and functions
48
NOTE:
Make sure that the watertight compartment
cap is closed securely before operating the
watercraft.
UF1X71E0.book Page 48 Tuesday, September 26, 2006 9:52 AM

Operation
49
EJU31820
Fuel and oil
This watercraft is equipped with a 4-stroke en-
gine. Conventional 2-stroke engine oil cannot
be used.
The engine utilizes an electronic fuel injection
system to deliver the optimal air-fuel ratio re-
quired by the engine. By ensuring the optimal
combustion conditions, this system is able to
increase startability and improve fuel econo-
my.
EJU36330Gasoline
WARNING
EWJ00280
GASOLINE AND ITS VAPORS ARE HIGH-
LY FLAMMABLE AND EXPLOSIVE!

Do not smoke when refueling, and keep
away from sparks, flames, and other
sources of ignition.

Stop the engine before refueling.

Refuel in a well-ventilated area with the
watercraft in a horizontal position.

Do not stand or sit on the watercraft
while refueling in case of fire.

Take care not to spill gasoline. If gaso-
line spills, wipe it up immediately with
dry rags. Always properly dispose of
gasoline-soaked rags.

Avoid overfilling the fuel tank. Stop fill-
ing when the fuel level reaches approxi-
mately 50 mm (2 in) from the top of the
fuel tank. Fuel expands as it warms up
and could overflow if the fuel tank has
been overfilled. If temporarily leaving
the watercraft with a full fuel tank, do not
leave it in direct sunlight. Leave it in a
well-ventilated area with the watercraft
in a horizontal position.

Tighten the fuel tank filler cap securely
after refueling.

If you should swallow some gasoline, in-
hale a lot of gasoline vapor, or get gaso-
line in your eyes, get immediate medical
attention.

If any gasoline spills on your skin or
clothing, immediately wash the affected
area with soap and water and change
your clothes.
CAUTION:
ECJ00320

Do not use leaded gasoline. Leaded gas-
oline can seriously damage the catalytic
converter.

Use only fresh gasoline that has been
stored in clean containers.
EJU31860Gasohol
There are two types of gasohol: gasohol con-
taining ethanol and that containing methanol.
Gasohol containing ethanol can be used if
ethanol content does not exceed 10% and the
fuel meets the minimum octane ratings.
Gasohol containing methanol is not recom-
mended by Yamaha because it can cause
fuel system damage and engine performance
problems.Recommended gasoline:
Regular unleaded gasoline with a mini-
mum octane rating of
86 (Pump octane number) = (R +
M)/2
90 (Research octane number)
UF1X71E0.book Page 49 Tuesday, September 26, 2006 9:52 AM
