TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-4
Speedometer ..................................3-5
Tachometer ....................................3-6
Multi-function display ......................3-6
Anti-theft alarm (optional) .............3-13
Handlebar switches ......................3-13
Clutch lever ...................................3-15
Shift pedal .....................................3-16
Brake lever ...................................3-16
Brake pedal ..................................3-16
ABS ..............................................3-17
Fuel tank cap ................................3-17
Fuel ...............................................3-18
Fuel tank breather/overflow
hose ..........................................3-19
Catalytic converter ........................3-19
Seats ............................................3-20
Adjusting the rider seat height ......3-21
Storage compartments .................3-23
Accessory box ..............................3-24Adjusting the headlight beams ..... 3-25
Handlebar position ....................... 3-25
Opening and closing the
cowlings .................................... 3-25
Rear view mirrors ......................... 3-26
Adjusting the front fork ................. 3-27
Adjusting the shock absorber
assembly ................................... 3-28
Grip warmer adjusting knob ......... 3-30
Sidestand ..................................... 3-30
Ignition circuit cut-off system ........ 3-31
Auxiliary DC jack .......................... 3-33
PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing panels ..... 6-5Checking the spark plugs .............. 6-7
Engine oil and oil filter cartridge ..... 6-8
Final gear oil ................................ 6-10
Coolant ........................................ 6-12
Cleaning the air filter element ...... 6-13
Checking the engine idling
speed ........................................ 6-15
Checking the throttle cable free
play ........................................... 6-15
Valve clearance ........................... 6-15
Tires ............................................. 6-16
Cast wheels ................................. 6-18
Clutch lever .................................. 6-19
Rear brake light switch ................ 6-19
Checking the front and rear brake
pads .......................................... 6-19
Checking the brake and clutch
fluid levels ................................. 6-20
Changing the brake and clutch
fluids ......................................... 6-21
Checking and lubricating the
cables ....................................... 6-22
Checking and lubricating the
throttle grip and cable ............... 6-22
Checking and lubricating the
brake and shift pedals .............. 6-22
Checking and lubricating the
brake and clutch levers ............ 6-23
Checking and lubricating the
centerstand and sidestand ....... 6-24U3P6E1E0.book Page 1 Thursday, October 5, 2006 10:13 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-2
6
EAU17706
Periodic maintenance and lubrication chart NOTE:

The annual checks must be performed every year, except if a kilometer-based maintenance is performed in-
stead.


From 50000 km, repeat the maintenance intervals starting from 10000 km.


Items marked with an asterisk should be performed by a Yamaha dealer as they require special tools, data and technicalskills.
NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040
1*Fuel lineCheck fuel hoses for cracks or damage.√√√√ √
2*Spark plugsCheck condition.
Clean and regap.√√
Replace.√√
3*ValvesCheck valve clearance.
Adjust.Every 40000 km
4 Air filter elementClean.√√
Replace.√√
5*ClutchCheck operation, fluid level and vehicle for fluid leakage.√√√√√
6*Front brakeCheck operation, fluid level and vehicle for fluid leakage.√√√√√ √
Replace brake pads. Whenever worn to the limit
7*Rear brakeCheck operation, fluid level and vehicle for fluid leakage.√√√√√ √
Replace brake pads. Whenever worn to the limit
8*Brake hosesCheck for cracks or damage.√√√√ √
Replace. Every 4 years
U3P6E1E0.book Page 2 Thursday, October 5, 2006 10:13 AM

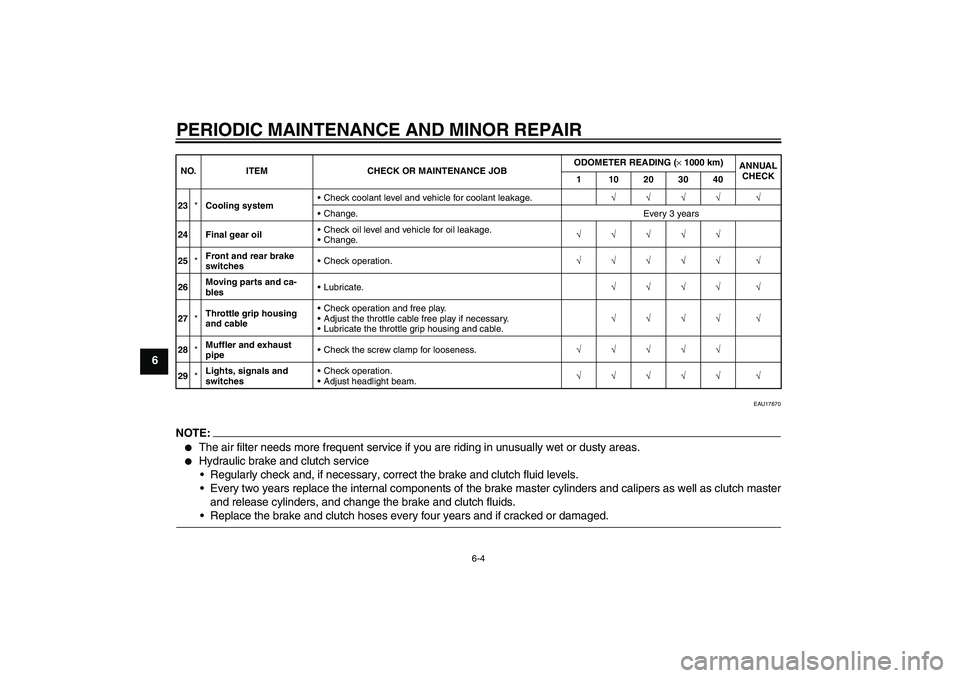

PERIODIC MAINTENANCE AND MINOR REPAIR
6-4
6
EAU17670
NOTE:

The air filter needs more frequent service if you are riding in unusually wet or dusty areas.


Hydraulic brake and clutch service
Regularly check and, if necessary, correct the brake and clutch fluid levels.
Every two years replace the internal components of the brake master cylinders and calipers as well as clutch master
and release cylinders, and change the brake and clutch fluids.Replace the brake and clutch hoses every four years and if cracked or damaged.
23*Cooling systemCheck coolant level and vehicle for coolant leakage.√√√√ √
Change. Every 3 years
24 Final gear oilCheck oil level and vehicle for oil leakage.
Change.√√√√√
25*Front and rear brake
switchesCheck operation.√√√√√ √
26Moving parts and ca-
blesLubricate.√√√√ √
27*Throttle grip housing
and cableCheck operation and free play.
Adjust the throttle cable free play if necessary.
Lubricate the throttle grip housing and cable.√√√√ √
28*Muffler and exhaust
pipeCheck the screw clamp for looseness.√√√√√
29*Lights, signals and
switchesCheck operation.
Adjust headlight beam.√√√√√ √ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040U3P6E1E0.book Page 4 Thursday, October 5, 2006 10:13 AM

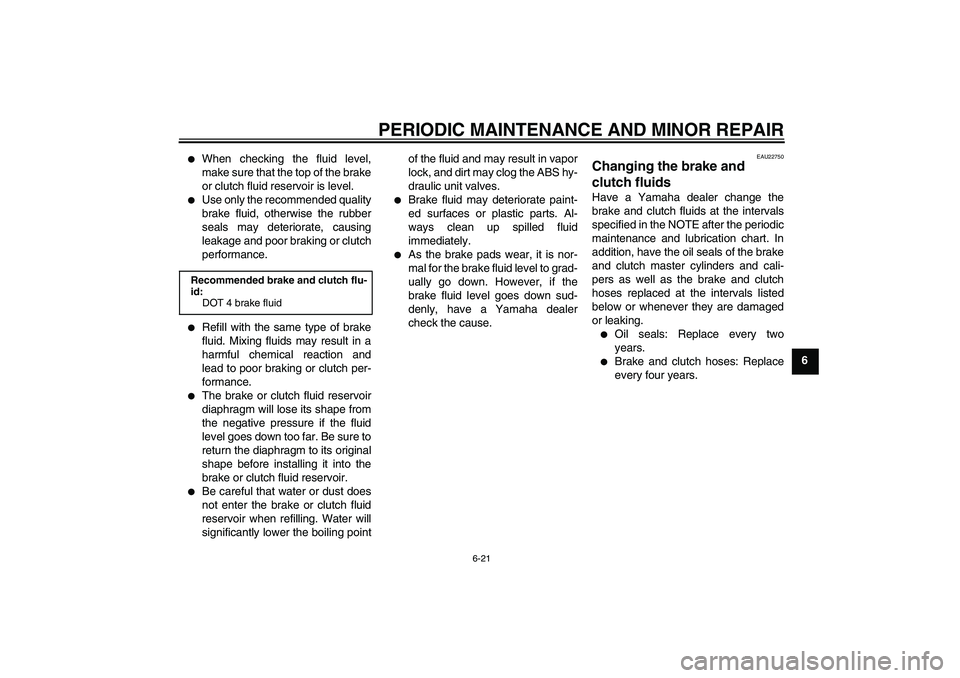

PERIODIC MAINTENANCE AND MINOR REPAIR
6-21
6


When checking the fluid level,
make sure that the top of the brake
or clutch fluid reservoir is level.


Use only the recommended quality
brake fluid, otherwise the rubber
seals may deteriorate, causing
leakage and poor braking or clutch
performance.


Refill with the same type of brake
fluid. Mixing fluids may result in a
harmful chemical reaction and
lead to poor braking or clutch per-
formance.


The brake or clutch fluid reservoir
diaphragm will lose its shape from
the negative pressure if the fluid
level goes down too far. Be sure to
return the diaphragm to its original
shape before installing it into the
brake or clutch fluid reservoir.


Be careful that water or dust does
not enter the brake or clutch fluid
reservoir when refilling. Water will
significantly lower the boiling pointof the fluid and may result in vapor
lock, and dirt may clog the ABS hy-
draulic unit valves.


Brake fluid may deteriorate paint-
ed surfaces or plastic parts. Al-
ways clean up spilled fluid
immediately.


As the brake pads wear, it is nor-
mal for the brake fluid level to grad-
ually go down. However, if the
brake fluid level goes down sud-
denly, have a Yamaha dealer
check the cause.
EAU22750
Changing the brake and
clutch fluids Have a Yamaha dealer change the
brake and clutch fluids at the intervals
specified in the NOTE after the periodic
maintenance and lubrication chart. In
addition, have the oil seals of the brake
and clutch master cylinders and cali-
pers as well as the brake and clutch
hoses replaced at the intervals listed
below or whenever they are damaged
or leaking.

Oil seals: Replace every two
years.


Brake and clutch hoses: Replace
every four years.
Recommended brake and clutch flu-
id:
DOT 4 brake fluid
U3P6E1E0.book Page 21 Thursday, October 5, 2006 10:13 AM

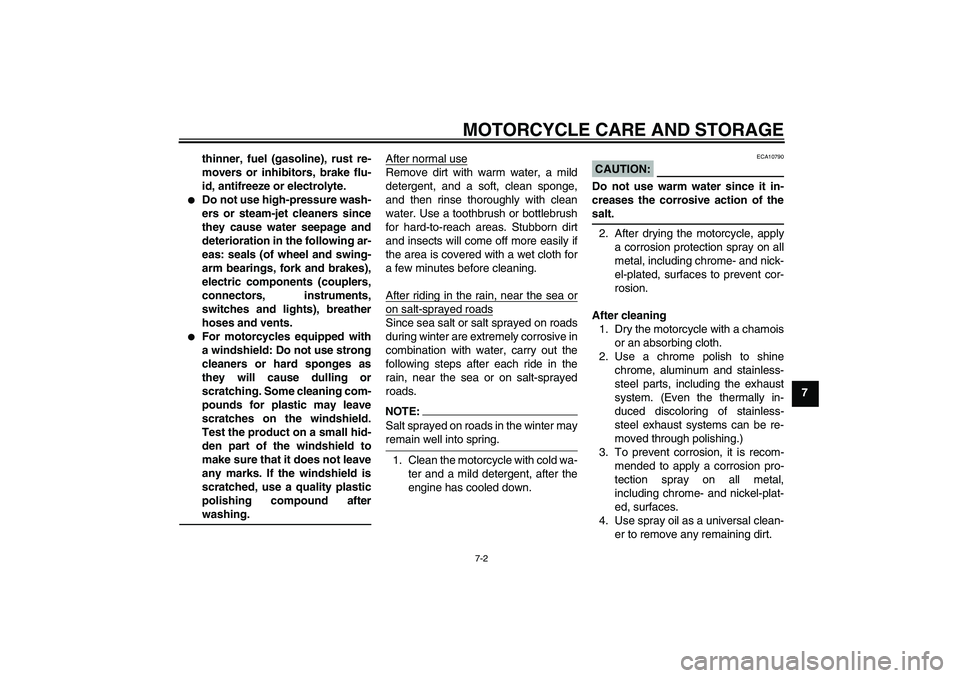

MOTORCYCLE CARE AND STORAGE
7-2
7 thinner, fuel (gasoline), rust re-
movers or inhibitors, brake flu-
id, antifreeze or electrolyte.


Do not use high-pressure wash-
ers or steam-jet cleaners since
they cause water seepage and
deterioration in the following ar-
eas: seals (of wheel and swing-
arm bearings, fork and brakes),
electric components (couplers,
connectors, instruments,
switches and lights), breather
hoses and vents.


For motorcycles equipped with
a windshield: Do not use strong
cleaners or hard sponges as
they will cause dulling or
scratching. Some cleaning com-
pounds for plastic may leave
scratches on the windshield.
Test the product on a small hid-
den part of the windshield to
make sure that it does not leave
any marks. If the windshield is
scratched, use a quality plastic
polishing compound afterwashing.After normal use
Remove dirt with warm water, a mild
detergent, and a soft, clean sponge,
and then rinse thoroughly with clean
water. Use a toothbrush or bottlebrush
for hard-to-reach areas. Stubborn dirt
and insects will come off more easily if
the area is covered with a wet cloth for
a few minutes before cleaning.
After riding in the rain, near the sea oron salt-sprayed roadsSince sea salt or salt sprayed on roads
during winter are extremely corrosive in
combination with water, carry out the
following steps after each ride in the
rain, near the sea or on salt-sprayed
roads.NOTE:Salt sprayed on roads in the winter mayremain well into spring.
1. Clean the motorcycle with cold wa-
ter and a mild detergent, after the
engine has cooled down.
CAUTION:
ECA10790
Do not use warm water since it in-
creases the corrosive action of thesalt.
2. After drying the motorcycle, apply
a corrosion protection spray on all
metal, including chrome- and nick-
el-plated, surfaces to prevent cor-
rosion.
After cleaning
1. Dry the motorcycle with a chamois
or an absorbing cloth.
2. Use a chrome polish to shine
chrome, aluminum and stainless-
steel parts, including the exhaust
system. (Even the thermally in-
duced discoloring of stainless-
steel exhaust systems can be re-
moved through polishing.)
3. To prevent corrosion, it is recom-
mended to apply a corrosion pro-
tection spray on all metal,
including chrome- and nickel-plat-
ed, surfaces.
4. Use spray oil as a universal clean-
er to remove any remaining dirt.
U3P6E1E0.book Page 2 Thursday, October 5, 2006 10:13 AM

INDEX
AABS ...................................................... 3-17
ABS warning light ................................... 3-4
Accessory box ...................................... 3-24
Air filter element, cleaning .................... 6-13
Anti-theft alarm (optional) ..................... 3-13
Auxiliary DC jack .................................. 3-33
Auxiliary light bulb................................. 6-31BBattery .................................................. 6-26
Brake and clutch fluid levels,
checking ............................................. 6-20
Brake and clutch fluids, changing ......... 6-21
Brake and clutch levers,
checking and lubricating ..................... 6-23
Brake and shift pedals,
checking and lubricating ..................... 6-22
Brake lever ........................................... 3-16
Brake pedal .......................................... 3-16CCables, checking and lubricating .......... 6-22
Care ........................................................ 7-1
Catalytic converter ................................ 3-19
Centerstand and sidestand,
checking and lubricating ..................... 6-24
Clutch lever.................................. 3-15, 6-19
Coolant ................................................. 6-12
Cowlings, opening and closing ............. 3-25DDimmer switch ...................................... 3-14EEngine break-in ...................................... 5-3
Engine idling speed, checking .............. 6-15
Engine oil and oil filter cartridge ............. 6-8Engine stop switch ................................ 3-14
Engine trouble warning light .................... 3-4
FFinal gear oil.......................................... 6-10
Front and rear brake pads, checking .... 6-19
Front fork, adjusting .............................. 3-27
Front fork, checking...............................6-25
Front turn signal light............................. 6-29
Fuel ....................................................... 3-18
Fuel consumption, tips for reducing ........ 5-3
Fuel tank breather/overflow hose .......... 3-19
Fuel tank cap......................................... 3-17
Fuses, replacing .................................... 6-28GGrip warmer adjusting knob ..................3-30HHandlebar position, adjusting ................ 3-25
Handlebar switches ............................... 3-13
Hazard switch........................................ 3-15
Headlight beams, adjusting ................... 3-25
Headlight bulb ....................................... 6-29
High beam indicator light......................... 3-4
Horn switch ........................................... 3-14IIdentification numbers ............................. 9-1
Ignition circuit cut-off system ................. 3-31
Immobilizer system .................................3-1
Immobilizer system indicator light ........... 3-5
Indicator and warning lights .................... 3-4KKey identification number ........................ 9-1LLicense plate light bulb, replacing ......... 6-30
MMain switch/steering lock ........................ 3-2
Matte color, caution ................................ 7-1
Model label ............................................. 9-2
Multi-function display .............................. 3-6NNeutral indicator light .............................. 3-4OOil level warning light .............................. 3-4PPanels, removing and installing .............. 6-5
Parking.................................................... 5-4
Part locations .......................................... 2-1
Pass switch ........................................... 3-14
Periodic maintenance and lubrication
chart...................................................... 6-2
Pre-operation check list .......................... 4-2RRear brake light switch ......................... 6-19
Rear suspension, lubricating ................ 6-24
Rear view mirrors.................................. 3-26
Rider seat height, adjusting .................. 3-21SSafety information ................................... 1-1
Seats..................................................... 3-20
Shifting .................................................... 5-2
Shift pedal ............................................. 3-16
Shock absorber assembly, adjusting .... 3-28
Sidestand .............................................. 3-30
Spark plugs, checking............................. 6-7
Specifications.......................................... 8-1
Speedometer .......................................... 3-5
Starting the engine.................................. 5-1
Start switch ........................................... 3-14
U3P6E1E0.book Page 1 Thursday, October 5, 2006 10:13 AM
