2007 YAMAHA FJR1300A tires

TABLE OF CONTENTSSAFETY INFORMATION ..................1-1
DESCRIPTION ..................................2-1
Left view ..........................................2-1
Right view ........................................2-2
Controls and instruments.................2-3
INSTRUMENT AND CONTROL
FUNCTIONS.......................................3-1
Immobilizer system .........................3-1
Main switch/steering lock ................3-2
Indicator and warning lights ............3-4
Speedometer ..................................3-5
Tachometer ....................................3-6
Multi-function display ......................3-6
Anti-theft alarm (optional) .............3-13
Handlebar switches ......................3-13
Clutch lever ...................................3-15
Shift pedal .....................................3-16
Brake lever ...................................3-16
Brake pedal ..................................3-16
ABS ..............................................3-17
Fuel tank cap ................................3-17
Fuel ...............................................3-18
Fuel tank breather/overflow
hose ..........................................3-19
Catalytic converter ........................3-19
Seats ............................................3-20
Adjusting the rider seat height ......3-21
Storage compartments .................3-23
Accessory box ..............................3-24Adjusting the headlight beams ..... 3-25
Handlebar position ....................... 3-25
Opening and closing the
cowlings .................................... 3-25
Rear view mirrors ......................... 3-26
Adjusting the front fork ................. 3-27
Adjusting the shock absorber
assembly ................................... 3-28
Grip warmer adjusting knob ......... 3-30
Sidestand ..................................... 3-30
Ignition circuit cut-off system ........ 3-31
Auxiliary DC jack .......................... 3-33
PRE-OPERATION CHECKS............. 4-1
Pre-operation check list .................. 4-2
OPERATION AND IMPORTANT
RIDING POINTS................................. 5-1
Starting the engine ......................... 5-1
Shifting ........................................... 5-2
Tips for reducing fuel
consumption ............................... 5-3
Engine break-in .............................. 5-3
Parking ........................................... 5-4
PERIODIC MAINTENANCE AND
MINOR REPAIR................................. 6-1
Owner’s tool kit ............................... 6-1
Periodic maintenance and
lubrication chart .......................... 6-2
Removing and installing panels ..... 6-5Checking the spark plugs .............. 6-7
Engine oil and oil filter cartridge ..... 6-8
Final gear oil ................................ 6-10
Coolant ........................................ 6-12
Cleaning the air filter element ...... 6-13
Checking the engine idling
speed ........................................ 6-15
Checking the throttle cable free
play ........................................... 6-15
Valve clearance ........................... 6-15
Tires ............................................. 6-16
Cast wheels ................................. 6-18
Clutch lever .................................. 6-19
Rear brake light switch ................ 6-19
Checking the front and rear brake
pads .......................................... 6-19
Checking the brake and clutch
fluid levels ................................. 6-20
Changing the brake and clutch
fluids ......................................... 6-21
Checking and lubricating the
cables ....................................... 6-22
Checking and lubricating the
throttle grip and cable ............... 6-22
Checking and lubricating the
brake and shift pedals .............. 6-22
Checking and lubricating the
brake and clutch levers ............ 6-23
Checking and lubricating the
centerstand and sidestand ....... 6-24U3P6E1E0.book Page 1 Thursday, October 5, 2006 10:13 AM

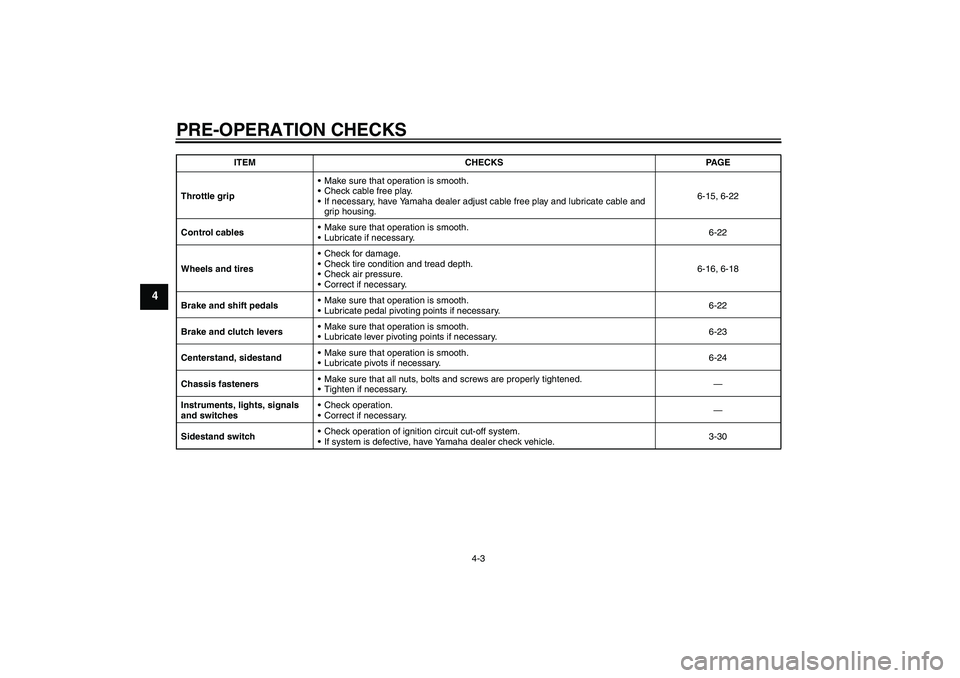

PRE-OPERATION CHECKS
4-3
4
Throttle gripMake sure that operation is smooth.
Check cable free play.
If necessary, have Yamaha dealer adjust cable free play and lubricate cable and
grip housing.6-15, 6-22
Control cablesMake sure that operation is smooth.
Lubricate if necessary.6-22
Wheels and tiresCheck for damage.
Check tire condition and tread depth.
Check air pressure.
Correct if necessary.6-16, 6-18
Brake and shift pedalsMake sure that operation is smooth.
Lubricate pedal pivoting points if necessary.6-22
Brake and clutch leversMake sure that operation is smooth.
Lubricate lever pivoting points if necessary.6-23
Centerstand, sidestandMake sure that operation is smooth.
Lubricate pivots if necessary.6-24
Chassis fastenersMake sure that all nuts, bolts and screws are properly tightened.
Tighten if necessary.—
Instruments, lights, signals
and switchesCheck operation.
Correct if necessary.—
Sidestand switchCheck operation of ignition circuit cut-off system.
If system is defective, have Yamaha dealer check vehicle.3-30 ITEM CHECKS PAGE
U3P6E1E0.book Page 3 Thursday, October 5, 2006 10:13 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-3
6
9*WheelsCheck runout and for damage.√√√√
10*TiresCheck tread depth and for damage.
Replace if necessary.
Check air pressure.
Correct if necessary.√√√√ √
11*Wheel bearingsCheck bearing for looseness or damage.√√√√
12*SwingarmCheck operation and for excessive play.√√√√
Lubricate with lithium-soap-based grease. Every 50000 km
13*Steering bearingsCheck bearing play and steering for roughness.√√√√√
Lubricate with lithium-soap-based grease. Every 20000 km
14*Chassis fastenersMake sure that all nuts, bolts and screws are properly
tightened.√√√√ √
15 Sidestand, centerstandCheck operation.
Lubricate.√√√√ √
16*Sidestand switchCheck operation.√√√√√ √
17*Front forkCheck operation and for oil leakage.√√√√
18*Shock absorber assem-
blyCheck operation and shock absorber for oil leakage.√√√√
19*Rear suspension relay
arm and connecting
arm pivoting pointsCheck operation.√√√√
Lubricate with lithium-soap-based grease.√√
20*Fuel injectionAdjust engine idling speed and synchronization.√√√√√ √
21 Engine oilChange.
Check oil level and vehicle for oil leakage.√√√√√ √
22Engine oil filter car-
tridgeReplace.√√√ NO. ITEM CHECK OR MAINTENANCE JOBODOMETER READING (× 1000 km)
ANNUAL
CHECK
1 10203040
U3P6E1E0.book Page 3 Thursday, October 5, 2006 10:13 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-16
6

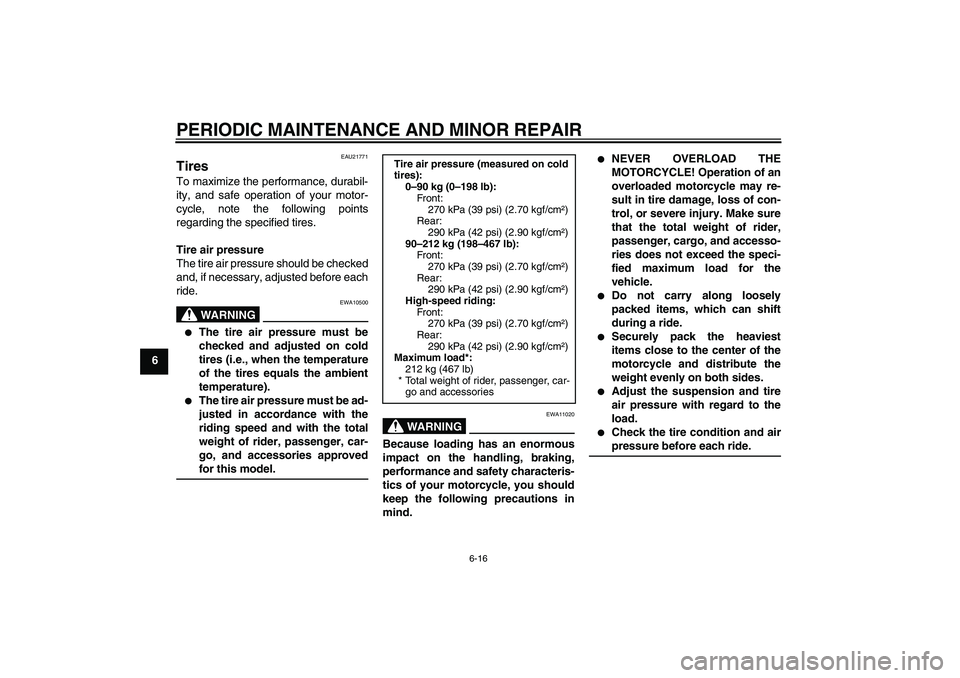

EAU21771
Tires To maximize the performance, durabil-
ity, and safe operation of your motor-
cycle, note the following points
regarding the specified tires.
Tire air pressure
The tire air pressure should be checked
and, if necessary, adjusted before each
ride.
WARNING
EWA10500


The tire air pressure must be
checked and adjusted on cold
tires (i.e., when the temperature
of the tires equals the ambient
temperature).


The tire air pressure must be ad-
justed in accordance with the
riding speed and with the total
weight of rider, passenger, car-
go, and accessories approvedfor this model.
WARNING
EWA11020
Because loading has an enormous
impact on the handling, braking,
performance and safety characteris-
tics of your motorcycle, you should
keep the following precautions in
mind.


NEVER OVERLOAD THE
MOTORCYCLE! Operation of an
overloaded motorcycle may re-
sult in tire damage, loss of con-
trol, or severe injury. Make sure
that the total weight of rider,
passenger, cargo, and accesso-
ries does not exceed the speci-
fied maximum load for the
vehicle.


Do not carry along loosely
packed items, which can shift
during a ride.


Securely pack the heaviest
items close to the center of the
motorcycle and distribute the
weight evenly on both sides.


Adjust the suspension and tire
air pressure with regard to the
load.


Check the tire condition and airpressure before each ride.
Tire air pressure (measured on cold
tires):
0–90 kg (0–198 lb):
Front:
270 kPa (39 psi) (2.70 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
90–212 kg (198–467 lb):
Front:
270 kPa (39 psi) (2.70 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
High-speed riding:
Front:
270 kPa (39 psi) (2.70 kgf/cm²)
Rear:
290 kPa (42 psi) (2.90 kgf/cm²)
Maximum load*:
212 kg (467 lb)
* Total weight of rider, passenger, car-
go and accessories
U3P6E1E0.book Page 16 Thursday, October 5, 2006 10:13 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-17

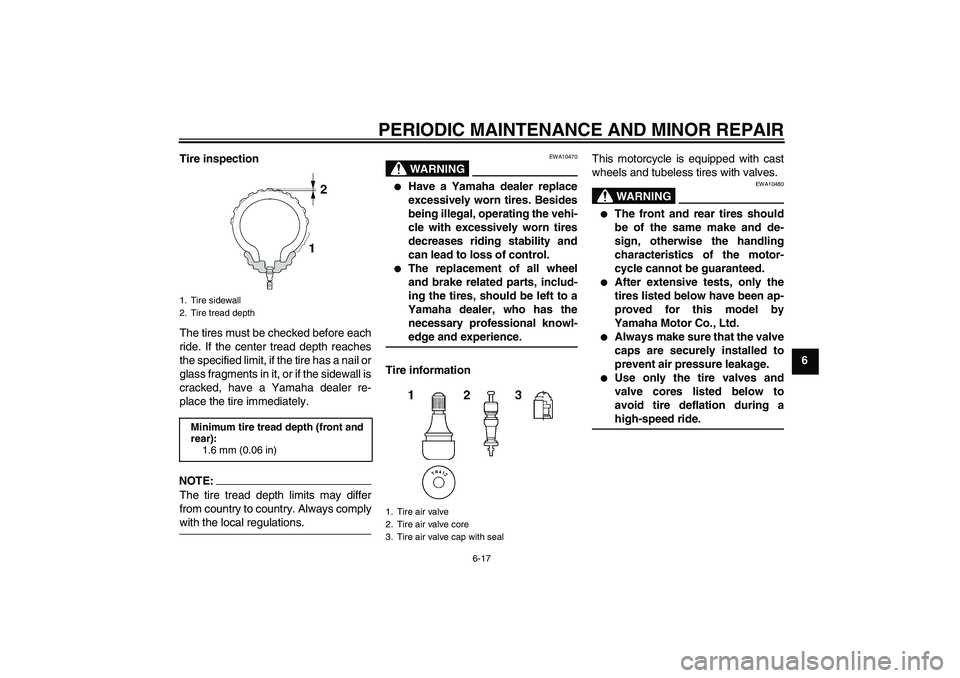

6 Tire inspection
The tires must be checked before each
ride. If the center tread depth reaches
the specified limit, if the tire has a nail or
glass fragments in it, or if the sidewall is
cracked, have a Yamaha dealer re-
place the tire immediately.
NOTE:The tire tread depth limits may differ
from country to country. Always complywith the local regulations.
WARNING
EWA10470


Have a Yamaha dealer replace
excessively worn tires. Besides
being illegal, operating the vehi-
cle with excessively worn tires
decreases riding stability and
can lead to loss of control.


The replacement of all wheel
and brake related parts, includ-
ing the tires, should be left to a
Yamaha dealer, who has the
necessary professional knowl-edge and experience.
Tire informationThis motorcycle is equipped with cast
wheels and tubeless tires with valves.
WARNING
EWA10480


The front and rear tires should
be of the same make and de-
sign, otherwise the handling
characteristics of the motor-
cycle cannot be guaranteed.


After extensive tests, only the
tires listed below have been ap-
proved for this model by
Yamaha Motor Co., Ltd.


Always make sure that the valve
caps are securely installed to
prevent air pressure leakage.


Use only the tire valves and
valve cores listed below to
avoid tire deflation during ahigh-speed ride.
1. Tire sidewall
2. Tire tread depthMinimum tire tread depth (front and
rear):
1.6 mm (0.06 in)
1. Tire air valve
2. Tire air valve core
3. Tire air valve cap with seal
U3P6E1E0.book Page 17 Thursday, October 5, 2006 10:13 AM

PERIODIC MAINTENANCE AND MINOR REPAIR
6-18
6

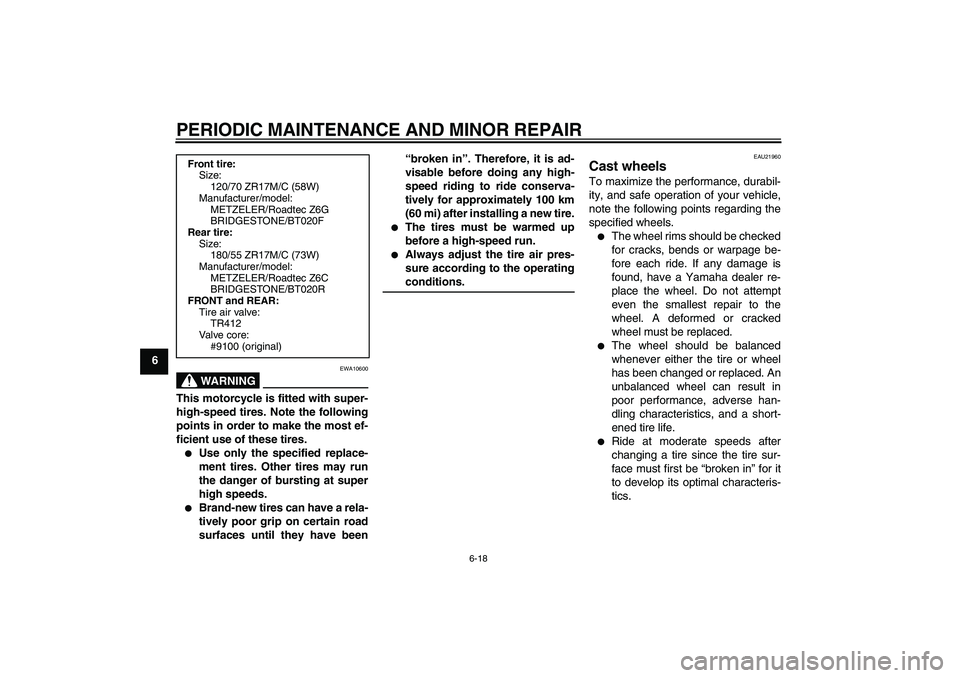

WARNING
EWA10600
This motorcycle is fitted with super-
high-speed tires. Note the following
points in order to make the most ef-
ficient use of these tires.

Use only the specified replace-
ment tires. Other tires may run
the danger of bursting at super
high speeds.


Brand-new tires can have a rela-
tively poor grip on certain road
surfaces until they have been“broken in”. Therefore, it is ad-
visable before doing any high-
speed riding to ride conserva-
tively for approximately 100 km
(60 mi) after installing a new tire.


The tires must be warmed up
before a high-speed run.


Always adjust the tire air pres-
sure according to the operatingconditions.
EAU21960
Cast wheels To maximize the performance, durabil-
ity, and safe operation of your vehicle,
note the following points regarding the
specified wheels.

The wheel rims should be checked
for cracks, bends or warpage be-
fore each ride. If any damage is
found, have a Yamaha dealer re-
place the wheel. Do not attempt
even the smallest repair to the
wheel. A deformed or cracked
wheel must be replaced.


The wheel should be balanced
whenever either the tire or wheel
has been changed or replaced. An
unbalanced wheel can result in
poor performance, adverse han-
dling characteristics, and a short-
ened tire life.


Ride at moderate speeds after
changing a tire since the tire sur-
face must first be “broken in” for it
to develop its optimal characteris-
tics.
Front tire:
Size:
120/70 ZR17M/C (58W)
Manufacturer/model:
METZELER/Roadtec Z6G
BRIDGESTONE/BT020F
Rear tire:
Size:
180/55 ZR17M/C (73W)
Manufacturer/model:
METZELER/Roadtec Z6C
BRIDGESTONE/BT020R
FRONT and REAR:
Tire air valve:
TR412
Va l ve c o r e :
#9100 (original)
U3P6E1E0.book Page 18 Thursday, October 5, 2006 10:13 AM

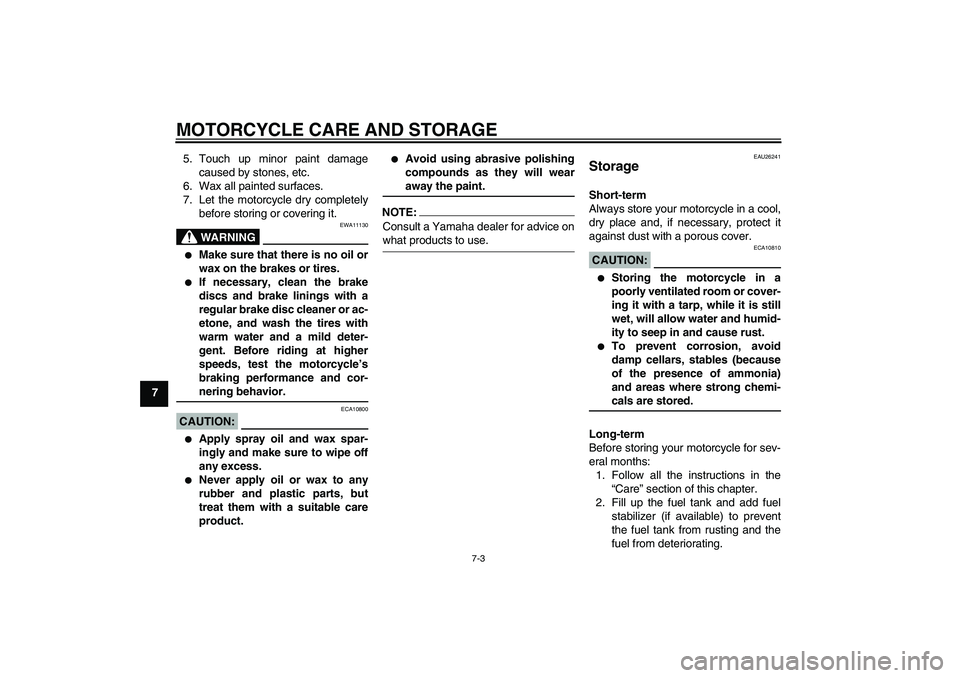

MOTORCYCLE CARE AND STORAGE
7-3
75. Touch up minor paint damage
caused by stones, etc.
6. Wax all painted surfaces.
7. Let the motorcycle dry completely
before storing or covering it.
WARNING
EWA11130


Make sure that there is no oil or
wax on the brakes or tires.


If necessary, clean the brake
discs and brake linings with a
regular brake disc cleaner or ac-
etone, and wash the tires with
warm water and a mild deter-
gent. Before riding at higher
speeds, test the motorcycle’s
braking performance and cor-nering behavior.
CAUTION:
ECA10800


Apply spray oil and wax spar-
ingly and make sure to wipe off
any excess.


Never apply oil or wax to any
rubber and plastic parts, but
treat them with a suitable care
product.


Avoid using abrasive polishing
compounds as they will wearaway the paint.
NOTE:Consult a Yamaha dealer for advice onwhat products to use.
EAU26241
Storage Short-term
Always store your motorcycle in a cool,
dry place and, if necessary, protect it
against dust with a porous cover.CAUTION:
ECA10810


Storing the motorcycle in a
poorly ventilated room or cover-
ing it with a tarp, while it is still
wet, will allow water and humid-
ity to seep in and cause rust.


To prevent corrosion, avoid
damp cellars, stables (because
of the presence of ammonia)
and areas where strong chemi-cals are stored.
Long-term
Before storing your motorcycle for sev-
eral months:
1. Follow all the instructions in the
“Care” section of this chapter.
2. Fill up the fuel tank and add fuel
stabilizer (if available) to prevent
the fuel tank from rusting and the
fuel from deteriorating.
U3P6E1E0.book Page 3 Thursday, October 5, 2006 10:13 AM

MOTORCYCLE CARE AND STORAGE
7-4
7 3. Perform the following steps to pro-
tect the cylinders, piston rings, etc.
from corrosion.
a. Remove the spark plug caps
and spark plugs.
b. Pour a teaspoonful of engine oil
into each spark plug bore.
c. Install the spark plug caps onto
the spark plugs, and then place
the spark plugs on the cylinder
head so that the electrodes are
grounded. (This will limit spark-
ing during the next step.)
d. Turn the engine over several
times with the starter. (This will
coat the cylinder walls with oil.)
e. Remove the spark plug caps
from the spark plugs, and then
install the spark plugs and the
spark plug caps.
WARNING
EWA10950
To prevent damage or injury from
sparking, make sure to ground the
spark plug electrodes while turningthe engine over.4. Lubricate all control cables and the
pivoting points of all levers and
pedals as well as of the side-
stand/centerstand.
5. Check and, if necessary, correct
the tire air pressure, and then lift
the motorcycle so that both of its
wheels are off the ground. Alterna-
tively, turn the wheels a little every
month in order to prevent the tires
from becoming degraded in one
spot.
6. Cover the muffler outlets with plas-
tic bags to prevent moisture from
entering them.
7. Remove the battery and fully
charge it. Store it in a cool, dry
place and charge it once a month.
Do not store the battery in an ex-
cessively cold or warm place [less
than 0 °C (30 °F) or more than 30
°C (90 °F)]. For more information
on storing the battery, see page
6-26.
NOTE:Make any necessary repairs beforestoring the motorcycle.
U3P6E1E0.book Page 4 Thursday, October 5, 2006 10:13 AM
