2007 VOLVO XC90 dimensions

2007 Volvo XC90
W - Winter/Wet driving mode - enhanced vehicle traction
Press the button at the base of the gear selector to engage/disengage th\
is driving mode (see illustration).
l Mode W will only function if the gear selector is in the (D)rive position.
l When the W driving mode is engaged, this is displayed in the instrument \
panel (see page 46).
This mode may be selected for starting/ moving off on slippery roads.
1. Six-speed transmission: gears 2, 3, 4, 5, and 6.
pg. 126 Starting and driving
All Wheel Drive (option)
All Wheel Drive (AWD) - general information
Your Volvo can be equipped with permanent All Wheel Drive (option), wh\
ich means that power is distributed
automatically between the front and rear wheels. Under normal driving co\
nditions, most of the engine's power is directed
to the front wheels. However, if there is any tendency for the front whe\
els to spin, an electronically controlled coupling
distributes power to the wheels that have the best traction.
Tire dimensions
Volvo recommends that you always drive on tires of the same brand, size,\
construction (radial), tread pattern, load-,
speed-, traction- , temperature-, and treadwear rating. Never drive on m\
ixed tires, except for brief periods when the
temporary spare tire is in use.
Always use properly inflated tires of correct dimensions. Tire size and \
inflation pressures are shown on the tire inflation
pressure placards, located on the driver's side B-pillar (the structura\
l member at the side of the vehicle, at the rear of the
driver's door opening), or on the inside of the fuel filler door on Can\
adian models.
Temporary Spare
The temporary spare tire is for temporary, low-speed, short-distance use\
only. Replace it with a full-sized tire as soon as
possible. Do not drive on the temporary spare at speeds above 50 m.p.h. \
(80km/h) or for distances greater than 50 miles
(80 km).
Never install snow chains on a temporary spare.
pg. 127 Starting and driving
Brake system
file:///K|/ownersdocs/2007/2007_XC90/07xc90_06.htm (13 of 32)12/30/200\
6 5:53:44 PM

2007 Volvo XC90

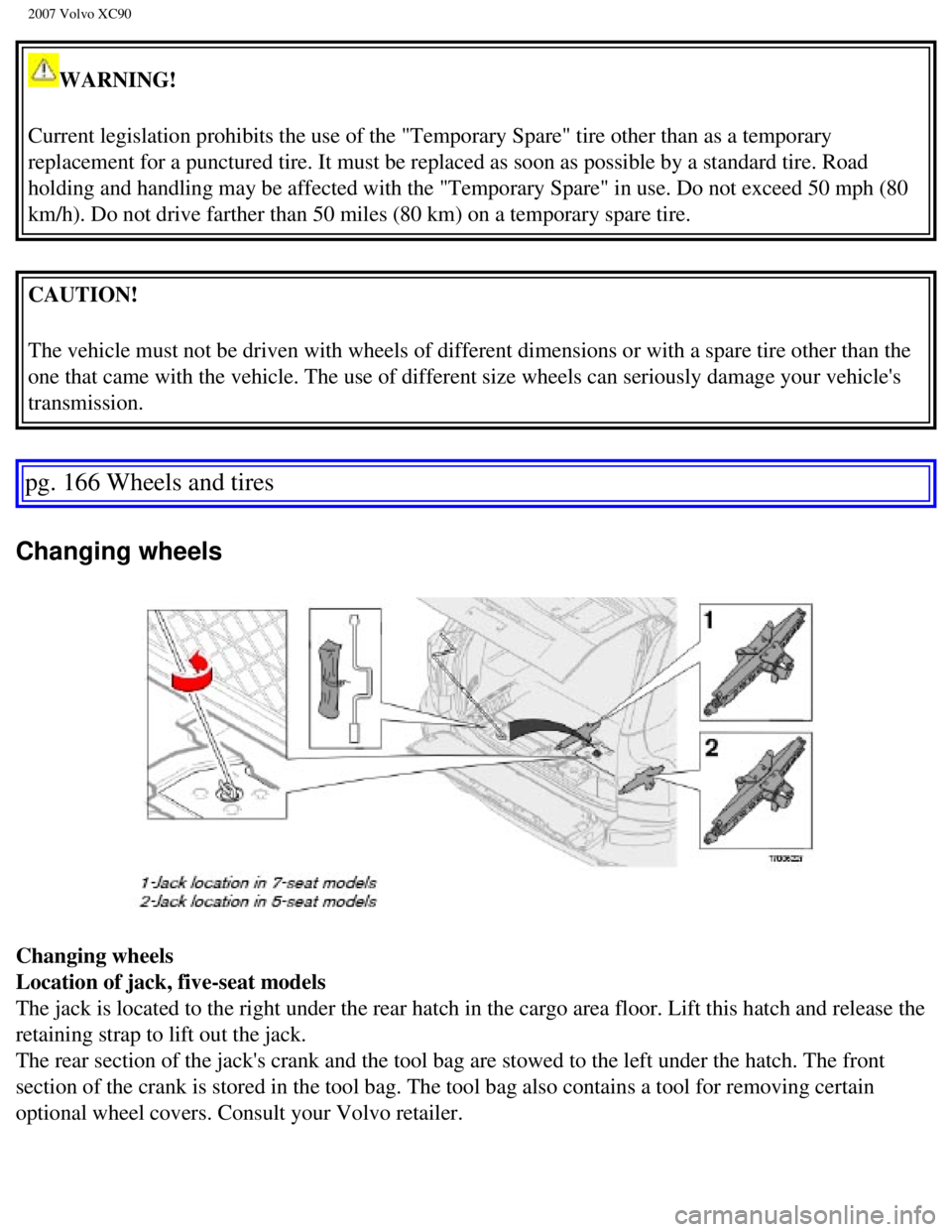

WARNING!
Current legislation prohibits the use of the "Temporary Spare" tire othe\
r than as a temporary
replacement for a punctured tire. It must be replaced as soon as possibl\
e by a standard tire. Road
holding and handling may be affected with the "Temporary Spare" in use. \
Do not exceed 50 mph (80
km/h). Do not drive farther than 50 miles (80 km) on a temporary spar\
e tire.
CAUTION!
The vehicle must not be driven with wheels of different dimensions or wi\
th a spare tire other than the
one that came with the vehicle. The use of different size wheels can ser\
iously damage your vehicle's
transmission.
pg. 166 Wheels and tires
Changing wheels
Changing wheels
Location of jack, five-seat models
The jack is located to the right under the rear hatch in the cargo area \
floor. Lift this hatch and release the
retaining strap to lift out the jack.
The rear section of the jack's crank and the tool bag are stowed to the \
left under the hatch. The front
section of the crank is stored in the tool bag. The tool bag also contai\
ns a tool for removing certain
optional wheel covers. Consult your Volvo retailer.
file:///K|/ownersdocs/2007/2007_XC90/07xc90_07.htm (17 of 23)12/30/200\
6 5:53:47 PM

2007 Volvo XC90
WARNING!
The undersides of accessory running boards are not intended for attachin\
g the
jack.
Changing a wheel
- Park the vehicle on a firm, level, non-slippery surface.
- Engage the parking brake and put the gear selector in the Park positio\
n.
- Loosen the wheel bolts by exerting downward pressure on the lug wrench\
.
- Remove the wheel cap (where applicable) using the lug wrench in the \
tool bag.
pg. 169 Wheels and tires
Changing wheels
- With the wheels still on the ground, use the lug wrench to loosen the \
wheel bolts 1/2 - 1 turn. Turn the
bolts counterclockwise to loosen the bolts.
CAUTION!
- The vehicle must not be driven with wheels of different dimensions or \
with a spare tire other than
the one that came with the vehicle. The use of different size wheels can\
seriously damage your
vehicle's transmission.
- Correct tightening torque on wheel bolts must be observed.
- The wheel bolts should never be greased or lubricated.
- Extended, chromed wheel bolts must not be used with steel rims, as the\
y make it impossible to fit
the hub caps.
pg. 170 Wheels and tires
Changing wheels
file:///K|/ownersdocs/2007/2007_XC90/07xc90_07.htm (21 of 23)12/30/200\
6 5:53:47 PM

2007 Volvo XC90
2 0 0 7
VOLVO XC90
Specifications

pg. 207 Specifications
Label information
208
Weights
209
Dimensions
210
Bulbs
211
Engine oil
212
Fluid specifications and
capacities
213
Suspension
213
Three-way catalytic converter
215
Electrical system
216
Engine specifications
217
Volvo programs
218
All specifications are subject to change without prior notice.
pg. 208 Specifications
Label information
file:///K|/ownersdocs/2007/2007_XC90/07xc90_10.htm (1 of 10)12/30/2006\
5:53:52 PM

2007 Volvo XC90
Dimensions
Length188.9 in (479.8 cm)
Width 74.7 in (189.8 cm)
Height 70.2 in (178.4 cm)
Wheelbase 112.6 in (285.7 cm)
Front track 64.3 in (163.4 cm)
Rear track 63.9 (162.4 cm)
Turning
circle 39-40 ft. (11.9-12.3
m)
Cargo capacity
With optional 3rd row of seats folded down:
5-seat: 41.6 cu. ft (1178 liters)
7-seat: 43.3 cu. ft (1225 liters)
Behind 1st row of seats, with 2nd (and optional 3rd) row of seats fold\
ed down:
5-seat: 84.9 cu. ft (2403 liters)
7-seat: 85.1 cu. ft (2410 liters)
Behind 1st row of seats, with front passenger seat, 2nd row (and option\
al 3rd row) of seats folded down:
5-seat: 92.0 cu. ft (2606 liters)
7-seat: 93.2 cu. ft (2640 liters)
pg. 211 Specifications
Bulbs
High beam H7 65W-
Low beam H11
55W -
Active Bi-Xenon low beam (option) D1S 35W
Active Bi-Xenon high beam (option) H9 65W
Front fog lights H1 55W
Front/rear parking lights, front/rear side marker lights license plate l\
ight, rear
footwell lighting W5W
W2,1x9,5d
Front turn signals H21W BAY9s
file:///K|/ownersdocs/2007/2007_XC90/07xc90_10.htm (5 of 10)12/30/2006\
5:53:52 PM

2007 Volvo XC90
Coolant - changing 184, 188
Coolant - checking level of
184
Cooling system
213
Courtesy light
91
Cruise control
63
Cup holder
95
Curb weight
161
Current fuel consumption
62
D
Defroster
80
Detachable trailer hitch
140
Dimensions
210
Dolby Pro Logic II (DPL II)
225
Door mirror defroster
61
Driver distraction
5
Driving economically
121
E
Economical driving
121
Electrical current - conserving
116
Electrical system
216
Electrically operated moonroof
73
Emission inspection
182
Engine - starting
119
Engine compartment
185
Engine oil
186, 212
Engine oil, volume
212
Engine specifications
217
F
Federal Clean Air Act
180
FIX NEXT SERVICE
51
Flat tire, changing
166
Fog light
48
