2007 VOLVO XC70 ECO mode

2007 Volvo XC70
Spin control (SC)
The spin control function is designed to help prevent the drive wheels f\
rom spinning while the vehicle is
accelerating.
Under certain circumstances, such as when driving with snow chains, or d\
riving in deep snow or loose
sand, it may be advisable to temporarily switch off this function for ma\
ximum tractive force.
Temporarily switching off Spin control
V70R
Press the DSTC button on the center control panel (see
page 50) for at least a half a second. "DSTC
SPIN CONTROL OFF" will be displayed and the indicator light in the butto\
n will go out.
Other V70 models
- Turn the thumb-wheel (1) on the left-side steering wheel lever until\
the STC/DSTC menu is displayed.
- Hold down the RESET button (2) to toggle between STC/DSTC SPIN CONTR\
OL ON or OFF.
NOTE:
l The message STC/DSTC SPIN CONTROL OFF indicates that the stability syste\
m's spin control
function has temporarily been switched off.
l The stability control indicator light will illuminate and remain on until spin control has been
reactivated.
l STC/DSTC ON indicates that all system functions are active1.
l The spin control function is automatically enabled each time the engine \
is started.
1. V70R only: the indicator light in the DSTC button will illuminate to \
indicate that all stability system functions
are on.
pg. 140 Starting and driving
Stability system
file:///K|/ownersdocs/2007/2007_XC70/07xc70_06.htm (25 of 41)12/30/200\
6 5:51:38 PM

2007 Volvo XC70
Active Yaw Control (AYC) - DSTC only
This function helps maintain directional stability, for example when cor\
nering, by braking one or more
of the wheels if the vehicle shows a tendency to skid or slide laterally\
.
R-models only
The AYC function can be deactivated. This is done by pressing the DSTC b\
utton on the center control
panel (see the illustration on page 50) for approximately one second. \
This procedure must be repeated 5
times, after which "DSTC REDUCED FUNCTION" will be displayed in the text\
window. AYC will be
automatically reactivated the next time the ignition is switched on.
The indicator light in the DSTC button will be off.
WARNING!
The car's handling and stability characteristics will be altered if the \
STC or DSTC system functions
have been disabled.
STC/DSTC-related messages in the text window
l "TRACTION CONTROL TEMPORARILY OFF" - The system has been temporarily swi\
tched off
due to high brake temperature and will automatically switch on again whe\
n the brakes have cooled.
"ANTI SKID SERVICE REQUIRED" - the system has been automatically disenga\
ged due to a fault. An
authorized Volvo retailer should check the system.
Symbols in the instrument panel
The Stability Control indicator light
This light indicates different conditions, depending on how it illuminat\
es.
The Stability Control indicator light illuminates for approximately 2 se\
conds
This indicates that the system is performing a self-diagnostic test when\
the ignition is switched on.
The Stability Control indicator light flashes
This indicates that the stability system is actively functioning to help\
counteract wheel spin and/or a skid.
The Stability Control indicator light glows steadily
"ANTI SKID SERVICE REQUIRED" will be displayed in the text window at the\
same time.
A fault is indicated in the stability system.
- Stop the vehicle in a safe place and switch off the engine.
- Restart the engine.
- If the indicator light goes out, the fault was temporary and no furthe\
r action is required.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_06.htm (26 of 41)12/30/200\
6 5:51:38 PM

2007 Volvo XC70
engine compartment (2), located under a small black plastic cover atta\
ched to the fuse box cover,
marked with a "+" sign. Remove the cover on the main fuse box if necessa\
ry to access this terminal.
Then connect the auxiliary battery's negative (-) terminal (3) to th\
e ground point in your vehicle's engine
compartment (4).
- Start the engine in the assisting vehicle, then start the engine in th\
e vehicle with dead battery.
- After the engine has started, first remove the negative (-) terminal\
jumper cable. Then remove the
positive (+) terminal jumper cable.
WARNING!
PROPOSITION 65 WARNING!
Battery posts, terminals, and related accessories contain lead and lead \
compounds, chemicals known
to the state of California to cause cancer and reproductive harm. Wash h\
ands after handling.
WARNING!
l Do not connect the jumper cable to any part of the fuel system or to any\
moving parts. Avoid
touching hot manifolds.
l Never expose the battery to open flame or electric spark.
l Do not smoke near the battery.
l Batteries generate hydrogen gas, which is flammable and explosive.
l Battery fluid contains sulfuric acid. Do not allow battery fluid to cont\
act eyes, skin, fabrics or
painted surfaces. If contact occurs, flush the affected area immediately\
with water. Obtain medical
help immediately if eyes are affected.
l Failure to follow the instructions for jump starting can lead to persona\
l injury.
pg. 145 Starting and driving
Towing a trailer
Volvo recommends the use of Volvo trailer hitches that are specially des\
igned for the vehicle.
l Maximum trailer weight recommended by Volvo is:
Trailers without brakes: 1650 lbs (750 kg)
Trailers with brakes: 2" (50 mm) ball - 3300 lbs (1500 kg), 1 7/8" (\
47 mm) ball - 2000 lbs (900 kg).
Observe the legal requirements of the state/province in which the vehicl\
es are
l All Volvo models are equipped with energy-absorbing shock-mounted bumper\
s. Trailer hitch
installation should not interfere with the proper operation of this bump\
er system.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_06.htm (31 of 41)12/30/200\
6 5:51:38 PM

2007 Volvo XC70
surfaces.
Certain models are equipped with "all-season" tires, which provide a som\
ewhat higher degree of road
holding on slippery surfaces than tires without the "all-season" rating.\
However, for optimum road
holding on icy or snow-covered roads, we recommend suitable winter tires\
on all four wheels.
When replacing tires, be sure that the new tires are the same size desig\
nation, type (radial) and
preferably from the same manufacturer, on all four wheels. Otherwise the\
re is a risk of altering the
vehicle's roadholding and handling characteristics.
Storing wheels and tires
When storing complete wheels (tires mounted on rims), they should be s\
uspended off the floor or placed
on their sides on the floor.
Tires not mounted on rims should be stored on their sides or standing up\
right, but should not be
suspended. CAUTION!
Tires should preferably be stored in a cool, dry, dark place, and should\
never be stored in close
proximity to solvents, gasoline, oils, etc.

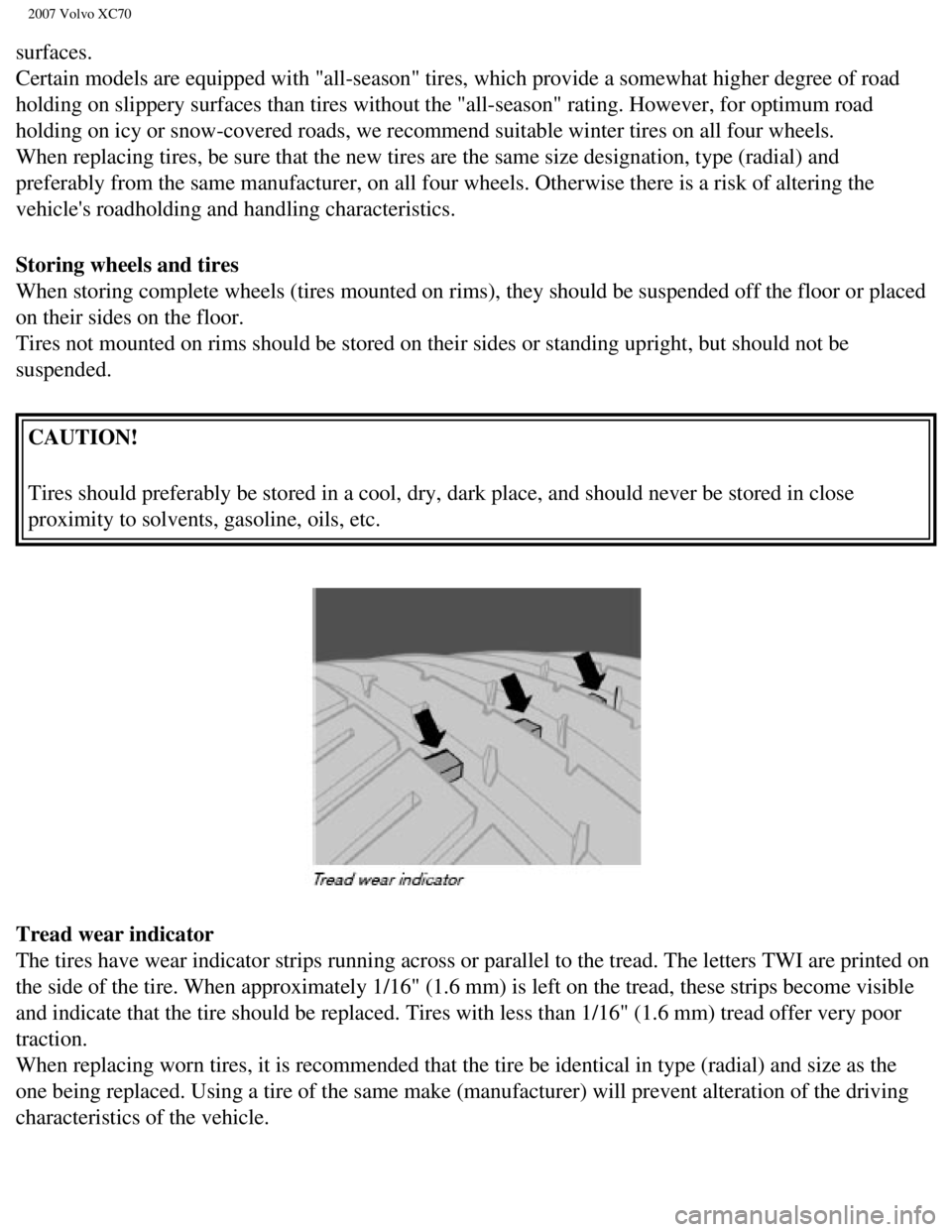

Tread wear indicator
The tires have wear indicator strips running across or parallel to the t\
read. The letters TWI are printed on
the side of the tire. When approximately 1/16" (1.6 mm) is left on the\
tread, these strips become visible
and indicate that the tire should be replaced. Tires with less than 1/16\
" (1.6 mm) tread offer very poor
traction.
When replacing worn tires, it is recommended that the tire be identical \
in type (radial) and size as the
one being replaced. Using a tire of the same make (manufacturer) will \
prevent alteration of the driving
characteristics of the vehicle.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_07.htm (2 of 24)12/30/2006\
5:51:40 PM

2007 Volvo XC70
Inflation pressure
The tires are considered to be cold when they have the same temperature \
as the surrounding
(ambient) air.
This temperature is normally reached after the vehicle has been parked f\
or at least 3 hours.
After driving a distance of approximately 1 mile (1.6 km), the tires a\
re considered to be hot. If you have
to drive farther than this distance to pump your tire(s), check and re\
cord the tire pressure first and add
the appropriate air pressure when you get to the pump.
If checking tire pressure when the tire is hot, never "bleed" or reduce \
air pressure. The tires are hot from
driving and it is normal for pressures to increase above recommended col\
d pressures. A hot tire at or
below recommended cold inflation pressure could be significantly under-i\
nflated.
To check inflation pressure:
- Remove the cap from the valve on one tire, then firmly press the tire \
gauge onto the valve.
- Add air to reach the recommended air pressure.
- Replace the valve cap.
- Repeat this procedure for each tire, including the spare.
- Visually inspect the tires to make sure there are no nails or other ob\
jects embedded that could puncture
the tire and cause an air leak.
- Check the sidewalls to make sure there are no gouges, cuts, bulges or \
other irregularities.
NOTE:
l If you overfill the tire, release air by pushing on the metal stem in th\
e center of the valve. Then
recheck the pressure with your tire gauge.
l Some spare tires require higher inflation pressure than the other tires.\
Consult the tire inflation table
on
pages 160 and 161 or see the inflation pressure placard.
pg. 160 Wheels and tires
Tire inflation pressure tables - U.S. models
The following tire pressures are recommended by Volvo for your vehicle. \
Refer to the tire inflation
placard for information specific to the tires installed on your vehicle \
at the factory.
Cold tire pressures up to five persons
Tire size Front, psi (kPa)Rear, psi
(kPa)
file:///K|/ownersdocs/2007/2007_XC70/07xc70_07.htm (6 of 24)12/30/2006\
5:51:40 PM

2007 Volvo XC70
V70
195/65R15
205/55R16
215/55R16
235/45R17
235/45R17 SSRFT
1
35 (240) 35 (240)
Temporary spare tire
T125/80R17 61 (420)
61 (420)
V70 R
235/45R17 39 (270)
39 (270)
Temporary spare tire
T115/85R18 61 (420)
61 (420)
XC70
215/65R16
215/60R17 36 (250)
36 (250)
Temporary spare tire
T135/90R17 61 (420)
61 (420)
1. Self supporting run flat tires. See page 164 for more information.
Load ratings
The load ratings in the tables above translate as follows:
91 = 1365 lbs (615 kg), 93 = 1433 lbs (650 kg), 99 = 1709 lbs (755 \
kg)
Speed ratings
The speed ratings in the tables translate as follows:
M = 81 mph (130 km/h), V= 149 mph (240 km/h), W= 168 mph (270 km/h)\
See also
page 165 for an explanation of the designations on the sidewall of the tire.
pg. 161 Wheels and tires
Tire inflation pressure tables - Canadian models
The following tire pressures are recommended by Volvo for your vehicle. \
Refer to the tire inflation
placard for information specific to the tires installed on your vehicle \
at the factory.
file:///K|/ownersdocs/2007/2007_XC70/07xc70_07.htm (7 of 24)12/30/2006\
5:51:40 PM

2007 Volvo XC70
Tire sizeCold tire pressures
up to five persons psi (kPa) Optional pressure
up to three persons psi (kPa)
FrontRear Front Rear
V70
195/65R15
205/55R16
215/55R16
235/45R17 38 (260)
38 (260) 32 (220) 32 (220)
Temporary spare tire
T125/80R17 61 (420)
61 (420) 61 (420) 61 (420)
V70 R
235/45R17 39(270)
39(270) 35 (240) 35 (240)
Temporary spare tire
T115/85R18 61 (420)
61 (420) 61 (420) 61 (420)
XC70
215/65R16
215/60R17 38 (260)
38 (260) 30 (210) 30 (210)
Temporary spare tire
T135/90R17 61 (420)
61 (420) 61 (420) 61 (420)
pg. 162 Wheels and tires
Tire Pressure Monitoring System (TPMS) - option on certain U.S. models\

only
The tire pressure monitoring system uses sensors mounted in the tire val\
ves to check inflation pressure
levels. When the vehicle is moving at a speed of approximately 20 mph (\
30 km/h) or faster, these
sensors transmit inflation pressure data to a receiver located in the ve\
hicle.
USA - FCC ID: MRXTG315AM04
This device complies with part 15 of the FCC rules. Operation is subject\
to the following conditions:
(1) This device may not cause harmful interference, and (2) this dev\
ice must accept any interference
received, including interference that may cause undesired operation.
When low inflation pressure is detected, TPMS will light up the tire pre\
ssure warning light (
) (also
referred to as a telltale) in the instrument panel, and will display a \
message in the text window. The
file:///K|/ownersdocs/2007/2007_XC70/07xc70_07.htm (8 of 24)12/30/2006\
5:51:40 PM

2007 Volvo XC70
Tire Pressure Monitoring System (TPMS) - option on certain U.S. models\

only
- Use a tire pressure gauge to check the inflation pressure of all four \
tires.
- Re-inflate the tire(s) to the correct pressure (consult the tire pr\
essure placard or the tables on
pages 160
and 161.
- Drive the vehicle for several minutes at a speed of 20 mph (30 km/h)\
or faster.
This will erase the warning text and the warning light will go out.
WARNING!
Incorrect inflation pressure could lead to tire failure, resulting in a \
loss of control of the
vehicle.
Changing wheels with TPMS
Please note the following when changing or replacing the factory install\
ed TPMS wheels/ tires on the
vehicle:
l Only the factory-mounted wheels are equipped with TPMS sensors in the va\
lves.
l If the vehicle is equipped with a temporary spare tire, this tire does n\
ot have a TPMS sensor.
l If wheels without TPMS sensors are mounted on the vehicle, TIRE PRESS SY\
ST SERVICE
REQUIRED will be displayed each time the vehicle is driven above 25 mph \
(40 km/h) for 10 minutes or
more.
l Once TPMS sensors are properly installed, the warning message should not\
reappear.
l Volvo recommends that TPMS sensors be fitted on all wheels used on the v\
ehicle. Volvo does not
recommend moving sensors back and forth between sets of wheels.
CAUTION!
When inflating tires with TPMS valves, press the pump's mouthpiece strai\
ght onto the valve to help
avoid bending or otherwise damaging the valve.
pg. 164 Wheels and tires
Self supporting run flat tires (option)
Self supporting run flat tires
Certain models equipped with the Tire Pressure Monitoring System (TPMS)\
can also be equipped with
file:///K|/ownersdocs/2007/2007_XC70/07xc70_07.htm (10 of 24)12/30/200\
6 5:51:40 PM
