2007 VOLVO C70 CONVERTIBLE bulb

2007 Volvo C70
1. Open the hood.
2. Remove the headlight housing.
3. Turn the bulb holder counterclockwise and pull it out. Replace the bu\
lb. Note how the bulb holder is
positioned.
4. Reinstall the bulb holder. It can only be installed in one position.
5. Reinstall the headlight housing.
Parking light bulb
1. Pull out the bulb holder with a pair of pliers. The bulb holder shoul\
d not be pulled out by the wire.
2. Replace the bulb.
file:///K|/delme/2007_C70/07c70_09.htm (21 of 36)12/22/2006 9:15:54 PM\

2007 Volvo C70
3. Press the bulb holder back into place. It can only be installed in on\
e position.
201 09 Maintenance and servicing
Replacing bulbs
Turn signal
1. Turn the bulb holder counterclockwise and remove it.
2. Remove the bulb from the holder by pressing it in and twisting it cou\
nterclockwise.
3. Insert a new bulb and reinstall the bulb holder in the headlight hous\
ing.
Side marker light
file:///K|/delme/2007_C70/07c70_09.htm (22 of 36)12/22/2006 9:15:54 PM\

2007 Volvo C70
1. Turn the bulb holder counterclockwise, pull it out, and replace the b\
ulb.
2. Reinstall the bulb holder. It can only be installed in one position. \
Front fog light (option)
1. Switch off all lights and turn the key to position 0.
2. Remove the panel around the fog light housing.
3. Unscrew both torx screws in the fog light housing and remove it.
4. Disconnect the connector from the bulb.
5. Turn the bulb counterclockwise and pull it out.
file:///K|/delme/2007_C70/07c70_09.htm (23 of 36)12/22/2006 9:15:54 PM\

2007 Volvo C70
6. Install the new bulb in its seat and turn it clockwise.
7. Reconnect the connector to the bulb.
202 09 Maintenance and servicing
Replacing bulbs
8. Secure the fog light housing with the screws and press the panel back\
into place.
Removing the taillight bulb holder
All bulbs in the taillight cluster can be replaced from the cargo area. \
To access the bulb holders:
1. Switch off all lights and turn the key to position 0.
2. Remove the covers in the left/right panels to access the bulb holders\
.
3. Disconnect the wiring connector from the affected bulb holder.
4. Press the catches together and pull out the bulb holder.
5. Replace the defective bulb.
6. Press the wiring connector back into position.
7. Press the bulb holder into place and reinstall the cover.
file:///K|/delme/2007_C70/07c70_09.htm (24 of 36)12/22/2006 9:15:54 PM\

2007 Volvo C70
203 09 Maintenance and servicing
Replacing bulbs

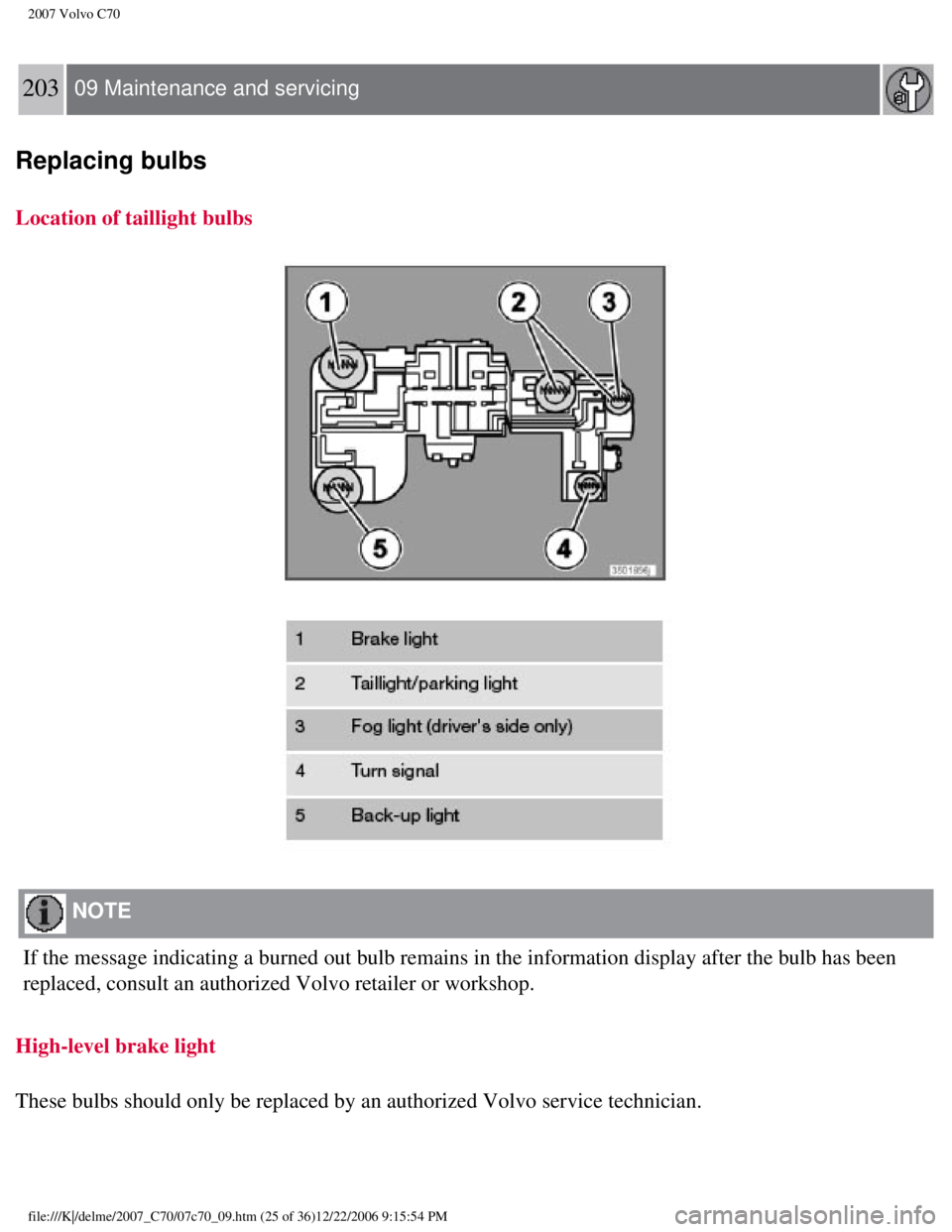

Location of taillight bulbs
NOTE
If the message indicating a burned out bulb remains in the information d\
isplay after the bulb has been
replaced, consult an authorized Volvo retailer or workshop.
High-level brake light
These bulbs should only be replaced by an authorized Volvo service techn\
ician.
file:///K|/delme/2007_C70/07c70_09.htm (25 of 36)12/22/2006 9:15:54 PM\

2007 Volvo C70
204 09 Maintenance and servicing
Replacing bulbs
Replacing rear reading light bulbs
1. Insert a screwdriver and turn it gently to detach the bulb housing.
2. Remove the defective bulb.
3. Install a new bulb.
4. Press the bulb housing back into place
Replacing bulbs in the trunk
file:///K|/delme/2007_C70/07c70_09.htm (26 of 36)12/22/2006 9:15:54 PM\

2007 Volvo C70
1. Insert a screwdriver and turn it gently to detach the bulb housing.
2. Remove the defective bulb.
3. Install a new bulb.
4. Press the bulb housing back into place.
205 09 Maintenance and servicing
Replacing bulbs
License plate lighting
file:///K|/delme/2007_C70/07c70_09.htm (27 of 36)12/22/2006 9:15:54 PM\

2007 Volvo C70
Replacing the bulb
1. Switch off all lights and turn the key to position 0.
2. Remove the screws with a screwdriver.
3. Detach the entire bulb housing and carefully pull it out. Turn the co\
nnector counterclockwise and pull
out the bulb.
4. Replace the bulb.
5. Reinstall the connector and turn it clockwise.
6. Reinstall the entire bulb housing and screw it into place.
206 09 Maintenance and servicing
Replacing bulbs
Footwell lighting
The footwell lighting is located under the dashboard on the driver's and\
passenger's sides. To replace a
bulb:
1. Insert a screwdriver under the edge of the lens. Turn the screwdriver\
gently to detach the lens.
2. Remove the defective bulb.
