2007 VOLKSWAGEN TIGUAN Owners Manual

Different models may have different lights, and the location and design of covers, bulb holders, and bulbs may be in a different location than shown in the illustrations.
You cannot replace the LEDs in LED daytime running lights. Contact your authorized Volkswagen dealer or an authorized Volkswagen Service Facility for assistance.

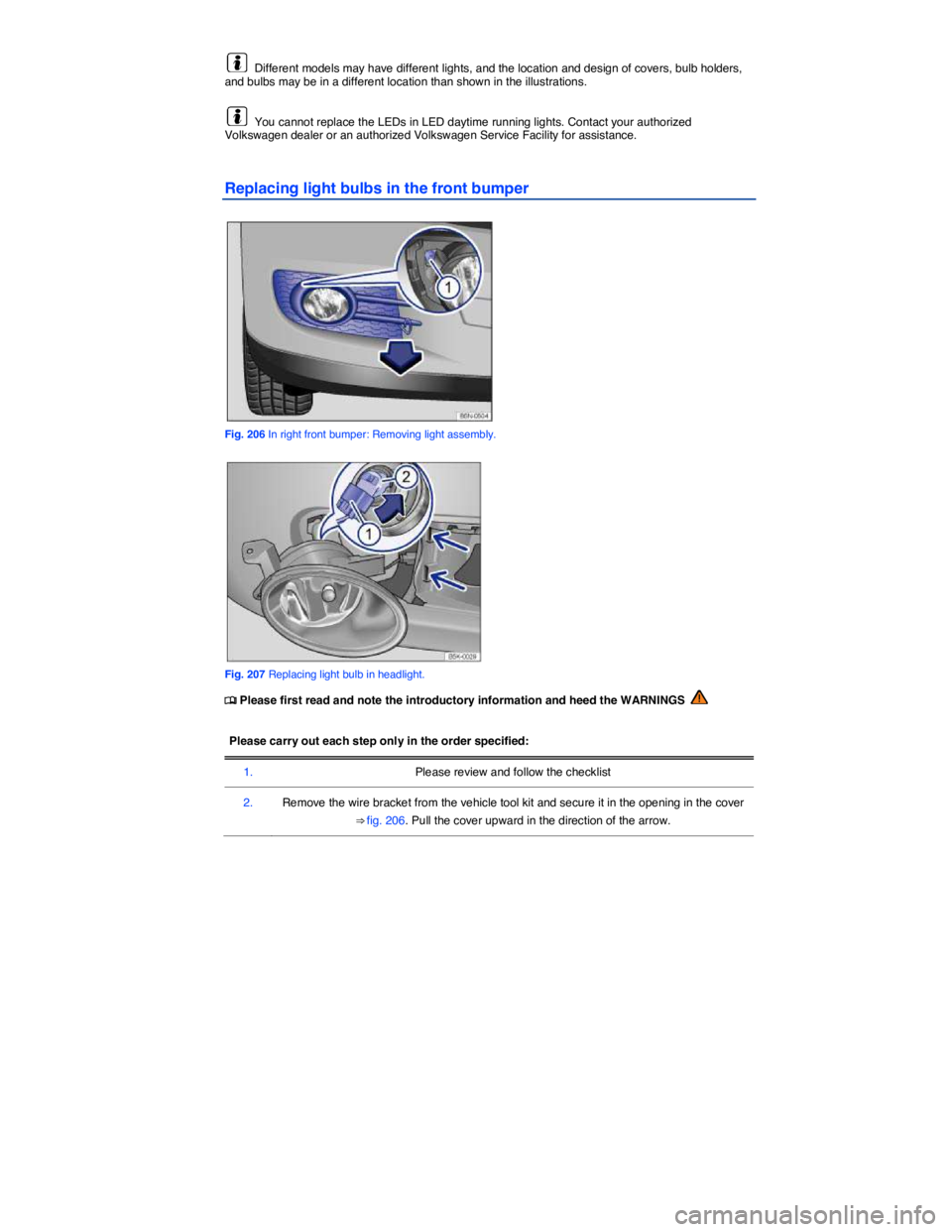

Replacing light bulbs in the front bumper

Fig. 206 In right front bumper: Removing light assembly.

Fig. 207 Replacing light bulb in headlight.

Please carry out each step only in the order specified:
3. Remove the screw (1) using the flat blade of the screwdriver in the vehicle tool kit
4. Remove the headlight.
5. Release the connector ⇒ fig. 207 (1) and disconnect it.
6. Turn the bulb holder (2) counterclockwise in the direction of the arrow until it stops and remove it toward the rear with the bulb.
7. Replace the burned out light bulb with a new bulb of the same type.
8. Insert the bulb holder into the headlight assembly and turn it clockwise until it stops.
9. Connect the connector (1) on the bulb holder (2). You must hear the connector click into place.
10. Insert the headlight.
11. Tighten the screw ⇒ fig. 206 (1) with the screwdriver.
12. Install cover in the bumper ⇒ fig. 206.

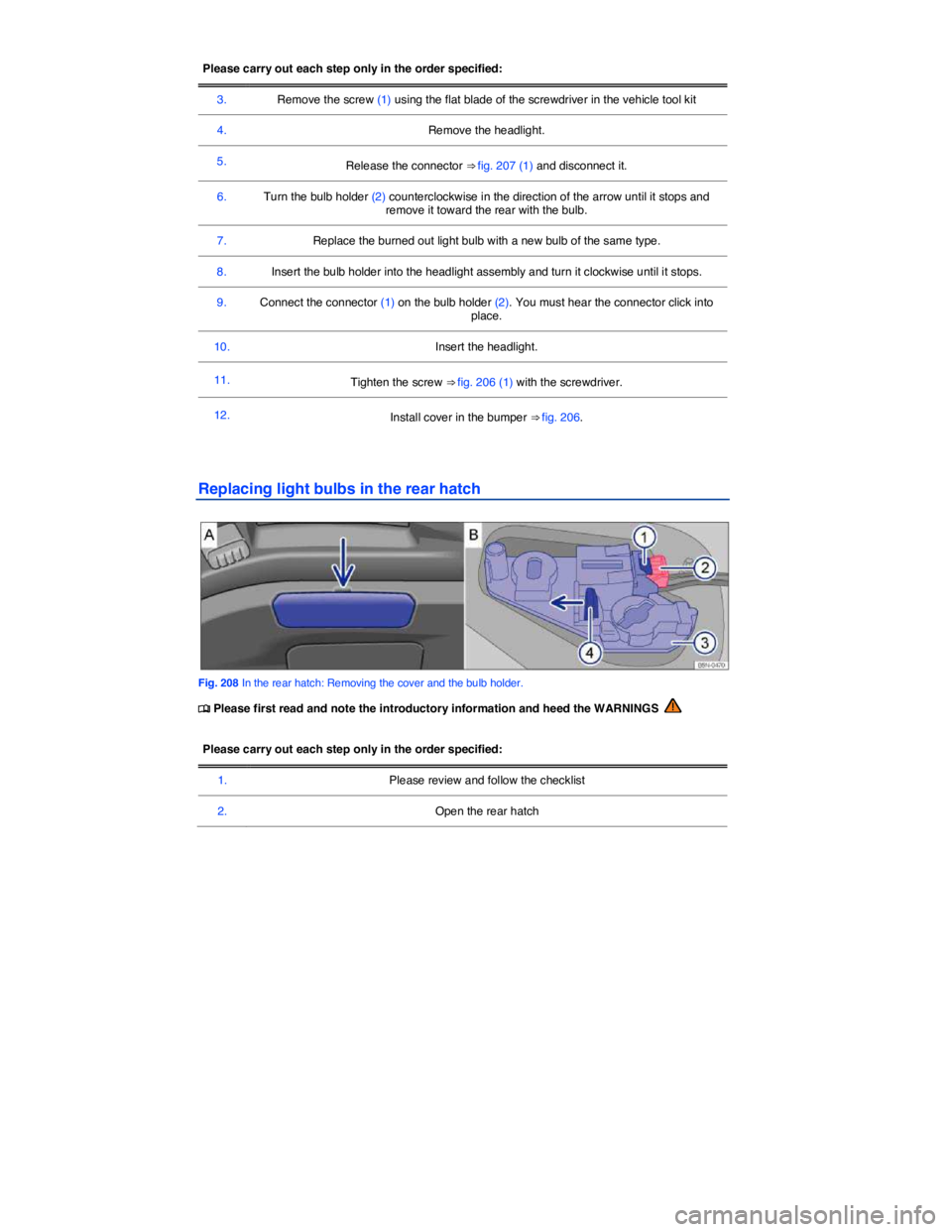

Replacing light bulbs in the rear hatch

Fig. 208 In the rear hatch: Removing the cover and the bulb holder.

Please carry out each step only in the order specified:
3. Using the screwdriver from the vehicle tool kit carefully pry the cover off with the flat blade
of the screw driver inserted in the opening ⇒ fig. 208 A (arrow).
4. Remove the red locking mechanism (2) B as illustrated and disconnect the electrical connector with the lever pressed down (1) B.
5. Press the locking tab (4) B in the direction of the arrow and remove the bulb holder (3) B.
6. Replace burned out rear light bulb with a bulb that is identical to the one being replaced.
7. Insert the bulb holder. You must hear the locking tab click into place.
8. Insert the electrical connector into the bulb holder until it clicks into place. Press the red locking mechanism (2) B back in.
9. Insert the cover. The cover must lock into place and be secure.

LEDs in the rear lights
Changing LEDs is not possible without dismantling vehicle components. Contact an authorized Volkswagen dealer or an authorized Volkswagen Service Facility.
Taillights with LEDs may also have some “standard” light bulbs. These bulbs can be replaced.
Different models may have different lights, and the location and design of covers, bulb holders, and bulbs may be in a different location than shown in the illustrations.
Replacing light bulbs in the vehicle body

Fig. 209 In the side of the luggage compartment: Releasing the tail light, removing the trim panel and removing the screws.

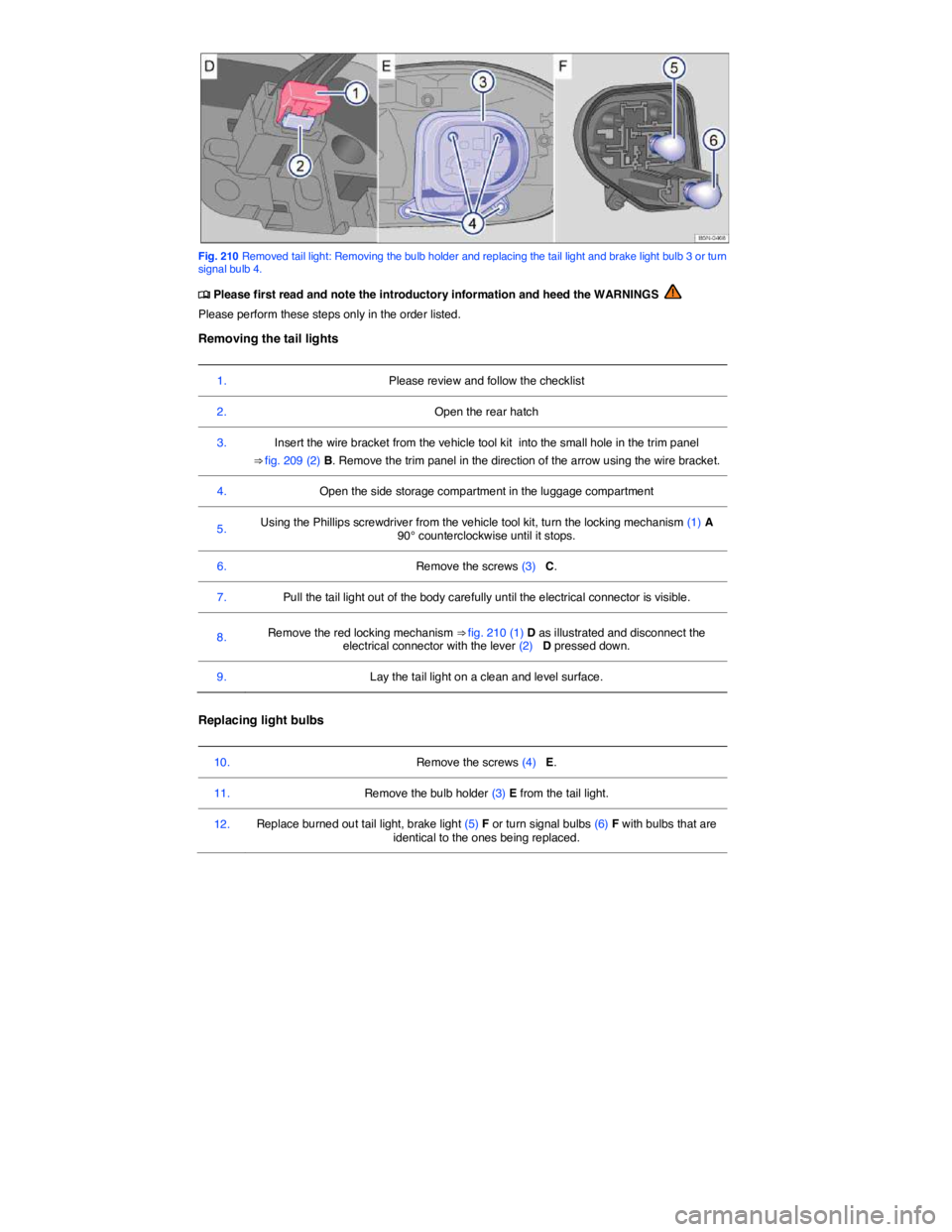

Fig. 210 Removed tail light: Removing the bulb holder and replacing the tail light and brake light bulb 3 or turn signal bulb 4.

13. Insert the bulb holder in the tail light and screw it in ⇒ fig. 210 E.

Installing the tail lights

14. Turn the locking mechanism ⇒ fig. 209 (1) A 90° clockwise until it stops.
15. Insert the electrical connector into the bulb holder until it clicks into place. Press the red
locking mechanism ⇒ fig. 210 (1) D back in.
16. Insert the tail light into the opening on the body carefully.
17. Hold the tail light in the correct position with one hand and tighten the screws with the other hand (3) C.
18. Insert the trim panel ⇒ fig. 209 (2) B into its original position, first at the bottom and then at the top.
19. Close the side storage compartment in the luggage compartment.
20. Close the rear hatch

LEDs in the rear taillights
Changing LEDs is not possible without dismantling vehicle components. Contact an authorized Volkswagen dealer or an authorized Volkswagen Service Facility.
Taillights with LEDs may also have some “standard” light bulbs. These bulbs can be replaced.
Different models may have different lights, and the location and design of covers, bulb holders, and bulbs may be in a different location than shown in the illustrations.
Replacing license plate lights

Jump-starting

WARNING
Improper use of jumper cables when jump-starting a vehicle with a dead battery can cause the battery to explode, leading to serious personal injury. To help reduce the risk of battery explosion:
x All work on the batteries or the electrical system in your vehicle can cause serious acid burns, fires, or electrical shocks. Always read and heed the following WARNINGS and safety
precautions before working on the batteries or the electrical system ⇒  12 Volt vehicle battery.
x Always make sure that the battery providing starting assistance (the booster battery) has the same voltage as the dead battery (12 V) and about the same amperage capacity (see battery label).
x Never jump-start a vehicle with a thawed or frozen vehicle battery. The battery can explode. A dead battery can freeze at temperatures around +32 °F (0 °C).
x A battery that is frozen or was frozen, but has since thawed, must be replaced.
x When the vehicle battery is jump-started, it gives off hydrogen gas, which is highly explosive! Always keep fire, sparks, open flame, and smoking materials far away from vehicle batteries. Never use a mobile telephone while connecting or disconnecting jumper cables.
x Jump-start batteries only in well-ventilated areas. Batteries give off highly explosive hydrogen gas during jump-starting.
x Always route the jumper cables so that they cannot get caught in any moving parts in the engine compartment.
x Never short out the battery terminals by connecting the positive terminal (+) and negative (-) terminals with each other.
x Never connect the negative cable from the other vehicle directly to the negative terminal of the dead battery, as this may cause the hydrogen gas given off by the dead battery to explode.
x Never attach the negative cable from the vehicle providing starting assistance to any part of the fuel system or to the brake hoses or brake lines.
x Never allow the non-insulated parts of the battery clamps to touch.
x Never allow the jumper cable attached to the positive battery terminal to contact metal parts of the vehicle.
x Always follow the instructions of the jumper cable manufacturer.
NOTICE
To help prevent extensive damage to the vehicle electrical system, read and heed the following:
x Connecting jumper cables improperly can cause a short circuit and do expensive damage to the vehicle's electrical system.
x Do not let the vehicles touch each other while the jumper cables are connected. If they do, electrical current may flow between the vehicles when the positive (+) terminals are connected, causing electrical system damage.

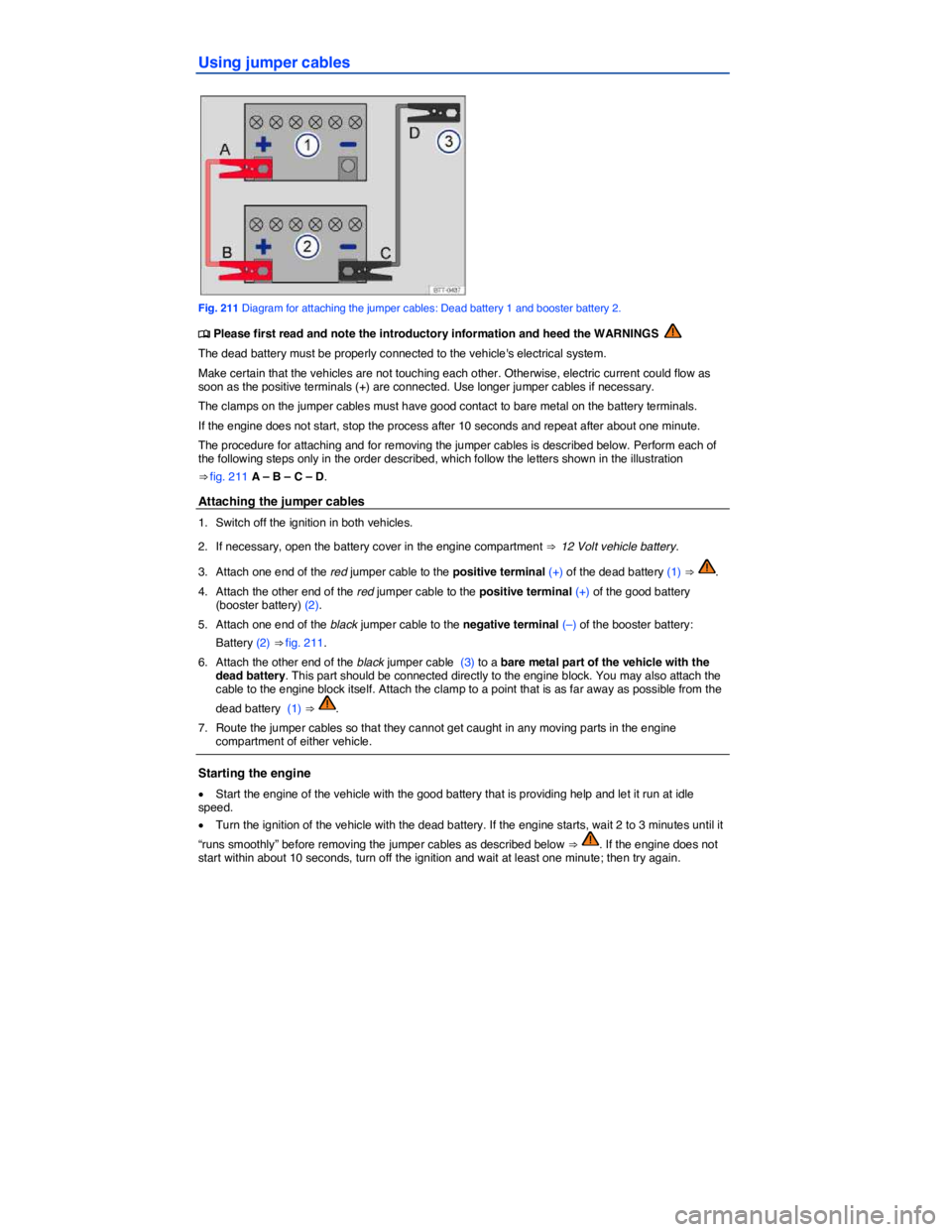

Using jumper cables

Fig. 211 Diagram for attaching the jumper cables: Dead battery 1 and booster battery 2.
