425
83p011
Removing clip
83p012
Installing clip
83p013a
3. Unplug the connector. Turn the bulbcover counter clockwise and remove
it.
If the connector is tight, wiggle it.
83p014a
4. Release the bulb retaining spring and remove the bulb along with the
socket. Install a new bulb into the
socket and return the bulb retaining
spring to its original position.
To install a bulb, align the tabs of the
bulb with the cutout of the mounting hole.
426
83p015b

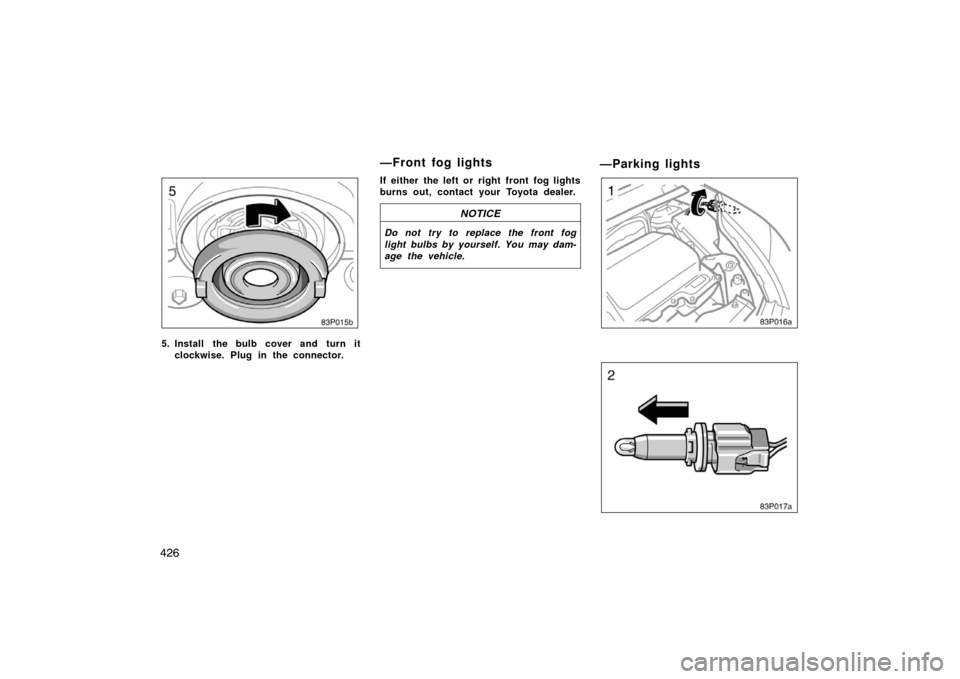

5. Install the bulb cover and turn itclockwise. Plug in the connector. If either the left or right front fog lights
burns out, contact your Toyota dealer.
NOTICE
Do not try to replace the front fog
light bulbs by yourself. You may dam-
age the vehicle.
—Parking lights
83p016a
83p017a
—Front fog lights
