2007 TOYOTA HIGHLANDER HYBRID light

’07 HIGHLANDER HV_U (L/O 0608)
135
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—
Center: Turns the light on when any of the
side doors and back door are opened.
Rear: Turns the light on when the back
door is opened.ILLUMINATED ENTRY SYSTEM
(center interior light)
When the switch is in the “DOOR” posi-
tion and any of the side doors and back
door is opened, the light will come on.
After all the side doors and back door are
closed, the light remains on for about 15
seconds before fading out.
However, in the following cases, the light
fades out immediately:
All the side doors and back door are
closed when the ignition key is in
“ACC” or “ON” position.
The ignition key is turned to “ACC” or
“ON” after all the side doors and back
door are closed.
All the side doors and back door are
locked when the light is still on.
When all the side doors and back door
are unlocked using either the key or the
wireless remote control transmitter simul-
taneously, the light will come on and re-
main on for about 15 seconds before fad-
ing out. The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the door key or wireless re-
mote control transmitter linked opera-
tion
Changing the timing for the light turn-
ing off
Interior lights

’07 HIGHLANDER HV_U (L/O 0608)
136
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

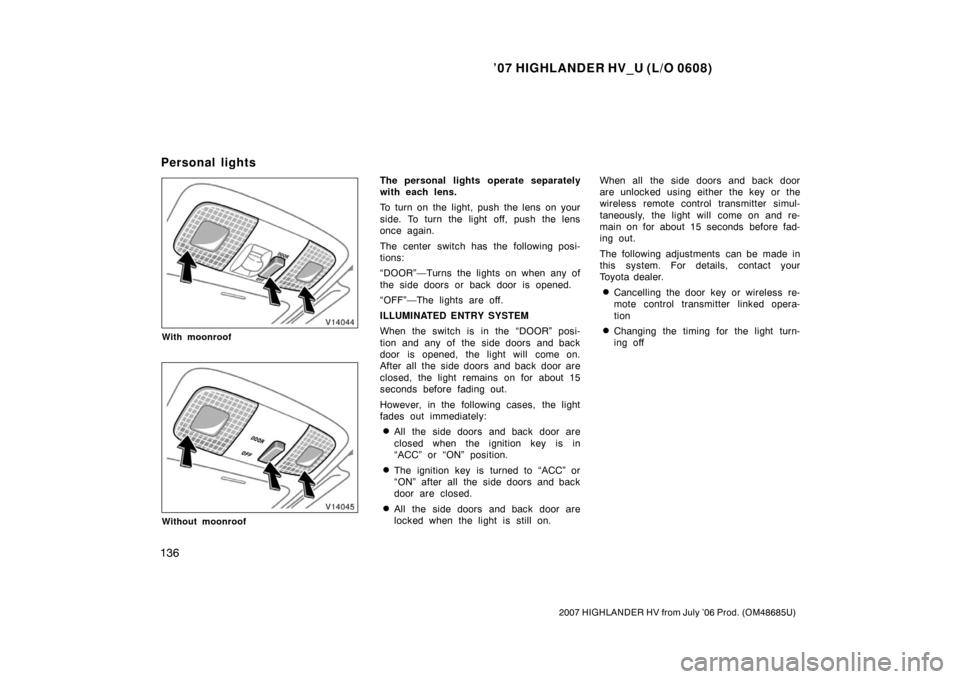

With moonroof
Without moonroof
The personal lights operate separately
with each lens.
To turn on the light, push the lens on your
side. To turn the light off, push the lens
once again.
The center switch has the following posi-
tions:
“DOOR”—Turns the lights on when any of
the side doors or back door is opened.
“OFF”—The lights are off.
ILLUMINATED ENTRY SYSTEM
When the switch is in the “DOOR” posi-
tion and any of the side doors and back
door is opened, the light will come on.
After all the side doors and back door are
closed, the light remains on for about 15
seconds before fading out.
However, in the following cases, the light
fades out immediately:
All the side doors and back door are
closed when the ignition key is in
“ACC” or “ON” position.
The ignition key is turned to “ACC” or
“ON” after all the side doors and back
door are closed.
All the side doors and back door are
locked when the light is still on.When all the side doors and back door
are unlocked using either the key or the
wireless remote control transmitter simul-
taneously, the light will come on and re-
main on for about 15 seconds before fad-
ing out.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the door key or wireless re-
mote control transmitter linked opera-
tion
Changing the timing for the light turn-
ing off
Personal lights

’07 HIGHLANDER HV_U (L/O 0608)
137
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
For easy access to the ignition switch,
the ignition switch light comes on when
any of the side doors are opened.
The light remains on for some time after
all the side doors and back door are
closed.
However, in the following cases, the lights
go off immediately.
All the side doors and back door are
closed when the ignition key is in
“ACC” or “ON” position.
The ignition key is turned to “ACC” or
“ON” after all the side doors and back
door are closed.
All the side doors and back door are
closed and locked when the light is still
on.
When all the side doors and back door
are unlocked using either the key or the
wireless remote control transmitter simul-
taneously, the light will come on and re-
main on for about 15 seconds before fad-
ing out.
The following adjustments can be made in
this system. For details, contact your
Toyota dealer.
Cancelling the door key or wireless re-
mote control transmitter linked opera-
tion
Changing the timing for the light turn-
ing off
To turn on the windshield wipers, move
the lever to the desired setting.
The key must be in the “ON” position.
Lever position
Speed setting
Position 1Intermittent
Position 2Slow
Position 3Fast
For a single sweep of the windshield,
push the lever up and release it.
Ignition switch light Windshield wipers and washer

’07 HIGHLANDER HV_U (L/O 0608)
139
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
NOTICE
Do not operate the rear wiper if the
rear window is dry. It may scratch the
glass.
Without navigation system (type A)
Without navigation system (type B)
With navigation system
To defog or defrost the rear window,
push the switch.
The key must be in the “ON” position.
The thin heater wires on the inside of the
rear window will quickly clear the window
surface. An indicator light will illuminate to
indicate the defogger is operating.
Rear window and outside rear
view mirror defoggers and
windshield wiper deicer

’07 HIGHLANDER HV_U (L/O 0608)
142
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Low fuel level
warning light
The gauge indicates the approximate
quantity of fuel remaining in the tank
when the ignition switch is on.
Nearly full—Needle at “F”
Nearly empty—Needle at “E”
It is a good idea to keep the tank over
1/4 full.
The needle moves when braking, acceler-
ating or making turns. This is caused by
the movement of the fuel in the tank.
If the fuel level approaches “E” or the low
fuel level warning light comes on, fill the
fuel tank as soon as possible.On inclines or curves, due to the move-
ment of fuel in the tank, the fuel gauge
needle may fluctuate or the low fuel level
warning light may come on earlier than
usual.
If the fuel tank is completely empty, the
malfunction indicator lamp comes on. Fill
the fuel tank immediately.
The indicator lamp goes off after driving
several times. If the indicator lamp does
not go off, contact your Toyota dealer as
soon as possible.The gauge indicates the engine coolant
temperature when the ignition switch is
on. The engine operating temperature
will vary with changes in weather and
engine load.
If the needle moves into the red zone,
your engine is too hot. If your vehicle
overheats, stop your vehicle and allow the
engine to cool.
Your vehicle may overheat during severe
operating conditions, such as:
Driving up a long hill on a hot day.
Reducing speed or stopping after high
speed driving.
Fuel gauge
Engine coolant temperature
gauge

’07 HIGHLANDER HV_U (L/O 0608)
144
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
If the indicator or buzzer comes on...Do this.
(a)
or
(red indicator)If parking brake is off, stop immediately and contact Toyota dealer.
(yellow indicator)
Take vehicle to Toyota dealer. If red brake system warning light is also on, stop
immediately and contact Toyota dealer.
(b)
(indicator and buzzer)
Fasten driver ’s seat belt.
(c)
(indicator and buzzer)
Fasten front passenger ’s seat belt.
(d)Stop immediately and contact Toyota dealer.
(e)Take vehicle to Toyota dealer.
(f)orTake vehicle to Toyota dealer.
Service reminder indicators and warning buzzers

’07 HIGHLANDER HV_U (L/O 0608)
145
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
If the indicator or buzzer comes on...Do this.
(g)Low fuel level warning lightFill up tank.
(h)orTake vehicle to Toyota dealer.
If red brake system warning light is also on, stop immediately and contact Toyota
dealer.
(i)Close all side doors and back door.
(j)Take vehicle to Toyota dealer.
(k)Take vehicle to Toyota dealer immediately.
(l)Read a warning message on multi−information display.
(m)Key reminder buzzerRemove key.

’07 HIGHLANDER HV_U (L/O 0608)
146
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
(a) Brake System Warning Lights
These lights come on in the following
cases when the ignition key is in the “ON”
position.
RED WARNING LIGHT
When the parking brake is applied...
This light comes on when the ignition is
turned on, even after the parking brake is
released. When the vehicle speed exceeds
5 km/h (3 mph), a message “PARK
BRAKE” appears on the multi −information
display, the master warning light flashes
and a warning tone sounds.
When the brake fluid level is low...
CAUTION
It is dangerous to continue driving
normally when the brake fluid level is
low.
YELLOW WARNING LIGHT
When the regenerative brake system
or electronically controlled brake
system fails...
When the yellow warning light comes on,
the regenerative brake system and/or elec-
tronically controlled brake system is mal-
functioning. Take your vehicle to your
Toyota dealer.
RED AND YELLOW WARNING LIGHT
When the hydraulic brake system
fails...
If the red and yellow warning lights come
on, it indicates a serious problem and you
can continue driving no longer.
Have your vehicle checked at your
Toyota dealer in the following cases:
The lights do not come on even if the
parking brake is applied when the hy-
brid system is on.
The lights do not come on when the
ignition is turned on with the parking
brake released.
A red or yellow warning light turning on
briefly during operation does not indicate
a problem.
CAUTION
If any of the following conditions oc-
curs, immediately stop your vehicle at
a safe place and contact your Toyota
dealer.
The red warning light does not turn
off even after the parking brake is
released with the hybrid system
turned on.
The red warning light stays on.
In either case, this can indicate that
the brakes may not work properly and
your stopping distance will become
longer. Depress the brake pedal firmly
and bring the vehicle to an immediate
stop.
The red brake system warning light
remains on together with the “ABS”
warning light and “CHECK VSC
SYSTEM” warning message.
In this case, not only the antilock
brake system and vehicle stability
control system will fail but also the
vehicle will become extremely unsta-
ble during braking.
