1. Outside temperature(“OUTSIDE TEMP”)
The outside temperature display indi-
cates the outside air temperature.
The displayed temperature ranges from
− 30 C ( −22 F) up to 50 C (122 F). If the
temperature does not appear or it shows
“ −−”, take your vehicle to your Toyota
dealer.
2. Average fuel consumption (“AVG”)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption
with the hybrid system turned on.
The calculation is reset by pushing and
holding the “INFO” button for about 1 sec-
ond when the average fuel consumption is
displayed.
At this time, the average fuel consumption
on the multi −information display is also
reset. See “Multi −information display” on
page 152.
3. Current fuel consumption
The current fuel consumption is calcu-
lated and displayed based on distance
and fuel consumption for 2 seconds
with the hybrid system turned on. 4. Driving time (“E/T”)
The elapsed time is displayed.
When the hybrid system is turned on,
driving time is counted from 0:00. Up to
11:59 (11 hours, 59 minutes) can be dis-
played. When the driving time exceeds
11:59, the counter returns to 0:00.
The calculation is reset when the ignition
switch is turned off.

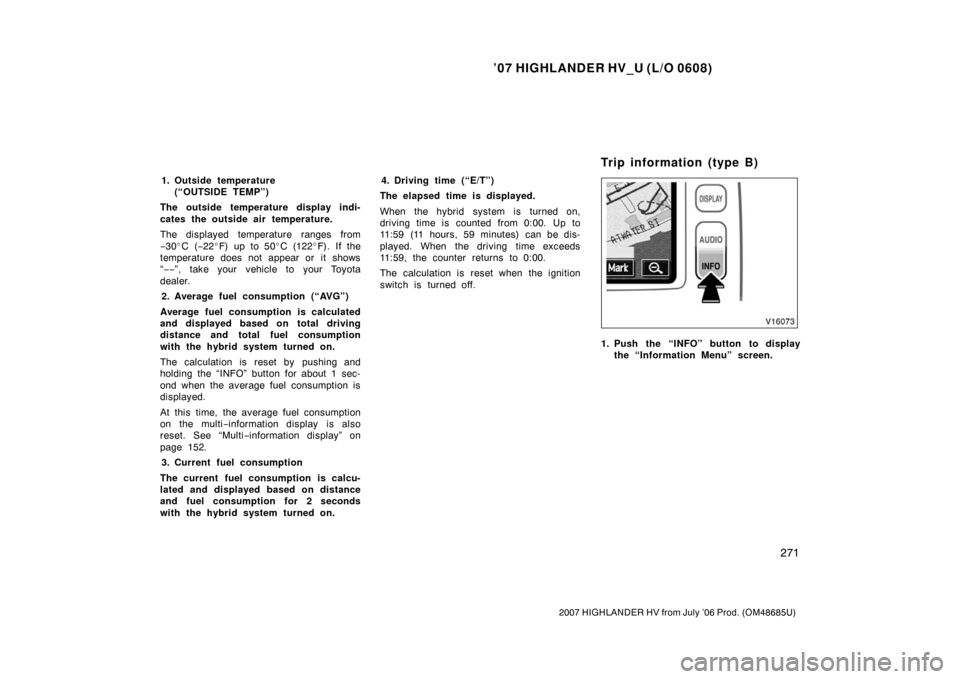

1. Push the “INFO” button to display the “Information Menu” screen.
Tr ip in f o rmat io n (t yp e B)

’07 HIGHLANDER HV_U (L/O 0608)
273
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The displayed values on the screen indi-
cate general driving conditions. Accuracy
varies with driving habits and road condi-
tions.
When the ignition switch is on, the last
previously used mode displayed just be-
fore the ignition switch is off will appear.
If the electrical power source is discon-
nected from the navigation system screen,
the screen will automatically be set to the
initial mode.1. Regenerated energy in the past 30 minutes
The regenerated energy in the past 30
minutes is indicated with symbols.
One symbol indicates 50 Wh. Up to 4
symbols will be shown. The energy of 50
Wh illuminates a 50 W bulb for an hour. 2. Fuel consumption in the past 30 minutes
Fuel consumption in the past 30 min-
utes is displayed. 3. Average fuel consumption
(“AVERAGE”)
Average fuel consumption is calculated
and displayed based on total driving
distance and total fuel consumption.
The calculation is reset by touching the
“Reset” switch. The trip distance is also
reset.
At this time, the average fuel consumption
on the multi −information display is also
reset. See “Multi −information display” on
page 152.
4. Outside temperature (“OUTSIDE TEMP”)
Outside temperature is displayed.
The displayed temperature ranges from
− 30 C ( −22 F) up to 50 C (122 F). If the
temperature does not appear or it shows
“ −−”, take your vehicle to your Toyota
dealer.
The outside temperature is also displayed
on the “Energy Monitor” screen.
5. Current fuel consumption (“Current”)
The current fuel consumption is calcu-
lated and displayed based on distance
and fuel consumption. 6. Trip distance
The trip distance is displayed.
The calculation is reset by touching the
“Reset” switch. The average fuel con-
sumption is also reset.
Up to 6499 km or 6499 miles can be
displayed. When the trip distance exceeds
6499 km or 6499 miles, the distance re-
turns to 0 km or 0 mile.

’07 HIGHLANDER HV_U (L/O 0608)
274
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Energy Monitor screen
Touching the “Energy” switch turns on
the “Energy Monitor” that displays the
hybrid system operating condition.
The arrow on the screen indicates the
movement of the energy. See “Energy
monitor” on page 2 for the representative
screen.
The segment of the battery on the screen
indicates the status of the hybrid battery.
See “—Hybrid battery status” on page 4
for details.
To reset the hour: Push the “H” button.
To reset the minutes: Push the “M” button.
The key must be in the “ACC” or “ON”
position.
If the electrical power source has been
disconnected from the clock, the time dis-
play will automatically be set to 1:00 (one
o’clock).The direction is indicated on the inside
rear view mirror.
If the ignition switch was turned off with
the system on, the system will automati-
cally turn back on when the ignition switch
is turned on.
Push the “
” switch to turn the compass
system on and off.
Clock Compass

’07 HIGHLANDER HV_U (L/O 0608)
275
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The compass indicates the direction
that the vehicle is heading. In the
above case, it shows that the vehicle is
heading north.Displays
Directions
N
NE E
SE
S
SW W
NWNorth
Northeast East
Southeast
South
Southwest West
Northwest
The compass may not show the correct
direction in the following conditions:
The vehicle is stopped immediately af-
ter turning.
The compass does not adjust while the
vehicle is stopped.
The ignition switch is turned off imme-
diately after turning.
The vehicle is on an inclined surface.
The vehicle is in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
The vehicle is magnetized. (There is a
magnet or a metal object on or near
the inside rear view mirror.)
The 12 volt battery has been discon-
nected.
If your vehicle is out of the set zone,
refer to “CALIBRATING THE COMPASS”
below to set the zone number.
If the deviation is small, the compass
works to calibrate the direction automati-
cally while the vehicle is in motion.
For additional precision or for complete
calibrating, see “CALIBRATING THE
COMPASS” below.

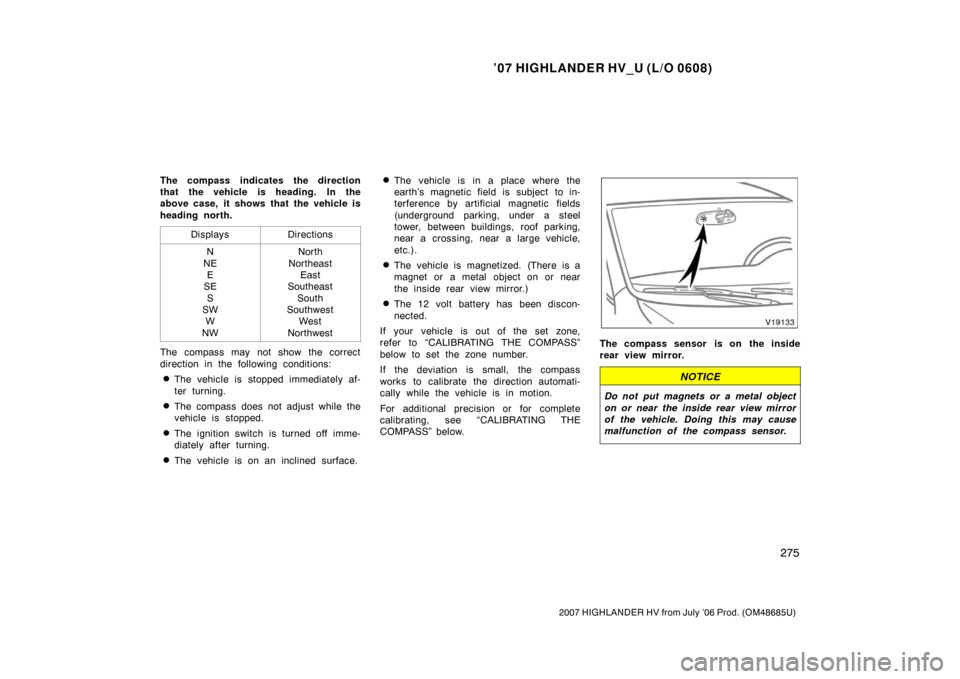

The compass sensor is on the inside
rear view mirror.
NOTICE
Do not put magnets or a metal object
on or near the inside rear view mirror
of the vehicle. Doing this may cause
malfunction of the compass sensor.

’07 HIGHLANDER HV_U (L/O 0608)
276
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
CALIBRATING THE COMPASS (deviation
calibration)
The direction display on the compass
deviates from the true direction deter-
mined by the earth’s magnetic field. The
angle of deviation varies according to the
geographic position of the vehicle.
To adjust this deviation, stop the vehicle,
then push and hold the “
” switch until
the zone number appears on the display.
Then push the “
” switch, referring to
the following map to select the number of
the zone where the vehicle is.

’07 HIGHLANDER HV_U (L/O 0608)
277
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Zone number
After calibration, leaving the system for
several seconds returns it to the compass
mode.
CAUTION
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Samoa: 5 Guam: 8 Saipan: 8

’07 HIGHLANDER HV_U (L/O 0608)
278
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
CALIBRATING THE COMPASS (circling
calibration)
Sometimes the direction display on the
compass may not change after a turn. To
rectify this, stop the vehicle and push and
hold the “
” switch until “C” appears on
the display.
If “C” appears on the display because of
a drastic change in the magnetic field,
perform circling calibration.
Drive the vehicle in a circle at 8 km/h (5
mph) or less. If there is not enough space
to drive in a circle, drive around the
block.
After driving 1 to 3 circles in the above
method, calibration is completed when the
direction is shown on the display.
If calibration cannot be performed because
of the magnetized vehicle etc., take your
vehicle to Toyota dealer. Perform circling calibration just after
you have purchased your Toyota. And
then always perform circling calibration
after the 12 volt battery has been re-
moved, replaced or disconnected.
Do not perform circling calibration of
the compass in a place where the
earth’s magnetic field is subject to in-
terference by artificial magnetic fields
(underground parking, under a steel
tower, between buildings, roof parking,
near a crossing, near a large vehicle,
etc.).
During calibration, do not operate elec-
tric systems (moonroof, power win-
dows, etc.) as they may interfere with
the calibration.

’07 HIGHLANDER HV_U (L/O 0608)
279
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
CAUTION
When doing the circling calibration,
be sure to secure a wide space,
and watch out for people and ve-
hicles in the neighborhood. Do not
violate any local traffic rules while
performing circling calibration.
Do not adjust the display while the
vehicle is moving. Be sure to adjust
the display only when the vehicle is
stopped.
Front
Rear

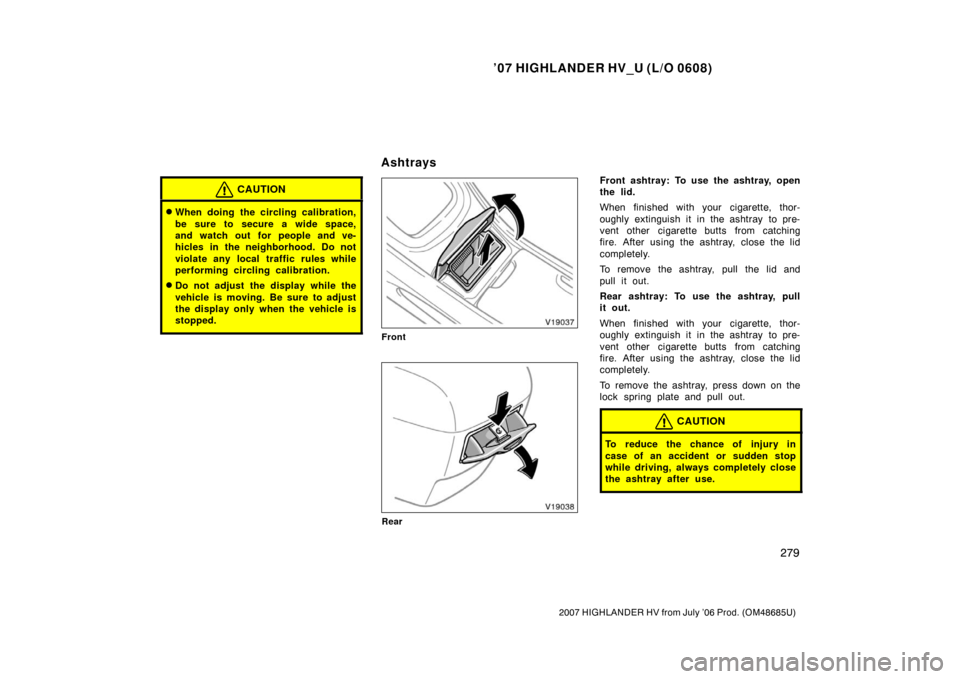

Front ashtray: To use the ashtray, open
the lid.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, close the lid
completely.
To remove the ashtray, pull the lid and
pull it out.
Rear ashtray: To use the ashtray, pull
it out.
When finished with your cigarette, thor-
oughly extinguish it in the ashtray to pre-
vent other cigarette butts from catching
fire. After using the ashtray, close the lid
completely.
To remove the ashtray, press down on the
lock spring plate and pull out.
CAUTION
To reduce the chance of injury in
case of an accident or sudden stop
while driving, always completely close
the ashtray after use.
