2007 TOYOTA HIGHLANDER HYBRID light

’07 HIGHLANDER HV_U (L/O 0608)
16
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
1. Headlight, turn signal and front foglight switches
2. Wiper and washer switches
3. Emergency flasher switch
4. Clock
∗
5. Front passenger ’s seat belt reminder light
6. Navigation system including air conditioning controls
∗
7. Rear window and outside rear viewmirror defogger and windshield wiper
de− icer switch
8. Audio system
∗
9. Front passenger airbag on− off indicator
lights
10. Seat heater switches
11. Power outlet (12 VDC)
12. Cruise control switch
13. Ignition switch
14. Tilt steering lock release lever
15. Power outlet (115 VAC) main switch
16. Rear heater main switch
17. Theft deterrent system/engine immobilizer system indicator light
18. Power rear view mirror control switches
∗: See the separate “Navigation System Owner ’s Manual”.

Vehicles with automatic air conditioning controls (view B with navigation system)

’07 HIGHLANDER HV_U (L/O 0608)
17
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
1. Power meter
2. Service reminder indicators andindicator lights
3. Speedometer 4. Fuel gauge
5. Low fuel level warning light
6. Engine coolant temperature gauge
7. Multi
−information mode button
8. Multi −information display
9. Instrument panel light control/trip meter reset knob
Instrument cluster overview

’07 HIGHLANDER HV_U (L/O 0608)
18
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Brake system warning light∗1
Charging system warning light∗1
Malfunction indicator lamp∗1
SRS warning light∗1
Driver ’s seat belt reminder light∗1
Open door warning light∗1
Electric power steering system warning light∗1
oror
Master warning light
∗1
Anti −lock brake system warning light∗
1or
Front passenger ’s seat belt reminder light∗1
(red
indicator)
Hybrid battery warning light
∗1Driving ready light
(yellow
indicator)
Indicator symbols on the instrument panel

’07 HIGHLANDER HV_U (L/O 0608)
19
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
∗1: For details, see “Service reminder indicators and warning
buzzers” on page 144 in Section 1 −6.
∗
2: If this light flashes, see “Cruise control” on page 172 in
Section 1 −7.
Cruise control indicator light
∗ 2
Slip indicator light
Turn signal indicator lights
Transmission indicator lights
Headlight high beam indicator light
Headlight indicator light
Tail light indicator light
“AIRBAG ON” indicator light
“AIRBAG OFF” indicator light

’07 HIGHLANDER HV_U (L/O 0608)
24
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)

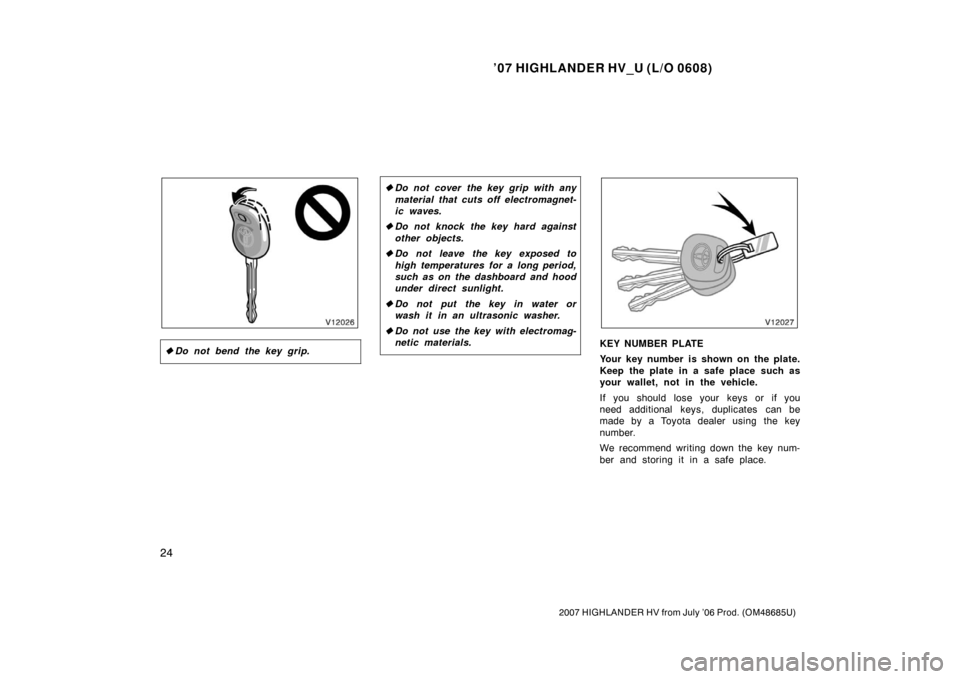

Do not bend the key grip.
Do not cover the key grip with any
material that cuts off electromagnet-
ic waves.
 Do not knock the key hard against
other objects.
 Do not leave the key exposed to
high temperatures for a long period,
such as on the dashboard and hood
under direct sunlight.
 Do not put the key in water or
wash it in an ultrasonic washer.
 Do not use the key with electromag-
netic materials.
KEY NUMBER PLATE
Your key number is shown on the plate.
Keep the plate in a safe place such as
your wallet, not in the vehicle.
If you should lose your keys or if you
need additional keys, duplicates can be
made by a Toyota dealer using the key
number.
We recommend writing down the key num-
ber and storing it in a safe place.

’07 HIGHLANDER HV_U (L/O 0608)
25
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
The engine immobilizer system is a
theft prevention system. When you in-
sert the key in the ignition switch, the
transponder chip in the key’s head
transmits an electronic code to the ve-
hicle. The hybrid system will start only
when the electronic code in the chip
corresponds to the registered ID code
for the vehicle.The system is automatically set when the
key is removed from the ignition switch.
The indicator light will start flashing to
show the system is set.
In the following cases, contact your Toyota
dealer.
The indicator light stays on.
The indicator light does not start flash-
ing when the key is removed from the
ignition switch.
The indicator light flashes inconsistent-
ly.
Inserting the registered key in the ignition
switch automatically cancels the immobiliz-
er system, which enables the hybrid sys-
tem to start. The indicator light will go off. For your Toyota dealer to make you a
new key with built
−in transponder chip,
your dealer will need your key number
and master key. However, there is a limit
to the number of additional keys your
Toyota dealer can make for you.
If you make your own duplicate key,
you will not be able to cancel the im-
mobilizer system or start the hybrid
system.
NOTICE
Do not modify, remove or disas-
semble the engine immobilizer sys-
tem. If any unauthorized changes or
modifications are made, proper opera-
tion of the system cannot be guaran-
teed.
Engine immobilizer system

’07 HIGHLANDER HV_U (L/O 0608)
28
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
Reorient or relocate the receiving an-
tenna.
Increase the separation between the
equipment and receiver.
Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
Consult the dealer or an experienced
radio/TV technician for help.
FCC WARNING:
Changes or modifications not ex-
pressly approved by the party respon-
sible for compliance could void the
user’s authority to operate the equip-
ment.
For vehicles sold in Canada
Operation is subject to the following two
conditions:
(1) this device may not cause interfer-
ence, and (2) this device must accept
any interference, including interference
that may cause undesired operation of
the device.
Locking operation
Unlocking operation
To lock and unlock all the side doors
and back door, push the switches of
the transmitter slowly and securely.
To lock: Push the “LOCK” switch. All the
side doors and back door are locked si-
multaneously. At this time, one beep will
be heard, and the turn signal lights flash
once.
Check to see that all the side doors and
back door are securely locked.
If any of the side doors or back door is
not securely closed, locking cannot be
performed by the “LOCK” switch and a
beep will sound continuously for 10 sec-
onds. However, if the key is in the igni-
tion, a beep will not sound.
To stop the beep, close all the side doors
and back door securely or push the
“UNLOCK” switch.
The beep can be disabled. For details,
contact your Toyota dealer.
To unlock: Push the “UNLOCK” switch
once to unlock the driver ’s door alone.
Pushing the switch twice within 3 seconds
unlocks all the side doors and back door
simultaneously. Each time the “UNLOCK”
switch is pushed, two beeps will be heard,
and the turn signal lights flash twice.
—Locking and unlocking
doors

’07 HIGHLANDER HV_U (L/O 0608)
29
2007 HIGHLANDER HV from July ’06 Prod. (OM48685U)
This double switch operation to unlock all
the side doors and back door can be
changed to a single switch operation. For
details, contact your Toyota dealer.
When all the side doors and back door
are unlocked simultaneously with a wire-
less remote control transmitter, the center
interior light, personal lights and ignition
switch light come on for about 15 seconds
before fading out, even if the door is not
opened. (For details, see “Interior lights”
on page 135, “Personal lights” on page
136 and “Ignition switch light” on page
137 in Section 1−5.)
You have 30 seconds to open a door after
using the wireless remote unlock feature.
If a door is not opened by then, all the
side doors and back door will be automati-
cally locked again. At this time, one beep
will be heard, and the turn signal lights
flash once.
The timing for the automatic door lock
function can be changed. For details, con-
tact your Toyota dealer.
If the “LOCK” or “UNLOCK” switch is kept
pressed in, the locking or unlocking opera-
tion is not repeated. Release the switch
and then push again. The wireless door locking or unlocking
function can be erased. For details, con-
tact your Toyota dealer.
You can switch the beep on and off. (The
beep is on initially and after battery re-
placement.)
To switch the beep on and off:
With the driver ’s door opened—
1. Insert the ignition key and remove it.
2. Within 5 seconds, insert the ignition key again and turn it to the “ON” posi-
tion.
3. After 10 seconds, push the same “LOCK”, “UNLOCK” or “PANIC” switch
twice within 10 seconds.
Two beep sounds inform you that the
program has been switched on or off.
If this procedure is not followed exactly,
the beep will not operate as expected.
Check the beep on/off operation by push-
ing the transmitter switch after you finish
this procedure. If the beep does not oper-
ate as expected, repeat this procedure
from step 1.
—Switching beep sound
