2007 TOYOTA COROLLA Owners Manual

’07 Corolla_U (L/O 0608)
79
2007 COROLLA from June ’06 Prod. (OM12B07U)
2. To remove the booster seat, press thebuckle release button and allow the
belt to retract.Follow the procedure below for a child
restraint system that requires the use
of a top strap.
Anchor brackets Symbol
Use the anchor brackets on the luggage
compartment to attach the top strap.
Anchor brackets are installed for each
rear seating position.
This symbol indicates the locations of the
anchor brackets.
— U sin g a to p st rap

’07 Corolla_U (L/O 0608)
80
2007 COROLLA from June ’06 Prod. (OM12B07U)
TO USE THE ANCHOR BRACKET:1. Remove the head restraint.2. Open the lid of the anchor bracket.3. Securely fasten the child restraint system with the seat belt.
Latch the hook onto the anchor
bracket and tighten the top strap.
For instructions to install the child re-
straint system, see “Child restraint” on
page 66 in this Section.
CAUTION
Make sure the top strap is securely
latched, and check that the child re-
straint system is secure by pushing
and pulling it in different directions.
Follow all the installation instructions
provided by its manufacturer.

’07 Corolla_U (L/O 0608)
81
2007 COROLLA from June ’06 Prod. (OM12B07U)

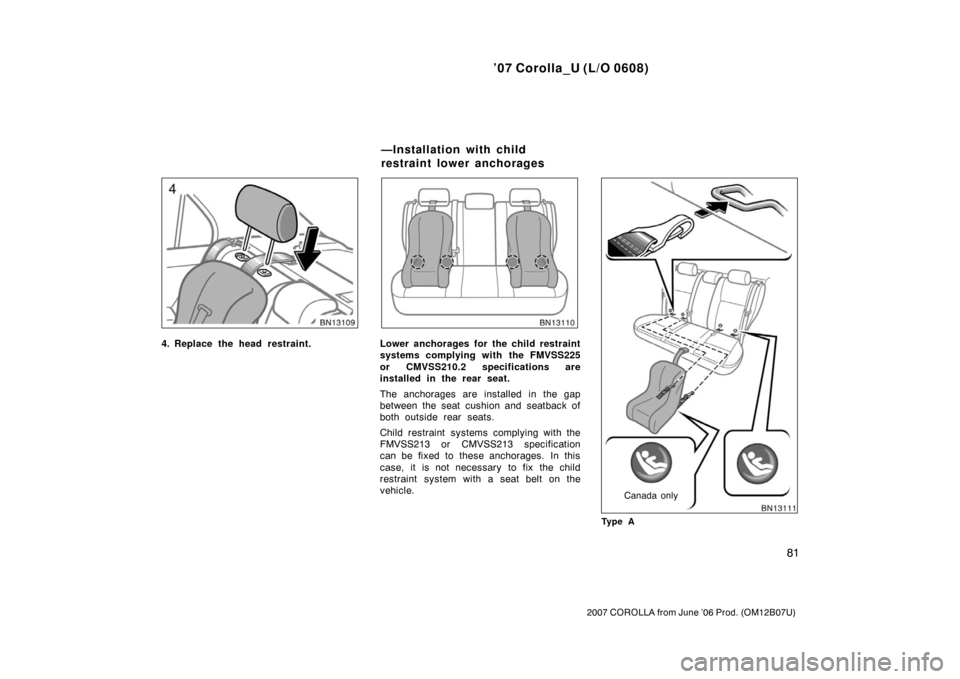

4. Replace the head restraint.Lower anchorages for the child restraint
systems complying with the FMVSS225
or CMVSS210.2 specifications are
installed in the rear seat.
The anchorages are installed in the gap
between the seat cushion and seatback of
both outside rear seats.
Child restraint systems complying with the
FMVSS213 or CMVSS213 specification
can be fixed to these anchorages. In this
case, it is not necessary to fix the child
restraint system with a seat belt on the
vehicle.
Canada only
Ty p e A
—Installation with child
restraint lower anchorages

’07 Corolla_U (L/O 0608)
82
2007 COROLLA from June ’06 Prod. (OM12B07U)
Canada only
Ty p e B
CHILD RESTRAINT SYSTEM
INSTALLATION 1. Widen the gap between the seat cushion and seatback slightly and
confirm the position of the lower an-
chorages near the button on the
seatback.
2. Type A—Latch the hooks of lower straps onto the anchorages and
tighten the lower straps.
Type B—Latch the buckles onto the
anchorages.
For owners in Canada— The symbol on
a child restraint system indicates the pres-
ence of a lower connector system.
If your child restraint system has a top
strap, it should be anchored. (For the
installation of the top strap, see “—Using
a top strap” on page 79 in this Section.)
For installation details, refer to the instruc-
tion manual equipped with each product.CAUTION
When using the lower anchorages
for the child restraint system, be
sure that there are no irregular ob-
jects around the anchorages or that
the seat belt is not caught.
Push and pull the child restraint
system in different directions to be
sure it is secure. Follow all the
installation instructions provided by
its manufacturer.
Do not install a child restraint sys-
tem on the rear seat if it interferes
with the lock mechanism of the
front seats. Otherwise, the child or
front seat occupant(s) may be killed
or seriously injured in case of sud-
den braking or a collision.

’07 Corolla_U (L/O 0608)
83
2007 COROLLA from June ’06 Prod. (OM12B07U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Steering wheel and Mirrors
Tilt steering wheel84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . . . .
Outside rear view mirrors 84
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
.
Anti −glare inside rear view mirror 86
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Auto anti −glare inside rear view mirror 86
. . . . . . . . . . . . . . . . . . . . . . . . .
Vanity mirrors 87
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
SECTION 1 4

’07 Corolla_U (L/O 0608)
84
2007 COROLLA from June ’06 Prod. (OM12B07U)
To change the steering wheel angle,
hold the steering wheel, push down the
lock release lever, tilt the steering
wheel to the desired angle and return
the lever to its original position.
CAUTION
Do not adjust the steering wheel
while the vehicle is moving. Doing
so may cause the driver to mishan-
dle the vehicle and an accident may
occur resulting in death or serious
injuries.
After adjusting the steering wheel,
try moving it up and down to make
sure it is locked in position.
Adjust the mirror so that you can just
see the side of your vehicle in the mir-
ror.
Be careful when judging the size or dis-
tance of any object seen in the outside
rear view mirror on the passenger ’s side
because it is a convex mirror. Any object
seen in a convex mirror will look smaller
and farther away than when seen in a flat
mirror.
Tilt steering wheelOutside rear view mirrors—

’07 Corolla_U (L/O 0608)
85
2007 COROLLA from June ’06 Prod. (OM12B07U)
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
NOTICE
The outside rear view mirrors are
fixed in place. Do not try to fold the
mirrors. It may damage the mirrors.
To adjust a mirror, use the switches.1. Master switch—To select the mirror to be adjusted
Push the switch to “L” (left) or “R”
(right).
2. Control switch—To move the mirror Push the switch in the desired direc-
tion.
Mirrors can be adjusted when the key is
in the “ACC” or “ON” position.
NOTICE
If ice should jam the mirror, do not
operate the control or scrape the mir-
ror face. Use a spray deicer to free
the mirror.
—Power rear view mirror
control

’07 Corolla_U (L/O 0608)
86
2007 COROLLA from June ’06 Prod. (OM12B07U)
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
To reduce glare from the headlights of
the vehicle behind you during night
driving, operate the lever on the lower
edge of the mirror.
Daylight driving—Lever at position 1
The reflection in the mirror has greater
clarity at this position.
Night driving—Lever at position 2
Remember that by reducing glare you also
lose some rear view clarity.
CAUTION
Do not adjust the mirror while the
vehicle is moving. Doing so may
cause the driver to mishandle the ve-
hicle and an accident may occur re-
sulting in death or serious injuries.
Adjust the mirror so that you can just
see the rear of your vehicle in the mir-
ror.
This mirror is equipped with auto anti
glare function. The function is designed
to reduce glare from the headlights of
the vehicle behind you during night
driving.
When the ignition key is inserted and
turned on, the inside rear view mirror al-
ways turns on in the automatic function
mode.
The indicator illuminates to show you that
the function is on.
Antiglare inside rear view
mirrorAuto antiglare inside rear
view mirror
