2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
OPERATION OF INSTRUMENTS AND
CONTROLS
Hybrid vehicle overview
Toyota hybrid system2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .\
. . . .
Fuel consumption indicators 2
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Energy monitor 3
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. . . . . . . . . . .
Starting your hybrid vehicle 5
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Efficient use of your hybrid vehicle 6
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Precautions for the use of hybrid vehicle 7
. . . . . . . . . . . . . . . . . . . . . . . .
Road accident cautions 13
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
. .
Instrument panel overview 14
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . \
Steering switches and overhead console overview 16
. . . . . . . . . . . . . .
Instrument cluster overview 17
. . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . .
Indicator symbols on the instrument panel 18
. . . . . . . . . . . . . . . . . . . . . .
SECTION 1 1

’07Camry hybrid_U (L/O 0610)
2
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Toyota hybrid system combines the
power of an engine and a traction mo-
tor to minimize fuel consumption and
emissions.
Depending on driving conditions, the ve-
hicle runs optimally on a combination of
the engine and traction motor.
Since the engine charges the hybrid bat-
tery as needed, the battery does not have
to be charged from an outside source like
an electric vehicle.In your hybrid vehicle, there are several
indicators that show different aspects
of fuel consumption:

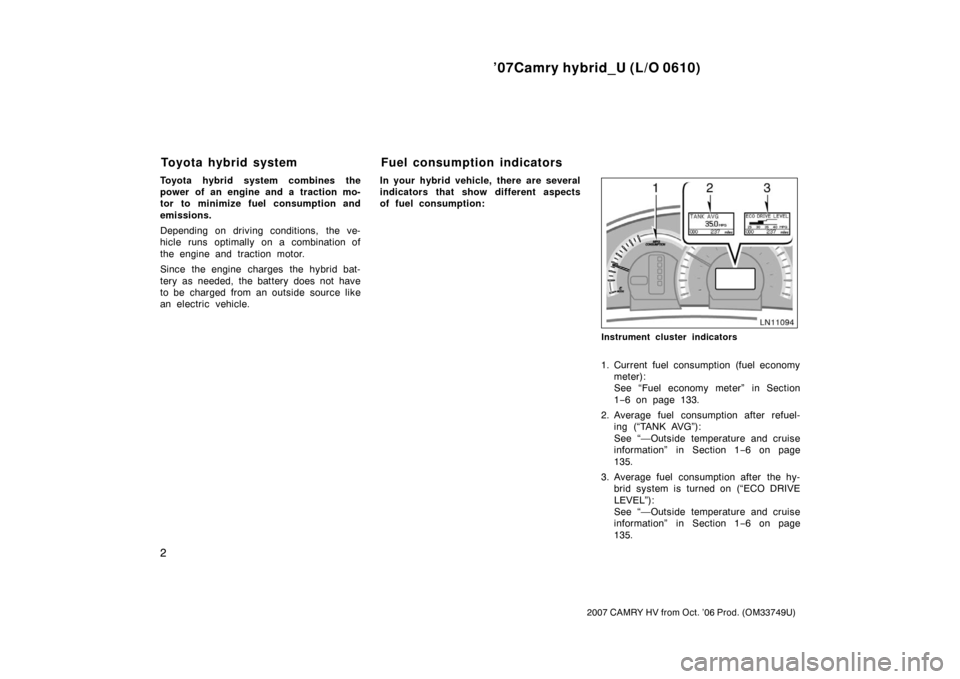

Instrument cluster indicators
1. Current fuel consumption (fuel economy
meter):
See “Fuel economy meter” in Section
1−6 on page 133.
2. Average fuel consumption after refuel- ing (“TANK AVG”):
See “—Outside temperature and cruise
information” in Section 1 −6 on page
135.
3. Average fuel consumption after the hy- brid system is turned on (“ECO DRIVE
LEVEL”):
See “—Outside temperature and cruise
information” in Section 1 −6 on page
135.
Toyota hybrid system Fuel consumption indicators

’07Camry hybrid_U (L/O 0610)
14
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
1. Side defroster outlets
2. Side vents
3. Instrument cluster
4. Center vents
5. Power door lock switches
6. Power window switches
7. Glove box
8. Cup holder
9. Rear console box
10. Rear vents
11. Power outlet
12. Transmission selector lever
13. Seat heater switches
14. Tilt and telescopic steering wheel lock release lever
15. Hood lock release lever
16. Parking brake pedal
17. Window lock switch
Instrument panel overview

’07Camry hybrid_U (L/O 0610)
17
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
LN11126y
1. Engine coolant temperature gauge
2. Service reminder indicators andindicator lights
3. Fuel economy meter 4. Transmission shift position indicator
lights
5. Speedometer
6. Fuel gauge 7. Trip meter reset knob/instrument panel
light control knob
8. Multi −information display
9. Driving ready light
Instrument cluster overview

’07Camry hybrid_U (L/O 0610)
120
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
HEADLIGHTS
Manual operation—
To turn on the following lights: Twist
the headlight/turn signal lever knob.
Position 1—Parking, tail, license plate,
side marker and instrument panel lights
Position 2—Headlights and all of the
above
The headlight indicator lights up in the
instrument cluster.When the tail lights/headlights are turned
on, the brightness of the instrument clus-
ter will be reduced slightly unless the in-
strument panel light control knob is turned
fully clockwise.
However, the brightness of the instrument
cluster will not be reduced in daytime
even when the tail lights/headlights are
turned on.
Automatic operation—
To turn on or off the lights automatical-
ly, twist the headlight/turn signal lever
knob to the “AUTO” position when the
“POWER” switch is set at ON.
The headlights and/or all of the lights in
position 1 automatically turn on or off de-
pending on the darkness of the surround-
ings.
Manually twist the knob to the position 2
to turn on the headlights if they are need-
ed immediately when entering a dark tun-
nel, parking structure, etc.The automatic light control sensor is on
the top of the instrument panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.
If you feel that the automatic light control
comes into operation too early or too late,
have the sensor adjusted by your Toyota
dealer.
Headlights and turn signals
( f o r th e U.S.A .)

’07Camry hybrid_U (L/O 0610)
123
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Manually twist the knob to the position 2
to turn on the headlights if they are need-
ed immediately when entering a dark tun-
nel, parking structure, etc.
When the tail lights/headlights are turned
on, the brightness of the instrument clus-
ter will be reduced slightly unless the in-
strument panel light control knob is turned
fully clockwise.
However, the brightness of the instrument
cluster will not be reduced in daytime
even when the tail lights/headlights are
turned on.
The automatic light control sensor is on
the top of the instrument panel.
Do not place anything on the instrument
panel, and/or do not affix anything on the
windshield to block this sensor.
If you feel that the automatic light control
comes into operation too early or too late,
have the sensor adjusted by your Toyota
dealer.Automatic light cut off system
Position 1 or position 3 with the tail
lights on—
The lights automatically turn off when the
driver ’s door is opened after the “POWER”
switch is turned off.
Position 2 or position 3 with the head-
lights on—
The lights automatically turn off after 30
seconds when any of the doors or trunk
lid is opened and closed after the
“POWER” switch is turned off.
The lights can be turned off immediately
by pushing the lock switch on the elec-
tronic key with all the doors locked and
the trunk lid closed.
The time period before the lights turn off
can be changed. For details, ask your
Toyota dealer.
If any of the doors or trunk lid is left
open, the lights automatically turn off after
20 minutes.
To turn on the lights again, set the
“POWER” switch at ON or actuate the
headlight switch. If you are going to park
for over one week, make sure the knob is
in the “OFF” position.

’07Camry hybrid_U (L/O 0610)
126
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
To adjust the brightness of the instru-
ment panel lights, turn the knob.
With the knob turned fully clockwise, the
intensity of the instrument cluster lights
will not be reduced even when the tail
lights/headlights are turned on.Without moon roof
With moon roof
To turn on the interior light, slide the
switch.
The interior light switch has the following
positions:
“ON”—Keeps the light on all the time.
“OFF”—Turns the light off.
“DOOR”—Turns the light on when the illu-
minated entry system acts. For details,
see “Illuminated entry system” on page
127 in this Section.
Instrument panel light control Interior light

’07Camry hybrid_U (L/O 0610)
162
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Your transmission has a shift lock system
to minimize the possibility of incorrect
operation. This means you can only shift
out of “P” position when the brake pedal
is depressed (with the “POWER” switch
set at ON).
(a) Selector lever
The shift position is also displayed on the
instrument cluster.
P:Parking, hybrid system starting
R: Reverse
N: Neutral
D: Normal driving
B: Engine braking
Transmission
Shift with the brake pedal
depressed.
(The “POWER” switch must be
set at ON.)
Shift normally.
Selector lever
