2007 TOYOTA CAMRY HYBRID bluetooth

’07Camry hybrid_U (L/O 0610)
211
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
This system supports Bluetooth, a
wireless system that allows you to
make or receive calls without taking
your hands from the steering wheel and
without using cables to connect the
phone and system.
The phone must be paired to the system
before using the hands −free feature. If
your cellular phone does not support Blue-
tooth , this system will not function.
CAUTION
While you are driving, do not use a
cellular phone or connect the
Bluetooth  phone.
NOTICE
Do not leave your cellular phone in
the car. The temperature indoor may
be high and damage the phone.
The system may not function in the follow-
ing conditions and places:
The cellular phone is turned off.
The current position is outside the
communication area.
The cellular phone is not connected.
The cellular phone has a low battery.
The cellular phone is hiding behind the
seat or in the glove box and console
box.
The cellular phone touches or is cov-
ered with metal materials.
This system supports the following ser-
vice.
HFP (Hands Free Profile) Ver. 1.0
OPP (Object Push Profile) Ver. 1.1
If your cellular phone does not support
HFP, you cannot enter the Bluetooth
phone, and take OPP service individually.
BLUETOOTH is a trademark owned by
Bluetooth SIG. Inc.
—Some basics

’07Camry hybrid_U (L/O 0610)
212
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
When transferring ownership of the ve-
hicle:
A lot of personal data is registered
when you use the handsfree system.
When transferring ownership of the ve-
hicle, initialize the system.
If you initialize it, the former state will
never come back again. Pay much atten-
tion when initializing the data.
You can initialize the following data in the
system.
Phone book data
Dialed numbers and received calls
Speed dial
Bluetooth phone data
Security code

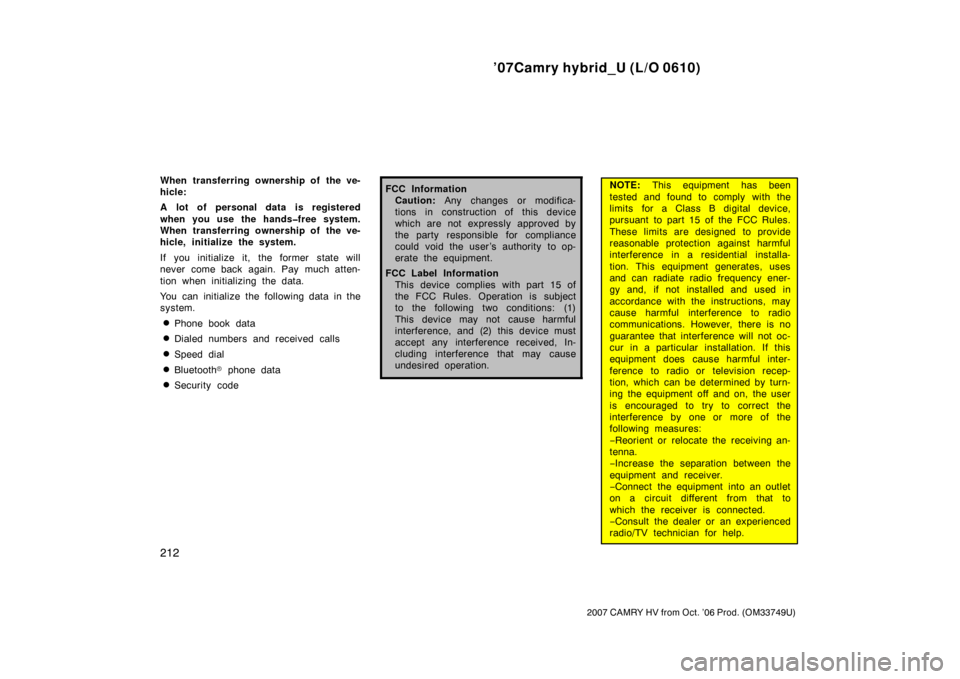

FCC Information
Caution: Any changes or modifica-
tions in construction of this device
which are not expressly approved by
the party responsible for compliance
could void the user’s authority to op-
erate the equipment.
FCC Label Information This device complies with part 15 of
the FCC Rules. Operation is subject
to the following two conditions: (1)
This device may not cause harmful
interference, and (2) this device must
accept any interference received, In-
cluding interference that may cause
undesired operation.NOTE: This equipment has been
tested and found to comply with the
limits for a Class B digital device,
pursuant to part 15 of the FCC Rules.
These limits are designed to provide
reasonable protection against harmful
interference in a residential installa-
tion. This equipment generates, uses
and can radiate radio frequency ener-
gy and, if not installed and used in
accordance with the instructions, may
cause harmful interference to radio
communications. However, there is no
guarantee that interference will not oc-
cur in a particular installation. If this
equipment does cause harmful inter-
ference to radio or television recep-
tion, which can be determined by turn-
ing the equipment off and on, the user
is encouraged to try to correct the
interference by one or more of the
following measures:
− Reorient or relocate the receiving an-
tenna.
− Increase the separation between the
equipment and receiver.
− Connect the equipment into an outlet
on a circuit different from that to
which the receiver is connected.
− Consult the dealer or an experienced
radio/TV technician for help.

’07Camry hybrid_U (L/O 0610)
216
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
DISPLAY1. Bluetooth  display
Displays when a Bluetooth  connection is
made. If there is no display, the
Bluetooth  connection has not been made
and communication between the phone
and system is not possible. When using
the hands −free system, make sure that
“BT” is displayed. The display is updated
in real time. 2. Reception level display
Displays the reception level of the radio
wave signals. This may not match the
display on the cellular phone. The recep-
tion level of some cellular phones may not
be displayed.
The number of bars is greater when the
signal received is stronger.
3. Message display
Displays phone numbers, names, com-
ments, menu items, etc. The phone setup menu includes the fol-
lowing:
Pair Phone
To use the hands −free system, you need
to register your phone in the system.
Once you have registered it, you can
make a hands −free call. Up to 6 phones
can be registered.
Select Phone
When the system connects to Bluetooth ,
the phone previously used is automatically
selected. Select a different phone if nec-
essary. Only the selected phone can be
used with the hands −free system.
Change Name
The registered phone names can be
changed.
List Phones
The registered phone names can be
checked.
The following can be performed during the
name playback:
Select phone
Change name
Delete
—Phone Setup

’07Camry hybrid_U (L/O 0610)
238
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
Cancel operation—
Do either one of the following:
Push the onhook switch at anytime
during the operation.
Push the talk switch and say “Can-
cel” after the beep at anytime dur-
ing the operation except while a call
is connected.
When receiving a phone call, a ring tone
is audible and the system changes into
the telephone mode.
When receiving a phone call, the display
is as follows. The display differs depend-
ing on whether or not the vehicle is in
motion.
When the vehicle is stopped:
Number, name or “Incoming” is displayed.
When the vehicle is in motion:
“Incoming” is displayed.
Do either one of the following:
Pushing the off−hook switch allows you
to talk on the phone.
Pushing the on −hook switch refuses
the call.
To adjust the ring volume, push “+” or “ −”
on the steering volume controls. Volume
adjustment cannot be done using the au-
dio system.
Repeatedly pushing “ −” on the steering
volume controls mutes the ring.
When receiving an international phone
call, the name of the party may not be
displayed correctly depending on the cellu-
lar phone. To transfer a call to the phone:
The received call can be transferred from
the hands
−free system to the cellular
phone that is connected to Bluetooth . For
details, refer to the user’s guide for the
cellular phone.
—Receiving a p hone call

’07Camry hybrid_U (L/O 0610)
239
2007 CAMRY HV from Oct. ’06 Prod. (OM33749U)
While talking on the phone, the display is
as follows. The display differs depending
on whether or not the vehicle is in motion.
When the vehicle is stopped:
Number is displayed.
When the vehicle is in motion:
“Talking” is displayed.
When the call is finished, push the on−
hook switch.
In the following situations, your voice may
not reach the party.
Talk alternately with the other party on
the phone. If you talk at the same
time, the voice may not reach each
other. (It is not a malfunction.)
Keep the volume of receiving voice
down. Otherwise, echo is coming up.
When you talk on the phone, speak
clearly towards the microphone.
When driving on a rough road.
When driving at high speeds.
When the window is open.
When the air conditioning vents face
the microphone.
When the sound of the air conditioning
fan is loud. To transfer a call from the phone:
Pushing the off
−hook switch while talking
on the cellular phone that is connected to
Bluetooth  allows you to talk hands −free.
To transfer a call to the phone:
The call can be transferred from the
hands −free system to the phone that is
connected to Bluetooth . For details, refer
to the user ’s guide for the cellular phone.
—Talking on the phone
