2007 TOYOTA 4RUNNER Quick Reference Guide

2007
Pocket Reference Guide
Customer Experience Center
1-800-331-4331
MN 00452-PRG07-4RUN
Printed in USA 07/06

Spare tire & tools
Tool location
Removing the spare tire
25
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Assemble the jack handle.
Insert the jack handle end through the opening in
the bumper, and into the lowering screw.
Turn the jack handle counterclockwise.
Refer to the Owner’s Manualfor tire changing and
jack positioning procedures.
!A word about safe vehicle operations This Pocket Reference Guideis a summary of
basic vehicle operations. It contains brief
descriptions of fundamental operations so you
can locate and use the vehicle’s main
equipment quickly and easily.
The Pocket Reference Guideis not intended
as a substitute for theOwner’s Manual
located in the vehicle’s glove box. We
strongly encourage you to review theOwner’s
Manual and supplementary manuals so you
will have a better understanding of the
vehicle’s capabilities and limitations.
Your dealership and the entire staff of Toyota
Motor Sales, U.S.A., Inc. wish you many years
of satisfied driving in your new 4Runner.
This Pocket Reference Guideis not a full
description of 4Runner operations. Every
4Runner owner should review the Owner’s
Manualthat accompanies this vehicle.
Pay special attention to the boxed
“ ” information highlighted in
this reference guide and throughout the
Owner’s Manual. Each box contains safe
operating instructions to help you avoid
injury or equipment malfunction.
All information in this Pocket Reference
Guideis current at the time of printing.
Toyota reserves the right to make changes
at any time without notice.
This utility vehicle has a significantly higher
rollover rate than other types of vehicles. Refer to
the Owner’s Manualfor important rollover
information.
2007
4Runner
Tool bag
Jack

1
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES

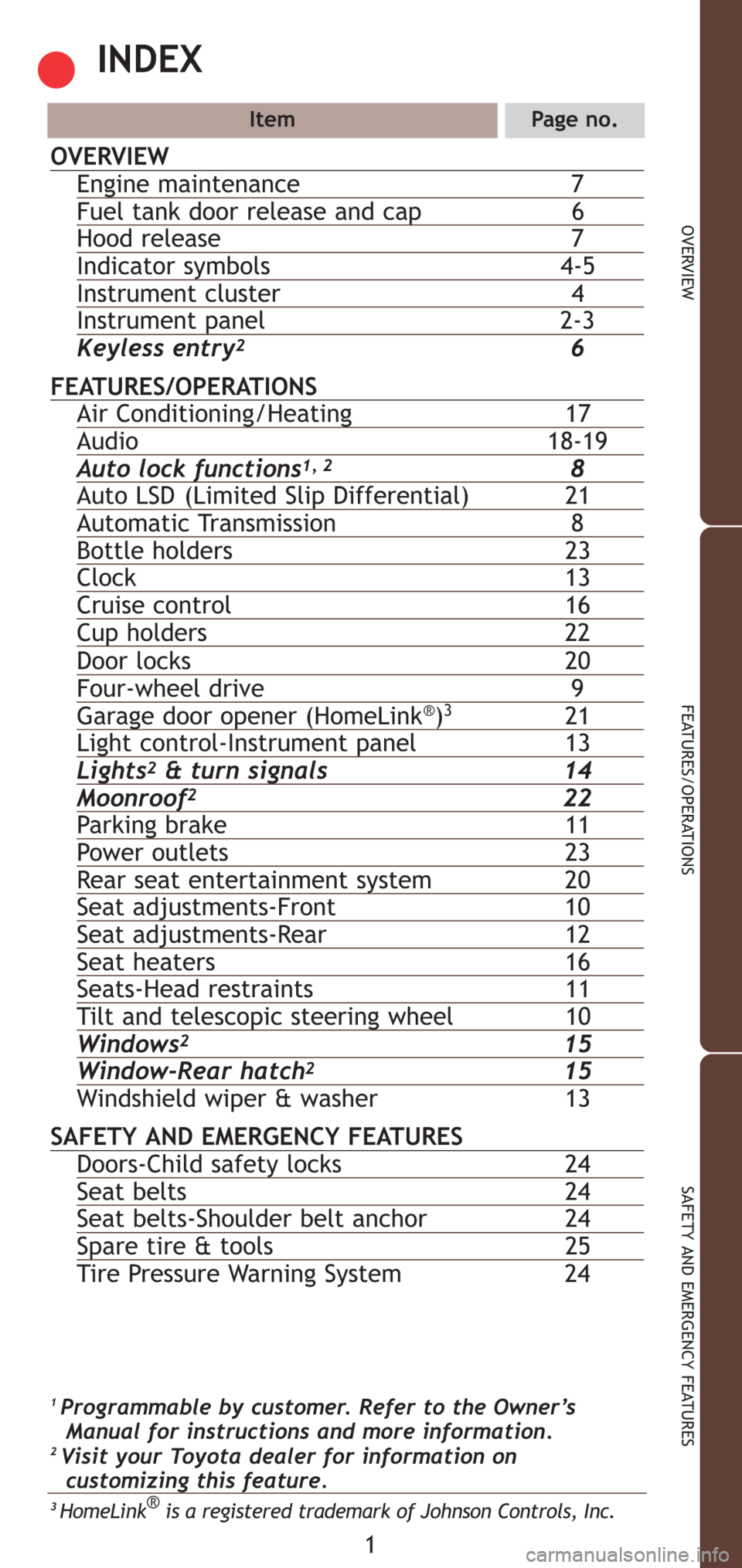

INDEX
ItemPage no.
OVERVIEWEngine maintenance 7Fuel tank door release and cap 6Hood release 7
Indicator symbols 4-5Instrument cluster 4Instrument panel 2-3
Keyless entry26
FEATURES/OPERATIONSAir Conditioning/Heating17Audio18-19Auto lock functions1, 28Auto LSD(Limited Slip Differential)21Automatic Transmission8Bottle holders 23Clock13Cruise control16Cup holders 22
Door locks 20Four-wheel drive9Garage door opener (HomeLink®)321Light control-Instrument panel13Lights2&turn signals14Moonroof222Parking brake11Power outlets 23Rear seat entertainment system 20Seat adjustments-Front10Seat adjustments-Rear12Seat heaters16Seats-Head restraints11Tilt and telescopic steering wheel10Windows215Window-Rear hatch215
Windshield wiper & washer13
SAFETY AND EMERGENCY FEATURESDoors-Child safety locks 24Seat belts 24Seat belts-Shoulder belt anchor 24Spare tire & tools 25
Tire Pressure Wa r n i n g System 24
1Programmable by customer.Refer to the Owner’s
Manual for instructions and more information.
2Visit your Toyota dealer for information on
customizing this feature.
3HomeLink®is a registered trademark of Johnson Controls, Inc.

3
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Hood release
Fuel tank door opener
“RSCA OFF”(Roll Sensing of Curtain shield Airbags
“OFF”) switch
1
“AUTO LSD” switch1
Center differential lock switch1
115V AC Power outlet ON/OFF switch1
Instrument panel light control
Steering wheel audio controls1,2
Te l e p h o n e switches1,2
Navigation voice command button1,2
12V DC Power outlet/Cigarette lighter
115V AC Power outlet1
AUX adapter
A/V input adapter1
1
If equipped2For details, refer to the “Navigation System
Owner’s Manual.”
2
OVERVIEW
Driving position memory switches1
Headlight, turn signal and front fog light1control
Wiper and washer controls
Power back window switch
Audio system or navigation system
1,2
Front passenger seat belt reminder light
Engine immobilizer/Theft deterrent system
indicator
1
Front passenger occupant classification indicator
Multi-information display
Emergency flasher switch
Air Conditioning controls
Auxiliary boxes
Back window and outside rear view mirror defogger
1
switch
Four-wheel drive selector1(full-time 4WD models)
or two wheel/four-wheel drive selector1(part-time
4WD models)
Ignition switch
Cruise control
Instrument panel
Steering wheel switches (if equipped)
Rear console box

5
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
1-7, 2007 Owner’s Manual.4If this light flashes, refer to “Rear height control air
suspension,” Section 1-7, 2007 Owner’s Manual.
5If this light flashes, refer to “Cruise control,” Section 1-7, 2007
Owner’s Manual.
Automatic Transmission indicator
Front passenger occupant classification indicator
Tu r n signal indicator
Front fog light indicator
Four-wheel drive indicator
3
Low speed four-wheel drive indicator3
Center differential lock indicator3
Slip indicator
Vehicle Stability Control “OFF” indicator
Downhill Assist Control indicator “AUTO LSD” indicator
Cruise control indicator5
Height control indicator
Height control “OFF” indicator4
Automatic Transmission fluid temperature
warning1
Low Tire Pressure Wa r n i n g1
Roll Sensing of Curtain shield Airbag “OFF”
indicator1,2
Engine immobilizer/Theft deterrent system
indicator
Open door warning1
Airbag SRS warning1
•Vehicle Stability Control warning1
•“AUTO LSD” warning1
•Tr a c t i o n Control warning1
•Downhill Assist Control warning1
•Active Tr a c t i o n Control warning1
•Hill-start Assist Control warning1
Headlight high beam indicator
4
OVERVIEW
1For details, refer to “Service reminder indicators and warning
buzzers,” Section 1-6, 2007 Owner’s Manual.
2For details, see “Roll sensing of curtain shield airbags off
switch,” Section 1-3, 2007 Owner’s Manual.
3If this light flashes, refer to “Four-wheel drive system,” Section
Tachometer
Speedometer
Service indicator and reminder
Fuel gauge
Low fuel level warning
Engine coolant temperature
Tr i p meter reset knob
Odometer and two trip meters
Height control indicator
Instrument cluster
Charging system warning1
Low engine oil pressure warning1
Brake system warning1
Malfunction/Check Engine indicator1
Engine oil replacement reminder1
Anti-lock Brake System warning1
When the Anti-lock Brake System (ABS) function is in
action, you may feel the brake pedal pulsating and
hear a noise. In this situation, to let the Anti-lock
Brake System work for you, just hold the brake pedal
down more firmly. Do not pump the brake as this will
result in reduced
braking performance.
Indicator symbols
Driver/Front passenger seat belt
reminder1
Limited model only
Low windshield washer fluid level warning1

NOTE:Tighten until one click is heard. If the cap is
not tightened enough, Check Engine “ ” indicator
may illuminate.
7
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Windshield and back window washer fluid tank
Power steering fluid reservoir
Engine oil level dipstick
Engine coolant reservoir
Engine oil filler cap
Note: Regularly scheduled maintenance, including
oil changes, will help extend the life of
your vehicle and maintain performance.
Please refer to the
“Owner’s Warranty
Information Booklet,” “Scheduled
Maintenance Guide” or “Owner’s Manual
Supplement.”
Engine maintenance
6cylinder (1GR-FE) engine
8 cylinder (2UZ-FE) engine
6
OVERVIEW
Fuel tank door release and capHood release
Pull upTu r n
StorePull Pull up latch
and raise
hood
NOTE:After unlocking, if a door is not opened within
30 seconds, all doors will relock for safety.
Alarm operation
Keyless entry (if equipped)
Locking operationUnlocking operation
Back window operation
Beep sound can be switched “ON” or “OFF.” Refer to
the Owner’s Manualfor more details.
Push
Push Push ONCE: Driver door
TWICE: All doors
Push and hold

89
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
Auto lock functions
Automatic door locks can be programmed to operate
in 4 different modes, or turned OFF.
-Doors lock when shifting from “Park.”
-Doors lock when the vehicle speed goes above
approximately 12 mph.
-Doors unlock when shifting into “Park.”
-Doors unlock when the ignition switch is set from
“ON” to “ACC” or
“OFF” and driver’s door is opened.
Refer to the Owner’s Manualfor more details.
Automatic Transmission
1The ignition switch must be ON, and the brake
pedal depressed to shift from “Park.”
Downshifting increases power going uphill, or
provides engine braking downhill. For best fuel
economy during normal driving conditions, always
drive with the shift lever in the “D” position.
Park1
Reverse
Neutral
Drive
Third gear
Second gear
First gear
P
R
N
D
4
3
2
L
Fourth gear
FEATURES/OPERATIONS
Four-wheel drive (if equipped)
H2
Full-time four-wheel drive models
Part-time four-wheel drive models
High speed (2WD)
High speed (4WD)
Tu r n to “H4” with
speed below 62
mph.
Low speed (4WD)
Shift to “N” position,
then push and turn
to “L4.”
Center differential lock button
For best fuel economy and performance under
normal driving conditions:
•“H2” position(part-time four-wheel drive models)
•“H4” position(full-time four-wheel drive models),
Center differential unlocked (center differential
lock indicator and “VSC OFF” indicator is not
illuminated.)
Center differential lock/unlock High speed
Tu r n to “H4” with
speed below 62
mph.
Low speed
Shift to “N” position,
then push and turn
to “L4.”

11
OVERVIEW
FEATURES/OPERATIONS
SAFETY AND EMERGENCY FEATURES
10
FEATURES/OPERATIONS
Position
Cushion angle(driver side only)
Height crank (driver side only)
Seatback angle
Lumbar support(driver side only)
Driver seat: position, cushion angle and height
Passenger seat: position
Seatback angle
Lumbar support(driver side only)
Seat adjustments-Front
Manual seatPower seat
Seats-Head restraints
Front
Second row seat
Third row
Lock release button
Lock release button
Lock release button
Lock release button
With third seatWithout third seat

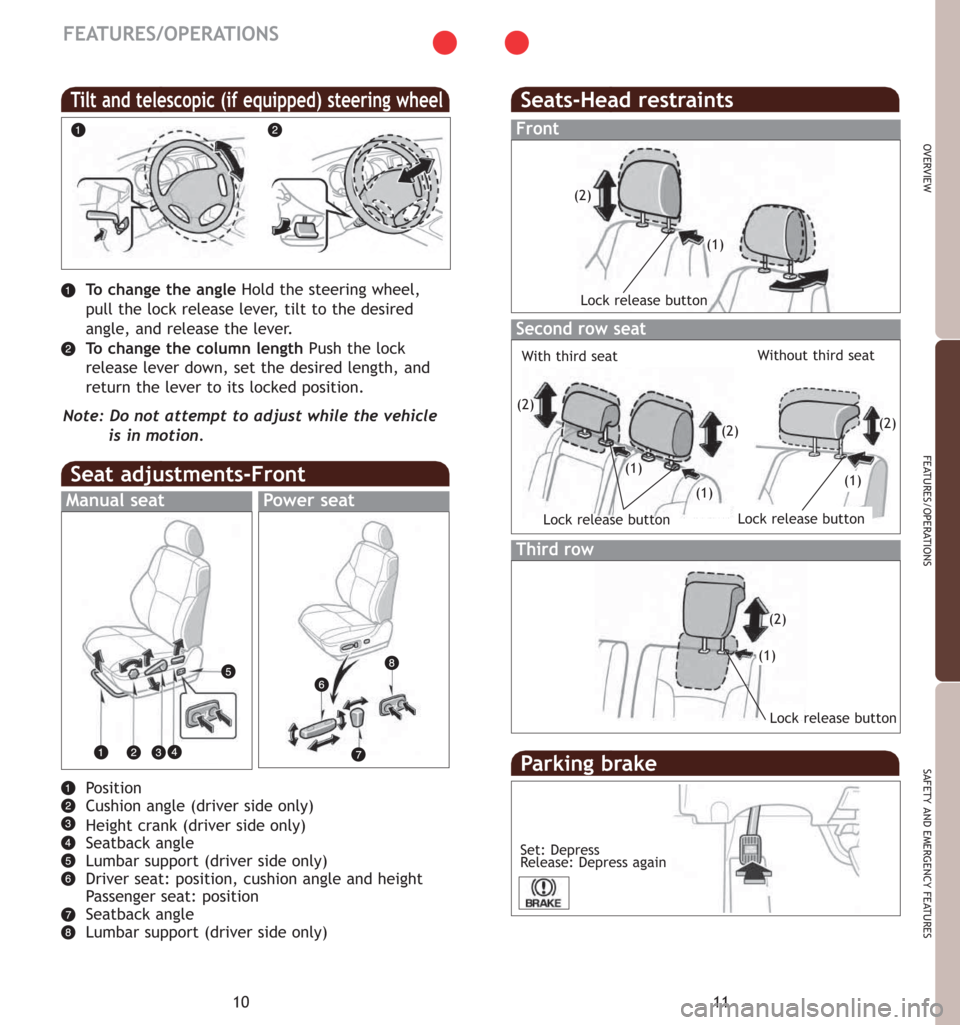

To change the angleHold the steering wheel,
pull the lock release lever, tilt to the desired
angle, and release the lever.
To change the column lengthPush the lock
release lever down, set the desired length, and
return the lever to its locked position.
Note: Do not attempt to adjust while the vehicle
is in
motion.
Tilt and telescopic (if equipped) steering wheel
Parking brake
Set: Depress
Release: Depress again
(2)
(1)
(2)
(1) (2)
(2)
(1)
(2)
(1) (1)
