2007 SUBARU TRIBECA lock

1
– CONTINUED –

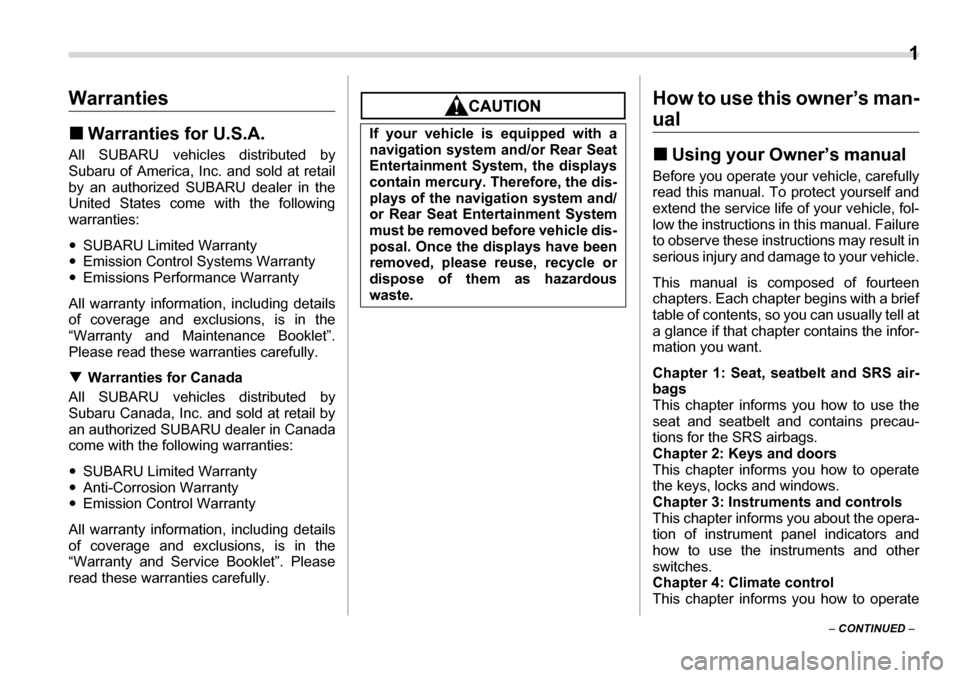

Warranties „Warranties for U.S.A.
All SUBARU vehicles distributed by
Subaru of America, Inc. and sold at retail
by an authorized SUBARU dealer in the
United States come with the following
warranties: y SUBARU Limited Warranty
y Emission Control Systems Warranty
y Emissions Performance Warranty
All warranty information, including details
of coverage and exclusions, is in the
“Warranty and Maintenance Booklet”.
Please read these warranties carefully. T Warranties for Canada
All SUBARU vehicles distributed by
Subaru Canada, Inc. and sold at retail by
an authorized SUBARU dealer in Canada
come with the following warranties: y SUBARU Limited Warranty
y Anti-Corrosion Warranty
y Emission Control Warranty
All warranty information, including details
of coverage and exclusions, is in the
“Warranty and Service Booklet”. Please
read these warranties carefully.How to use this owner’s man-
ual „ Using your Owner’s manual
Before you operate your vehicle, carefully
read this manual. To protect yourself and
extend the service life of your vehicle, fol-
low the instructions in this manual. Failure
to observe these instructions may result in
serious injury and damage to your vehicle.
This manual is composed of fourteen
chapters. Each chapter begins with a brief
table of contents, so you can usually tell at
a glance if that chapter contains the infor-
mation you want.
Chapter 1: Seat, seatbelt and SRS air-
bags
This chapter informs you how to use the
seat and seatbelt and contains precau-
tions for the SRS airbags.
Chapter 2: Keys and doors
This chapter informs you how to operate
the keys, locks and windows.
Chapter 3: Instruments and controls
This chapter informs you about the opera-
tion of instrument panel indicators and
how to use the instruments and other
switches.
Chapter 4: Climate control
This chapter informs you how to operate
If your vehicle is equipped with a
navigation system and/or Rear Seat
Entertainment System, the displays
contain mercury. Therefore, the dis-
plays of the navigation system and/
or Rear Seat Entertainment System
must be removed before vehicle dis-
posal. Once the displays have been
removed, please reuse, recycle or
dispose of them as hazardous
waste.

3
– CONTINUED –
Vehicle symbols
There are some of the symbols you may
see on your vehicle.
Mark Name CAUTION Passengers’ windows lock
Fuel
Front fog lights
Parking lights
Hazard warning flasher
Seat heater
Child restraint lower anchor-
ages
Child restraint top tether an-
chorages
Horn
Windshield wiper deicer
Wiper intermittent
Windshield wiper and wash- er
Rear window wiper and
washer Lights
Parking lights, tail lights, li-
cense plate lights and instru-
ment panel illumination
Head lights
Turn signal
Illumination brightness
Engine hood
Fan speed
Mark NameInstrument panel outlets
Instrument panel outlets and foot outlets
Foot outlets
Windshield defroster and foot outlets
Windshield defroster
Rear window defogger/Out-
side mirror defogger
Air recirculation
Outside air Engine oil Washer
Door lock (Transmitter)
Door unlock (Transmitter)
Mark Name

5
– CONTINUED –
„

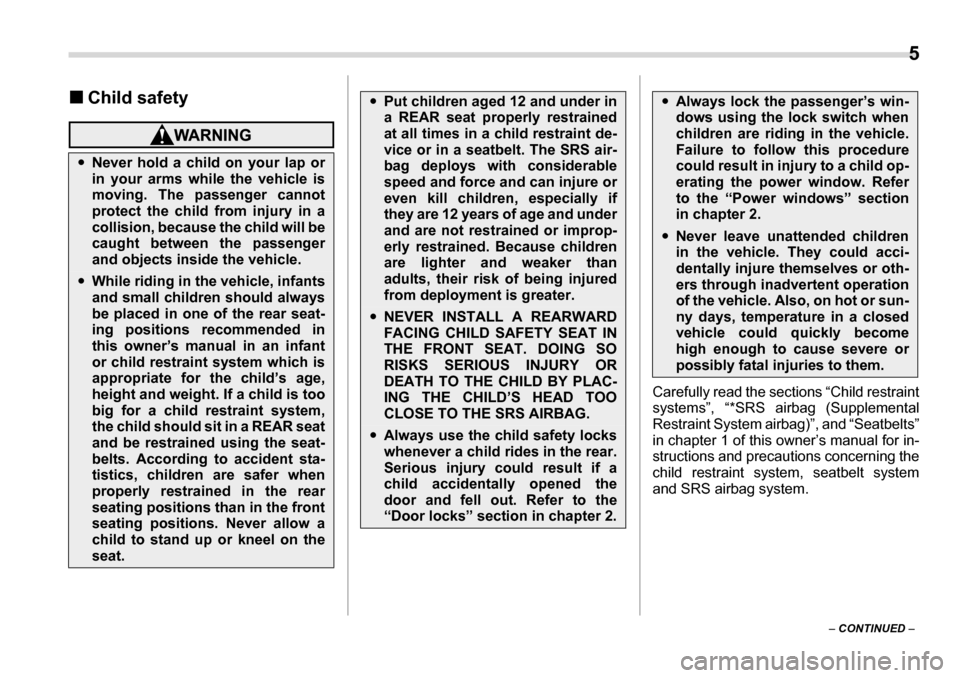

Child safety
Carefully read the sections “Child restraint
systems”, “*SRS airbag (Supplemental
Restraint System airbag)”, and “Seatbelts”
in chapter 1 of this owner’s manual for in-
structions and precautions concerning the
child restraint system, seatbelt system
and SRS airbag system.
yNever hold a child on your lap or
in your arms while the vehicle is
moving. The passenger cannot
protect the child from injury in a
collision, because the child will be
caught between the passenger
and objects inside the vehicle.
yWhile riding in the vehicle, infants
and small children should always
be placed in one of the rear seat-
ing positions recommended in
this owner’s manual in an infant
or child restraint system which is
appropriate for the child’s age,
height and weight. If a child is too
big for a child restraint system,
the child should sit in a REAR seat
and be restrained using the seat-
belts. According to accident sta-
tistics, children are safer when
properly restrained in the rear
seating positions than in the front
seating positions. Never allow a
child to stand up or kneel on the
seat.
yPut children aged 12 and under in
a REAR seat properly restrained
at all times in a child restraint de-
vice or in a seatbelt. The SRS air-
bag deploys with considerable
speed and force and can injure or
even kill children, especially if
they are 12 years of age and under
and are not restrained or improp-
erly restrained. Because children
are lighter and weaker than
adults, their risk of being injured
from deployment is greater.
yNEVER INSTALL A REARWARD
FACING CHILD SAFETY SEAT IN
THE FRONT SEAT. DOING SORISKS SERIOUS INJURY OR
DEATH TO THE CHILD BY PLAC-
ING THE CHILD’S HEAD TOO
CLOSE TO THE SRS AIRBAG.
yAlways use the child safety locks
whenever a child rides in the rear.
Serious injury could result if a
child accidentally opened the
door and fell out. Refer to the
“Door locks” section in chapter 2.
yAlways lock the passenger’s win-
dows using the lock switch when
children are riding in the vehicle.Failure to follow this procedure
could result in injury to a child op-
erating the power window. Refer
to the “Power windows” section
in chapter 2.
yNever leave unattended children
in the vehicle. They could acci-
dentally injure themselves or oth-
ers through inadvertent operation
of the vehicle. Also, on hot or sun-
ny days, temperature in a closed
vehicle could quickly become
high enough to cause severe or
possibly fatal injuries to them.

10

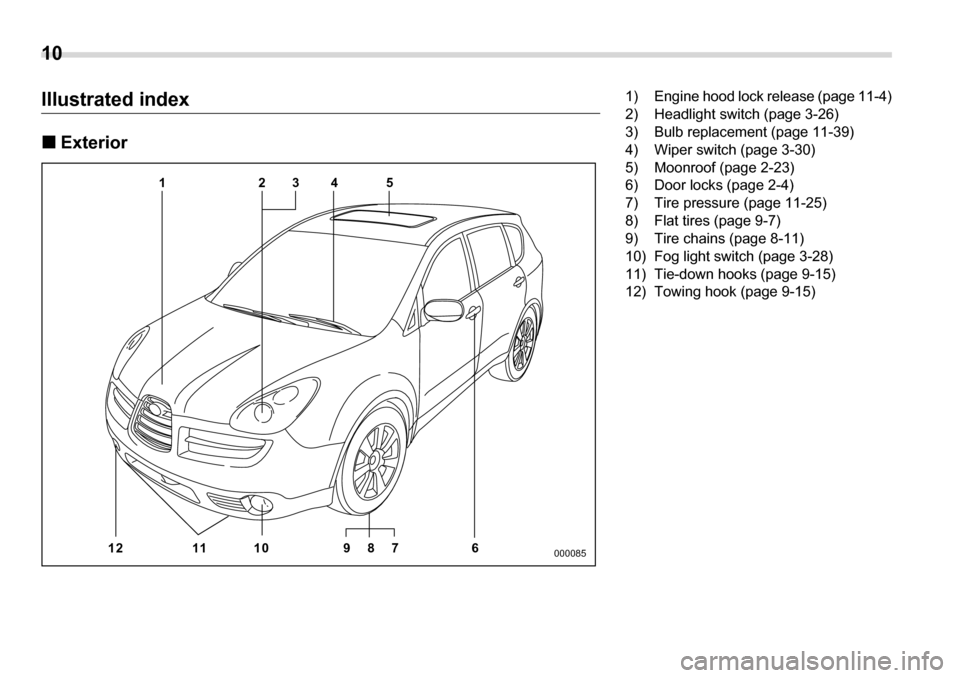

Illustrated index „Exterior
45
23
1
12 11 10 9 8 7 6
000085
1) Engine hood lock release (page 11-4)
2) Headlight switch (page 3-26)
3) Bulb replacement (page 11-39)
4) Wiper switch (page 3-30)
5) Moonroof (page 2-23)
6) Door locks (page 2-4)
7) Tire pressure (page 11-25)
8) Flat tires (page 9-7)
9) Tire chains (page 8-11)
10) Fog light switch (page 3-28)
11) Tie-down hooks (page 9-15)
12) Towing hook (page 9-15)

11
– CONTINUED –
4
7
86 5
23
1
000105
1) Rear gate (page 2-22)
2) Rear wiper blade assembly and rub-
ber replacement (page 3-32)
3) Rear window defogger button (page 3-33)
4) Fuel filler lid and cap (page 7-3)
5) Child safety locks (page 2-19)
6) Tie-down hooks (page 9-15)
7) Bulb replacement (page 11-39)
8) Towing hook (page 9-15)

15
– CONTINUED –
„
Instrument panel
1
2345 6 7 8
11
12
13
15 14 10 9
000106
1) Door locks (page 2-4)
2) Illumination brightness control (page
3-27)
3) Remote control mirror (page 3-36)
4) Windshield wiper deicer (page 3-32)
5) Traction Control system OFF switch
(page 7-23)
6) Light control lever (page 3-26)
7) Combination meter (page 3-5)
8) Wiper control lever (page 3-29)
9) Cruise control (page 7-27)
10) Horn (page 3-37)
11) SRS airbag (page 1-44)
12) Tilt steering (page 3-37)
13) Hood lock release knob (page 11-4)
14) Fuse box (page 11-36)
15) Power windows (page 2-19)

22

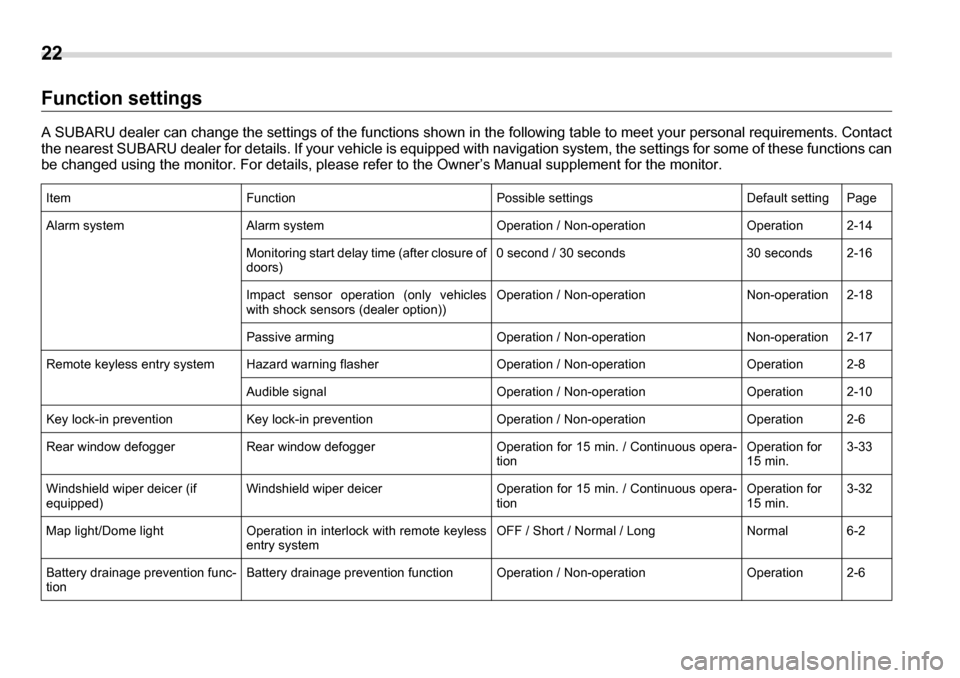

Function settings
A SUBARU dealer can change the settings of the functions shown in the following table to meet your personal requirements. Conta ct
the nearest SUBARU dealer for details. If your vehicle is equipped with navigation system, the settings for some of these funct ions can
be changed using the monitor. For details, please refer to the Owner’s Manual supplement for the monitor.
ItemFunctionPossible settingsDefault settingPage
Alarm systemAlarm systemOperation / Non-operationOperation2-14
Monitoring start delay time (after closure of doors)0 second / 30 seconds30 seconds2-16
Impact sensor operation (only vehicles
with shock sensors (dealer option))Operation / Non-operationNon-operation2-18
Passive armingOperation / Non-operationNon-operation2-17
Remote keyless entry systemHazard warning flasherOperation / Non-operationOperation2-8
Audible signalOperation / Non-operationOperation2-10
Key lock-in preventionKey lock-in preventionOperation / Non-operationOperation2-6
Rear window defoggerRear window defoggerOperation for 15 min. / Continuous opera- tionOperation for 15 min.3-33
Windshield wiper deicer (if equipped)Windshield wiper deicerOperation for 15 min. / Continuous opera- tionOperation for 15 min.3-32
Map light/Dome lightOperation in interlock with remote keyless entry systemOFF / Short / Normal / LongNormal6-2
Battery drainage prevention func- tionBattery drainage prevention functionOperation / Non-operationOperation2-6

1

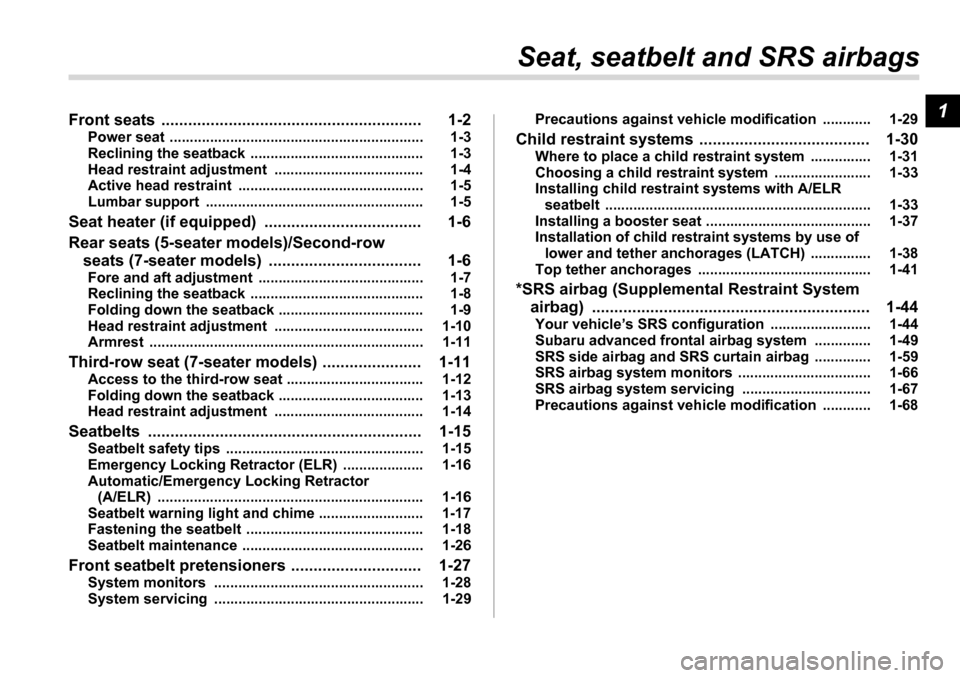

Seat, seatbelt and SRS airbags
Front seats .......................................................... 1-2 Power seat ............................................................... 1-3
Reclining the seatback ........................................... 1-3
Head restraint adjustment ..................................... 1-4
Active head restraint .............................................. 1-5
Lumbar support ...................................................... 1-5
Seat heater (if equipped) ................................... 1-6
Rear seats (5-seater models)/Second-row seats (7-seater models) .................................. 1-6Fore and aft adjustment ......................................... 1-7
Reclining the seatback ........................................... 1-8
Folding down the seatback .................................... 1-9
Head restraint adjustment ..................................... 1-10
Armrest .................................................................... 1-11
Third-row seat (7-seater models) ...................... 1-11 Access to the third-row seat .................................. 1-12
Folding down the seatback .................................... 1-13
Head restraint adjustment ..................................... 1-14
Seatbelts ............................................................. 1-15 Seatbelt safety tips ................................................. 1-15
Emergency Locking Retractor (ELR) .................... 1-16
Automatic/Emergency Locking Retractor (A/ELR) .................................................................. 1-16
Seatbelt warning light and chime .......................... 1-17
Fastening the seatbelt ............................................ 1-18
Seatbelt maintenance ............................................. 1-26
Front seatbelt pretensioners ............................. 1-27 System monitors .................................................... 1-28
System servicing .................................................... 1-29 Precautions against vehicle modification ............ 1-29
Child restraint systems ...................................... 1-30 Where to place a child restraint system ............... 1-31
Choosing a child restraint system ........................ 1-33
Installing child restraint systems with A/ELR seatbelt .................................................................. 1-33
Installing a booster seat ......................................... 1-37
Installation of child restraint systems by use of lower and tether anchorages (LATCH) ............... 1-38
Top tether anchorages ........................................... 1-41
*SRS airbag (Supplemental Restraint System airbag) .............................................................. 1-44Your vehicle’s SRS configuration ......................... 1-44
Subaru advanced frontal airbag system .............. 1-49
SRS side airbag and SRS curtain airbag .............. 1-59
SRS airbag system monitors ................................. 1-66
SRS airbag system servicing ................................ 1-67
Precautions against vehicle modification ............ 1-68
