1. Remove the mounting screws using a
Phillips screwdriver and then remove the
high mount stop light cover.
2. Remove the bulbs from the socket by
pulling them up. Install a new bulb.
3. Reinstall the cover.
4. Tighten the mounting screws. &Other bulbs
Other bulbs may be difficult to replace.
Have your SUBARU dealer replace
these bulbs if necessary. Maintenance and service
11-53

Specifications..................................................... 12-2
Dimensions ........................................................ 12-2
Engine ............................................................... 12-3
Electrical system ................................................ 12-3
Capacities .......................................................... 12-4
Tires .................................................................. 12-5
Wheel alignment ................................................ 12-5 Fuses and circuits
............................................. 12-6
Fuse panel located behind the coin tray ............. 12-6
Fuse panel located in the engine compartment ................................................... 12-8
Bulb chart ........................................................... 12-9
Vehicle identification ....................................... 12-11Specifications
12

12-2Specifications
Specifications
These specifications are subject to change without notice. &Dimensions
in (mm)
Item Sedan Wagon
2.5-liter
non-turbo 2.5-liter turbo 2.5-liter non-turbo 2.5-liter turbo
2.5i WRX WRX-STI 2.5i OUTBACK SPORTWRX
Drive system AWD
Transmission type AT MT AT MT AT MT AT MT AT MT
Overall length 175.8 (4,465)
Overall width Sedan 68.5 (1,740) –
Wagon –66.7 (1,695) 67.3 (1,710) 66.7 (1,695)
Overall height Without roofrail 56.7 (1,440) 56.3 (1,430) 57.7 (1,465) 58.1 (1,475) 57.7 (1,465)
With roofrail –58.5 (1,485) 58.9 (1,495) 58.5 (1,485)
Wheel base 99.4 (2,525)
Tread Front 58.5 (1,485) 58.7 (1,490) 57.7 (1,465) 57.5 (1,460) 57.7 (1,465)
Rear 58.1 (1,475)
58.3 (1,480) 58.9 (1,495) 57.3 (1,455)
Ground clearance*
16.3 (160) 5.7 (145)6.3 (160)
6.7 (170) 6.3 (160)
*1: Measured with vehicle empty
AT: Automatic transmission
MT: Manual transmission

&Engine
Engine model EJ253
(2.5-liter, SOHC, non-turbo) EJ255
(2.5-liter, DOHC, turbo, WRX) EJ257
(2.5-liter, DOHC, turbo, WRX-STI)
Engine type Horizontally opposed, liquid cooled 4 cylinder, 4-stroke gasoline engine
Displacement cc (cu-in) 2,457 (150)
Bore 6Stroke in (mm) 3.963.1 (99.5 679.0)
Compression ratio 10.0 : 1 8.4 : 1 8.2 : 1
Firing order 1
–3– 2– 4
& Electrical system
Battery type and capacity (5HR) MT 12V-48AH (55D23L)
AT 12V-52AH (75D23L)
Alternator Non-turbo models 12V-90A
Turbo models 12V-110A
Spark plugs Non-turbo engine
FR5AP-11 (NGK)
Turbo engine ILFR6B (NGK)
AT: Automatic transmission
MT: Manual transmission Specifications
12-3
– CONTINUED –

12-4Specifications
&Capacities
Fuel tank 15.9 US gal (60 liters, 13.2 Imp gal)
Engine oil 4.2 US qt (4.0 liters, 3.5 Imp qt)
Transmission oil (MT) 5-speed 3.7 US qt (3.5 liters, 3.1 Imp qt)
6-speed 4.3 US qt (4.1 liters, 3.6 Imp qt)
Front differential gear oil (AT) 1.3 US qt (1.2 liters, 1.1 Imp qt)
Rear differential gear oil WRX-STI 1.1 US qt (1.0 liters, 0.9 Imp qt)
Others 0.8 US qt (0.8 liters, 0.7 Imp qt)
Transmission fluid (AT) 10.0 US qt (9.5 liters, 8.4 Imp qt)
Power steering fluid 0.7 US qt (0.7 liter, 0.6 Imp qt)
Engine coolant Non-turbo engine MT7.4 US qt (7.0 liters, 6.2 Imp qt)
AT 7.3 US qt (6.9 liters, 6.1 Imp qt)
Turbo engine MT 8.1 US qt (7.7 liters, 6.8 Imp qt)
AT 8.0 US qt (7.6 liters, 6.7 Imp qt)
AT: Automatic transmission
MT: Manual transmission

&Tires
Tire size P205/55R16 89V 215/45R17 91W 225/45R17 90W
Wheel size 16 66
1/2JJ 17 67JJ 17 68JJ
Pressure Front 33 psi (230 kPa, 2.3 kgf/cm2) 33 psi (230 kPa, 2.3 kgf/cm2) 35 psi (240 kPa, 2.4 kgf/cm2)
Rear 30 psi (210 kPa, 2.1 kgf/cm2) 32 psi (220 kPa, 2.2 kgf/cm2) 29 psi (200 kPa, 2.0 kgf/cm2)
Temporary
spare tire Size
T135/70 D16 T135/70 D17
Pressure 60 psi (420 kPa, 4.2 kgf/cm
2)
& Wheel alignment
Item Sedan Wagon
2.5-liter non-turbo 2.5-liter turbo 2.5-liter non-turbo 2.5-liter turbo 2.5i WRX WRX-STI 2.5i OUTBACK
SPORT WRX
Drive system AWD
Toe Front 0 in (0 mm)
Rear 0 in (0 mm)
Camber Front 0815 ’ 0825 ’ 0830 ’ 0810 ’ 0805 ’ 0820 ’
Rear 1825 ’ 1830 ’ 1840 ’ 1815 ’ 1810 ’
1820 ’
Specifications
12-5

12-6Specifications

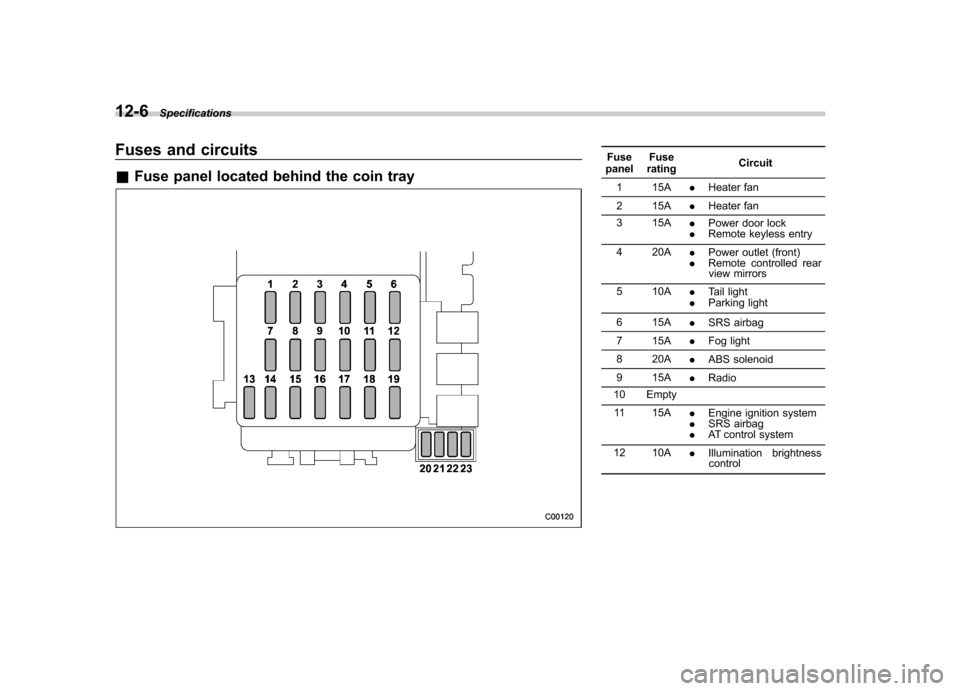

Fuses and circuits &Fuse panel located behind the coin trayFuse
panel Fuse
rating Circuit
1 15A .Heater fan
2 15A .Heater fan
3 15A .Power door lock
. Remote keyless entry
4 20A .Power outlet (front)
. Remote controlled rear
view mirrors
5 10A .Tail light
. Parking light
6 15A .SRS airbag
7 15A .Fog light
8 20A .ABS solenoid
9 15A .Radio
10 Empty
11 15A .Engine ignition system
. SRS airbag
. AT control system
12 10A .Illumination brightness
control

Fuse
panel Fuse
rating Circuit
13 10A .Combination meter
. SRS lamp
14 10A .Rear window wiper and
washer
15 30A .Windshield wiper and
washer
16 20A .Brake light
17 15A .Air conditioner
18 15A .Backup light
. Cruise control
19 20A .Mirror heater
20 Empty
21 15A .Ignition coil (Non-turbo
models only)
22 Empty
23 20A .Accessory power outlet
(cargo)
. Seat heater Specifications
12-7
