Page 233 of 248
Technical Data232
1.4 l/51 kW TDI PD - EU 4
Engine
Performances
Fuel consumption (in ltr./100 km) and CO2 emission (in g/km)
Power outputkW per rpm51/4000
Maximum torqueNm per rpm155/1600-2800
Number of cylinders/Displacement (cm3)3/1422
FuelDiesel
Maximum speedkm/h158
Acceleration 0 - 100 km/hs16,5
RoomsterPraktik
Urban6,46,2
Non-urban4,54,3
Combination5,35,1
CO2 emission - combination139135
NKO A05R 20 MR08.book Page 232 Wednesday, March 28, 2007 9:42 AM
Page 234 of 248

Technical Data233
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistancePraktikTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare55/7
Reservoir for windscreen washer system/ with headlight cleaning system2/4,5
Engine oila)
a)Oil capacity with oil filter change. Inspec t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 177.
3,8
Cooling system of the vehicle6,2
RoomsterPraktik
Permissible gross weight1735/1750a)
a)Valid for vehicles, which have 15'' wheels mounted as of factory.
1730/1835a)
Unloaden weight ready for work1220/1235a)1180/1195a)
Loading capacityb)
b)depending on special equipment
515550/640a)
Loading capacity when using the TLCb)465465
Permissible front axle load900/960a)900/960a)
Permissible rear axle load900900/1000a)
Permissible trailer load, trailer braked/unbraked(900/450)c)
(1100/450)d)
c)Uphills up to 12%d)Uphills up to 8%
(900/450)c)
(1100/450)d)
NKO A05R 20 MR08.book Page 233 Wednesday, March 28, 2007 9:42 AM

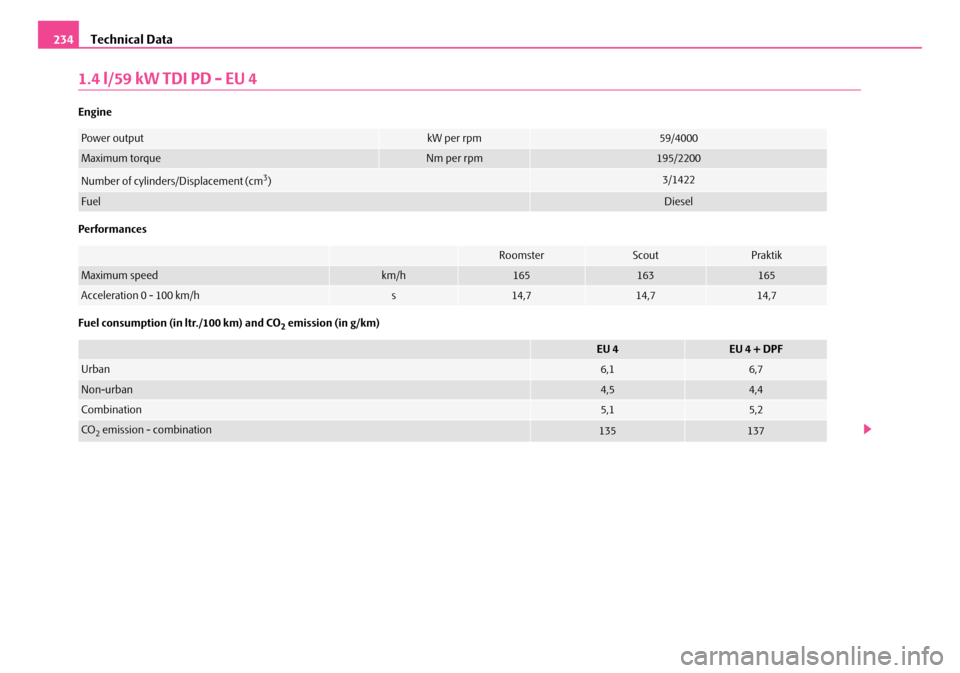

Page 235 of 248
Technical Data234
1.4 l/59 kW TDI PD - EU 4
Engine
Performances
Fuel consumption (in ltr./100 km) and CO2 emission (in g/km)
Power outputkW per rpm59/4000
Maximum torqueNm per rpm195/2200
Number of cylinders/Displacement (cm3)3/1422
FuelDiesel
RoomsterScoutPraktik
Maximum speedkm/h165163165
Acceleration 0 - 100 km/hs14,714,714,7
EU 4EU 4 + DPF
Urban6,16,7
Non-urban4,54,4
Combination5,15,2
CO2 emission - combination135137
NKO A05R 20 MR08.book Page 234 Wednesday, March 28, 2007 9:42 AM
Page 236 of 248
Technical Data235
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistancePraktikTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare55/7
Reservoir for windscreen washer system/ with headlight cleaning system2/4,5
Engine oila)
a)Oil capacity with oil filter change. Inspec t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 177.
4,2
Cooling system of the vehicle6,2
RoomsterScoutPraktik
Permissible gross weight176017651840
Unloaden weight ready for work124512501200
Loading capacitya)
a)depending on special equipment
515515640
Loading capacity when using the TLCa)465465465
Permissible front axle load960960960
Permissible rear axle load9009001000
Permissible trailer load, trailer braked/unbraked(1000/450)b)
(1200/450)c)
b)Uphills up to 12%c)Uphills up to 8%
(1000/450)b)
(1200/450)c)(1000/450)a)
(1200/450)c)
NKO A05R 20 MR08.book Page 235 Wednesday, March 28, 2007 9:42 AM
Page 237 of 248
Technical Data236
1.9 l/77 kW TDI PD - EU 4
Engine
Performances
Fuel consumption (in ltr./100 km) and CO2 emission (in g/km)
Power outputkW per rpm77/4000
Maximum torqueNm per rpm(240/1800)a)
(240/1900)b)
a)EU4b)EU4 + DPF
Number of cylinders/Displacement (cm3)4/1896
FuelDiesel
RoomsterScout
Maximum speedkm/h182180
Acceleration 0 - 100 km/hs11,511,5
EU 4EU 4 + DPF
Urban6,76,8
Non-urban4,64,7
Combination5,35,5
CO2 emission - combination139145
NKO A05R 20 MR08.book Page 236 Wednesday, March 28, 2007 9:42 AM
Page 238 of 248
Technical Data237
Using the systemSafetyDriving TipsGeneral MaintenanceBreakdown assistancePraktikTechnical Data
Capacities (in liter)
Weight (in kg)
Fuel tank capacity/of which spare55/7
Reservoir for windscreen washer system/ with headlight cleaning system2/4,5
Engine oila)
a)Oil capacity with oil filter change. Inspec t oil level when filling; do not fill up too much. The oil level must be between the markings ⇒page 177.
5,0
Cooling system of the vehicle6,8
RoomsterScout
Permissible gross weight17751780
Unloaden weight ready for work12601265
Loading capacitya)
a)depending on special equipment
515515
Loading capacity when using the TLCa)465465
Permissible front axle load960960
Permissible rear axle load900900
Permissible trailer load, trailer braked/unbraked(1200/450)b)
(1200/450)c)
b)Uphills up to 12%c)Uphills up to 8%
(1200/450)b)
(1200/450)c)
NKO A05R 20 MR08.book Page 237 Wednesday, March 28, 2007 9:42 AM
Page 239 of 248
Technical Data238
NKO A05R 20 MR08.book Page 238 Wednesday, March 28, 2007 9:42 AM
