146GENERAL MAINTENANCEBatteryThe battery is located in the engine com-
partment.
If the vehicle has not been driven for more
than 4 weeks, the battery will discharge be-
cause some electrical components (e.g.
control units) also use current in standstill.
In order to avoid the battery discharging dis-
connect the negative cable (-) of the bat-
tery or continuously recharge the battery.
For jump-starting car with another battery,
see the section „Do-It-Yourself“.Warning
Pay attention to the following warn-
ing instructions and safety regula-
tions when carrying out work on the
battery.
Access to battery
Pull out the catch on the side of the bat-
tery cover (see arrow) slightly. Lift the bat-
tery cover up and out - see arrow A.
Warning
Pay attention to the following warn-
ing instructions and safety regula-
tions when carrying out work on the
battery.
Removing battery
Pull the cable cover 1 up and out in di-
rection of arrow.

Disconnect the battery from the vehicle
electrical system - pay attention to the
Notes on page 148.

Press the catch (arrows B) on the side
of the holder 2 of the fuse carrier. Open the
holder and fuse carrier by raising it (arrow
C ).

Remove the screw 3 from the battery
holder and take out the fuse plate.

Push the battery forward slightly (toward
the headlamp) and then lift it up and out.

169
DO-IT-YOURSELF
Colour coding of fuses:A
light brown: ............................................. 5
dark brown: .......................................... 7.5
red: ........................................................ 10
blue: ...................................................... 15
yellow: ................................................... 20
white: ..................................................... 25
green: .................................................... 30
Notes
The fuse assignment differs depending on
the version of your car.
The pliers for removing fuses and replace-
ment fuses are not contained in the car
equipment.
Replacing a bulbThe relevant light should always be swit-
ched off first of all before replacing a bulb.
Do not grasp the glass of the bulb with your
bare fingers (even the minutest spot of dirt
reduces the operational life of the bulb).
Use a clean cloth, napkin or similar.
A bulb should only be replaced by a lamp
of the same design . The designation is
given on the base of the bulb or on the
glass.
Warning
H4 bulbs are pressurized and may
burst when they are replaced. For
this reason, always wear gloves and
eye protection when changing a H4
bulb. Models with Xenon headlamps*
If your car is fitted with xenon head-
lights, have the bulb (low beam, side
light and main beam) replaced by a
Škoda dealer.
We recommend always carrying with you in
the car a box with a set of spare bulbs, which
you received together with your car, or which
is available from your Škoda Dealer
1).
1)The small box of replacement light bulbs are part
of the basic equipping of the vehicle in some
countries

171
DO-IT-YOURSELF
Main headlight with cap of low beam,
main beam and side lightBefore replacing the bulb (main beam and
low beam, or main beam and low beam, or
side light) you have to remove the protec-
tive cover from the rear part of the head-
light - refer to the text which follows.

Open bonnet.

Press locking plate off the cap and tilt it
out in direction of arrow.

Remove cap of headlamp by pushing it
out toward the middle of the vehicle.
Installation is carried out in the reverse or-
der.

Open bonnet.

Take off cap for headlight.

Hold wire spring clamp B and unplug
connector A.

Detach wire spring clamp B by pressing
toward bulb and fold down in direction of
arrow.

Take out bulb 1 and insert new bulb so
that the locating lugs at the bulb disc en-
gage in the recess of the reflector.

Fold wire clamp over the base of bulb
and push forward until the clamp engages.

Plug in connector.

Fit on cap for the headlight.

Have the headlight beam setting checked
at a Škoda Dealer.

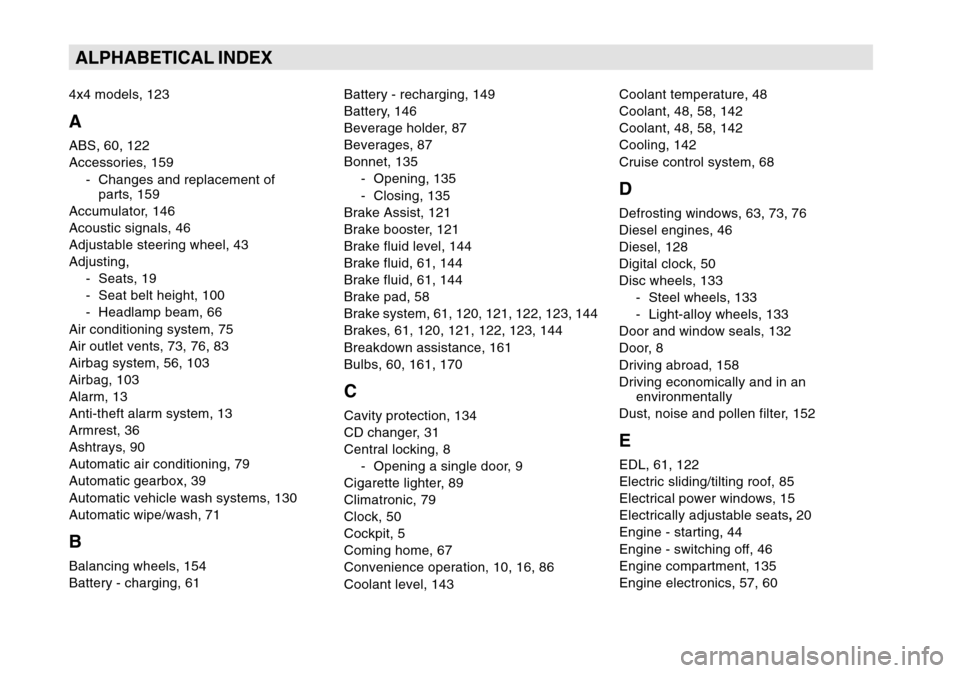

ALPHABETICAL INDEX4x4 models, 123AABS, 60, 122
