2007 Seat Leon 5D light

If and when247
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Main headlight lamps
Turn signals
Dipped headlights
Main beam headlights
Side lights
Tu r n si g nal la m ps– Raise the bonnet.
– Rotate the lamp holder ⇒ fig. 163 to the left and pull.
– Remove the bulb by pressing on the lamp holder and rotating at the same time to the left.
– Installation is done in the reverse order.
Fig. 162 Main headlight
lamps
AAABACAD
Fig. 163 Turn signal
lamps
AA
leon ingles.book Seite 247 Dienst ag, 11. September 2007 1:47 13

If and when
248Dipped beam lights– Raise the bonnet – Remove the loops
⇒fig. 164 in the direction of the arrow and
remove the cover.
– Remove the connector ⇒fig. 165 from the bulb.
– Disengage the retainer spring ⇒fig. 165 pressing inwards
and to the right.
– Extract the bulb and fit the replacement so that the rim of the attachment plate is on the reflector cut-out.
Fig. 164 Dipped head-
lightsFig. 165 Dipped head-
lights
A1
A2
A3
leon ingles.book Seite 248 Dienst ag, 11. September 2007 1:47 13

If and when249
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Main beam lights–Raise the bonnet
– Remove the cover ⇒fig. 166 by pulling on this. – Remove the connector
⇒fig. 167 from the bulb.
– Press the spring ⇒fig. 167 inwards and to the right.
– Extract the bulb and fit the replacement so that it sits correctly into the cut-out on the reflector.
– Installation is done in the reverse order.
Fig. 166 Main beam
headlightsFig. 167 Main beam
headlights
AC
A1
A2
leon ingles.book Seite 249 Dienst ag, 11. September 2007 1:47 13

If and when
250Side lights– Raise the bonnet.
– Remove the cover ⇒fig. 168 by pulling on this. – Extract the lamp holder
⇒fig. 169 outwards.
– Replace the bulb by pulling this out and inserting the replace- ment.
– Installation is done in the reverse order.
Rear lights•
On the body
- Indicator, side and brake light
•
On the tailgate
- Left hand side: position and antifog.
- Right hand side: reverse and position.
Fig. 168 Side lightsFig. 169 Side lights
AD
A1
leon ingles.book Seite 250 Dienst ag, 11. September 2007 1:47 13

If and when251
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Indicator, side and brake lights on the bodywork– Press on the side pin outwards and take out the lamp holder.
– Extract the failed bulb and change it for a new one.
– To refit follow the steps in reverse order, taking special care when
fitting the lamp holder.
Position light, fog light and reverse light on the tailgate–Open the tailgate.
– Pull the cover off. See the arrow ⇒ fig. 171.
Fig. 170 Indicator, side
and brake lights on the
bodywork
Fig. 171 Lights on the
tailgateFig. 172 Removing the
lampholder
leon ingles.book Seite 251 Dienstag, 11. September 2007 1:47 13

If and when253
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a

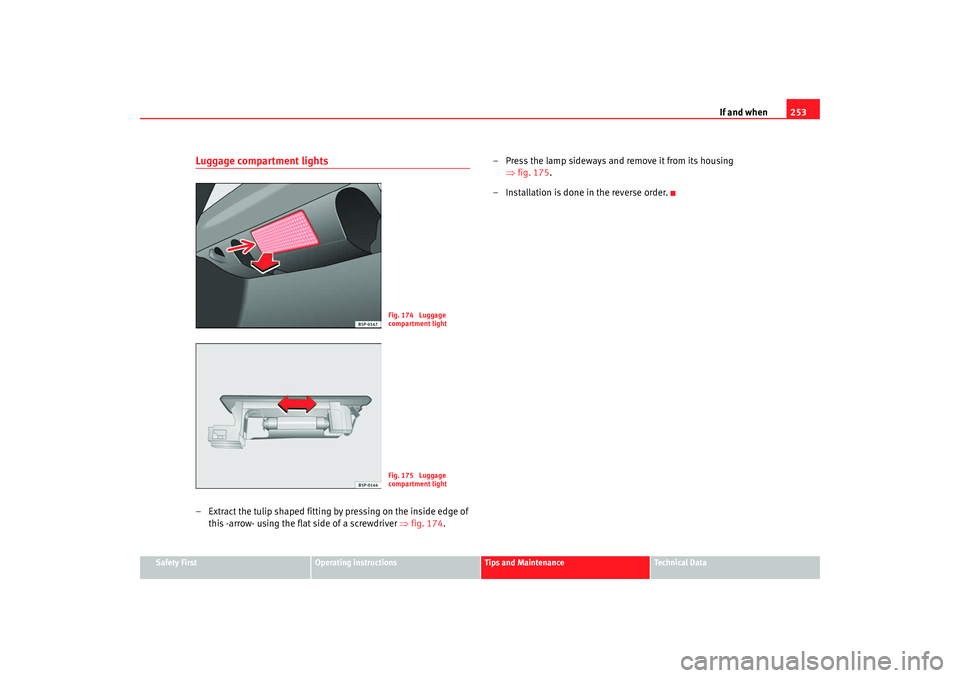

Luggage compartment lights– Extract the tulip shaped fitting by pressing on the inside edge of
this -arrow- using the flat side of a screwdriver ⇒fig. 174. – Press the lamp sideways and remove it from its housing
⇒fig. 175.
– Installation is done in the reverse order.
Fig. 174 Luggage
compartment lightFig. 175 Luggage
compartment light
leon ingles.book Seite 253 Dienst ag, 11. September 2007 1:47 13

If and when
254Registration light– To remove the bulb holder, unscrew the bolts ⇒fig. 176. – Remove the lamp, moving it in the direction of the arrow and
outwards ⇒fig. 177 .
– Installation is done in the reverse order.
Fig. 176 Registration
plate lightFig. 177 Registration
plate light
leon ingles.book Seite 254 Dienst ag, 11. September 2007 1:47 13

If and when255
Safety First
Operating instructions
Tips and Maintenance
Te c h n i c a l D a t a
Sunroof light– Carefully remove the lamp, using the flat side of the screwdriver,
as shown in the figure ⇒fig. 179. – Remove the lamp, moving it in the direction of the arrow and
outwards ⇒fig. 179.
– Installation is done in the reverse order.
Jump-startingJump leads
The jump lead must have a sufficient wire cross section.If the engine fails to start because of a discharged battery, the battery can be
connected to the battery of another vehicle to start the engine.
Jump leads
Jump leads must comply with the standard DIN 72553 (see manufacturer's
documentation). The wire cross section must be at least 25 mm
2 for petrol
engines and at least 35 mm
2 for diesel engines.
Note
•
The vehicles must not touch each othe r, otherwise electricity could flow as
soon as the positive terminals are connected.
•
The discharged battery must be properly connected to the vehicles elec-
trical system.
Fig. 178 Removing
sunroof lightFig. 179 Removing
sunroof light
