2007 Seat Cordoba ALANA

8Lena

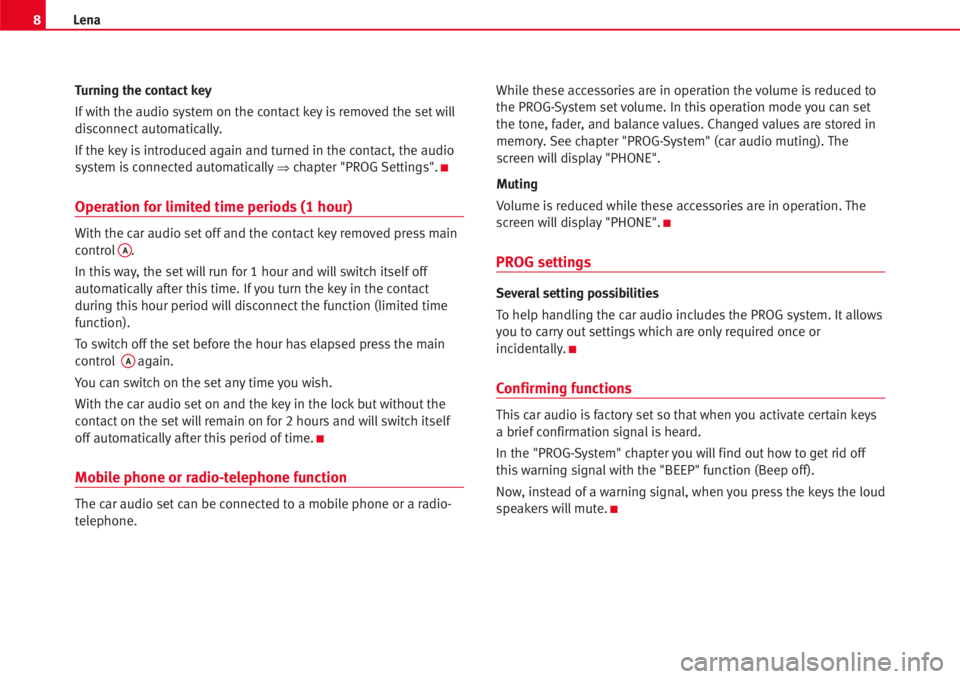

Turning the contact key
Ifwith the audio system on the contact keyisremoved the setwill
disconnect automatically.
If the keyisintroduced again and turned in the contact, the audio
system isconnected automatically
⇒chapter "PROG Settings".K
Operation for limited time periods (1 hour)
With the car audio set off and the contact keyremoved pressmain
controlA.
In thisway, the setwill run for 1 hour and willswitch itself off
automaticallyafter thistime. Ifyou turn the keyin the contact
during thishour period will disconnect the function (limited time
function).
To switch off the set before the hour has elapsed press the main
cont
rolAagain.
You can switch on the set anytime you wish.
With the car audio set on and the keyin the lock butwithout the
contact on the setwill remain on for 2 hoursand willswitch itself
off automaticallyafter thisperiod of time.
K
Mobile phone or radio-telephone function
The car audio set can be connected to a mobile phone or a radio-
telephone.While these accessories are in operation the volume isreduced to
the PROG-System set volume. In this operation mode you can set
the tone, fader, and balance values. Changed values ar
e stored in
memory. See chapter "PROG-System" (car audio muting). The
screen will display "PHONE".
Muting
Volume isreduced while these accessories are in operation. The
screen will display "PHONE".
K
PROG settings
Several setting possibilities
To help handling the car audio includes the PROG system. Itallows
you to carryout settingswhich are onlyrequired once or
incidentally.
K
Confirming functions
Thiscar audio is factory set so thatwhen you activate certain keys
a brief confirmation signalisheard.
In the "PROG-System" chapter you willfind outhow to getrid off
thiswarning signalwith the "BEEP" function (Beep off).
Now, instead of a warning signal,
when you press the keys the loud
speakerswill mute.
K

9Lena

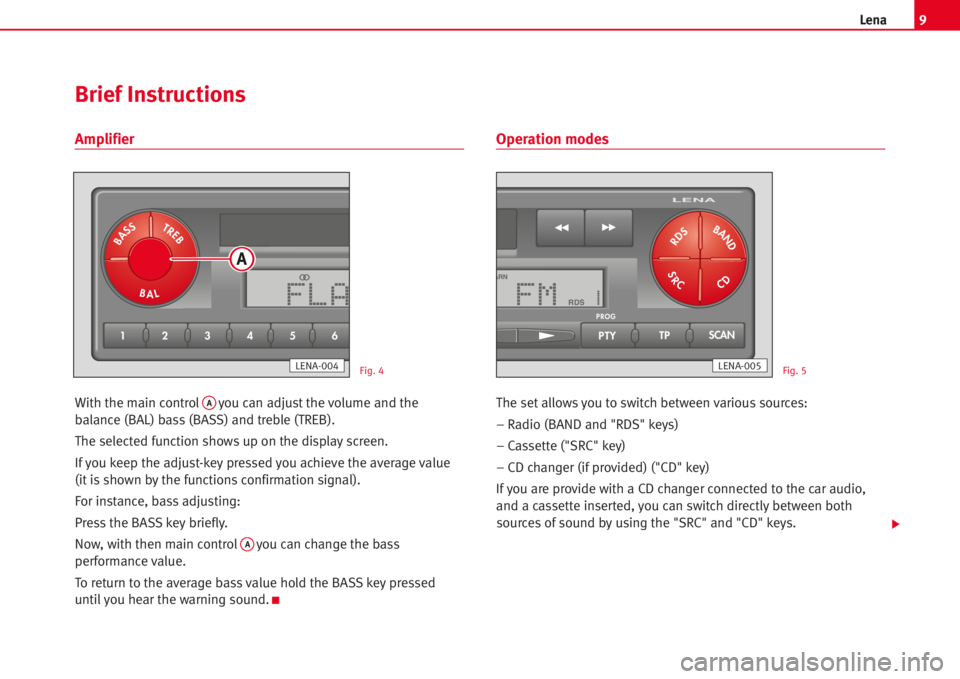

Amplifier
With the main controlAyou can adjust the volume and the
balance (BAL) bass (BASS) and treble (TREB).
The selected function showsup on the display screen.
Ifyou keep the adjust-key pressed you achieve the average value
(itis shown by the functionsconfirmation signa
l).
For instance, bass adjusting:
Press the BASS key briefly.
Now, with then main control
Ayou can change the bass
performance value.
To return to the average bass value hold the BASS key pressed
untilyou hear the warning sound.
K
Operation modes
The set allowsyou to switch between varioussources:
– Radio (BAND and "RDS" keys)
– Cassette ("SRC" key)
– CD changer (ifprovided) ("CD" key)
Ifyou are provide with a CD changer connected to the car audio,
and a cassette inserted, you can switch directly between both
sourcesofsound byusing the "SRC" and "CD" keys.
23 1 456
BASSTREB
BALFLA
A
LENA-004Fig. 4
PTYTPSCAN
LENA
PROG
SRC
RDSBAND
CD
FM
ARN
RDS1
LENA-005Fig. 5
Brief Instructions


10Lena

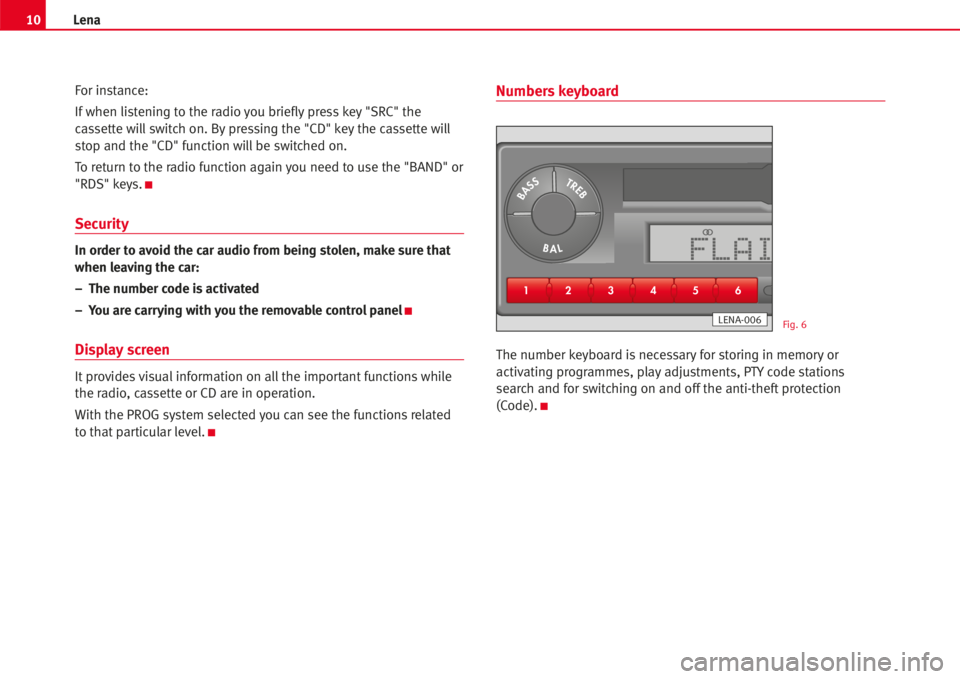

For instance:
Ifwhen listening to the radio you brieflypress key "SRC" the
cassette willswitch on. By pressing the "CD" key the cassette will
stop and the "CD" function willbe switched on.
To return to the radio function again you need to use the "BAND" or
"RDS" keys.
K
Security
In order to avoid the car audio from being stolen, make sure that
when leaving the car:
– The number code is activated
– You are carrying with you the removable control panel
K
Display screen
Itprovides visualinformation on allthe importantfunctionswhile
the radio, cassette or CD are in operation.
With the PROG system selected you can see the functionsrelated
to that particular level.
K
Numbers keyboard
The number keyboard isnecessaryfor storing in memoryor
activating programmes, play adjustments, PTYcode stations
search and for switching on and off the anti-theft protection
(Code).
K
23 1 456
BASSTREB
BALFLAI
LENA-006Fig. 6

11Lena

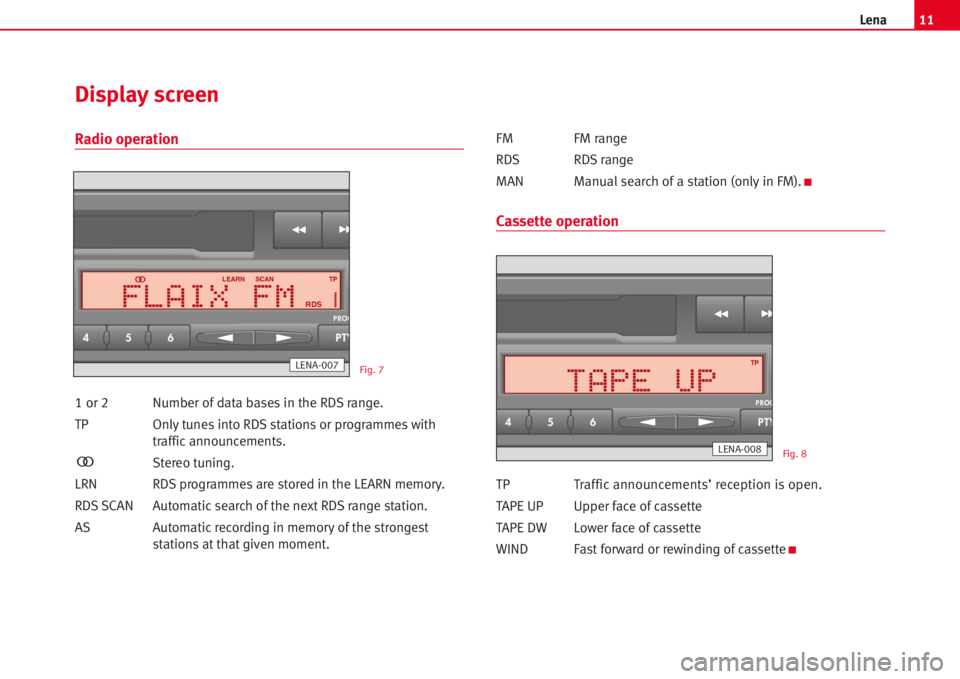

Radio operation
1 or 2Number ofdata basesin the RDSrange.
TPOnlytunesinto RDS stationsor programmeswith
trafficannouncements.
Stereo tuning.
LRN RDS programmes are stored in the LEARN memory.
RDS SCANAutomaticsearch of the next RDSrange station.
AS
Automaticrecording in memory of the strongest
stationsatthatgiven moment.FM FM range
RDS RDSrange
MANManualsearch of a station (onlyin FM).
K
Cassette operation
TP Trafficannouncements’ reception is open.
TAPEUPUpper face of cassette
TAPEDW Lower face of cassette
WIND Fast forward or rewinding of cassette
K
456PTY
PROGFLAIX FM
LEARN
RDS1
SCAN TP
LENA-007Fig. 7
456PTY
PROG TAPE UP
TP
LENA-008Fig. 8
Display screen

12Lena

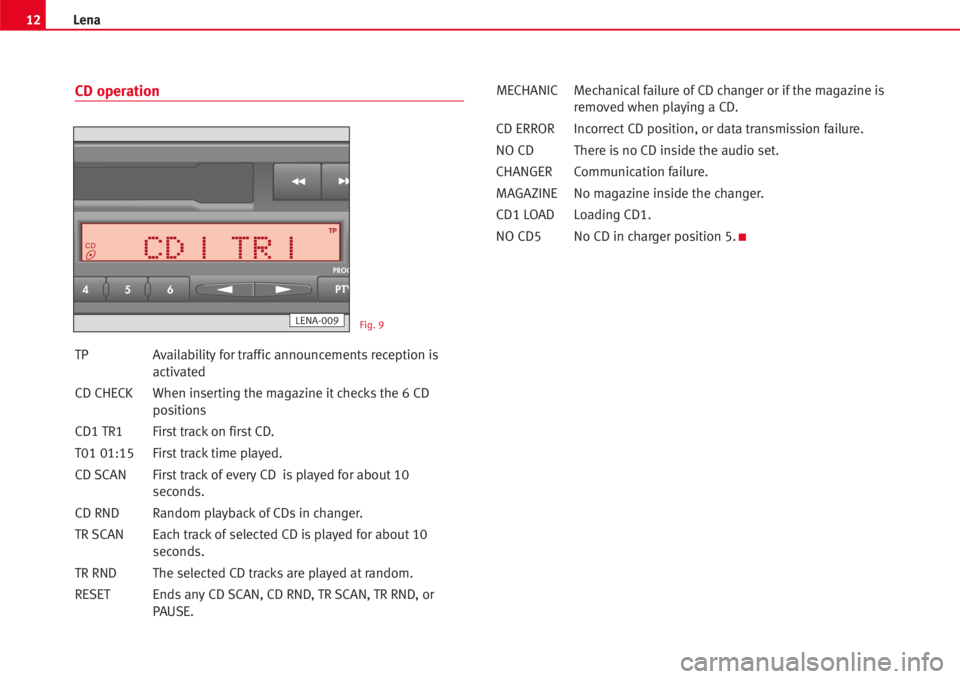

CD operation
TP Availability for trafficannouncementsreception is
activated
CD CHECK When inserting the magazine it checks the 6 CD
positions
CD1 TR1 First track on first CD.
T01 01:15 First track time played.
CD SCANFirst track of every CD isplayed for about10
seconds.
CD RND Rand
om playback of CDsin changer.
TR SCAN Each track of selected CD isplayed for about10
seconds.
TR RNDThe selected CD tracks are played atrandom.
RESETEndsany CD SCAN, CD RND, TR SCAN, TR RND, or
PAUSE.MECHANICMechanicalfailure of CD changer or if the magazine is
re
moved when playing a CD.
CD ERRORIncorrect CD position, or data transmission failure.
NO CDThere isno CD inside the audio set.
CHANGER Communication failure.
MAGAZINE No magazine inside the changer.
CD1 LOADLoading CD1.
NO CD5 No CD in charger position
5.K
456PTY
PROG CD1 TR1
TPCD
LENA-009Fig. 9

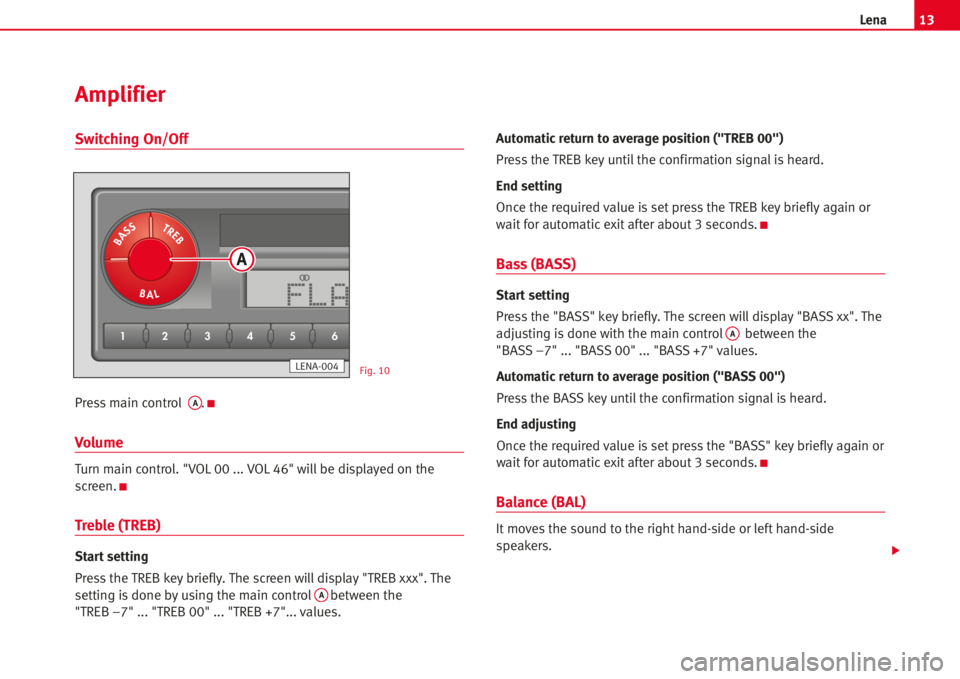

Switching On/Off
Pressmain controlA.K
Volume
Turn main control. "VOL 00 ... VOL 46" willbe displayed on the
screen.
K
Treble (TREB)
Start setting
Press the TREB key briefly. The screen will display "TREB xxx". The
setting isdone byusing the main control
Abetween the
"TREB –7" ... "TREB 00" ... "TREB +7"... values.Automatic return to average position ("TREB 00")
Press the TREB keyuntilthe confirmation signalisheard.
End setting
Once the required value is set press the TREB key brieflyagain or
waitfor automaticexitafter about 3 seconds.
K
Bass (BASS)
Start setting
Press the "BASS" key briefly. The screen will display "BASS xx". The
adjusting isdone with the main control
Abetween the
"BASS –7" ... "BASS 00" ... "BASS +7" values.
Automatic return to average position ("BASS 00")
Press the BASS keyuntilthe confirmation signalisheard.
End adjusting
Once the required value is set press the "BASS" key brieflyagain or
waitfor automaticexitafter about 3 seconds.
K
Balance (BAL)
Itmoves the sound to the right hand-side or left hand-side
speakers.
13Lena
23 1 456
BASSTREB
BALFLA
A
LENA-004Fig. 10
Amplifier


14Lena

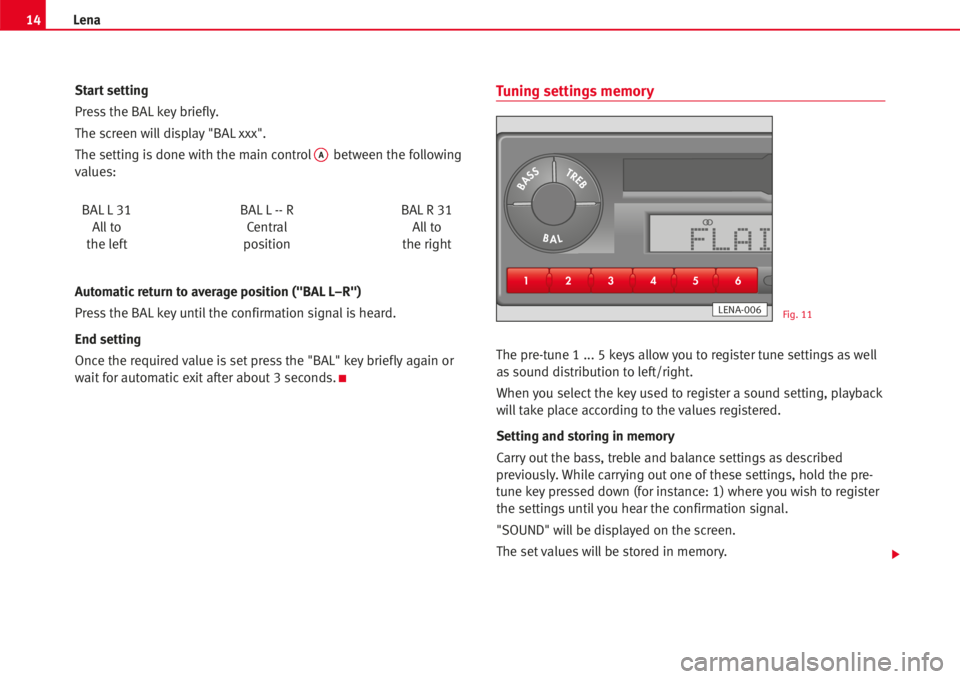

Start setting
Press the BALkeybriefly.
The screen will display "BAL xxx".
The setting isdone with the main control
Abetween the following
values:
BALL31 BAL L -- R BALR 31
Allto CentralAllto
the left positionthe right
Automatic return to average position ("BAL L–R")
Press the BALkeyuntilthe confirmation signalisheard.
End setting
Once the required value is set press the "BAL" key brieflyagain or
waitfor automaticexi
tafter about 3 seconds.K
Tuning settings memory
The pre-tune 1 ... 5 keys allow you to register tune settings aswell
as sound distribution to left/right.
When you select the keyused to register a sound setting, playback
willtake place according to the valuesregistered.
Setting and storing in memory
Carryout the bass, treble and balance settings asdesc
ribed
previously. While carrying outone of these settings, hold the pre-
tune key pressed down (for instance: 1) where you wish to register
the settingsuntilyou hear the confirmation signal.
"SOUND" willbe displayed on the screen.
The set valu
eswillbe stored in memory.
23 1 456
BASSTREB
BALFLAI
LENA-006Fig. 11


15Lena
Call up of stored values
Press on of the BAL, TREB, or BASS keys and then the pre-tune key
with the setting for the values you wish to call up (for instance: 3).
"SOUND 3" willbe displayed on the screen.
Registered valueswillbecome the presentones.
Call up of average values
Press on of the BAL, TREB, or BASS keys and then the pre-tune key
6. "LINEAR"
willbe displayed on the screen.
Allsettings are reset to their average value.
K
Overload protection
High temperatures and/or high volume may create a circuit
reaction.
During this phase, to unload the amplifiers the end stages of the
loudspeakersare disconnected.
K
