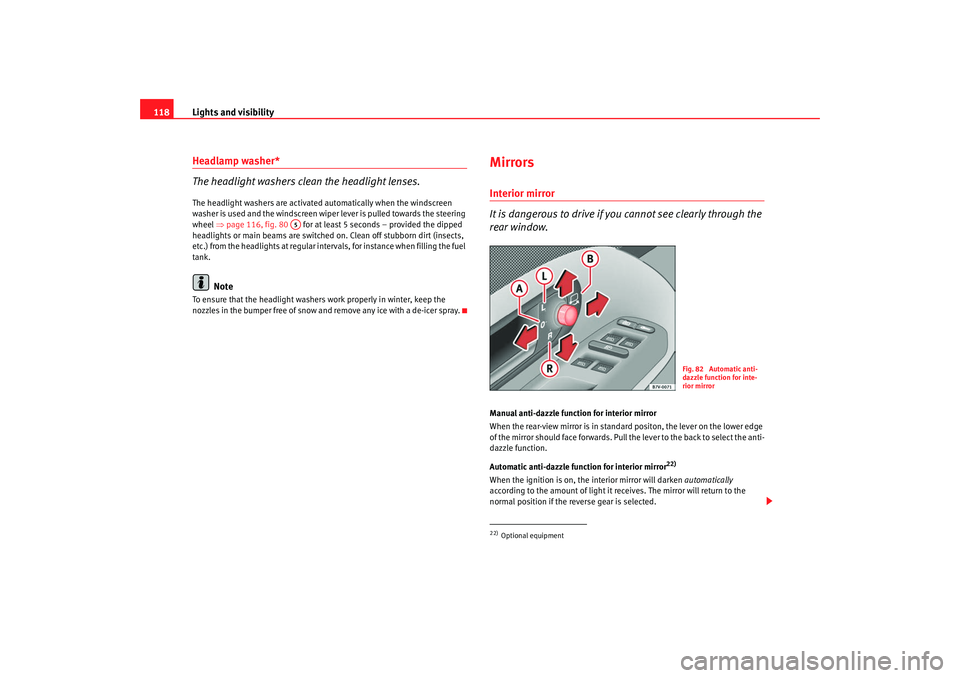

Lights and visibility
118Headlamp washer*
The headlight washers clean the headlight lenses.The headlight washers are activated automatically when the windscreen
washer is used and the windscreen wiper lever is pulled towards the steering
wheel ⇒page 116, fig. 80 for at least 5 seconds – provided the dipped
headlights or main beams are switched on. Clean off stubborn dirt (insects,
etc.) from the headlights at regular intervals, for instance when filling the fuel
tank.
Note
To ensure that the headlight washers work properly in winter, keep the
nozzles in the bumper free of snow and remove any ice with a de-icer spray.
MirrorsInterior mirror
It is dangerous to drive if you cannot see clearly through the
rear window.Manual anti-dazzle function for interior mirror
When the rear-view mirror is in standard positon, the lever on the lower edge
of the mirror should face forwards. Pull the lever to the back to select the anti-
dazzle function.
Automatic anti-dazzle function for interior mirror
22)
When the ignition is on, the interior mirror will darken automatically
according to the amount of light it receives. The mirror will return to the
normal position if the reverse gear is selected.
A5
22)Optional equipment
Fig. 82 Automatic anti-
dazzle function for inte-
rior mirror
alhambra ingles.book Seite 118 Donnerstag, 19. April 2007 4:04 16
Index283
Guide lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . 109HHand brake
warning lamp . . . . . . . . . . . . . . . . . . . . . . . . 179
Handbrake . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 172 Warning lamp . . . . . . . . . . . . . . . . . . . . 76, 172
Hazard warning lights . . . . . . . . . . . . . . . . . . . . 110
head restraints Adjusting . . . . . . . . . . . . . . . . . . . . . . 122, 123
fitting . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Removing . . . . . . . . . . . . . . . . . . . . . . . . . . . 123
Headlamp washer . . . . . . . . . . . . . . . . . . . . . . . 118
Headlight flasher . . . . . . . . . . . . . . . . . . . . . . . . 112
Headlight range control . . . . . . . . . . . . . . . . . . 109
Headlights Driving abroad . . . . . . . . . . . . . . . . . . . . . . . 188
Heated rear window Heating elements . . . . . . . . . . . . . . . . . . . . 143
High pressure cleaners . . . . . . . . . . . . . . . . . . . 195
Hubcaps . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 237IIdentification number . . . . . . . . . . . . . . . . . . . . 258
Ignition key . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Ignition lock . . . . . . . . . . . . . . . . . . . . . . . . . . . . 161
Illumination of instrument s and switches . . . . 109
Indicator lights indication lamp . . . . . . . . . . . . . . . . . . . . . . . 73 Individual opening of doors . . . . . . . . . . . . . . . . 88
Information messages . . . . . . . . . . . . . . . . . . . . 67
Instrument lighting control . .
. . . . . . . . . . . . . . . 61
Instrument panel . . . . . . . . . . . . . . . . . . . . . . . . . 61
Instruments . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 62
Integrated child seat . . . . . . . . . . . . . . . . . . . . . . 52 Adjusting belt routing . . . . . . . . . . . . . . . . . . 53
Cleaning the child seat . . . . . . . . . . . . . . . . . 57
Fastening harness belt . . . . . . . . . . . . . . . . . 54
Group 1 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 52
Group 2 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 55
Group 3 . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 56
Releasing harness belt . . . . . . . . . . . . . . . . . 55
Interior light . . . . . . . . . . . . . . . . . . . . . . . . . . . . 114
Interior lights . . . . . . . . . . . . . . . . . . . . . . . . . . . 113
Interior monitoring system . . . . . . . . . . . . . . . . . 96
Intermittent wipe rear window wiper . . . . . . . . . . . . . . . . . . . . 117
windscreen wiper . . . . . . . . . . . . . . . . . . . . . 116
JJack . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 239
Jump leads . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 249
Jump-starting . . . . . . . . . . . . . . . . . . . . . . . . . . . 249KKey tab . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Key with remote control . . . . . . . . . . . . . . . . . . . 93buttons . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 93 Keys . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 86
Kick-down function . . . . . . . . . . . . . . . . . . . . . . 171
LLifting platform . . . . . . . . . . . . . . . . . . . . . . . . . 255
Lifting the vehicle . . . . . . . . . . . . . . . . . . . . . . . 255
Lighting of controls . . . . . . . . . . . . . . . . . . . . . . . 61
Lights . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 108
Load compartment
See Luggage compartment . . . . . . . . . . . . . . 14
Loading area See Luggage compartment . . . . . . . . . . . . . 142
Locks . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 197
Luggage compartment . . . . . . . . . . . . . . . . 14, 142 See also Luggage compartment . . . . . . 14, 142
Luggage compartment cover . . . . . . . . . . . . . . 145MMain beam . . . . . . . . . . . . . . . . . . . . . . . . . . . . . 112
Main beam headlights Indicator lamp . . . . . . . . . . . . . . . . . . . . . . . . 73
Manual gearbox . . . . . . . . . . . . . . . . . . . . . . . . . 165
Manual mode Climatronic . . . . . . . . . . . . . . . . . . . . . . . . . . 153
Mileage display . . . . . . . . . . . . . . . . . . . . . . . 65, 66
Mirrors Exterior mirrors . . . . . . . . . . . . . . . . . . . . . . 119
Interior mirror . . . . . . . . . . . . . . . . . . . . . . . . 118
Make-up mirrors . . . . . . . . . . . . . . . . . . . . . 114
alhambra ingles.book Seite 283 Donnerstag, 19. April 2007 4:04 16
