Reclining Seatbacks
{CAUTION:
You can lose control of the vehicle if you
try to adjust a manual driver’s seat while
the vehicle is moving. The sudden
movement could startle and confuse you,
or make you push a pedal when you do
not want to. Adjust the driver’s seat only
when the vehicle is not moving.
{CAUTION:
If the seatback is not locked, it could
move forward in a sudden stop or crash.
That could cause injury to the person
sitting there. Always push and pull on the
seatback to be sure it is locked.
Your seats have manual reclining seatbacks. The
lever used to operate them is located on the
outboard side of the seats.
10
ProCarManuals.com

4. Push the latch plate into the buckle until it
clicks. If the belt stops before it reaches the
buckle, let it go back all the way and start
again.
Pull up on the latch plate to make sure it is
secure. If the belt is not long enough,
seeSafety Belt Extender on page 40.
Make sure the release button on the buckle is
positioned so you would be able to unbuckle
the safety belt quickly if you ever had to.
5. If your vehicle is a sedan, move the shoulder
belt height adjuster to the height that is right
for you. Improper shoulder belt height
adjustment could reduce the effectiveness of
the safety belt in a crash. SeeShoulder
Belt Height Adjustment (Sedan) on page 31.6. To make the lap part tight, pull up on the
shoulder belt.
25
ProCarManuals.com

During normal
operation, the security
light will go off
approximately
three seconds after the
key is turned to the
RUN ignition position.
If the engine stalls and the security light ashes,
wait until the light stops ashing before trying
to restart the engine. Remember to release
the key from START as soon as the engine
starts.
If the engine is running and the security light
comes on, you will be able to restart the engine
if you turn the engine off. However, your Passlock
®
system is not working properly and must be
serviced by your retailer. Your vehicle is not
protected by Passlock
®at this time. You may
also want to check the fuses, seeFuses
and Circuit Breakers on page 375. See your
retailer for service.
Starting and Operating
Your Vehicle
New Vehicle Break-In
Notice:Your vehicle does not need an
elaborate break-in. But it will perform better in
the long run if you follow these guidelines:
Do not drive at any one constant speed,
fast or slow, for the rst 500 miles
(805 km). Do not make full-throttle starts.
Do not exceed 5,000 engine rpm. Avoid
downshifting to brake, or slow, the vehicle.
Avoid making hard stops for the rst
200 miles (322 km) or so. During this time
your new brake linings are not yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking-in guideline every time
you get new brake linings.
Do not tow a trailer during the rst
1,000 miles (1 600 km). SeeTowing a Trailer
on page 259for the trailer towing capabilities
of your vehicle and more information.
Following break-in, engine speed and load can
be gradually increased.
104
ProCarManuals.com

Retained Accessory Power (RAP)
Your vehicle has a Retained Accessory Power
(RAP) feature which will allow the radio, wipers,
power windows, sunroof and the rear power outlet
to work after the ignition is turned off.
Your radio will work when the ignition key is in
RUN or ACC (Accessory). Once the key is turned
from RUN to LOCK, the radio will continue to
work for up to 10 minutes or until any door
is opened.
Starting the Engine
Automatic Transaxle
Move the shift lever to PARK (P) or NEUTRAL (N).
The engine will not start in any other position — that
is a safety feature. To restart when you are already
moving, use NEUTRAL (N) only.
Notice:Shifting into PARK (P) with the vehicle
moving could damage the transaxle. Shift
into PARK (P) only when your vehicle is
stopped.
Manual Transaxle
The shift lever should be in NEUTRAL and the
parking brake engaged. Hold the clutch pedal to
the oor and start the engine. Your vehicle
will not start if the clutch pedal is not all the way
down — that is a safety feature.
Starting Procedure
1. With your foot off the accelerator pedal, turn
the ignition to START. When the engine starts,
let go of the key. The idle speed will go down
as your engine gets warm. Do not race the
engine immediately after starting it. Operate
the engine and transaxle gently until the oil
warms up and lubricates all moving parts.
Your vehicle has a Computer-Controlled
Cranking System. This feature assists in
starting the engine and protects the electrical
system. If the ignition key is turned to START,
and then released when the engine begins
cranking, the engine will continue cranking
until the vehicle starts or until it exceeds the
maximum cranking time allowed, approximately
15 seconds to prevent cranking motor damage.
108
ProCarManuals.com

To prevent starter-motor gear damage, this
system also prevents cranking if the engine is
already running. The engine cranking can be
stopped by turning the ignition switch to the
ACC (Accessory) or LOCK.
Notice:Holding your key in START for longer
than 15 seconds at a time will cause your
battery to be drained much sooner. And the
excessive heat can damage your starter motor.
Wait about 15 seconds between each try to
help avoid draining your battery or damaging
your starter.
2. If it does not start, wait about 15 seconds and
try again to start the engine by turning the
ignition to START. Wait about 15 seconds
between each try.
When the engine has run about 10 seconds to
warm up, your vehicle is ready to be driven.
Do not run your engine at high speed
when it is cold.
If the weather is below freezing (32°F or 0°C),
let the engine run for a few minutes to
warm up.3. If the engine still will not start, or starts but
then stops, it could be ooded with too
much gasoline. Try pushing your accelerator
pedal all the way to the oor and holding
it there as you hold the key in START
for about three seconds. If the vehicle starts
briey but then stops again, do the same
thing, but this time keep the pedal down for
ve or six seconds. This clears the extra
gasoline from the engine.
Notice:Your engine is designed to work with
the electronics in your vehicle. If you add
electrical parts or accessories, you could
change the way the engine operates. Before
adding electrical equipment, check with your
retailer. If you do not, your engine might not
perform properly. Any resulting damage would
not be covered by your vehicle’s warranty.
109
ProCarManuals.com

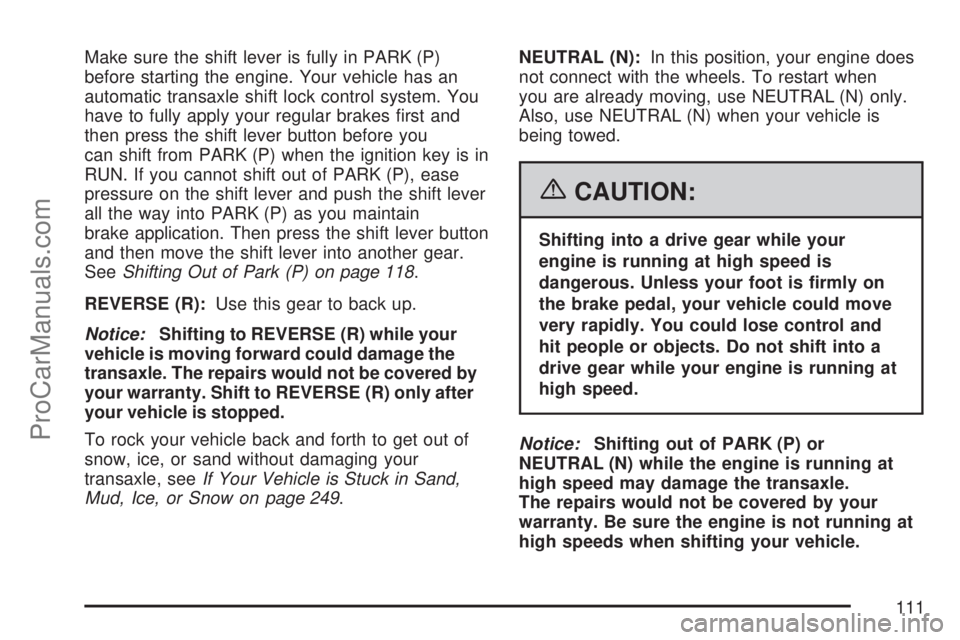

Make sure the shift lever is fully in PARK (P)
before starting the engine. Your vehicle has an
automatic transaxle shift lock control system. You
have to fully apply your regular brakes rst and
then press the shift lever button before you
can shift from PARK (P) when the ignition key is in
RUN. If you cannot shift out of PARK (P), ease
pressure on the shift lever and push the shift lever
all the way into PARK (P) as you maintain
brake application. Then press the shift lever button
and then move the shift lever into another gear.
SeeShifting Out of Park (P) on page 118.
REVERSE (R):Use this gear to back up.
Notice:Shifting to REVERSE (R) while your
vehicle is moving forward could damage the
transaxle. The repairs would not be covered by
your warranty. Shift to REVERSE (R) only after
your vehicle is stopped.
To rock your vehicle back and forth to get out of
snow, ice, or sand without damaging your
transaxle, seeIf Your Vehicle is Stuck in Sand,
Mud, Ice, or Snow on page 249.NEUTRAL (N):In this position, your engine does
not connect with the wheels. To restart when
you are already moving, use NEUTRAL (N) only.
Also, use NEUTRAL (N) when your vehicle is
being towed.
{CAUTION:
Shifting into a drive gear while your
engine is running at high speed is
dangerous. Unless your foot is rmly on
the brake pedal, your vehicle could move
very rapidly. You could lose control and
hit people or objects. Do not shift into a
drive gear while your engine is running at
high speed.
Notice:Shifting out of PARK (P) or
NEUTRAL (N) while the engine is running at
high speed may damage the transaxle.
The repairs would not be covered by your
warranty. Be sure the engine is not running at
high speeds when shifting your vehicle.
111
ProCarManuals.com

Here is how to operate your transaxle:
FIRST (1):Press the clutch pedal and shift into
FIRST (1). Then, slowly let up on the clutch pedal
as you press the accelerator pedal.
You can shift into FIRST (1) when you are going
less than 20 mph (32 km/h). If you have come to a
complete stop and it is hard to shift into FIRST (1),
put the shift lever in NEUTRAL and let up on
the clutch. Press the clutch pedal back down.
Then shift into FIRST (1).
SECOND (2):Press the clutch pedal as you let
up on the accelerator pedal and shift into
SECOND (2). Then, slowly let up on the clutch
pedal as you press the accelerator pedal.
THIRD (3), FOURTH (4) and FIFTH (5):Shift into
THIRD (3), FOURTH (4) and FIFTH (5), the same
way you do for SECOND (2). Slowly let up on the
clutch pedal as you press the accelerator pedal.To stop, let up on the accelerator pedal and press
the brake pedal. Just before the vehicle stops,
press the clutch pedal and the brake pedal, and
shift to NEUTRAL.
NEUTRAL:Use this position when you start or
idle your engine.
REVERSE (R):To back up, press down the
clutch pedal, and shift into REVERSE (R). Let up
on the clutch pedal slowly while pressing the
accelerator pedal.
To back up a Red Line model vehicle, press down
the clutch pedal, lift up the ring on the shift
lever, and shift into REVERSE (R). Let up on the
clutch pedal slowly while pressing the accelerator
pedal.
Notice:Shifting to REVERSE (R) while your
vehicle is moving forward could damage the
transaxle. The repairs would not be covered by
your warranty. Shift to REVERSE (R) only after
your vehicle is stopped.
Also, use REVERSE (R), along with the parking
brake, for parking your vehicle.
113
ProCarManuals.com

Your vehicle’s hydraulic brake system is divided
into two parts. If one part is not working, the other
part can still work and stop you. For good
braking, though, you need both parts working well.
If the brake system warning light comes on,
there is a brake problem. Have your brake system
inspected right away.
When the ignition is on, the BRAKE light will come
on when you set your parking brake. The light
will stay on if your parking brake does not release
fully. A chime will also sound if the parking
brake is not fully released and the vehicle is
moving. If it stays on after your parking brake is
fully released, it means you have a brake problem.
The BRAKE light will also come on to indicate a
low brake uid level. SeeBrakes on page 308
for more information.If the light comes on while you are driving, pull off
the road and stop carefully. You may notice
that the pedal is harder to push or the pedal may
go closer to the oor. It may take longer to
stop. Make sure the parking brake is fully released.
Turn the ignition off and wait several seconds to
restart vehicle, if the light is still on, have the
vehicle towed for service. SeeTowing Your
Vehicle on page 256.
{CAUTION:
Your brake system may not be working
properly if the brake system warning light
is on. Driving with the brake system
warning light on can lead to an accident.
If the light is still on after you have pulled
off the road and stopped carefully, have
the vehicle towed for service.
171
ProCarManuals.com
