If You Do Decide to Pull a Trailer
If you do, here are some important points:
There are many different laws, including speed
limit restrictions, having to do with trailering.
Make sure your rig will be legal, not only where
you live but also where you’ll be driving. A
good source for this information can be state
or provincial police.
Consider using a sway control. You can ask a
hitch retailer about sway controls.
Do not tow a trailer at all during the rst
1000 miles (1600 km) your new vehicle
is driven. Your engine, axle or other parts
could be damaged. The repairs would not be
covered by your warranty.
Then, during the rst 500 miles (805 km) that
you tow a trailer, do not drive over 50 mph
(80 km/h) and don’t make starts at full throttle.
This helps your engine and other parts of
your vehicle wear in at the heavier loads.
Obey speed limit restrictions when towing a
trailer. Do not drive faster than the maximum
posted speed for trailers, or no more than
55 mph (90 km/h), to save wear on your
vehicle’s parts.
Do not tow a trailer when the outside
temperature is above 100°F (38°C).
Three important considerations have to do with
weight:
the weight of the trailer,
the weight of the trailer tongue
and the total weight on your vehicle’s tires.
Weight of the Trailer
How heavy can a trailer safely be?
It should never weigh more than 1,000 lbs (454 kg).
But even that can be too heavy.
It depends on how you plan to use your rig. For
example, speed, altitude, road grades, outside
temperature and how much your vehicle is used to
pull a trailer are all important. It can also depend on
any special equipment that you have on your
vehicle, and the amount of tongue weight the
vehicle can carry. See “Weight of the Trailer
Tongue” later in this section for more information.
260
ProCarManuals.com

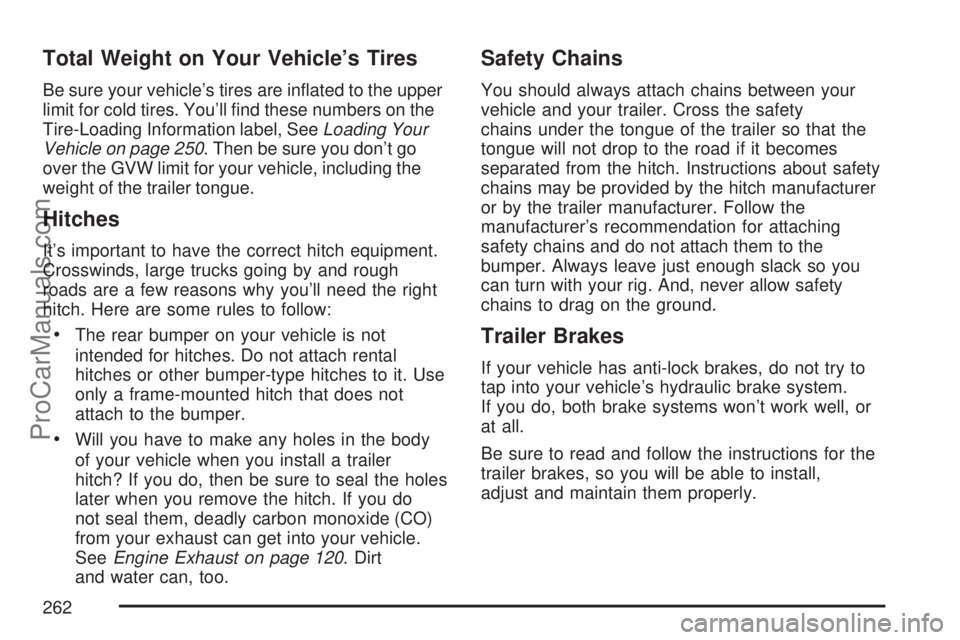

Total Weight on Your Vehicle’s Tires
Be sure your vehicle’s tires are inated to the upper
limit for cold tires. You’ll nd these numbers on the
Tire-Loading Information label, SeeLoading Your
Vehicle on page 250. Then be sure you don’t go
over the GVW limit for your vehicle, including the
weight of the trailer tongue.
Hitches
It’s important to have the correct hitch equipment.
Crosswinds, large trucks going by and rough
roads are a few reasons why you’ll need the right
hitch. Here are some rules to follow:
The rear bumper on your vehicle is not
intended for hitches. Do not attach rental
hitches or other bumper-type hitches to it. Use
only a frame-mounted hitch that does not
attach to the bumper.
Will you have to make any holes in the body
of your vehicle when you install a trailer
hitch? If you do, then be sure to seal the holes
later when you remove the hitch. If you do
not seal them, deadly carbon monoxide (CO)
from your exhaust can get into your vehicle.
SeeEngine Exhaust on page 120. Dirt
and water can, too.
Safety Chains
You should always attach chains between your
vehicle and your trailer. Cross the safety
chains under the tongue of the trailer so that the
tongue will not drop to the road if it becomes
separated from the hitch. Instructions about safety
chains may be provided by the hitch manufacturer
or by the trailer manufacturer. Follow the
manufacturer’s recommendation for attaching
safety chains and do not attach them to the
bumper. Always leave just enough slack so you
can turn with your rig. And, never allow safety
chains to drag on the ground.
Trailer Brakes
If your vehicle has anti-lock brakes, do not try to
tap into your vehicle’s hydraulic brake system.
If you do, both brake systems won’t work well, or
at all.
Be sure to read and follow the instructions for the
trailer brakes, so you will be able to install,
adjust and maintain them properly.
262
ProCarManuals.com

Making Turns
Notice:Making very sharp turns while
trailering could cause the trailer to come in
contact with the vehicle. Your vehicle could be
damaged. Avoid making very sharp turns
while trailering.
When you are turning with a trailer, make wider
turns than normal. Do this so your trailer will
not strike soft shoulders, curbs, road signs, trees
or other objects. Avoid jerky or sudden
maneuvers. Signal well in advance.
Turn Signals When Towing a Trailer
When you tow a trailer, your vehicle may need a
different turn signal asher and/or extra wiring.
See your retailer if you need information.
The arrows on your instrument panel will ash
whenever you signal a turn or lane change.
Properly hooked up, the trailer lamps will also
ash, telling other drivers you are about to turn,
change lanes or stop.When towing a trailer, the arrows on your
instrument panel will ash for turns even if the bulbs
on the trailer are burned out. Thus, you may think
drivers behind you are seeing your signal when
they are not. It’s important to check occasionally to
be sure the trailer bulbs are still working.
Driving on Grades
Notice:Do not tow on steep continuous
grades exceeding 6 miles (9.6 km). Extended,
higher than normal engine and transaxle
temperatures may result and damage your
vehicle. Frequent stops are very important to
allow the engine and transaxle to cool.
Reduce speed and shift to a lower gear before
you start down a long or steep downgrade. If you
do not shift down, you might have to use your
brakes so much that they would get hot and
no longer work well.
On a long uphill grade, shift down and reduce
your speed to around 45 mph (70 km/h) to reduce
the possibility of the engine and the transaxle
overheating. If your engine does overheat,
seeEngine Overheating on page 297.
264
ProCarManuals.com

Parking on Hills
{CAUTION:
You really should not park your vehicle,
with a trailer attached, on a hill. If
something goes wrong, your rig could
start to move. People can be injured, and
both your vehicle and the trailer can be
damaged.
But if you ever have to park your rig on a hill,
here’s how to do it:
1. Apply your regular brakes, but don’t shift into
PARK (P) for an automatic transaxle, or into
gear for a manual transaxle.
When parking uphill, turn your wheels away
from the curb. When parking downhill,
turn your wheels into the curb.
2. Have someone place chocks behind the trailer
wheels.3. When the chocks are in place, release
the regular brakes until the chocks absorb
the load.
4. Reapply the regular brakes. Then apply your
parking brake and shift into PARK (P) for an
automatic transaxle or REVERSE (R) for
a manual transaxle.
5. Release the regular brakes.
When You Are Ready to Leave After
Parking on a Hill
1. Apply your regular brakes and hold the pedal
down while you:
start your engine
shift into a gear, and
release the parking brake.
2. Let up on the brake pedal.
3. Drive slowly until the trailer is clear of the
chocks.
4. Stop and have someone pick up and store the
chocks.
265
ProCarManuals.com

Maintenance When Trailer Towing
Your vehicle will need service more often when
you are pulling a trailer. SeeScheduled
Maintenance on page 391for more information.
Things that are especially important in trailer
operation are automatic transaxle uid (don’t
overll), engine oil, axle lubricant, drive belt,
cooling system and brake system. Each of these
is covered in this manual, and the Index will
help you nd them quickly. If you are trailering,
it’s a good idea to review this information
before you start your trip.
Check periodically to see that all hitch nuts and
bolts are tight.
Engine Cooling When Trailer Towing
Your cooling system may temporarily overheat
during severe operating conditions. SeeEngine
Overheating on page 297.
Changing a Tire When Trailer Towing
If you get a at tire while towing a trailer, be
sure to secure the trailer and disconnect it from
the vehicle before changing the tire.
266
ProCarManuals.com

Service........................................................ 270
Accessories and Modications................... 270
California Proposition 65 Warning.............. 271
Doing Your Own Service Work.................. 271
Adding Equipment to the Outside of
Your Vehicle.......................................... 272
Fuel............................................................. 272
Gasoline Octane........................................ 272
Gasoline Specications.............................. 273
California Fuel........................................... 273
Additives................................................... 273
Fuels in Foreign Countries........................ 274
Filling the Tank......................................... 275
Filling a Portable Fuel Container............... 277
Checking Things Under the Hood.............. 278
Hood Release........................................... 279
Engine Compartment Overview.................. 280
Engine Oil................................................. 283
Engine Oil Life System.............................. 288
Engine Air Cleaner/Filter............................ 290
Automatic Transaxle Fluid......................... 292
Manual Transaxle Fluid............................. 293
Hydraulic Clutch........................................ 293Engine Coolant.......................................... 293
Coolant Surge Tank Pressure Cap............ 297
Engine Overheating................................... 297
Cooling System......................................... 300
Windshield Washer Fluid........................... 307
Brakes...................................................... 308
Battery...................................................... 311
Jump Starting............................................ 312
Headlamp Aiming........................................ 318
Bulb Replacement....................................... 318
Halogen Bulbs........................................... 318
Headlamps (Coupe)................................... 319
Headlamps (Sedan)................................... 320
Front Turn Signal, Parking and Daytime
Running Lamps (DRL) (Coupe).............. 322
Front Turn Signal, Parking and Daytime
Running Lamps (DRL) (Sedan).............. 323
Center High-Mounted
Stoplamp (CHMSL)................................ 324
Taillamps, Turn Signal, Stoplamps and
Back-up Lamps...................................... 324
License Plate Lamp................................... 326
Replacement Bulbs................................... 326
Section 5 Service and Appearance Care
267
ProCarManuals.com

Electrical System........................................ 375
Add-On Electrical Equipment..................... 375
Windshield Wiper Fuses............................ 375
Power Windows and Other Power
Options.................................................. 375Fuses and Circuit Breakers....................... 375
Floor Console Fuse Block......................... 376
Engine Compartment Fuse Block............... 378
Capacities and Specications.................... 384
Section 5 Service and Appearance Care
269
ProCarManuals.com

California Proposition 65 Warning
Most motor vehicles, including this one, contain
and/or emit chemicals known to the State of
California to cause cancer and birth defects or other
reproductive harm. Engine exhaust, many parts and
systems (including some inside the vehicle), many
uids, and some component wear by-products
contain and/or emit these chemicals.
Doing Your Own Service Work
{CAUTION:
You can be injured and your vehicle could
be damaged if you try to do service work
on a vehicle without knowing enough
about it.
Be sure you have sufficient knowledge,
experience, the proper replacement
parts, and tools before you attempt any
vehicle maintenance task.
Be sure to use the proper nuts, bolts,
and other fasteners. English and metric
fasteners can be easily confused. If you
use the wrong fasteners, parts can later
break or fall off. You could be hurt.
If you want to do some of your own service work,
you should use the proper service manual. It
tells you much more about how to service your
vehicle than this manual can. To order the proper
service manual, seeService Publications
Ordering Information on page 425.
271
ProCarManuals.com
