2007 SATURN ION check engine

At Each Fuel Fill
It is important to perform these underhood checks
at each fuel ll.
Engine Oil Level Check
Check the engine oil level and add the proper oil if
necessary. SeeEngine Oil on page 283for
further details.
Notice:It is important to check the engine oil
regularly and keep it at the proper level.
Failure to keep the engine oil at the proper
level can cause damage to the engine not
covered by your warranty.
Engine Coolant Level Check
Check the engine coolant level and add
DEX-COOL®coolant mixture if necessary. See
Engine Coolant on page 293for further details.
Intercooler Coolant Level Check
(2.0L Supercharged Engine)
Check the coolant level and add DEX-COOL®
coolant mixture if necessary. SeeEngine Coolant
on page 293for further details.
Windshield Washer Fluid Level Check
Check the windshield washer uid level in
the windshield washer uid reservoir and add the
proper uid if necessary.
At Least Once a Month
Tire Ination Check
Visually inspect your vehicle’s tires and make sure
they are inated to the correct pressures. Do not
forget to check the spare tire. SeeInation - Tire
Pressure on page 337. Check to make sure the
spare tire is stored securely. SeeChanging a Flat
Tire on page 350.
Tire Wear Inspection
Tire rotation may be required for high mileage
highway drivers prior to the Engine Oil Life System
service notication. Check the tires for wear
and, if necessary, rotate the tires. SeeTire
Inspection and Rotation on page 339.
398
ProCarManuals.com

At Least Once a Year
Starter Switch Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the
vehicle moves, you or others could be
injured.
1. Before you start, be sure you have enough
room around the vehicle.
2. Firmly apply both the parking brake and the
regular brake. SeeParking Brake on
page 115.
Do not use the accelerator pedal, and be ready
to turn off the engine immediately if it starts.3. On automatic transaxle vehicles, try to start
the engine in each gear. The vehicle should
start only in PARK (P) or NEUTRAL (N). If the
vehicle starts in any other position, contact
your Saturn retailer for service.
On manual transaxle vehicles, put the shift
lever in NEUTRAL, push the clutch pedal
down halfway, and try to start the engine.
The vehicle should start only when the clutch
pedal is pushed down all the way to the
oor. If the vehicle starts when the clutch
pedal is not pushed all the way down, contact
your Saturn retailer for service.
399
ProCarManuals.com

Automatic Transaxle Shift Lock Control
System Check
{CAUTION:
When you are doing this inspection, the
vehicle could move suddenly. If the
vehicle moves, you or others could be
injured.
1. Before you start, be sure you have enough
room around the vehicle. It should be parked
on a level surface.
2. Firmly apply the parking brake. SeeParking
Brake on page 115.
Be ready to apply the regular brake
immediately if the vehicle begins to move.
3. With the engine off, turn the ignition to RUN,
but do not start the engine. Without applying
the regular brake, try to move the shift
lever out of PARK (P) with normal effort. If the
shift lever moves out of PARK (P), contact
your Saturn retailer for service.
Ignition Transaxle Lock Check
While parked, and with the parking brake set, try
to turn the ignition to LOCK in each shift lever
position.
With an automatic transaxle, the ignition
should turn to LOCK only when the shift lever
is in PARK (P). The ignition key should
come out only in LOCK.
With a manual transaxle, the ignition key
should come out only in LOCK.
Contact your Saturn retailer if service is required.
400
ProCarManuals.com

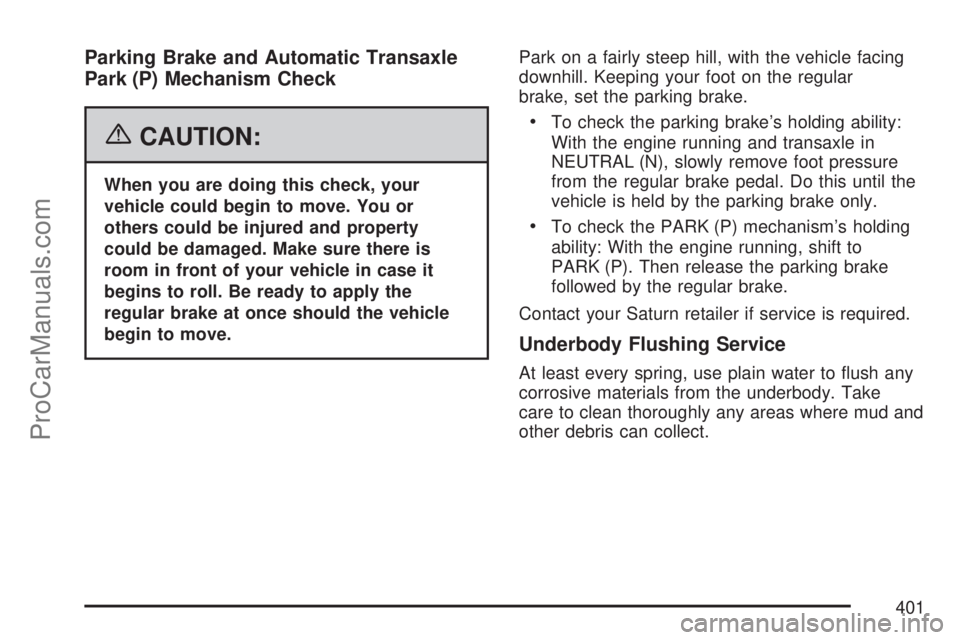

Parking Brake and Automatic Transaxle
Park (P) Mechanism Check
{CAUTION:
When you are doing this check, your
vehicle could begin to move. You or
others could be injured and property
could be damaged. Make sure there is
room in front of your vehicle in case it
begins to roll. Be ready to apply the
regular brake at once should the vehicle
begin to move.Park on a fairly steep hill, with the vehicle facing
downhill. Keeping your foot on the regular
brake, set the parking brake.
To check the parking brake’s holding ability:
With the engine running and transaxle in
NEUTRAL (N), slowly remove foot pressure
from the regular brake pedal. Do this until the
vehicle is held by the parking brake only.
To check the PARK (P) mechanism’s holding
ability: With the engine running, shift to
PARK (P). Then release the parking brake
followed by the regular brake.
Contact your Saturn retailer if service is required.
Underbody Flushing Service
At least every spring, use plain water to ush any
corrosive materials from the underbody. Take
care to clean thoroughly any areas where mud and
other debris can collect.
401
ProCarManuals.com

CD, MP3 ..................................................... 205
Center Console Storage Area...................... 133
Center High-Mounted Stoplamp (CHMSL)..... 324
Chains, Tire................................................. 348
Change Engine Oil Message....................... 183
Check
Engine Light............................................ 174
Check Gage Message................................. 184
Check Gas Cap Message........................... 185
Checking Things Under the Hood................ 278
Chemical Paint Spotting.............................. 373
Child Restraints
Child Restraint Systems............................. 47
Infants and Young Children........................ 44
Lower Anchors and Tethers for Children....... 53
Older Children........................................... 41
Securing a Child Restraint in a
Rear Seat Position................................. 61
Securing a Child Restraint in the
Right Front Seat Position........................ 64
Where to Put the Restraint........................ 52
Cigarette Lighter.......................................... 154
Cleaning
Aluminum Wheels.................................... 371
Exterior Lamps/Lenses............................. 370
Fabric/Carpet........................................... 367
Finish Care.............................................. 370Cleaning (cont.)
Inside of Your Vehicle .............................. 366
Instrument Panel, Vinyl, and Other
Plastic Surfaces.................................... 368
Tires........................................................ 372
Underbody Maintenance........................... 372
Washing Your Vehicle .............................. 369
Weatherstrips........................................... 369
Windshield and Wiper Blades................... 370
Climate Control System......................155, 157
Air Filter, Passenger Compartment........... 161
Outlet Adjustment..................................... 160
Clock..................................................187, 188
Clutch, Hydraulic......................................... 293
Collision Damage Repair............................. 420
Comfort Guides, Rear Safety Belt................. 36
Compact Spare Tire.................................... 365
Compass............................................122, 125
Competitive Driving, Racing or Other........... 234
Content Theft-Deterrent............................... 103
Control of a Vehicle..................................... 222
Convenience Net......................................... 134
Coolant
Engine Temperature Gage........................ 173
Surge Tank Pressure Cap........................ 297
Cooling System........................................... 300
Cruise Control
............................................. 147
429
ProCarManuals.com

Electrical System (cont.)
Fuses and Circuit Breakers...................... 375
Power Windows and Other Power
Options................................................. 375
Windshield Wiper Fuses........................... 375
Engine
Air Cleaner/Filter...................................... 290
Change Oil Message............................... 183
Check and Service Engine Soon Light..... 174
Coolant.................................................... 293
Coolant Temperature Gage...................... 173
Drive Belt Routing.................................... 405
Engine Compartment Overview................ 280
Exhaust................................................... 120
Oil ........................................................... 283
Oil Life System........................................ 288
Overheating............................................. 297
Reduced Power Light............................... 178
Starting.................................................... 108
Enhanced Traction System (ETS)................ 226
Entry Lighting.............................................. 153
Error Message............................................ 185
Event Data Recorders (EDR)...................... 418
Extender, Safety Belt..................................... 40F
Filter
Engine Air Cleaner................................... 290
Finish Damage............................................ 372
Fixed Mast Antenna.................................... 215
Flashers, Hazard Warning........................... 142
Flash-to-Pass.............................................. 145
Flat Tire...................................................... 349
Flat Tire, Changing...................................... 350
Flat Tire, Storing......................................... 362
Fluid
Manual Transaxle..................................... 293
Windshield Washer.................................. 307
Fog Lamp
Fog .......................................................... 152
Folding Rear Seat......................................... 16
Folding Seatback, Passenger........................ 14
Front Turn Signal, Parking and
Daytime Running Lamps.................322, 323
Fuel............................................................ 272
Additives.................................................. 273
California Fuel.......................................... 273
Filling a Portable Fuel Container.............. 277
Filling Your Tank...................................... 275
431
ProCarManuals.com

Fuel (cont.)
Fuels in Foreign Countries....................... 274
Gage....................................................... 179
Gasoline Octane...................................... 272
Gasoline Specications............................ 273
Low Warning Message............................. 185
Fuses
Engine Compartment Fuse Block............. 378
Floor Console Fuse Block........................ 376
Fuses and Circuit Breakers...................... 375
Windshield Wiper..................................... 375
G
Gage
Boost....................................................... 180
Engine Coolant Temperature.................... 173
Fuel......................................................... 179
Speedometer........................................... 165
Tachometer.............................................. 165
Gas, Check Cap Message........................... 185
Gasoline
Octane..................................................... 272
Specications........................................... 273
Glove Box................................................... 133
GM Mobility Reimbursement Program.......... 415
H
Hazard Warning Flashers............................ 142
Head Restraints............................................ 13
Headlamp
Aiming..................................................... 318
Headlamps................................150, 319, 320
Bulb Replacement.................................... 318
Daytime Running Lamps.......................... 151
Flash-to-Pass........................................... 145
Halogen Bulbs......................................... 318
High/Low Beam Changer ......................... 145
Heater................................................155, 157
Height Adjuster, Driver Seat............................ 9
Highbeam On Light..................................... 179
High-Speed Operation, Tires........................ 338
Highway Hypnosis....................................... 242
Hill and Mountain Roads............................. 242
Hood
Checking Things Under............................ 278
Release................................................... 279
Horn............................................................ 142
How to Use This Manual................................ 3
How to Wear Safety Belts Properly............... 24
Hydraulic Clutch.......................................... 293
432
ProCarManuals.com

Locks (cont.)
Power Door............................................... 95
Programmable Automatic Door Locks......... 96
Rear Door Security Locks.......................... 96
Loss of Control........................................... 233
Low Fuel Warning Message........................ 185
Lumbar
Manual Controls.......................................... 9
M
Maintenance Schedule
Additional Required Services.................... 394
At Each Fuel Fill...................................... 398
At Least Once a Month............................ 398
At Least Once a Year.............................. 399
Introduction.............................................. 388
Maintenance Footnotes............................ 395
Maintenance Record................................ 406
Maintenance Requirements...................... 388
Normal Maintenance
Replacement Parts............................... 404
Owner Checks and Services.................... 397
Recommended Fluids and Lubricants....... 402
Scheduled Maintenance........................... 391
Using....................................................... 389
Your Vehicle and the Environment............ 388Malfunction Indicator Light........................... 174
Manual Lumbar Controls................................. 9
Manual Seats.................................................. 8
Manual Transaxle
Fluid........................................................ 293
Operation................................................. 112
Manual Windows......................................... 100
Map Lamps................................................. 153
Message
Center..................................................... 182
Change Engine Oil................................... 183
Check Gage............................................ 184
Check Gas Cap....................................... 185
Cruise Control.......................................... 183
Error........................................................ 185
Low Fuel Warning.................................... 185
Low Traction............................................ 182
Power Steering........................................ 184
Traction Off.............................................. 182
Transaxle Fluid Hot.................................. 183
Trunk Ajar Warning.................................. 184
Mirrors
Automatic Dimming Rearview with
Compass and Temperature Display....... 125
Automatic Dimming Rearview with OnStar
®,
Compass and Temperature Display........ 122
Outside Convex Mirror............................. 129
434
ProCarManuals.com
