A-OpeningluggagecompartmentlidB-Openingenginecompartmentlid
LuggageCompartmentLidand
EngineCompartmentLid
Unlocking
Operatetheappropriatepull-buttonnexttothedriver’sseat.Theluggagecompartmentorenginecompartmentisilluminatedwhentherespectivelidisopen.
Pleaseobservethechapter”LOADSWITCH-OFFAFTER2HOURSOR7DAYS”onpage293.
Theluggagecompartmentlidcanalsobeunlockedwiththeradioremotecontrol.
Pleaseobservethechapter”KEYWITHRADIOREMOTECONTROL”onpage23.
Note
Ifthevehiclebatteryisdischarged,theluggagecompartmentlidcanbeopenedonlybyconnectinganexternalelectricalpowersource.
Pleaseobservethechapter”ELECTRICALSYSTEM”onpage292.
Pleaseobservethedescriptioninsidethefuseboxlid.
Warningmessage
Awarningmessageintheon-boardcomputercomesonifthelidsarenotcompletelyclosed.
Fullyclosethelid.
Openingluggagecompartmentlid
Caution!
Riskofdamagetoluggagecompartmentlidorwindshieldwipers.
Makesurethatthewindshieldwipersarenotfoldedoutforwardswhenopeningtheluggagecompartmentlid.
Raiselidslightlyandunlatchthesafetycatchwiththelever(arrow).
Controls,Instruments175

Pleaseobservethepowerspecificationsfromtheaccessorymanufacturer.
Alarmsystem,centrallocking
Thestatusofthecentrallockingandalarmsystemisnotchangedbydisconnectingthebattery.Whenthebatteryisdisconnected,thealarmsystemceasestofunction.
Overloadprotection
Ifthecentrallockingsystemisoperatedmorethantentimeswithinaminute,furtheroperationisblockedfor30seconds.
Loadswitch-offafter2hoursor7days
Iftheignitionkeyisremoved,loadswhichareswitchedonorareinstandbymode(suchastheluggagecompartmentlight,interiorlightandradio)areautomaticallyswitchedoffafterapprox.2hours.
Ifthevehicleisnotstartedorunlockedwiththeremotecontrolwithin7days,theremotecontrolstandbyfunctionisswitchedoff(tosavethevehiclebattery).
1.Inthiscase,unlockthedriver’sdoorwiththekeyatthedoorlock.Leavethedoorclosedinordertopreventthealarmsystemfrombeingtriggered.
2.Pressbutton1ontheremotecontrol.
Theremotecontrolisnowactivatedagain.

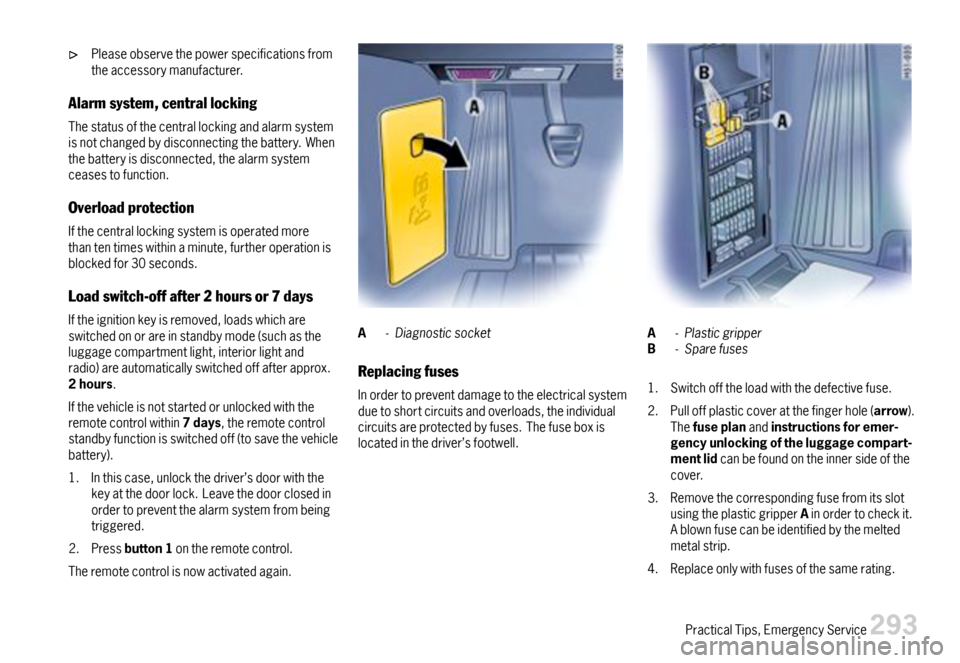

A-Diagnosticsocket
Replacingfuses
Inordertopreventdamagetotheelectricalsystemduetoshortcircuitsandoverloads,theindividualcircuitsareprotectedbyfuses.Thefuseboxislocatedinthedriver’sfootwell.
A-PlasticgripperB-Sparefuses
1.Switchofftheloadwiththedefectivefuse.
2.Pulloffplasticcoveratthefingerhole(arrow).Thefuseplanandinstructionsforemer-gencyunlockingoftheluggagecompart-mentlidcanbefoundontheinnersideofthecover.
3.RemovethecorrespondingfusefromitsslotusingtheplasticgripperAinordertocheckit.Ablownfusecanbeidentifiedbythemeltedmetalstrip.
4.Replaceonlywithfusesofthesamerating.
PracticalTips,EmergencyService293

Note
Ifafuseblowsrepeatedlyconsultanauthor-izedPorschedealer.
Nevertryto“repair”fuses:youmaycauseseriousdamagetootherpartsoftheelectricalsystem.
Emergencyunlockingoftheluggage
compartmentlid
Ifthebatteryisdischarged,thelidcanbeopenedonlywiththeaidofadonorbattery.
Unlockinglid
1.Usethekeytounlockthevehicleatthedoorlock.
2.Removeplasticcoveroverthefusebox.
3.PulloutpositiveterminalAinthefusebox.
4.UseajumpercabletoconnectthepositiveterminalofthedonorbatterywithpositiveterminalAinthefusebox.
Note
Ifthevehiclewaslocked,thealarmhornwillsoundwhenthenegativecableisconnected.
5.UsethesecondjumpercabletoconnectthenegativeterminalofthedonorbatterywithlatchstrikerB.
6.Unlocktheluggagecompartmentlidwiththeremotecontrol.Thealarmsystemisswitchedoff.
7.Disconnectthenegativecablefirst,thenthepositivecable.
8.PushthepositiveterminalAintothefuseboxandpushontheplasticfuseboxcover.
Note
Theenginecannotbestartedwiththismethod.
Pleaseobservethechapter”EMERGENCYSTARTINGWITHJUMPERCABLES”onpage300.
294PracticalTips,EmergencyService
