2007 PONTIAC VIBE remote start

Keys.............................................................. 87
Remote Keyless Entry (RKE) System.......... 89
Remote Keyless Entry (RKE) System
Operation................................................. 90
Doors and Locks.......................................... 92
Door Locks................................................. 92
Power Door Locks....................................... 94
Rear Door Security Locks........................... 95
Liftgate/Liftglass........................................... 96
Windows....................................................... 98
Manual Windows......................................... 99
Power Windows.......................................... 99
Sun Visors.................................................. 99
Theft-Deterrent Systems............................. 100
Content Theft-Deterrent............................. 100
Starting and Operating Your Vehicle......... 102
New Vehicle Break-In................................ 102
Ignition Positions....................................... 103
Starting the Engine.................................... 104
Engine Coolant Heater.............................. 106Automatic Transaxle Operation.................. 108
Overdrive Off............................................. 111
Manual Transaxle Operation...................... 111
Parking Brake........................................... 114
Shifting Into Park (P)
(Automatic Transaxle)............................ 115
Shifting Out of Park (P)
(Automatic Transaxle)............................ 117
Parking Your Vehicle
(Manual Transaxle)................................ 118
Parking Over Things That Burn................. 118
Engine Exhaust......................................... 119
Running the Engine While Parked............. 120
Mirrors......................................................... 121
Manual Rearview Mirror............................. 121
Manual Rearview Mirror with OnStar
®....... 121
Automatic Dimming Rearview Mirror.......... 122
Outside Remote Control Mirrors................ 122
Outside Convex Mirror............................... 123
OnStar
®System.......................................... 123
Section 2 Features and Controls
85

Theft-Deterrent Systems
Vehicle theft is big business, especially in some
cities. Although your vehicle has a number of
theft-deterrent features, we know that nothing we
put on it can make it impossible to steal.
Content Theft-Deterrent
If your vehicle has this feature, the theft-deterrent
system is designed to activate an alarm if any
of the side doors or the liftgate is forcibly unlocked
or if the battery terminal is disconnected and
then reconnected while the system is set.
The alarm will sound the horn intermittently and
ash the headlamps, turn signal lamps and interior
lights. If the driver’s or front passenger’s side
doors are unlocked forcibly, the other side doors
and the liftgate will be locked automatically.
Arming the System
To arm the system, do the following:
1. Turn the ignition key to the LOCK position
and remove it.
2. Close and lock all doors and liftgate with the
key or remote keyless entry transmitter.The indicator light
located on the
instrument panel to the
left of the steering
wheel will come
on when all doors and
liftgate are closed
and locked.
The system will be automatically set after
30 seconds. When the system is set,
the indicator light will start ashing.
3. After the indicator light starts ashing, you
may leave the vehicle.
Do not leave anyone in the vehicle when you
set the system, because unlocking the
vehicle from the inside will activate the system.
100

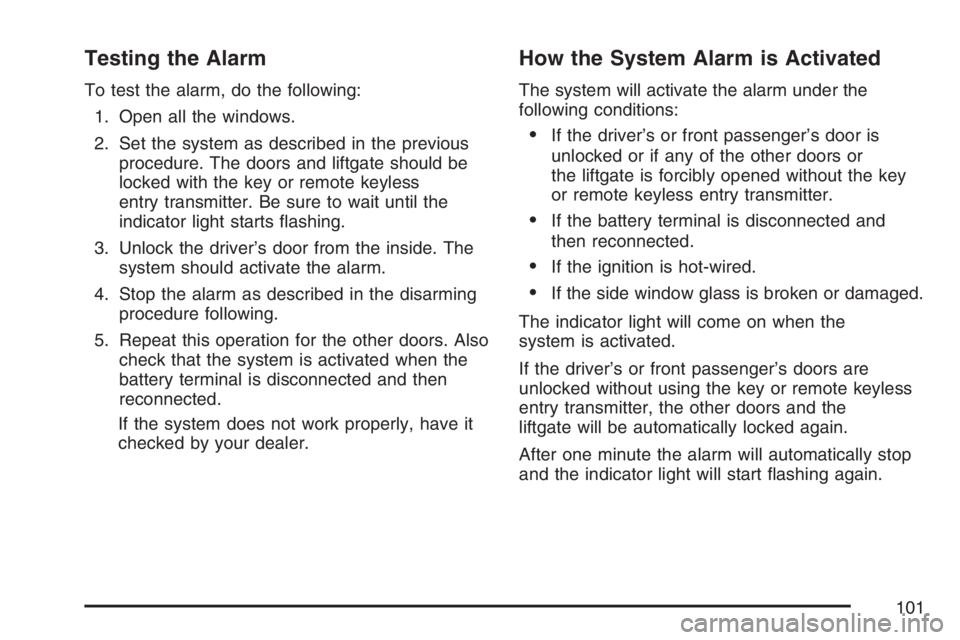

Testing the Alarm
To test the alarm, do the following:
1. Open all the windows.
2. Set the system as described in the previous
procedure. The doors and liftgate should be
locked with the key or remote keyless
entry transmitter. Be sure to wait until the
indicator light starts ashing.
3. Unlock the driver’s door from the inside. The
system should activate the alarm.
4. Stop the alarm as described in the disarming
procedure following.
5. Repeat this operation for the other doors. Also
check that the system is activated when the
battery terminal is disconnected and then
reconnected.
If the system does not work properly, have it
checked by your dealer.
How the System Alarm is Activated
The system will activate the alarm under the
following conditions:
If the driver’s or front passenger’s door is
unlocked or if any of the other doors or
the liftgate is forcibly opened without the key
or remote keyless entry transmitter.
If the battery terminal is disconnected and
then reconnected.
If the ignition is hot-wired.
If the side window glass is broken or damaged.
The indicator light will come on when the
system is activated.
If the driver’s or front passenger’s doors are
unlocked without using the key or remote keyless
entry transmitter, the other doors and the
liftgate will be automatically locked again.
After one minute the alarm will automatically stop
and the indicator light will start ashing again.
101

Reactivating the System
Once the system is set, it will automatically reset
the alarm after the alarm stops. The alarm will
activate again under the same conditions as
described earlier.
Disarming the System
The alarm can be disarmed by doing one of the
following:
Turn the ignition key from LOCK to ON.
Unlock any of the doors with the key or with
the remote keyless entry transmitter.
If the liftgate or liftglass is opened with the
key, the system will still be activated.
Starting and Operating Your
Vehicle
New Vehicle Break-In
Notice:Your vehicle does not need an
elaborate break-in. But it will perform better in
the long run if you follow these guidelines:
Do not drive at any one constant speed, fast
or slow, for the rst 500 miles (805 km). Do
not make full-throttle starts. Avoid
downshifting to brake, or slow, the vehicle.
Avoid making hard stops for the rst
200 miles (322 km) or so. During this time
your new brake linings are not yet broken
in. Hard stops with new linings can mean
premature wear and earlier replacement.
Follow this breaking-in guideline every time
you get new brake linings.
Do not tow a trailer during break-in. See
Towing a Trailer on page 261for the trailer
towing capabilities of your vehicle and more
information.
Following break-in, engine speed and load can
be gradually increased.
102

8. Now connect the black negative (−) cable to
the negative terminal of the good battery. Use
a remote negative (−) terminal if the vehicle
has one.
Do not let the other end touch anything until the
next step. The other end of the negative (−)
cable does not go to the dead battery. It goes to
a heavy, unpainted metal engine part or to a
remote negative (−) terminal on the vehicle with
the dead battery.
9. Connect the other end of the negative (−) cable
at least 18 inches (45 cm) away from the dead
battery, but not near engine parts that move.
The electrical connection is just as good there,
and the chance of sparks getting back to the
battery is much less.
10. Now start the vehicle with the good battery
and run the engine for a while.
11. Try to start the vehicle that had the dead
battery. If it will not start after a few tries, it
probably needs service.Notice:If the jumper cables are connected or
removed in the wrong order, electrical shorting
may occur and damage the vehicle. The repairs
would not be covered by your warranty. Always
connect and remove the jumper cables in the
correct order, making sure that the cables do
not touch each other or other metal.
A. Heavy, Unpainted Metal Engine Part
B. Good Battery
C. Dead Battery
Jumper Cable Removal
314

Engine Compartment Fuse Block
This engine compartment fuse block is located in
the engine compartment on the driver’s side of
the vehicle near the air cleaner. SeeEngine
Compartment Overview on page 282for more
information on location.
Fuses Usage
Empty Not Used
SPARE Spare Fuse
SPARE Spare Fuse
SPARE Spare Fuse
ETCS Electronic Throttle Control System
Fuses Usage
ABS NO. 2Anti-lock Brake System
(Without Stability Control System)
RDI FAN Electric Cooling Fan
ABS NO. 1Anti-lock Brake System
(With Stability Control System)
FOG Front Fog Lamps
EFI2Multiport Fuel Injection System/
Sequential Multiport Fuel Injection
System, Emission Control System
EFI3Multiport Fuel Injection System/
Sequential Multiport Fuel Injection
System, Emission Control System
HEAD MAINRight Headlamp, Left Headlamp
Fuses
ALT-S Charging System
EFI Electronic Fuel Injection System
HAZARDTurn Signal Lamps, Emergency
Flasher
HORN Horn
DOMEInterior Lights, Gauges and Meters,
Audio System, Remote Keyless
Entry System, Navigation System
(If Equipped)
MAIN Starter System, AM2 Fuse
AMP Audio System
367
