2007 Peugeot 807 Dag Owner's Manual

1
2
34
1
95
04 AUDIO
RADIO
SELECTING A STATION
RADIO
STORING A STATION
Press the SOURCE button several
times in succession and select the
RADIO.
Press the BAND/AST button to select
a waveband: FM1, FM2, FMast, AM.
Briefly press one of the buttons to carry
out an automatic search of the radio
stations.
Press one of the buttons on the
alphanumeric keypad for more than
2 seconds to store the frequency
of the current station.
Press one of the buttons to carry out a
manual search of the radio stations.
Press the LIST button to display the list
of stations received locally.
To update this list, press for more than
two seconds.

1
21
2
3
96

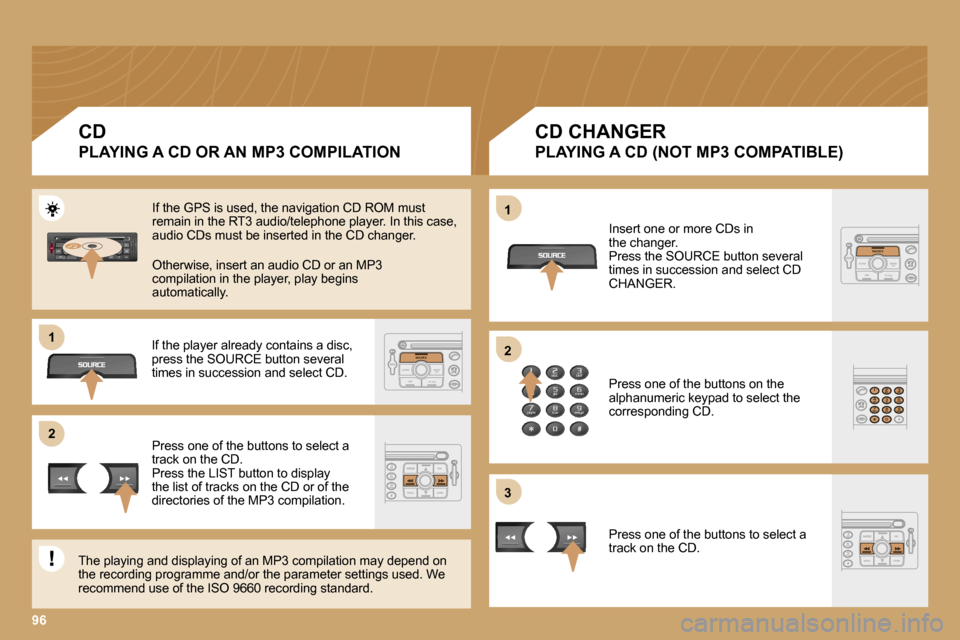

CD
PLAYING A CD OR AN MP3 COMPILATION
CD CHANGER
PLAYING A CD (NOT MP3 COMPATIBLE)
If the GPS is used, the navigation CD ROM must
remain in the RT3 audio/telephone player. In this c
ase,
audio CDs must be inserted in the CD changer.
Otherwise, insert an audio CD or an MP3
compilation in the player, play begins
automatically.
If the player already contains a disc,
press the SOURCE button several
times in succession and select CD.
Press one of the buttons to select a
track on the CD.
Press the LIST button to display
the list of tracks on the CD or of the
directories of the MP3 compilation. Insert one or more CDs in
the changer.
Press the SOURCE button several
times in succession and select CD
CHANGER.
Press one of the buttons on the
alphanumeric keypad to select the
corresponding CD.
Press one of the buttons to select a
track on the CD.
The playing and displaying of an MP3 compilation ma y depend on
the recording programme and/or the parameter settin gs used. We
recommend use of the ISO 9660 recording standard.

1
2
31
2
97

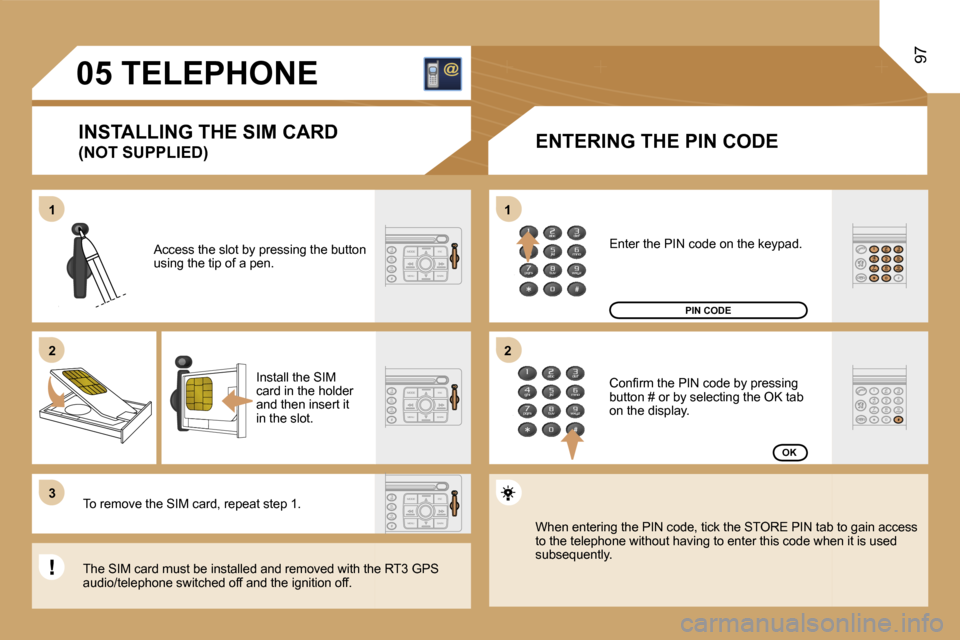

05 TELEPHONE
INSTALLING THE SIM CARD
(NOT SUPPLIED) ENTERING THE PIN CODE
Access the slot by pressing the button
using the tip of a pen.
Install the SIM
card in the holder
and then insert it
in the slot.
To remove the SIM card, repeat step 1.
The SIM card must be installed and removed with the RT3 GPS
audio/telephone switched off and the ignition off. Enter the PIN code on the keypad.
Confirm the PIN code by pressing
button # or by selecting the OK tab
on the display.
PIN CODE
OK
When entering the PIN code, tick the STORE PIN tab to gain access
to the telephone without having to enter this code when it is used
subsequently.

98
1
2
3
45
6
1
1
05 TELEPHONE
CALLING A CONTACT
Turn the dial and select the DIAL
function.Press the PICK UP button to display
the superimposed telephone menu.
Press the dial to confirm the selection.
Dial the telephone number of your
contact using the alphanumeric
keypad. Press the PICK UP button to call the
number dialled.
Press the HANG UP button to end the
call.
ACCEPTING OR REFUSING A CALL
Press the PICK UP button.
Press the HANG UP button.
The call will then be transferred to your
voice mailbox.
DIAL

1
2
3
99

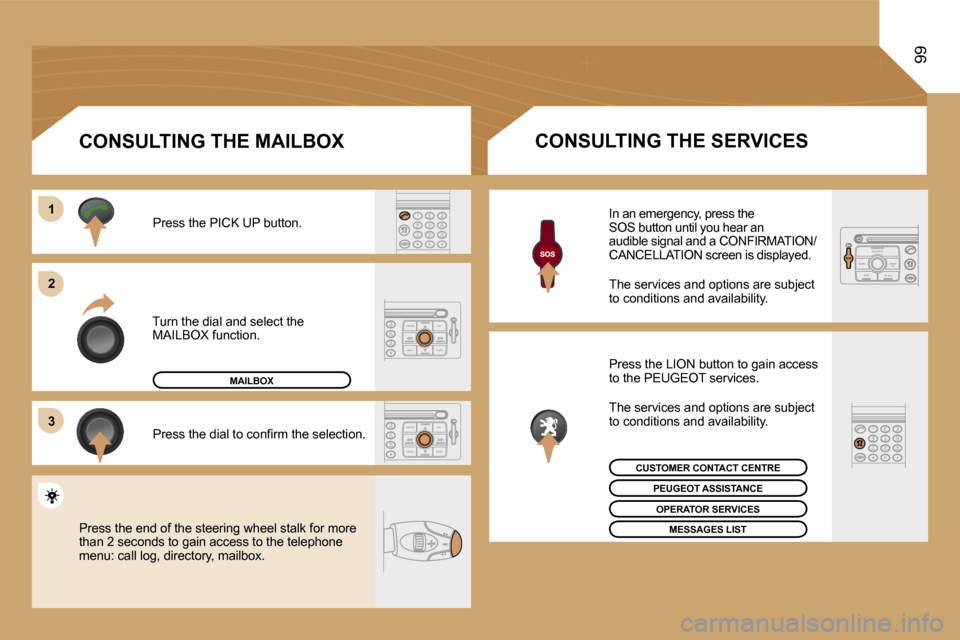

Turn the dial and select the
MAILBOX function.Press the PICK UP button.
Press the dial to confirm the selection.
CONSULTING THE MAILBOX
CONSULTING THE SERVICES
Press the LION button to gain access
to the PEUGEOT services.
The services and options are subject
to conditions and availability.
In an emergency, press the
SOS button until you hear an
audible signal and a CONFIRMATION/
CANCELLATION screen is displayed.
The services and options are subject
to conditions and availability.
OPERATOR SERVICES
MAILBOX
MESSAGES LIST
PEUGEOT ASSISTANCE
CUSTOMER CONTACT CENTRE
Press the end of the steering wheel stalk for more
than 2 seconds to gain access to the telephone
menu: call log, directory, mailbox.

3
100

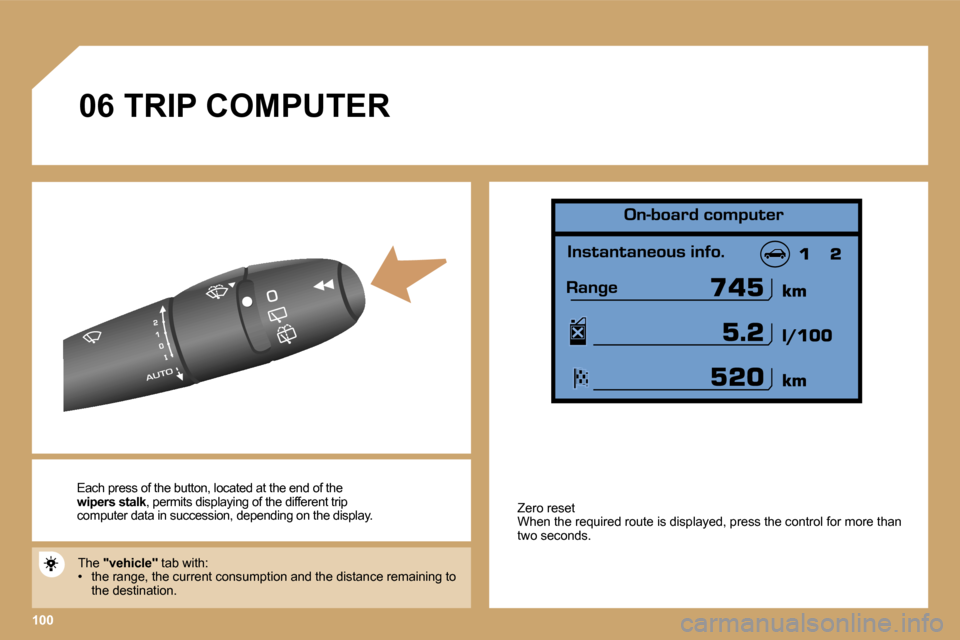

06 TRIP COMPUTER
Each press of the button, located at the end of the
wipers stalk , permits displaying of the different trip
computer data in succession, depending on the displ ay.
The "vehicle" tab with:
• the range, the current consumption and the distan ce remaining to
the destination. Zero reset
When the required route is displayed, press the con
trol for more than
two seconds.

101
A few definitions
Range: Displays the distance which can be travelled with t he remaining fuel
detected in the tank, in relation to the average co nsumption over the last few
miles (kilometres).
This displayed value may vary significantly following a change in the
vehicle speed or the relief of the route.
When the range falls below 20 miles (30 km), dashes are displayed. After
filling with at least 5 litres of fuel, the range is recalculat ed and is displayed
when it exceeds 60 miles (100 km).
If, whilst driving, dashes are displayed continuous ly in place of digits, contact
a PEUGEOT dealer.
Current consumption: only calculated and displayed above 20 mph (30
km/h).
Average consumption: this is the average quantity of fuel consumed since
the last trip recorder zero reset.
Distance travelled: calculated since the last trip computer zero reset.
Distance remaining to the destination: calculated with reference to the
final destination, entered by the user. If guidance is activa ted, the navigation
system calculates it as a current value.
Average speed: this is the average speed calculated since the last trip
computer zero reset (ignition on).
06 TRIP COMPUTER
Tab "1" (route 1) with:
• the average speed, the average consumption and th e distance
travelled calculated over route "1".
Tab "2" (route 2) with the same functions for a second rou te.

102

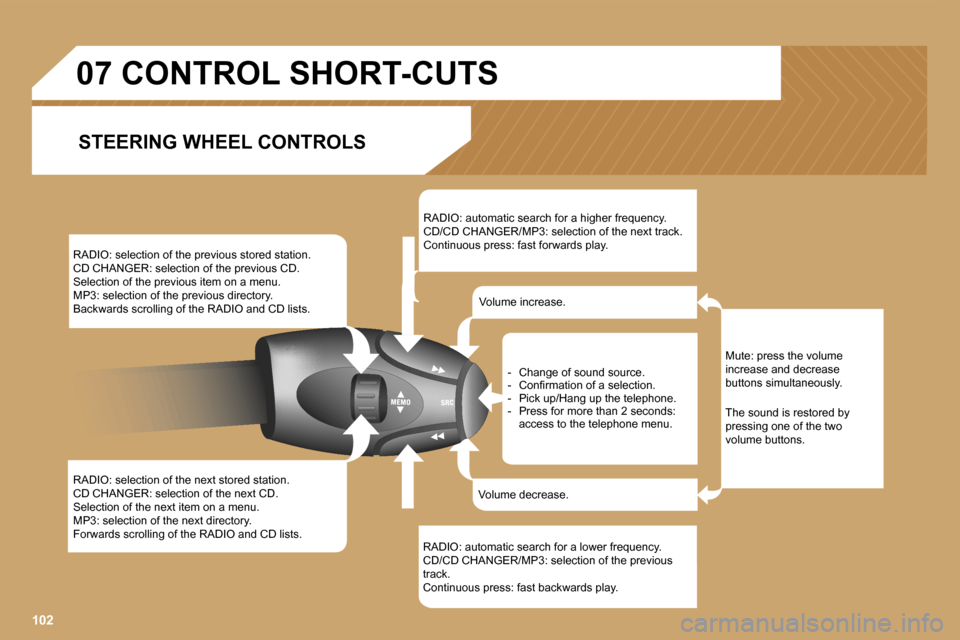

RADIO: selection of the previous stored station.
CD CHANGER: selection of the previous CD.
Selection of the previous item on a menu.
MP3: selection of the previous directory.
Backwards scrolling of the RADIO and CD lists.
RADIO: selection of the next stored station.
CD CHANGER: selection of the next CD.
Selection of the next item on a menu.
MP3: selection of the next directory.
Forwards scrolling of the RADIO and CD lists.RADIO: automatic search for a higher frequency.
CD/CD CHANGER/MP3: selection of the next track.
Continuous press: fast forwards play.
RADIO: automatic search for a lower frequency.
CD/CD CHANGER/MP3: selection of the previous
track.
Continuous press: fast backwards play. - Change of sound source.
- Confirmation of a selection.
- Pick up/Hang up the telephone.
- Press for more than 2 seconds:
access to the telephone menu.
Volume increase.
Volume decrease.
07 CONTROL SHORT-CUTS
STEERING WHEEL CONTROLS
Mute: press the volume
increase and decrease
buttons simultaneously.
The sound is restored by
pressing one of the two
volume buttons.
